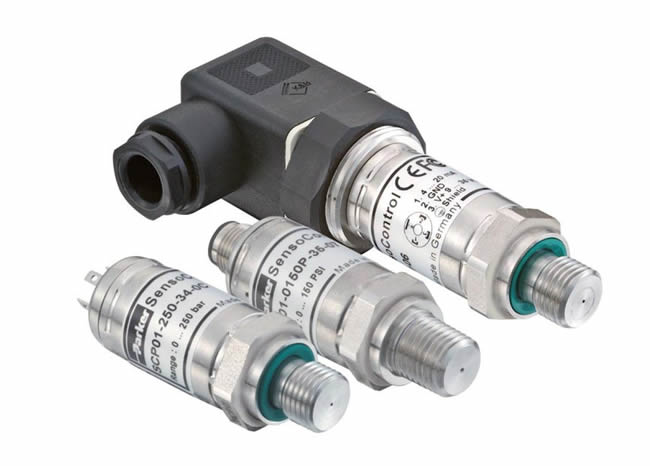

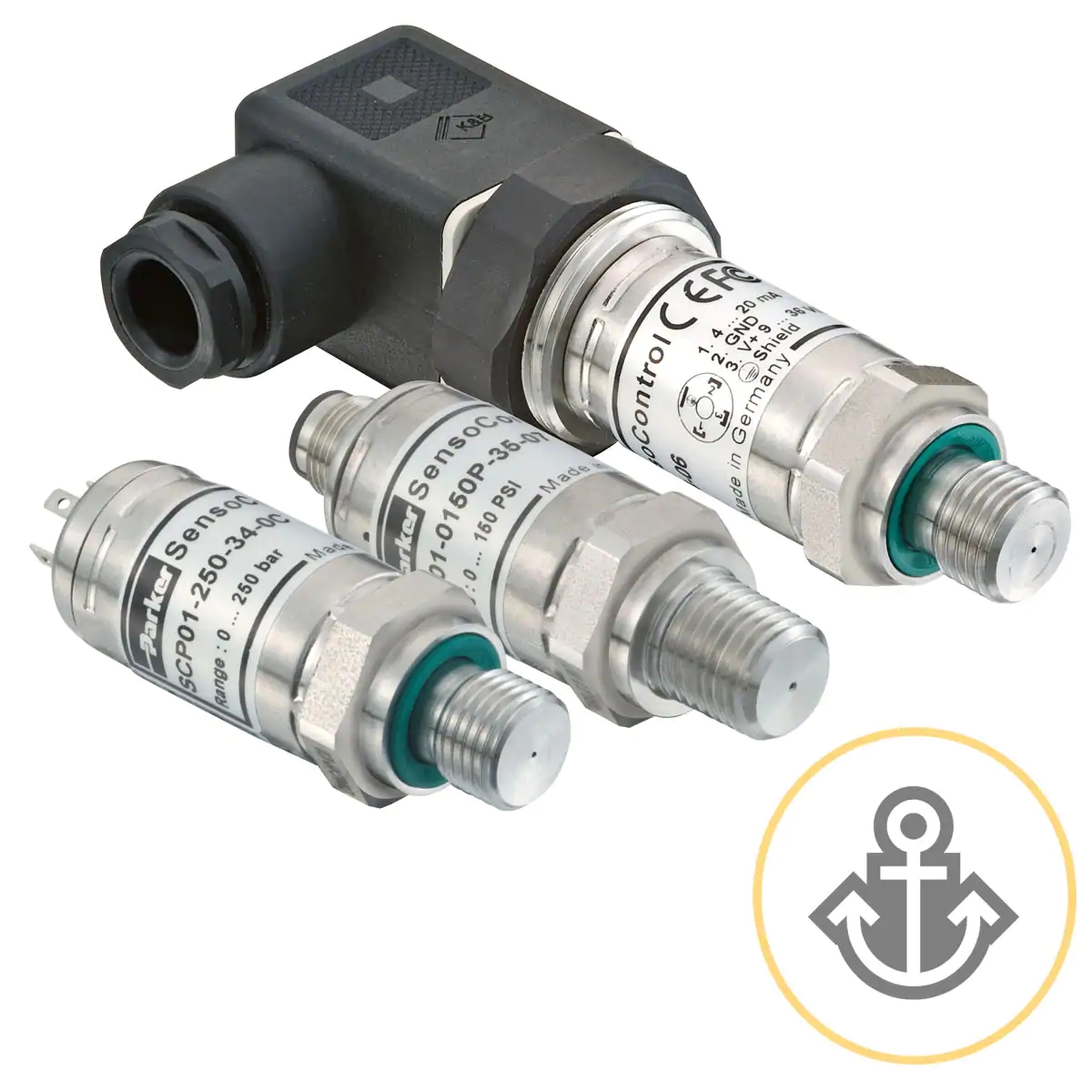

Parker的SCP是一系列用于移动液压应用的紧凑型压力传感器。SCP具有坚固的不锈钢结构。它的传感器单元采用薄膜技术，没有内部O形圈或流体。高压能力使传感器非常坚固并且能够承受振动。派克的SCP传感器系列是一系列紧凑型压力传感器，用于移动液压应用。该传感器具有结构紧凑，线性度高和出色的抗电磁干扰性。Parker派克迷你型派克SCP压力传感器符合工业应用要求，主要用于控制、调节和监测系统，输出随压力变化的模拟信号。迷你型派克SCP压力传感器由于其紧凑的结构、高线性和优秀的抗干扰能力而备受关注。
Pressure Sensors SCP01 High Pressure 316 Stainless Steel
SCP01压力传感器优势与优点
- 符合工业应用要求，主要用于控制、调节和监测系统
- 介质温度范围-40 ~ 125°C，最高量程可至1000 bar，高爆破压力
- 结构紧凑，线性度高，抗干扰能力强。其响应速度高(1ms)，因此适用于快速控制的解决方案
SCP压力传感器在3个压力范围内可用。
- 35 bar（500 psi）
- 250 bar（3625 psi）
- 500 bar（7250 psi）
信号范围非常适合移动设备，在传感器的整个范围内为0.5-4.5 VDC。 SCP具有紧凑的高度，9 / 16-18 UNC（6 SAE）螺纹接口和集成的Deutsch DT连接器。
这使得SCP非常适合建筑和其他移动应用。
市场：
- 建筑设备
- 林业设备
- 农业机械
- 物料搬运设备
- 采矿
特性/优点：
- 不锈钢主体以增强强度。
- 3个压力范围，用于监视高压或低压功能。
- 紧凑的尺寸允许在任何应用中使用。
- 针对移动设备量身定制的输出信号。
应用范围：
- 垃圾车
- 喷雾器
- 叉车和伸缩叉车
- 堆垛机和货运代理
- 凿岩机
迷你型派克SCP压力传感器应用
多种信号输出形式和插口形式使该传感器具有广泛的应用范围。由于它的一系列优点：耐久性、高精度、高可靠性及坚固的不锈钢结构，该迷你型派克SCP压力传感器非常适合在液压和气动设备中长期使用。
SensoControl Industrial Pressure Sensor | SCP01 Series
SCP01 Pressure Sensor SCP01 Pressure Sensors are industrial pressure sensors offering long-term stability, resistance to interference and rugged construction. They are available in a wide range of standard and configured to order versions to meet your application needs. These sensors are manufactured with the highest quality standards for reliable and repeatable measurements.
SCP01 Series Pressure Sensor Applications & Features
Applications Include:
Test & Measurement
Hydraulic Power Units
Power Generation
Mobile Hydraulics
Features:
Stainless Steel body
Compact construction
Shock & vibration proof
Resistant to pressure spikes
Accuracy +/- 0.5% FS
SCP01 Series Pressure Sensors
| Part Number |
Pressure Range (PSI) |
Electrical Ouput |
Port Connection |
Electrical Connection |
| SCP01-0060P-25-07 |
-14.5 to 60 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-0060P-27-07 |
-14.5 to 60 |
4 - 20 mA, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0060P-35-07 |
-14.5 to 60 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-0060P-37-07 |
-14.5 to 60 |
4 - 20 mA, 2 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0060P-47-07 |
-14.5 to 60 |
0 -10V, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0150P-25-07 |
-14.5 to 150 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-0150P-27-07 |
-14.5 to 150 |
4 - 20 mA, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0150P-35-07 |
-14.5 to 150 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-0150P-37-07 |
-14.5 to 150 |
4 - 20mA, 2 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0150P-47-07 |
-14.5 to 150 |
0 -10V, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0250P-25-07 |
-14.5 to 250 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-0250P-27-07 |
-14.5 to 250 |
4 - 20 mA, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0250P-35-07 |
-14.5 to 250 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-0250P-37-07 |
-14.5 to 250 |
4 - 20 mA, 2 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0250P-47-07 |
-14.5 to 250 |
0 -10V, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-1000P-25-07 |
0 to 1000 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-1000P-27-07 |
0 to 1000 |
4 - 20 mA, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-1000P-35-07 |
0 to 1000 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-1000P-37-07 |
0 to 1000 |
4 - 20 mA, 2 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-1000P-47-07 |
0 to 1000 |
0 -10V, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-3000P-25-07 |
0 to 3000 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-3000P-27-07 |
0 to 3000 |
4 - 20 mA, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-3000P-35-07 |
0 to 3000 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-3000P-37-07 |
0 to 3000 |
4 - 20 mA, 2 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-3000P-47-07 |
0 to 3000 |
0 -10V, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-5000P-25-07 |
0 to 3000 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-5000P-27-07 |
0 to 5000 |
4 - 20 mA, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-5000P-35-07 |
0 to 5000 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-5000P-37-07 |
0 to 5000 |
4 - 20 mA, 2 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-5000P-47-07 |
0 to 5000 |
0 -10V, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-9000P-25-07 |
0 to 9000 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-9000P-35-07 |
0 to 9000 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X, 4 pin |
| SCP01-9000P-45-07 |
0 to 9000 |
0 -10V, 3 wire |
1/4 NPT male |
M12 X, 4 pin |

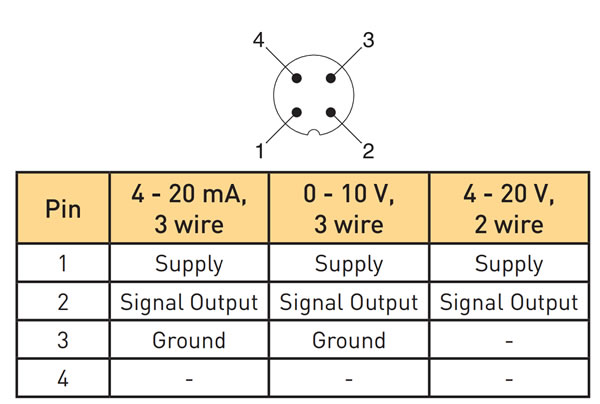

General Data |
Electrical Protection |
Short circuit, reverse polarity, overload production |
Supply Voltage |
9-30VDC - 4-20mA, 3-wire 12-30VDC – 4-20 mA, 2-wire / 0-10V, 3-wire |
Temperature Range: |
Enviromental |
-40° F to 185° F |
Media, Storage |
40° F to 257° F |
Compensated |
4° F to 185° F |
Temperature Coefficient |
< +/- 0.3% FS/10K |
Vibration Resistance |
Meets IEC 60068-2-29 |
Shock Resistance |
Meets IEC 60068 2-32 |
EMI Compatibility |
DIN EN 61000-6-3
DIN EN 61000-6-2 |

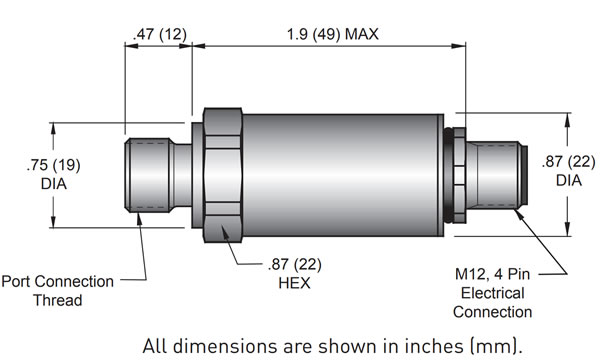

| sical Properties |
| Material Housing |
304 SS |
| Material Fitting |
630 SS |
| Material Seal |
Fluorocarbon |
| Sensing Element |
Thin Film (poly Si on SiO2 ) |
| Pressure Bore |
0.024 in |
| Long Term Stability |
< 0.1% FS/a |
| Load Reversals |
> 20 M |
| Technical Specifications |
| Overload Pressure |
200% FS |
| Burst Pressure |
250% FS |
| Accuracy |
+/- 0.5% FS |
| Protection Class |
IP67 |
| Response Time |
< 1ms |
| Long Term Stability |
< 0.1% FS/a |
| Load Reversals |
> 20 M |
|
迷你型派克SCP压力传感器常见型号如下:
SCP-010-14-06 SCP-010-34-06 SCP-010-34-07 SCP-016-14-06
SCP-016-44-06 SCP-025-34-06 SCP-025-34-07 SCP-040-44-06
SCP-060-14-06 SCP-060-24-06 SCP-060-24-07 SCP-060-34-07
SCP-060-44-07 SCP-060-B4-07-MO SCP-100-14-06 SCP-100-24-06
SCP-100-24-07 SCP-100-34-06 SCP-100-34-07 SCP-100-44-07
迷你型派克SCP压力传感器
SCP-160-14-06 SCP-160-24-06 SCP-160-24-07 SCP-160-34-06
SCP-160-44-06 SCP-160-A4-07-MO SCP-250-14-06 SCP-250-24-06
SCP-250-24-07 SCP-250-34-06 SCP-250-34-07 SCP-250-44-06
SCP-250-44-07 SCP-400-14-06 SCP-400-14-07 SCP-400-24-06
SCP-400-24-07 SCP-400-34-06 SCP-400-34-07 SCP-400-44-06
SCP-400-44-07 SCP-600-14-06 SCP-600-24-06 SCP-600-24-07
SCP-600-34-06 SCP-600-34-07 SCP-600-44-06 SCP-600-44-07
Ordering part numbers 2)

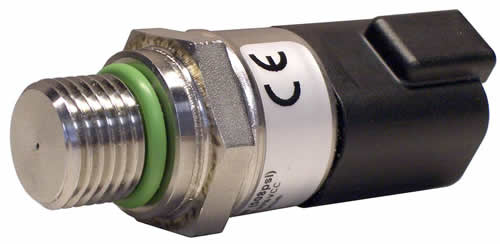

Model code Part number
SCP05-035-R6-0D-ECD 2820012
SCP05-500-R6-0D-ECD 2820013
SCP05-250-R6-0D-ECD 2820016
迷你型派克SCP压力传感器及电缆选型
|
