Parker派克阀组 - H 系列2 /3 /5 阀组

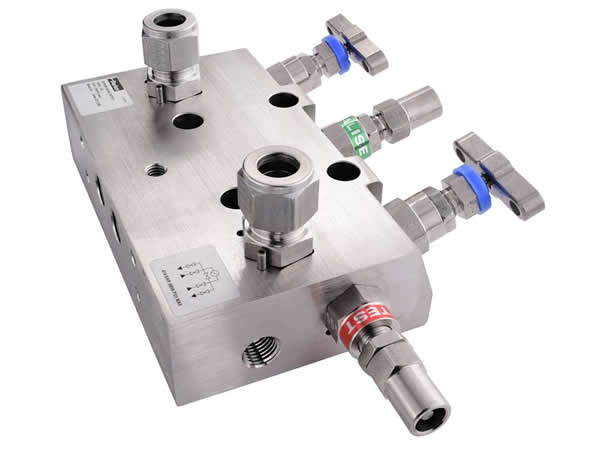

Parker 2, 3 and 5 Valve Manifolds - H Series HDS5M
Parker's manifold valve


派克阀组提供远程和直接安装的优越性能阀组，适合所有仪表安装、说明和应用派克远程和直接安装阀组广泛应用于过程仪表行业，适合不同类型的仪表安装，规范和应用。可选单隔离-单排放，双隔离-双排放，双隔离-双平衡，双隔离-双平衡-双排放。派克 H 系列阀组中针阀阀座及填料标准材料为 PTFE，PEEK 阀座和石墨填料可选.针阀使用标准截止型阀帽设计，具有安全、稳定和可重复的性能。它们具有方爆裂阀杆、 自动定心, 非旋转阀针和外部可调填料帽。作为标准，针阀有金属-金属阀座，实现气密关闭，和 PTFE 填料。石墨填料和 PEEK 或 PCTFE 软阀针用于燃气行业可选。更有防误操作阀杆，以及可锁定手轮和T型手柄.大多数 H 系列阀门和阀组标准材料为 316 不锈钢。氧气吹扫，符合NACE 标准和其他材料可选。作为标准，元件工作压力可达 10000 PSI (689 bar)。操作温度依赖于指定的的阀座和填料材质。

Parker's manifold valve offers superior performance with a comprehensive range of remote and direct mount manifolds to suit all types of instrumentation installations, specifications and applications.Parker's remote and direct mount manifolds are one of the most extensive in the process instrumentation industry and accommodates all types of instrumentation installations, specifications and applications. There is a choice of single-isolate-and-vent, double-isolate-and-vent, double-isolate-and-equalise, and double-isolate-equalise-and-double-vent block configurations. All needle valves in Parker’s H series manifold valves have PTFE seats and gland packing as standard, with PEEK seats and graphoil gland packing options.The needle valves use a standard globe style bonnet design for safe, reliable and repeatable performance. They feature an anti-blowout stem, a self centering, non-rotating spindle tip and an externally adjustable gland. As standard, the needle valves have metal-to-metal seats to ensure 100% bubble-tight shut-off, and PTFE gland packing. Graphoil gland packing and PEEK or PCTFE soft tips for gas applications are available. Further options include anti-tamper spindles, as well as lockable handwheels and T-bars.Most of the valves and manifolds in this series are manufactured from 316 stainless steel. Oxygen clean, NACE compliant and other types of materials are also available. As standard, the components have a maximum working pressure of 10000 PSI (689 bar). The operating temperature range depends on the type of valve seat and gland packing material that is specified.

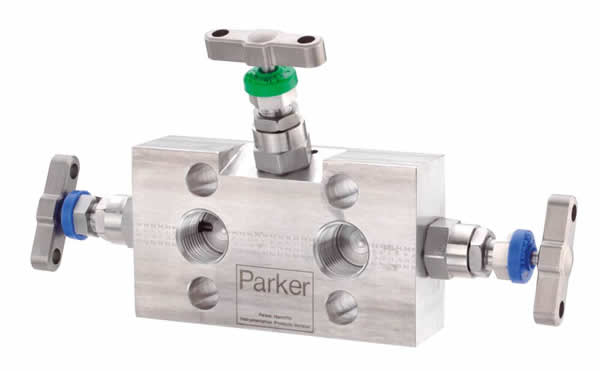

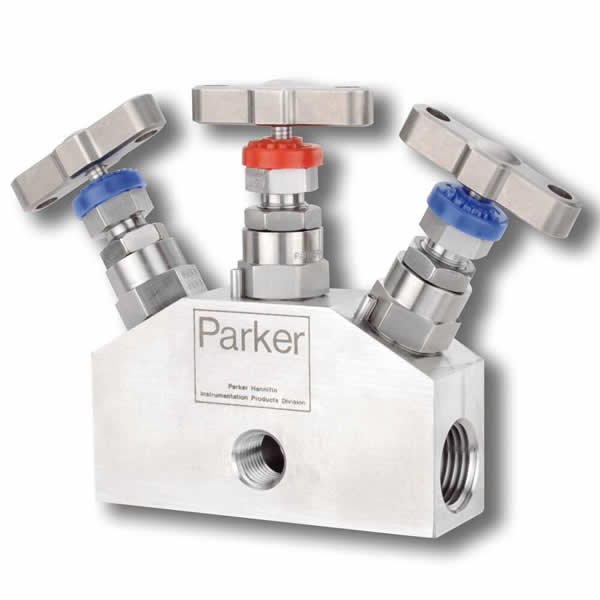

H-Series 3 and 5 Valve Differential Pressure Manifold Catalogue

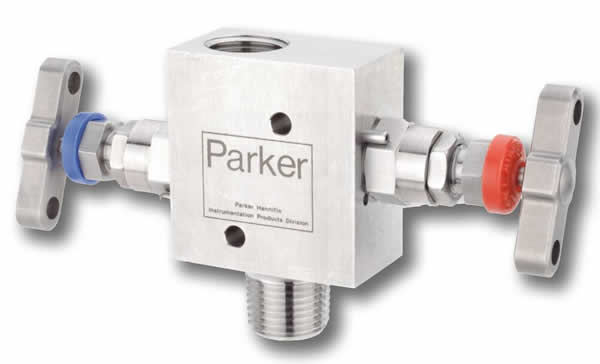

H-Series Two Valve Manifolds Catalogue

市场:

- 海上石油和天然气
- 陆上石油和天然气
- 石化
- 化工

特点/优势:

- 两片式阀体，泄漏通路更小
- 4:1 压力边界设计安全系数
- 符合 ANSI/ASME B16.34
- 双流向
- 浮动球心配合动力响应阀座，实现自动调整
- 一体式卡套接头无需螺纹及螺纹密封胶
- 操作扭矩低
- 1/4 圈限位挡块手柄，配套符合人体工学护套
- 每个产品需进行水压和低压空气测试
- 抗静电
- 可选防火设计，防火等级： API 607, BS6755 Pt2.d

应用:

- 仪表管路
- 过程隔离
- 顶部脐带终端盒
- 液压动力单元
- 化学注入撬

性能特点

结构材料 316不锈钢
阀罩方向 反面
阀门配置 双隔离/平衡/双排放
入口连接尺寸 1/2" NPT内螺纹
出口连接尺寸 法兰
排气孔尺寸 1/4" NPT内螺纹 inch
安装类型 直接
阀门数量 5阀组
连接类型 NPT
包装材料 PTFE聚四氟乙烯
符合规格 N/A
螺栓材料 N/A
最大运行压力 6,000 psi
414 bar
选件 N/A

货号： HDS5M
多种类型: 5 Valve
阀外形类型: Double Isolate/Equalise/Double Vent
入口连接: 1/2" NPT F
出口连接: Flanged
排气尺寸（英寸）: 1/4" NPT F
安装方式: Direct
连接类型: NPT
包装材料: PTFE
证书: N/A
螺栓材料: N/A
最大工作压力（PSI): 6,000
选件: N/A
