Rectus利达时低压系列接头：热塑材质21KB系列快速接头 RECTUS Series 系列21KB快速接头

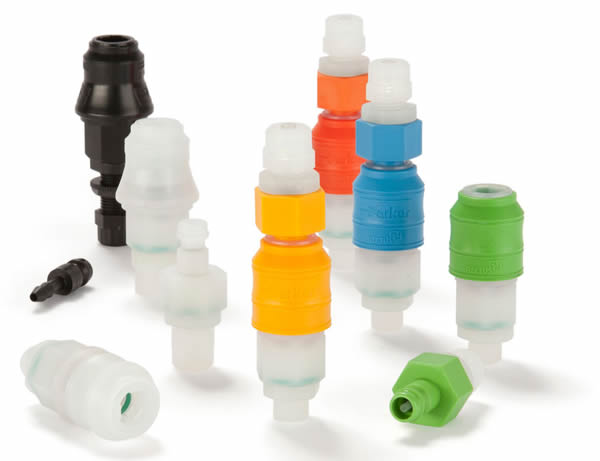

Rectus 21KB系列热塑快换接头，目前世界上最通用的快换类型
Parker派克21系列迷你型工业快换接头，使用POM 以及PVDF 热塑材料制造而成，该系列快换接头是在此公称通径下，目前国际上最流行的结构。对于流体以及气体介质的流量性能表现超过市场平均水平。该系列快换接头系统，使用单手操作，这种使用手动套筒锁紧的新型锁紧方式，有效地扩大了这个系列的应用范围。两种不同的套筒形式--锥形的以及圆柱形的，使用锥形的套筒可以方便带手套的情况下，进行操作连接使用。该系列的阴接头与阳接头还带有颜色标识系统，能够在连接时保证不同的流体管路不会被错误地混连在一起，从而保证了连接安全。
Rectus 21系列热塑快换接头公称通径为5mm，用于气动以及流体输送的应用，承压可达10 bar。
该系列快换接头是在此公称通径下，目前国际上最流行的结构，目前可供材料为POM或者PVDF热塑性材料。
市场：
- 机械制造
- 汽车
- 生命科学
- 过程控制
特点/优点：
- 防溅设计 - 当断开阀芯连接时，阳接头提前被密封住了
- 有两种套筒形式可以供应，直的以及符合人体工程学的套筒，可以方便用来戴手套操作
- 由于使用了颜色识别系统，因此，阴接头和阳接头管路进行连接时，不会产生混淆。
- 有平板安装形式可以供应（插拔形式的接头集成在开关盒里面）
- 单手操作，可以用来方便快速地进行连接
性能特点
标称直径 (DN) 5
型号 双截止形式，单截止形式
长度 (MM) 24 高达 74
外六角 (MM) na, 14, 17
外径 (MM) 21 高达 28
密封材料 丁腈橡胶，氟橡胶
最低工作温度(°C) -20
最高工作温度 (C) 80, 120
最大工作压力 (BAR) 8, 10
流速 (LPM) 310, 560
应用
- 食品及化工
- 生物兼容性流体输送
Parker ，Rectus和Tema三大公司都经过了长期的独立发展阶段，2007年美国Parker派克收购了Rectus和TEMA与其业务交叉的部门，将三个公司业务相似和产品相同的设备线进行重组，利用各自优势，协同品牌效应，增强新整合部门的综合实力。因此，新创建的QCDE的（欧洲快速接头分部）结合国际地位与领先的技术和创新领域的气动和液压连接件，这使得QCDE成为行业合作范围最广、最具价值的合作伙伴，助力更多企业走向成功。
Rectus成立于1950年，2000年Rectus收购TEMA品牌，共同组建了Rectus-TEMA，在经历了长期的自主研发和特定的客户市场，2007年全球运动控制元件和系统的领导者Parker 全面收购（Rectus）利达时及（TEMA）天马品牌，在欧洲Nussdorf 组建QCDE总部，Rectus和Tema具有多年专业的开发快速接头的经验，使我们的客户能够从我们这里得到各种领域应用的快速连接件。RECTUS quick connect couplings have stood for the highest precision and reliability. The pneumatic systems are used in many industries, primarily for compressed air but also for connections with liquid media.
Rectus利达时低压系列接头：热塑材质21KB系列快速接头 RECTUS Series 系列21KB快速接头
  |
单截止-/ 双截止
Single-/ Double
Shut-Off |
通径 Nominal Diameter
5= 20 mm2 |
|
|
流量压力损失表
Chart
|
特征描述 Technical Description
Mini industrial coupling made of POM and PVDF with the
world‘s most commonly used profile. Above average flow performance for
liquid and gaseous media. A new type of locking system made of
thermoplastic with a non-slip sleeve considerably expands the
application possibilities of this small quick connect coupling. |
优点 Advantages
Single handed
operation. Two different sleeve designs. The coupling is fitted with a
double shut-off valve which enables it to be connected to a single
shut-off (non-valved) plug as well as a double shut-off (valved) plug.
The coupling is also available as a straight-through coupling (without a
valve). The 21 series eliminates the danger of mix-ups by colour coding
of the coupling and the respective plug. This system guarantees the
elimination of mix-ups when media are connected. |
工作压力 Working Pressure
PB = 10 bar
(POM at 20°C)
PB = 8 bar (PVDF at 20°C)
maximum static
working
最大静态工作压力, 安全系数为4:1。
工作温度 Working Temperature*
-20°C up to +80°C
(POM)
-20°C up to +120°C (PVDF)
温度取决于介质 |
| 材料|材质 Material |
|
|
| 阳接头 Coupling |
RectuPOM |
RectuCHEM |
Valve Body
Sleeve
Valve
Spring
Locking System
Seals
Back Body |
POM, black
POM,
black
POM, black
AISI 301
POM, black
NBR
POM, black |
PVDF, white
PVDF,
white
PVDF, white
AISI 316 Ti
PVDF, white
FKM
PVDF, white |
| Plug |
|
|
Plug Profile
Valve
Spring
Adapter
Seal |
POM, black
POM,
black
AISI 301
POM,
black
NBR |
PVDF, white
PVDF,
white
1.4571
PVDF,
white
FKM |
| 相关文档 Documents |
|
|
安全须知
Safety Instructions |
安装及维护说明
Installation & Maintenance |
操作说明
Operating
instructions |
| |
端口
A |
Hex
SW |
L
mm |
D
mm |
L1
mm |
L2
mm |
Hex1
SW |
B
mm |
G
mm |
颜 色
Color |
材 质
Version |
订货号
Part Number |
Ergonomical Sleeve, Male Thread
|
G 1/8 |
17 |
50 |
25,5 |
7 |
|
|
|
|
标 准 |
POM |
21KBAW10DPX |
| G 1/4 |
17 |
50 |
25,5 |
7 |
|
|
|
|
标 准 |
POM |
21KBAW13DPX |
| G 1/8 |
17 |
50 |
25,5 |
7 |
|
|
|
|
标 准 |
CHEM |
21KBAW10FVX |
| G 1/4 |
17 |
50 |
25,5 |
7 |
|
|
|
|
标 准 |
CHEM |
21KBAW13FVX |
Straight Sleeve, Male Thread
|
G 1/8 |
17 |
50 |
21 |
7 |
|
|
|
|
标 准 |
POM |
21KBAW10DPXG |
| G 1/8 |
17 |
50 |
21 |
7 |
|
|
|
|
blue |
POM |
21KBAW10DPXGB |
| G 1/8 |
17 |
50 |
21 |
7 |
|
|
|
|
green |
POM |
21KBAW10DPXGG |
| G 1/8 |
17 |
50 |
21 |
7 |
|
|
|
|
red |
POM |
21KBAW10DPXGR |
| G 1/8 |
17 |
50 |
21 |
7 |
|
|
|
|
yellow |
POM |
21KBAW10DPXGY |
| G 1/4 |
17 |
50 |
21 |
7 |
|
|
|
|
标 准 |
POM |
21KBAW13DPXG |
| G 1/4 |
17 |
50 |
21 |
7 |
|
|
|
|
blue |
POM |
21KBAW13DPXGB |
| G 1/4 |
17 |
50 |
21 |
7 |
|
|
|
|
green |
POM |
21KBAW13DPXGG |
| G 1/4 |
17 |
50 |
21 |
7 |
|
|
|
|
red |
POM |
21KBAW13DPXGR |
| G 1/4 |
17 |
50 |
21 |
7 |
|
|
|
|
yellow |
POM |
21KBAW13DPXGY |
| G 1/8 |
17 |
50 |
21 |
7 |
|
|
|
|
标 准 |
CHEM |
21KBAW10FVXG |
| G 1/8 |
17 |
50 |
21 |
7 |
|
|
|
|
blue |
CHEM |
21KBAW10FVXGB |
| G 1/8 |
17 |
50 |
21 |
7 |
|
|
|
|
green |
CHEM |
21KBAW10FVXGG |
| G 1/8 |
17 |
50 |
21 |
7 |
|
|
|
|
red |
CHEM |
21KBAW10FVXGR |
| G 1/8 |
17 |
50 |
21 |
7 |
|
|
|
|
yellow |
CHEM |
21KBAW10FVXGY |
| G 1/4 |
17 |
50 |
21 |
7 |
|
|
|
|
标 准 |
CHEM |
21KBAW13FVXG |
| G 1/4 |
17 |
50 |
21 |
7 |
|
|
|
|
blue |
CHEM |
21KBAW13FVXGB |
| G 1/4 |
17 |
50 |
21 |
7 |
|
|
|
|
green |
CHEM |
21KBAW13FVXGG |
| G 1/4 |
17 |
50 |
21 |
7 |
|
|
|
|
red |
CHEM |
21KBAW13FVXGR |
| G 1/4 |
17 |
50 |
21 |
7 |
|
|
|
|
yellow |
CHEM |
21KBAW13FVXGY |
Ergonomical Sleeve, Female Thread
|
G 1/8 |
17 |
53 |
25,5 |
8 |
|
|
|
|
标 准 |
POM |
21KBIW10DPX |
| G 1/4 |
17 |
39 |
25,5 |
9 |
|
|
|
|
标 准 |
POM |
21KBIW13DPX |
| G 1/8 |
17 |
53 |
25,5 |
8 |
|
|
|
|
标 准 |
CHEM |
21KBIW10FVX |
| G 1/4 |
17 |
39 |
25,5 |
9 |
|
|
|
|
标 准 |
CHEM |
21KBIW13FVX |
Straight Sleeve, Female Thread
|
G 1/8 |
17 |
53 |
21 |
8 |
|
|
|
|
标 准 |
POM |
21KBIW10DPXG |
| G 1/8 |
17 |
53 |
21 |
8 |
|
|
|
|
blue |
POM |
21KBIW10DPXGB |
| G 1/8 |
17 |
53 |
21 |
8 |
|
|
|
|
green |
POM |
21KBIW10DPXGG |
| G 1/8 |
17 |
53 |
21 |
8 |
|
|
|
|
red |
POM |
21KBIW10DPXGR |
| G 1/8 |
17 |
53 |
21 |
8 |
|
|
|
|
yellow |
POM |
21KBIW10DPXGY |
| G 1/4 |
17 |
39 |
21 |
9 |
|
|
|
|
标 准 |
POM |
21KBIW13DPXG |
| G 1/4 |
17 |
39 |
21 |
9 |
|
|
|
|
blue |
POM |
21KBIW13DPXGB |
| G 1/4 |
17 |
39 |
21 |
9 |
|
|
|
|
green |
POM |
21KBIW13DPXGG |
| G 1/4 |
17 |
39 |
21 |
9 |
|
|
|
|
red |
POM |
21KBIW13DPXGR |
| G 1/4 |
17 |
39 |
21 |
9 |
|
|
|
|
yellow |
POM |
21KBIW13DPXGY |
| G 1/8 |
17 |
53 |
21 |
8 |
|
|
|
|
标 准 |
CHEM |
21KBIW10FVXG |
| G 1/8 |
17 |
53 |
21 |
8 |
|
|
|
|
blue |
CHEM |
21KBIW10FVXGB |
| G 1/8 |
17 |
53 |
21 |
8 |
|
|
|
|
green |
CHEM |
21KBIW10FVXGG |
| G 1/8 |
17 |
53 |
21 |
8 |
|
|
|
|
red |
CHEM |
21KBIW10FVXGR |
| G 1/8 |
17 |
53 |
21 |
8 |
|
|
|
|
yellow |
CHEM |
21KBIW10FVXGY |
| G 1/4 |
17 |
39 |
21 |
9 |
|
|
|
|
标 准 |
CHEM |
21KBIW13FVXG |
| G 1/4 |
17 |
39 |
21 |
9 |
|
|
|
|
blue |
CHEM |
21KBIW13FVXGB |
| G 1/4 |
17 |
39 |
21 |
9 |
|
|
|
|
green |
CHEM |
21KBIW13FVXGG |
| G 1/4 |
17 |
39 |
21 |
9 |
|
|
|
|
red |
CHEM |
21KBIW13FVXGR |
| G 1/4 |
17 |
39 |
21 |
9 |
|
|
|
|
yellow |
CHEM |
21KBIW13FVXGY |
Front Panel Installation, Panel Mount, Plastic Hose
Connection
|
4x6mm |
17 |
56 |
28 |
7 |
20,5 |
27 |
7 |
M25x1 |
标 准 |
POM |
21KBKE06DPX |
| 6x8mm |
17 |
56 |
28 |
7 |
20,5 |
27 |
7 |
M25x1 |
标 准 |
POM |
21KBKE08DPX |
| 4x6mm |
17 |
56 |
28 |
7 |
20,5 |
27 |
7 |
M25x1 |
标 准 |
CHEM |
21KBKE06FVX |
| 6x8mm |
17 |
56 |
28 |
7 |
20,5 |
27 |
7 |
M25x1 |
标 准 |
CHEM |
21KBKE08FVX |
Front Panel Installation, PVDF- and PE-Hoses
|
4x6mm |
17 |
62 |
28 |
7 |
20,5 |
27 |
7 |
M25x1 |
标 准 |
CHEM |
21KBFR06FVX |
| 6x8mm |
17 |
66 |
28 |
7 |
20,5 |
27 |
7 |
M25x1 |
标 准 |
CHEM |
21KBFR08FVX |
| |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
Ergonomical Sleeve, PVDF- and PE-Hoses
|
4x6mm |
17 |
62 |
25,5 |
17 |
|
|
|
M10x1 |
标 准 |
CHEM |
21KBKP06FVX |
| 6x8mm |
17 |
66 |
25,5 |
17 |
|
|
|
M12x1 |
标 准 |
CHEM |
21KBKP08FVX |
| |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
Ergonomical Sleeve, Plastic Hose Connection
|
4x6mm |
17 |
56 |
25,5 |
6 |
7 |
|
|
M10x1 |
标 准 |
POM |
21KBKO06DPX |
| 6x8mm |
17 |
56 |
21
25,5 |
6 |
7 |
|
|
M12x1 |
标 准 |
POM |
21KBKO08DPX |
| 4x6mm |
17 |
56 |
25,5 |
6 |
7 |
|
|
M10x1 |
标 准 |
CHEM |
21KBKO06FVX |
| 6x8mm |
17 |
56 |
21
25,5 |
6 |
7 |
|
|
M12x1 |
标 准 |
CHEM |
21KBKO08FVX |
Straight Sleeve, Plastic Hose Connection
|
4x6mm |
17 |
56 |
21 |
6 |
7 |
|
|
M10x1 |
标 准 |
POM |
21KBKO06DPXG |
| 4x6mm |
17 |
56 |
21 |
6 |
7 |
|
|
M10x1 |
blue |
POM |
21KBKO06DPXGB |
| 4x6mm |
17 |
56 |
21 |
6 |
7 |
|
|
M10x1 |
green |
POM |
21KBKO06DPXGG |
| 4x6mm |
17 |
56 |
21 |
6 |
7 |
|
|
M10x1 |
red |
POM |
21KBKO06DPXGR |
| 4x6mm |
17 |
56 |
21 |
6 |
7 |
|
|
M10x1 |
yellow |
POM |
21KBKO06DPXGY |
| 6x8mm |
17 |
56 |
21 |
6 |
7 |
|
|
M12x1 |
标 准 |
POM |
21KBKO08DPXG |
| 6x8mm |
17 |
56 |
21 |
6 |
7 |
|
|
M12x1 |
blue |
POM |
21KBKO08DPXGB |
| 6x8mm |
17 |
56 |
21 |
6 |
7 |
|
|
M12x1 |
green |
POM |
21KBKO08DPXGG |
| 6x8mm |
17 |
56 |
21 |
6 |
7 |
|
|
M12x1 |
red |
POM |
21KBKO08DPXGR |
| 6x8mm |
17 |
56 |
21 |
6 |
7 |
|
|
M12x1 |
yellow |
POM |
21KBKO08DPXGY |
| 4x6mm |
17 |
56 |
21 |
6 |
7 |
|
|
M10x1 |
标 准 |
CHEM |
21KBKO06FVXG |
| 4x6mm |
17 |
56 |
21 |
6 |
7 |
|
|
M10x1 |
blue |
CHEM |
21KBKO06FVXGB |
| 4x6mm |
17 |
56 |
21 |
6 |
7 |
|
|
M10x1 |
green |
CHEM |
21KBKO06FVXGG |
| 4x6mm |
17 |
56 |
21 |
6 |
7 |
|
|
M10x1 |
red |
CHEM |
21KBKO06FVXGR |
| 4x6mm |
17 |
56 |
21 |
6 |
7 |
|
|
M10x1 |
yellow |
CHEM |
21KBKO06FVXGY |
| 6x8mm |
17 |
56 |
21 |
6 |
7 |
|
|
M12x1 |
标 准 |
CHEM |
21KBKO08FVXG |
| 6x8mm |
17 |
56 |
21 |
6 |
7 |
|
|
M12x1 |
blue |
CHEM |
21KBKO08FVXGB |
| 6x8mm |
17 |
56 |
21 |
6 |
7 |
|
|
M12x1 |
green |
CHEM |
21KBKO08FVXGG |
| 6x8mm |
17 |
56 |
21 |
6 |
7 |
|
|
M12x1 |
red |
CHEM |
21KBKO08FVXGR |
| 6x8mm |
17 |
56 |
21 |
6 |
7 |
|
|
M12x1 |
yellow |
CHEM |
21KBKO08FVXGY |
Ergonomical Sleeve, Panel Mount, Plastic Hose
Connection
|
4x6mm |
17 |
68 |
25,5 |
7 |
18 |
14 |
4 |
M10x1 |
标 准 |
POM |
21KBKS06DPX |
| 6x8mm |
17 |
68 |
25,5 |
7 |
18 |
17 |
4 |
M12x1 |
标 准 |
POM |
21KBKS08DPX |
| 4x6mm |
17 |
68 |
25,5 |
7 |
18 |
14 |
4 |
M10x1 |
标 准 |
CHEM |
21KBKS06FVX |
| 6x8mm |
17 |
68 |
25,5 |
7 |
18 |
17 |
4 |
M12x1 |
标 准 |
CHEM |
21KBKS08FVX |
Straight Sleeve, Panel Mount, Plastic Hose Connection
|
4x6mm |
17 |
68 |
21 |
7 |
18 |
14 |
4 |
M10x1 |
标 准 |
POM |
21KBKS06DPXG |
| 4x6mm |
17 |
68 |
21 |
7 |
18 |
14 |
4 |
M10x1 |
blue |
POM |
21KBKS06DPXGB |
| 4x6mm |
17 |
68 |
21 |
7 |
18 |
14 |
4 |
M10x1 |
green |
POM |
21KBKS06DPXGG |
| 4x6mm |
17 |
68 |
21 |
7 |
18 |
14 |
4 |
M10x1 |
red |
POM |
21KBKS06DPXGR |
| 4x6mm |
17 |
68 |
21 |
7 |
18 |
14 |
4 |
M10x1 |
yellow |
POM |
21KBKS06DPXGY |
| 6x8mm |
17 |
68 |
21 |
7 |
18 |
17 |
4 |
M12x1 |
标 准 |
POM |
21KBKS08DPXG |
| 6x8mm |
17 |
68 |
21 |
7 |
18 |
17 |
4 |
M12x1 |
blue |
POM |
21KBKS08DPXGB |
| 6x8mm |
17 |
68 |
21 |
7 |
18 |
17 |
4 |
M12x1 |
green |
POM |
21KBKS08DPXGG |
| 6x8mm |
17 |
68 |
21 |
7 |
18 |
17 |
4 |
M12x1 |
red |
POM |
21KBKS08DPXGR |
| 6x8mm |
17 |
68 |
21 |
7 |
18 |
17 |
4 |
M12x1 |
yellow |
POM |
21KBKS08DPXGY |
| 4x6mm |
17 |
68 |
21 |
7 |
18 |
14 |
4 |
M10x1 |
标 准 |
CHEM |
21KBKS06FVXG |
| 4x6mm |
17 |
68 |
21 |
7 |
18 |
14 |
4 |
M10x1 |
blue |
CHEM |
21KBKS06FVXGB |
| 4x6mm |
17 |
68 |
21 |
7 |
18 |
14 |
4 |
M10x1 |
green |
CHEM |
21KBKS06FVXGG |
| 4x6mm |
17 |
68 |
21 |
7 |
18 |
14 |
4 |
M10x1 |
red |
CHEM |
21KBKS06FVXGR |
| 4x6mm |
17 |
68 |
21 |
7 |
18 |
14 |
4 |
M10x1 |
yellow |
CHEM |
21KBKS06FVXGY |
| 6x8mm |
17 |
68 |
21 |
7 |
18 |
17 |
4 |
M12x1 |
标 准 |
CHEM |
21KBKS08FVXG |
| 6x8mm |
17 |
68 |
21 |
7 |
18 |
17 |
4 |
M12x1 |
blue |
CHEM |
21KBKS08FVXGB |
| 6x8mm |
17 |
68 |
21 |
7 |
18 |
17 |
4 |
M12x1 |
green |
CHEM |
21KBKS08FVXGG |
| 6x8mm |
17 |
68 |
21 |
7 |
18 |
17 |
4 |
M12x1 |
red |
CHEM |
21KBKS08FVXGR |
| 6x8mm |
17 |
68 |
21 |
7 |
18 |
17 |
4 |
M12x1 |
yellow |
CHEM |
21KBKS08FVXGY |
Front Panel Installation, Hose Barb
|
4mm |
17 |
60 |
28 |
17 |
20,5 |
27 |
7 |
M25x1 |
标 准 |
POM |
21KBTE04DPX |
| 6mm |
17 |
60 |
28 |
17 |
20,5 |
27 |
7 |
M25x1 |
标 准 |
POM |
21KBTE06DPX |
| 4mm |
17 |
60 |
28 |
17 |
20,5 |
27 |
7 |
M25x1 |
标 准 |
CHEM |
21KBTE04FVX |
| 6mm |
17 |
60 |
28 |
17 |
20,5 |
27 |
7 |
M25x1 |
标 准 |
CHEM |
21KBTE06FVX |
Ergonomical Sleeve, Hose Barb
|
4mm |
17 |
60 |
25,5 |
17 |
|
|
|
|
标 准 |
POM |
21KBTF04DPX |
| 6mm |
17 |
60 |
25,5 |
17 |
|
|
|
|
标 准 |
POM |
21KBTF06DPX |
| 4mm |
17 |
60 |
25,5 |
17 |
|
|
|
|
标 准 |
CHEM |
21KBTF04FVX |
| 6mm |
17 |
60 |
25,5 |
17 |
|
|
|
|
标 准 |
CHEM |
21KBTF06FVX |
Straight Sleeve, Hose Barb
|
4mm |
17 |
60 |
21 |
17 |
|
|
|
|
标 准 |
POM |
21KBTF04DPXG |
| 4mm |
17 |
60 |
21 |
17 |
|
|
|
|
blue |
POM |
21KBTF04DPXGB |
| 4mm |
17 |
60 |
21 |
17 |
|
|
|
|
green |
POM |
21KBTF04DPXGG |
| 4mm |
17 |
60 |
21 |
17 |
|
|
|
|
red |
POM |
21KBTF04DPXGR |
| 4mm |
17 |
60 |
21 |
17 |
|
|
|
|
yellow |
POM |
21KBTF04DPXGY |
| 6mm |
17 |
60 |
21 |
17 |
|
|
|
|
标 准 |
POM |
21KBTF06DPXG |
| 6mm |
17 |
60 |
21 |
17 |
|
|
|
|
blue |
POM |
21KBTF06DPXGB |
| 6mm |
17 |
60 |
21 |
17 |
|
|
|
|
green |
POM |
21KBTF06DPXGG |
| 6mm |
17 |
60 |
21 |
17 |
|
|
|
|
red |
POM |
21KBTF06DPXGR |
| 6mm |
17 |
60 |
21 |
17 |
|
|
|
|
yellow |
POM |
21KBTF06DPXGY |
| 4mm |
17 |
60 |
21 |
17 |
|
|
|
|
标 准 |
CHEM |
21KBTF04FVXG |
| 4mm |
17 |
60 |
21 |
17 |
|
|
|
|
blue |
CHEM |
21KBTF04FVXGB |
| 4mm |
17 |
60 |
21 |
17 |
|
|
|
|
green |
CHEM |
21KBTF04FVXGG |
| 4mm |
17 |
60 |
21 |
17 |
|
|
|
|
red |
CHEM |
21KBTF04FVXGR |
| 4mm |
17 |
60 |
21 |
17 |
|
|
|
|
yellow |
CHEM |
21KBTF04FVXGY |
| 6mm |
17 |
60 |
21 |
17 |
|
|
|
|
标 准 |
CHEM |
21KBTF06FVXG |
| 6mm |
17 |
60 |
21 |
17 |
|
|
|
|
blue |
CHEM |
21KBTF06FVXGB |
| 6mm |
17 |
60 |
21 |
17 |
|
|
|
|
green |
CHEM |
21KBTF06FVXGG |
| 6mm |
17 |
60 |
21 |
17 |
|
|
|
|
red |
CHEM |
21KBTF06FVXGR |
| 6mm |
17 |
60 |
21 |
17 |
|
|
|
|
yellow |
CHEM |
21KBTF06FVXGY |
Ergonomical Sleeve, Panel Mount, Hose Barb
|
4mm |
17 |
74 |
25,5 |
17 |
14 |
14 |
4 |
M10x1 |
标 准 |
POM |
21KBTS04DPX |
| 6mm |
17 |
74 |
25,5 |
17 |
14 |
14 |
4 |
M10x1 |
标 准 |
POM |
21KBTS06DPX |
| 4mm |
17 |
74 |
25,5 |
17 |
14 |
14 |
4 |
M10x1 |
标 准 |
CHEM |
21KBTS04FVX |
| 6mm |
17 |
74 |
25,5 |
17 |
14 |
14 |
4 |
M10x1 |
标 准 |
CHEM |
21KBTS06FVX |
Straight Sleeve, Panel Mount, Hose Barb
|
4mm |
17 |
74 |
21 |
17 |
14 |
14 |
4 |
M10x1 |
标 准 |
POM |
21KBTS04DPXG |
| 4mm |
17 |
74 |
21 |
17 |
14 |
14 |
4 |
M10x1 |
blue |
POM |
21KBTS04DPXGB |
| 4mm |
17 |
74 |
21 |
17 |
14 |
14 |
4 |
M10x1 |
green |
POM |
21KBTS04DPXGG |
| 4mm |
17 |
74 |
21 |
17 |
14 |
14 |
4 |
M10x1 |
red |
POM |
21KBTS04DPXGR |
| 4mm |
17 |
74 |
21 |
17 |
14 |
14 |
4 |
M10x1 |
yellow |
POM |
21KBTS04DPXGY |
| 6mm |
17 |
74 |
21 |
17 |
14 |
17 |
4 |
M12x1 |
标 准 |
POM |
21KBTS06DPXG |
| 6mm |
17 |
74 |
21 |
17 |
14 |
17 |
4 |
M12x1 |
blue |
POM |
21KBTS06DPXGB |
| 6mm |
17 |
74 |
21 |
17 |
14 |
17 |
4 |
M12x1 |
green |
POM |
21KBTS06DPXGG |
| 6mm |
17 |
74 |
21 |
17 |
14 |
17 |
4 |
M12x1 |
red |
POM |
21KBTS06DPXGR |
| 6mm |
17 |
74 |
21 |
17 |
14 |
17 |
4 |
M12x1 |
yellow |
POM |
21KBTS06DPXGY |
| 4mm |
17 |
74 |
21 |
17 |
14 |
14 |
4 |
M10x1 |
标 准 |
CHEM |
21KBTS04FVXG |
| 4mm |
17 |
74 |
21 |
17 |
14 |
14 |
4 |
M10x1 |
blue |
CHEM |
21KBTS04FVXGB |
| 4mm |
17 |
74 |
21 |
17 |
14 |
14 |
4 |
M10x1 |
green |
CHEM |
21KBTS04FVXGG |
| 4mm |
17 |
74 |
21 |
17 |
14 |
14 |
4 |
M10x1 |
red |
CHEM |
21KBTS04FVXGR |
| 4mm |
17 |
74 |
21 |
17 |
14 |
14 |
4 |
M10x1 |
yellow |
CHEM |
21KBTS04FVXGY |
| 6mm |
17 |
74 |
21 |
17 |
14 |
17 |
4 |
M12x1 |
标 准 |
CHEM |
21KBTS06FVXG |
| 6mm |
17 |
74 |
21 |
17 |
14 |
17 |
4 |
M12x1 |
blue |
CHEM |
21KBTS06FVXGB |
| 6mm |
17 |
74 |
21 |
17 |
14 |
17 |
4 |
M12x1 |
green |
CHEM |
21KBTS06FVXGG |
| 6mm |
17 |
74 |
21 |
17 |
14 |
17 |
4 |
M12x1 |
red |
CHEM |
21KBTS06FVXGR |
| 6mm |
17 |
74 |
21 |
17 |
14 |
17 |
4 |
M12x1 |
yellow |
CHEM |
21KBTS06FVXGY |
| |
端口
A |
Hex
SW |
L
mm |
D
mm |
L1
mm |
L2
mm |
Hex1
SW |
B
mm |
G
mm |
颜 色
Color |
材 质
Version |
订货号
Part Number |
外螺纹 Male Thread
|
G 1/8 |
17 |
36 |
|
7 |
|
|
|
|
标 准 |
POM |
21SBAW10DPX |
| G 1/8 |
17 |
36 |
|
7 |
|
|
|
|
blue |
POM |
21SBAW10DPXB |
| G 1/8 |
17 |
36 |
|
7 |
|
|
|
|
green |
POM |
21SBAW10DPXG |
| G 1/8 |
17 |
36 |
|
7 |
|
|
|
|
red |
POM |
21SBAW10DPXR |
| G 1/8 |
17 |
36 |
|
7 |
|
|
|
|
yellow |
POM |
21SBAW10DPXY |
| G 1/4 |
17 |
38 |
|
7 |
|
|
|
|
标 准 |
POM |
21SBAW13DPX |
| G 1/4 |
17 |
38 |
|
7 |
|
|
|
|
blue |
POM |
21SBAW13DPXB |
| G 1/4 |
17 |
38 |
|
7 |
|
|
|
|
green |
POM |
21SBAW13DPXG |
| G 1/4 |
17 |
38 |
|
7 |
|
|
|
|
red |
POM |
21SBAW13DPXR |
| G 1/4 |
17 |
38 |
|
7 |
|
|
|
|
yellow |
POM |
21SBAW13DPXY |
| G 1/8 |
17 |
36 |
|
7 |
|
|
|
|
标 准 |
CHEM |
21SBAW10FVX |
| G 1/8 |
17 |
36 |
|
7 |
|
|
|
|
blue |
CHEM |
21SBAW10FVXB |
| G 1/8 |
17 |
36 |
|
7 |
|
|
|
|
green |
CHEM |
21SBAW10FVXG |
| G 1/8 |
17 |
36 |
|
7 |
|
|
|
|
red |
CHEM |
21SBAW10FVXR |
| G 1/8 |
17 |
36 |
|
7 |
|
|
|
|
yellow |
CHEM |
21SBAW10FVXY |
| G 1/4 |
17 |
38 |
|
7 |
|
|
|
|
标 准 |
CHEM |
21SBAW13FVX |
| G 1/4 |
17 |
38 |
|
7 |
|
|
|
|
blue |
CHEM |
21SBAW13FVXB |
| G 1/4 |
17 |
38 |
|
7 |
|
|
|
|
green |
CHEM |
21SBAW13FVXG |
| G 1/4 |
17 |
38 |
|
7 |
|
|
|
|
red |
CHEM |
21SBAW13FVXR |
| G 1/4 |
17 |
38 |
|
7 |
|
|
|
|
yellow |
CHEM |
21SBAW13FVXY |
内螺纹 Female Thread
|
G 1/8 |
17 |
39 |
|
8 |
|
|
|
|
标 准 |
POM |
21SBIW10DPX |
| G 1/8 |
17 |
39 |
|
8 |
|
|
|
|
blue |
POM |
21SBIW10DPXB |
| G 1/8 |
17 |
39 |
|
8 |
|
|
|
|
green |
POM |
21SBIW10DPXG |
| G 1/8 |
17 |
39 |
|
8 |
|
|
|
|
red |
POM |
21SBIW10DPXR |
| G 1/8 |
17 |
39 |
|
8 |
|
|
|
|
yellow |
POM |
21SBIW10DPXY |
| G 1/4 |
17 |
42 |
|
10 |
|
|
|
|
标 准 |
POM |
21SBIW13DPX |
| G 1/4 |
17 |
42 |
|
10 |
|
|
|
|
blue |
POM |
21SBIW13DPXB |
| G 1/4 |
17 |
42 |
|
10 |
|
|
|
|
green |
POM |
21SBIW13DPXG |
| G 1/4 |
17 |
42 |
|
10 |
|
|
|
|
red |
POM |
21SBIW13DPXR |
| G 1/4 |
17 |
42 |
|
10 |
|
|
|
|
yellow |
POM |
21SBIW13DPXY |
| G 1/8 |
17 |
39 |
|
8 |
|
|
|
|
标 准 |
CHEM |
21SBIW10FVX |
| G 1/8 |
17 |
39 |
|
8 |
|
|
|
|
blue |
CHEM |
21SBIW10FVXB |
| G 1/8 |
17 |
39 |
|
8 |
|
|
|
|
green |
CHEM |
21SBIW10FVXG |
| G 1/8 |
17 |
39 |
|
8 |
|
|
|
|
red |
CHEM |
21SBIW10FVXR |
| G 1/8 |
17 |
39 |
|
8 |
|
|
|
|
yellow |
CHEM |
21SBIW10FVXY |
| G 1/4 |
17 |
42 |
|
10 |
|
|
|
|
标 准 |
CHEM |
21SBIW13FVX |
| G 1/4 |
17 |
42 |
|
10 |
|
|
|
|
blue |
CHEM |
21SBIW13FVXB |
| G 1/4 |
17 |
42 |
|
10 |
|
|
|
|
green |
CHEM |
21SBIW13FVXG |
| G 1/4 |
17 |
42 |
|
10 |
|
|
|
|
red |
CHEM |
21SBIW13FVXR |
| G 1/4 |
17 |
42 |
|
10 |
|
|
|
|
yellow |
CHEM |
21SBIW13FVXY |
| |
端口
A |
Hex
SW |
L
mm |
D
mm |
L1
mm |
L2
mm |
Hex1
SW |
B
mm |
G
mm |
颜 色
Color |
材 质
Version |
订货号
Part Number |
Plastic Hose Connection
|
4x6 mm |
17 |
42 |
|
7 |
6 |
|
|
|
标 准 |
POM |
21SBKO06DPX |
| 4x6 mm |
17 |
42 |
|
7 |
6 |
|
|
|
blue |
POM |
21SBKO06DPXB |
| 4x6 mm |
17 |
42 |
|
7 |
6 |
|
|
|
green |
POM |
21SBKO06DPXG |
| 4x6 mm |
17 |
42 |
|
7 |
6 |
|
|
|
red |
POM |
21SBKO06DPXR |
| 4x6 mm |
17 |
42 |
|
7 |
6 |
|
|
|
yellow |
POM |
21SBKO06DPXY |
| 6x8 mm |
17 |
42 |
|
7 |
6 |
|
|
|
标 准 |
POM |
21SBKO08DPX |
| 6x8 mm |
17 |
42 |
|
7 |
6 |
|
|
|
blue |
POM |
21SBKO08DPXB |
| 6x8 mm |
17 |
42 |
|
7 |
6 |
|
|
|
green |
POM |
21SBKO08DPXG |
| 6x8 mm |
17 |
42 |
|
7 |
6 |
|
|
|
red |
POM |
21SBKO08DPXR |
| 6x8 mm |
17 |
42 |
|
7 |
6 |
|
|
|
yellow |
POM |
21SBKO08DPXY |
| 4x6 mm |
17 |
42 |
|
7 |
6 |
|
|
|
标 准 |
CHEM |
21SBKO06FVX |
| 4x6 mm |
17 |
42 |
|
7 |
6 |
|
|
|
blue |
CHEM |
21SBKO06FVXB |
| 4x6 mm |
17 |
42 |
|
7 |
6 |
|
|
|
green |
CHEM |
21SBKO06FVXG |
| 4x6 mm |
17 |
42 |
|
7 |
6 |
|
|
|
red |
CHEM |
21SBKO06FVXR |
| 4x6 mm |
17 |
42 |
|
7 |
6 |
|
|
|
yellow |
CHEM |
21SBKO06FVXY |
| 6x8 mm |
17 |
42 |
|
7 |
6 |
|
|
|
标 准 |
CHEM |
21SBKO08FVX |
| 6x8 mm |
17 |
42 |
|
7 |
6 |
|
|
|
blue |
CHEM |
21SBKO08FVXB |
| 6x8 mm |
17 |
42 |
|
7 |
6 |
|
|
|
green |
CHEM |
21SBKO08FVXG |
| 6x8 mm |
17 |
42 |
|
7 |
6 |
|
|
|
red |
CHEM |
21SBKO08FVXR |
| 6x8 mm |
17 |
42 |
|
7 |
6 |
|
|
|
yellow |
CHEM |
21SBKO08FVXY |
Panel Mount, Plastic Hose Connection
|
4x6 mm |
17 |
54 |
|
7 |
18 |
14 |
4 |
M 10x1 |
标 准 |
POM |
21SBKS06DPX |
| 4x6 mm |
17 |
54 |
|
7 |
18 |
14 |
4 |
M 10x1 |
blue |
POM |
21SBKS06DPXB |
| 4x6 mm |
17 |
54 |
|
7 |
18 |
14 |
4 |
M 10x1 |
green |
POM |
21SBKS06DPXG |
| 4x6 mm |
17 |
54 |
|
7 |
18 |
14 |
4 |
M 10x1 |
red |
POM |
21SBKS06DPXR |
| 4x6 mm |
17 |
54 |
|
7 |
18 |
14 |
4 |
M 10x1 |
yellow |
POM |
21SBKS06DPXY |
| 6x8 mm |
17 |
54 |
|
7 |
18 |
17 |
4 |
M 12x1 |
标 准 |
POM |
21SBKS08DPX |
| 6x8 mm |
17 |
54 |
|
7 |
18 |
17 |
4 |
M 12x1 |
blue |
POM |
21SBKS08DPXB |
| 6x8 mm |
17 |
54 |
|
7 |
18 |
17 |
4 |
M 12x1 |
green |
POM |
21SBKS08DPXG |
| 6x8 mm |
17 |
54 |
|
7 |
18 |
17 |
4 |
M 12x1 |
red |
POM |
21SBKS08DPXR |
| 6x8 mm |
17 |
54 |
|
7 |
18 |
17 |
4 |
M 12x1 |
yellow |
POM |
21SBKS08DPXY |
| 4x6 mm |
17 |
54 |
|
7 |
18 |
14 |
4 |
M 10x1 |
标 准 |
CHEM |
21SBKS06FVX |
| 4x6 mm |
17 |
54 |
|
7 |
18 |
14 |
4 |
M 10x1 |
blue |
CHEM |
21SBKS06FVXB |
| 4x6 mm |
17 |
54 |
|
7 |
18 |
14 |
4 |
M 10x1 |
green |
CHEM |
21SBKS06FVXG |
| 4x6 mm |
17 |
54 |
|
7 |
18 |
14 |
4 |
M 10x1 |
red |
CHEM |
21SBKS06FVXR |
| 4x6 mm |
17 |
54 |
|
7 |
18 |
14 |
4 |
M 10x1 |
yellow |
CHEM |
21SBKS06FVXY |
| 6x8 mm |
17 |
54 |
|
7 |
18 |
17 |
4 |
M 12x1 |
标 准 |
CHEM |
21SBKS08FVX |
| 6x8 mm |
17 |
54 |
|
7 |
18 |
17 |
4 |
M 12x1 |
blue |
CHEM |
21SBKS08FVXB |
| 6x8 mm |
17 |
54 |
|
7 |
18 |
17 |
4 |
M 12x1 |
green |
CHEM |
21SBKS08FVXG |
| 6x8 mm |
17 |
54 |
|
7 |
18 |
17 |
4 |
M 12x1 |
red |
CHEM |
21SBKS08FVXR |
| 6x8 mm |
17 |
54 |
|
7 |
18 |
17 |
4 |
M 12x1 |
yellow |
CHEM |
21SBKS08FVXY |
Panel Mount, for PVDF- and PE-Hoses
|
4x6 mm |
17 |
48 |
|
28 |
|
|
|
|
标 准 |
CHEM |
21SBKP06FVX |
| 4x6 mm |
17 |
48 |
|
28 |
|
|
|
|
blue |
CHEM |
21SBKP06FVXB |
| 4x6 mm |
17 |
48 |
|
28 |
|
|
|
|
green |
CHEM |
21SBKP06FVXG |
| 4x6 mm |
17 |
48 |
|
28 |
|
|
|
|
red |
CHEM |
21SBKP06FVXR |
| 4x6 mm |
17 |
48 |
|
28 |
|
|
|
|
yellow |
CHEM |
21SBKP06FVXY |
| 6x8 mm |
17 |
52 |
|
28 |
|
|
|
|
标 准 |
CHEM |
21SBKP08FVX |
| 6x8 mm |
17 |
52 |
|
28 |
|
|
|
|
blue |
CHEM |
21SBKP08FVXB |
| 6x8 mm |
17 |
52 |
|
28 |
|
|
|
|
green |
CHEM |
21SBKP08FVXG |
| 6x8 mm |
17 |
52 |
|
28 |
|
|
|
|
red |
CHEM |
21SBKP08FVXR |
| 6x8 mm |
17 |
52 |
|
28 |
|
|
|
|
yellow |
CHEM |
21SBKP08FVXY |
宝塔接头 Hose Barb
|
4 mm |
17 |
46 |
|
17 |
|
|
|
|
标 准 |
POM |
21SBTF04DPX |
| 4 mm |
17 |
46 |
|
17 |
|
|
|
|
blue |
POM |
21SBTF04DPXB |
| 4 mm |
17 |
46 |
|
17 |
|
|
|
|
green |
POM |
21SBTF04DPXG |
| 4 mm |
17 |
46 |
|
17 |
|
|
|
|
red |
POM |
21SBTF04DPXR |
| 4 mm |
17 |
46 |
|
17 |
|
|
|
|
yellow |
POM |
21SBTF04DPXY |
| 6 mm |
17 |
46 |
|
17 |
|
|
|
|
标 准 |
POM |
21SBTF06DPX |
| 6 mm |
17 |
46 |
|
17 |
|
|
|
|
blue |
POM |
21SBTF06DPXB |
| 6 mm |
17 |
46 |
|
17 |
|
|
|
|
green |
POM |
21SBTF06DPXG |
| 6 mm |
17 |
46 |
|
17 |
|
|
|
|
red |
POM |
21SBTF06DPXR |
| 6 mm |
17 |
46 |
|
17 |
|
|
|
|
yellow |
POM |
21SBTF06DPXY |
| 4 mm |
17 |
46 |
|
17 |
|
|
|
|
标 准 |
CHEM |
21SBTF04FVX |
| 4 mm |
17 |
46 |
|
17 |
|
|
|
|
blue |
CHEM |
21SBTF04FVXB |
| 4 mm |
17 |
46 |
|
17 |
|
|
|
|
green |
CHEM |
21SBTF04FVXG |
| 4 mm |
17 |
46 |
|
17 |
|
|
|
|
red |
CHEM |
21SBTF04FVXR |
| 4 mm |
17 |
46 |
|
17 |
|
|
|
|
yellow |
CHEM |
21SBTF04FVXY |
| 6 mm |
17 |
46 |
|
17 |
|
|
|
|
标 准 |
CHEM |
21SBTF06FVX |
| 6 mm |
17 |
46 |
|
17 |
|
|
|
|
blue |
CHEM |
21SBTF06FVXB |
| 6 mm |
17 |
46 |
|
17 |
|
|
|
|
green |
CHEM |
21SBTF06FVXG |
| 6 mm |
17 |
46 |
|
17 |
|
|
|
|
red |
CHEM |
21SBTF06FVXR |
| 6 mm |
17 |
46 |
|
17 |
|
|
|
|
yellow |
CHEM |
21SBTF06FVXY |
Panel Mount, Hose Barb
|
4 mm |
17 |
60 |
|
7 |
14 |
14 |
4 |
M 10x1 |
标 准 |
POM |
21SBTS04DPX |
| 4 mm |
17 |
60 |
|
7 |
14 |
14 |
4 |
M 10x1 |
blue |
POM |
21SBTS04DPXB |
| 4 mm |
17 |
60 |
|
7 |
14 |
14 |
4 |
M 10x1 |
green |
POM |
21SBTS04DPXG |
| 4 mm |
17 |
60 |
|
7 |
14 |
14 |
4 |
M 10x1 |
red |
POM |
21SBTS04DPXR |
| 4 mm |
17 |
60 |
|
7 |
14 |
14 |
4 |
M 10x1 |
yellow |
POM |
21SBTS04DPXY |
| 6 mm |
17 |
60 |
|
7 |
14 |
17 |
4 |
M 12x1 |
标 准 |
POM |
21SBTS06DPX |
| 6 mm |
17 |
60 |
|
7 |
14 |
17 |
4 |
M 12x1 |
blue |
POM |
21SBTS06DPXB |
| 6 mm |
17 |
60 |
|
7 |
14 |
17 |
4 |
M 12x1 |
green |
POM |
21SBTS06DPXG |
| 6 mm |
17 |
60 |
|
7 |
14 |
17 |
4 |
M 12x1 |
red |
POM |
21SBTS06DPXR |
| 6 mm |
17 |
60 |
|
7 |
14 |
17 |
4 |
M 12x1 |
yellow |
POM |
21SBTS06DPXY |
| 4 mm |
17 |
60 |
|
7 |
14 |
14 |
4 |
M 10x1 |
标 准 |
CHEM |
21SBTS04FVX |
| 4 mm |
17 |
60 |
|
7 |
14 |
14 |
4 |
M 10x1 |
blue |
CHEM |
21SBTS04FVXB |
| 4 mm |
17 |
60 |
|
7 |
14 |
14 |
4 |
M 10x1 |
green |
CHEM |
21SBTS04FVXG |
| 4 mm |
17 |
60 |
|
7 |
14 |
14 |
4 |
M 10x1 |
red |
CHEM |
21SBTS04FVXR |
| 4 mm |
17 |
60 |
|
7 |
14 |
14 |
4 |
M 10x1 |
yellow |
CHEM |
21SBTS04FVXY |
| 6 mm |
17 |
60 |
|
7 |
14 |
17 |
4 |
M 12x1 |
标 准 |
CHEM |
21SBTS06FVX |
| 6 mm |
17 |
60 |
|
7 |
14 |
17 |
4 |
M 12x1 |
blue |
CHEM |
21SBTS06FVXB |
| 6 mm |
17 |
60 |
|
7 |
14 |
17 |
4 |
M 12x1 |
green |
CHEM |
21SBTS06FVXG |
| 6 mm |
17 |
60 |
|
7 |
14 |
17 |
4 |
M 12x1 |
red |
CHEM |
21SBTS06FVXR |
| 6 mm |
17 |
60 |
|
7 |
14 |
17 |
4 |
M 12x1 |
yellow |
CHEM |
21SBTS06FVXY |
| |
端口
A |
Hex
SW |
L
mm |
D
mm |
L1
mm |
L2
mm |
Hex1
SW |
B
mm |
G
mm |
颜 色
Color |
材 质
Version |
订货号
Part Number |
外螺纹 Male Thread
|
G 1/8 |
14 |
25 |
|
7 |
|
|
|
|
Standard |
POM |
21SFAW10DXX |
| G 1/8 |
14 |
25 |
|
7 |
|
|
|
|
blue |
POM |
21SFAW10DPXB |
| G 1/8 |
14 |
25 |
|
7 |
|
|
|
|
green |
POM |
21SFAW10DPXG |
| G 1/8 |
14 |
25 |
|
7 |
|
|
|
|
red |
POM |
21SFAW10DPXR |
| G 1/8 |
14 |
25 |
|
7 |
|
|
|
|
yellow |
POM |
21SFAW10DPXY |
| G 1/4 |
17 |
28 |
|
9 |
|
|
|
|
Standard |
POM |
21SFAW13DXX |
| G 1/4 |
17 |
28 |
|
9 |
|
|
|
|
blue |
POM |
21SFAW13DPXB |
| G 1/4 |
17 |
28 |
|
9 |
|
|
|
|
green |
POM |
21SFAW13DPXG |
| G 1/4 |
17 |
28 |
|
9 |
|
|
|
|
red |
POM |
21SFAW13DPXR |
| G 1/4 |
17 |
28 |
|
9 |
|
|
|
|
yellow |
POM |
21SFAW13DPXY |
| G 1/8 |
14 |
25 |
|
7 |
|
|
|
|
Standard |
CHEM |
21SFAW10FXX |
| G 1/8 |
14 |
25 |
|
7 |
|
|
|
|
blue |
CHEM |
21SFAW10FVXB |
| G 1/8 |
14 |
25 |
|
7 |
|
|
|
|
green |
CHEM |
21SFAW10FVXG |
| G 1/8 |
14 |
25 |
|
7 |
|
|
|
|
red |
CHEM |
21SFAW10FVXR |
| G 1/8 |
14 |
25 |
|
7 |
|
|
|
|
yellow |
CHEM |
21SFAW10FVXY |
| G 1/4 |
17 |
28 |
|
9 |
|
|
|
|
Standard |
CHEM |
21SFAW13FXX |
| G 1/4 |
17 |
28 |
|
9 |
|
|
|
|
blue |
CHEM |
21SFAW13FVXB |
| G 1/4 |
17 |
28 |
|
9 |
|
|
|
|
green |
CHEM |
21SFAW13FVXG |
| G 1/4 |
17 |
28 |
|
9 |
|
|
|
|
red |
CHEM |
21SFAW13FVXR |
| G 1/4 |
17 |
28 |
|
9 |
|
|
|
|
yellow |
CHEM |
21SFAW13FVXY |
内螺纹 Female Thread
|
G 1/8 |
14 |
24 |
|
8 |
|
|
|
|
Standard |
POM |
21SFIW10DXX |
| G 1/8 |
14 |
24 |
|
8 |
|
|
|
|
blue |
POM |
21SFIW10DPXB |
| G 1/8 |
14 |
24 |
|
8 |
|
|
|
|
green |
POM |
21SFIW10DPXG |
| G 1/8 |
14 |
24 |
|
8 |
|
|
|
|
red |
POM |
21SFIW10DPXR |
| G 1/8 |
14 |
24 |
|
8 |
|
|
|
|
yellow |
POM |
21SFIW10DPXY |
| G 1/4 |
17 |
25 |
|
9 |
|
|
|
|
Standard |
POM |
21SFIW13DXX |
| G 1/4 |
17 |
25 |
|
9 |
|
|
|
|
blue |
POM |
21SFIW13DPXB |
| G 1/4 |
17 |
25 |
|
9 |
|
|
|
|
green |
POM |
21SFIW13DPXG |
| G 1/4 |
17 |
25 |
|
9 |
|
|
|
|
red |
POM |
21SFIW13DPXR |
| G 1/4 |
17 |
25 |
|
9 |
|
|
|
|
yellow |
POM |
21SFIW13DPXY |
| G 1/8 |
14 |
24 |
|
8 |
|
|
|
|
Standard |
CHEM |
21SFIW10FXX |
| G 1/8 |
14 |
24 |
|
8 |
|
|
|
|
blue |
CHEM |
21SFIW10FVXB |
| G 1/8 |
14 |
24 |
|
8 |
|
|
|
|
green |
CHEM |
21SFIW10FVXG |
| G 1/8 |
14 |
24 |
|
8 |
|
|
|
|
red |
CHEM |
21SFIW10FVXR |
| G 1/8 |
14 |
24 |
|
8 |
|
|
|
|
yellow |
CHEM |
21SFIW10FVXY |
| G 1/4 |
17 |
25 |
|
9 |
|
|
|
|
Standard |
CHEM |
21SFIW13FXX |
| G 1/4 |
17 |
25 |
|
9 |
|
|
|
|
blue |
CHEM |
21SFIW13FXXB |
| G 1/4 |
17 |
25 |
|
9 |
|
|
|
|
green |
CHEM |
21SFIW13FXXG |
| G 1/4 |
17 |
25 |
|
9 |
|
|
|
|
red |
CHEM |
21SFIW13FXXR |
| G 1/4 |
17 |
25 |
|
9 |
|
|
|
|
yellow |
CHEM |
21SFIW13FXXY |
| |
端口
A |
Hex
SW |
L
mm |
D
mm |
L1
mm |
L2
mm |
Hex1
SW |
B
mm |
G
mm |
颜 色
Color |
材 质
Version |
订货号
Part Number |
Plastic Hose Connection
|
4x6 mm |
14 |
32 |
|
7 |
6 |
|
|
M 10x1 |
Standard |
POM |
21SFKO06DXX |
| 4x6 mm |
14 |
32 |
|
7 |
6 |
|
|
M 10x1 |
blue |
POM |
21SFKO06DPXB |
| 4x6 mm |
14 |
32 |
|
7 |
6 |
|
|
M 10x1 |
green |
POM |
21SFKO06DPXG |
| 4x6 mm |
14 |
32 |
|
7 |
6 |
|
|
M 10x1 |
red |
POM |
21SFKO06DPXR |
| 4x6 mm |
14 |
32 |
|
7 |
6 |
|
|
M 10x1 |
yellow |
POM |
21SFKO06DPXY |
| 6x8 mm |
14 |
32 |
|
7 |
6 |
|
|
M 12x1 |
Standard |
POM |
21SFKO08DXX |
| 6x8 mm |
14 |
32 |
|
7 |
6 |
|
|
M 12x1 |
blue |
POM |
21SFKO08DPXB |
| 6x8 mm |
14 |
32 |
|
7 |
6 |
|
|
M 12x1 |
green |
POM |
21SFKO08DPXG |
| 6x8 mm |
14 |
32 |
|
7 |
6 |
|
|
M 12x1 |
red |
POM |
21SFKO08DPXR |
| 6x8 mm |
14 |
32 |
|
7 |
6 |
|
|
M 12x1 |
yellow |
POM |
21SFKO08DPXY |
| 4x6 mm |
14 |
32 |
|
7 |
6 |
|
|
M 10x1 |
Standard |
CHEM |
21SFKO06FXX |
| 4x6 mm |
14 |
32 |
|
7 |
6 |
|
|
M 10x1 |
blue |
CHEM |
21SFKO06FVXB |
| 4x6 mm |
14 |
32 |
|
7 |
6 |
|
|
M 10x1 |
green |
CHEM |
21SFKO06FVXG |
| 4x6 mm |
14 |
32 |
|
7 |
6 |
|
|
M 10x1 |
red |
CHEM |
21SFKO06FVXR |
| 4x6 mm |
14 |
32 |
|
7 |
6 |
|
|
M 10x1 |
yellow |
CHEM |
21SFKO06FVXY |
| 6x8 mm |
14 |
32 |
|
7 |
6 |
|
|
M 12x1 |
Standard |
CHEM |
21SFKO08FXX |
| 6x8 mm |
14 |
32 |
|
7 |
6 |
|
|
M 12x1 |
blue |
CHEM |
21SFKO08FVXB |
| 6x8 mm |
14 |
32 |
|
7 |
6 |
|
|
M 12x1 |
green |
CHEM |
21SFKO08FVXG |
| 6x8 mm |
14 |
32 |
|
7 |
6 |
|
|
M 12x1 |
red |
CHEM |
21SFKO08FVXR |
| 6x8 mm |
14 |
32 |
|
7 |
6 |
|
|
M 12x1 |
yellow |
CHEM |
21SFKO08FVXY |
Panel Mount, Plastic Hose Connection
|
4x6 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 10x1 |
Standard |
POM |
21SFKS06DXX |
| 4x6 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 10x1 |
blue |
POM |
21SFKS06DPXB |
| 4x6 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 10x1 |
green |
POM |
21SFKS06DPXG |
| 4x6 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 10x1 |
red |
POM |
21SFKS06DPXR |
| 4x6 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 10x1 |
yellow |
POM |
21SFKS06DPXY |
| 6x8 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 12x1 |
Standard |
POM |
21SFKS08DXX |
| 6x8 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 12x1 |
blue |
POM |
21SFKS08DPXB |
| 6x8 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 12x1 |
green |
POM |
21SFKS08DPXG |
| 6x8 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 12x1 |
red |
POM |
21SFKS08DPXR |
| 6x8 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 12x1 |
yellow |
POM |
21SFKS08DPXY |
| 4x6 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 10x1 |
Standard |
CHEM |
21SFKS06FXX |
| 4x6 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 10x1 |
blue |
CHEM |
21SFKS06FVXB |
| 4x6 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 10x1 |
green |
CHEM |
21SFKS06FVXG |
| 4x6 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 10x1 |
red |
CHEM |
21SFKS06FVXR |
| 4x6 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 10x1 |
yellow |
CHEM |
21SFKS06FVXY |
| 6x8 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 12x1 |
Standard |
CHEM |
21SFKS08FXX |
| 6x8 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 12x1 |
blue |
CHEM |
21SFKS08FVXB |
| 6x8 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 12x1 |
green |
CHEM |
21SFKS08FVXG |
| 6x8 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 12x1 |
red |
CHEM |
21SFKS08FVXR |
| 6x8 mm |
14 |
44 |
|
7 |
18 |
14 |
4 |
M 12x1 |
yellow |
CHEM |
21SFKS08FVXY |
Panel Mount, for PVDF- and PE-Hoses
|
4x6 mm |
17 |
48 |
|
28 |
|
|
|
|
Standard |
CHEM |
21SFKP06FVX |
| 4x6 mm |
17 |
48 |
|
28 |
|
|
|
|
blue |
CHEM |
21SFKP06FVXB |
| 4x6 mm |
17 |
48 |
|
28 |
|
|
|
|
green |
CHEM |
21SFKP06FVXG |
| 4x6 mm |
17 |
48 |
|
28 |
|
|
|
|
red |
CHEM |
21SFKP06FVXR |
| 4x6 mm |
17 |
48 |
|
28 |
|
|
|
|
yellow |
CHEM |
21SFKP06FVXY |
| 6x8 mm |
17 |
52 |
|
28 |
|
|
|
|
Standard |
CHEM |
21SFKP08FVX |
| 6x8 mm |
17 |
52 |
|
28 |
|
|
|
|
blue |
CHEM |
21SFKP08FVXB |
| 6x8 mm |
17 |
52 |
|
28 |
|
|
|
|
green |
CHEM |
21SFKP08FVXG |
| 6x8 mm |
17 |
52 |
|
28 |
|
|
|
|
red |
CHEM |
21SFKP08FVXR |
| 6x8 mm |
17 |
52 |
|
28 |
|
|
|
|
yellow |
CHEM |
21SFKP08FVXY |
宝塔接头 Hose Barb
|
4 mm |
|
32 |
|
17 |
|
|
|
|
Standard |
POM |
21SFTF04DXX |
| 4 mm |
|
32 |
|
17 |
|
|
|
|
blue |
POM |
21SFTF04DPXB |
| 4 mm |
|
32 |
|
17 |
|
|
|
|
green |
POM |
21SFTF04DPXG |
| 4 mm |
|
32 |
|
17 |
|
|
|
|
red |
POM |
21SFTF04DPXR |
| 4 mm |
|
32 |
|
17 |
|
|
|
|
yellow |
POM |
21SFTF04DPXY |
| 6 mm |
|
32 |
|
17 |
|
|
|
|
Standard |
POM |
21SFTF06DXX |
| 6 mm |
|
32 |
|
17 |
|
|
|
|
blue |
POM |
21SFTF06DPXB |
| 6 mm |
|
32 |
|
17 |
|
|
|
|
green |
POM |
21SFTF06DPXG |
| 6 mm |
|
32 |
|
17 |
|
|
|
|
red |
POM |
21SFTF06DPXR |
| 6 mm |
|
32 |
|
17 |
|
|
|
|
yellow |
POM |
21SFTF06DPXY |
| 4 mm |
|
32 |
|
17 |
|
|
|
|
Standard |
CHEM |
21SFTF04FXX |
| 4 mm |
|
32 |
|
17 |
|
|
|
|
blue |
CHEM |
21SFTF04FVXB |
| 4 mm |
|
32 |
|
17 |
|
|
|
|
green |
CHEM |
21SFTF04FVXG |
| 4 mm |
|
32 |
|
17 |
|
|
|
|
red |
CHEM |
21SFTF04FVXR |
| 4 mm |
|
32 |
|
17 |
|
|
|
|
yellow |
CHEM |
21SFTF04FVXY |
| 6 mm |
|
32 |
|
17 |
|
|
|
|
Standard |
CHEM |
21SFTF06FXX |
| 6 mm |
|
32 |
|
17 |
|
|
|
|
blue |
CHEM |
21SFTF06FVXB |
| 6 mm |
|
32 |
|
17 |
|
|
|
|
green |
CHEM |
21SFTF06FVXG |
| 6 mm |
|
32 |
|
17 |
|
|
|
|
red |
CHEM |
21SFTF06FVXR |
| 6 mm |
|
32 |
|
17 |
|
|
|
|
yellow |
CHEM |
21SFTF06FVXY |
Panel Mount, Hose Barb
|
4 mm |
14 |
50 |
|
17 |
14 |
14 |
4 |
M 10x1 |
Standard |
POM |
21SFTS04DXX |
| 4 mm |
14 |
50 |
|
17 |
14 |
14 |
4 |
M 10x1 |
blue |
POM |
21SFTS04DPXB |
| 4 mm |
14 |
50 |
|
17 |
14 |
14 |
4 |
M 10x1 |
green |
POM |
21SFTS04DPXG |
| 4 mm |
14 |
50 |
|
17 |
14 |
14 |
4 |
M 10x1 |
red |
POM |
21SFTS04DPXR |
| 4 mm |
14 |
50 |
|
17 |
14 |
14 |
4 |
M 10x1 |
yellow |
POM |
21SFTS04DPXY |
| 6 mm |
14 |
50 |
|
17 |
14 |
17 |
4 |
M 12x1 |
Standard |
POM |
21SFTS06DXX |
| 6 mm |
14 |
50 |
|
17 |
14 |
17 |
4 |
M 12x1 |
blue |
POM |
21SFTS06DPXB |
| 6 mm |
14 |
50 |
|
17 |
14 |
17 |
4 |
M 12x1 |
green |
POM |
21SFTS06DPXG |
| 6 mm |
14 |
50 |
|
17 |
14 |
17 |
4 |
M 12x1 |
red |
POM |
21SFTS06DPXR |
| 6 mm |
14 |
50 |
|
17 |
14 |
17 |
4 |
M 12x1 |
yellow |
POM |
21SFTS06DPXY |
| 4 mm |
14 |
50 |
|
17 |
14 |
14 |
4 |
M 10x1 |
Standard |
CHEM |
21SFTS04FXX |
| 4 mm |
14 |
50 |
|
17 |
14 |
14 |
4 |
M 10x1 |
blue |
CHEM |
21SFTS04FVXB |
| 4 mm |
14 |
50 |
|
17 |
14 |
14 |
4 |
M 10x1 |
green |
CHEM |
21SFTS04FVXG |
| 4 mm |
14 |
50 |
|
17 |
14 |
14 |
4 |
M 10x1 |
red |
CHEM |
21SFTS04FVXR |
| 4 mm |
14 |
50 |
|
17 |
14 |
14 |
4 |
M 10x1 |
yellow |
CHEM |
21SFTS04FVXY |
| 6 mm |
14 |
50 |
|
17 |
14 |
17 |
4 |
M 12x1 |
Standard |
CHEM |
21SFTS06FXX |
| 6 mm |
14 |
50 |
|
17 |
14 |
17 |
4 |
M 12x1 |
blue |
CHEM |
21SFTS06FVXB |
| 6 mm |
14 |
50 |
|
17 |
14 |
17 |
4 |
M 12x1 |
green |
CHEM |
21SFTS06FVXG |
| 6 mm |
14 |
50 |
|
17 |
14 |
17 |
4 |
M 12x1 |
red |
CHEM |
21SFTS06FVXR |
| 6 mm |
14 |
50 |
|
17 |
14 |
17 |
4 |
M 12x1 |
yellow |
CHEM |
21SFTS06FVXY |
更多Rectus快速接头产品信息，请您关注产品细节页面，或者来电咨询我们：010-84282935 或者邮件至：sales@cnmec.biz
|
