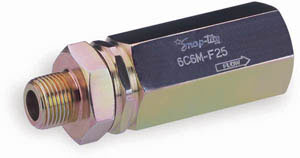

Snap-Tite 6C/3C Series Inline Check Valves单向阀

6C & 3C Series - This line of Snap-tite check valves was created to allow for versatility. The two piece design allows for a wide range of end fittings to meet virtually any requirement. These units were also created with a 4:1 safety factor making them ideal for any application. In addition to the range of end fittings, the 6C & 3C units can be manufactured in 316 stainless steel, plated steel or brass.

6C & 3C Series : Check Valves Two Piece Inline Check Valves

FEATURES
Available Sizes - 1/4" thru 2"
Working Pressure - 1/4" thru 1" to 6,000 psi (414 bar), 1-1/4" thru 2" to 3,000 psi (207 bar)
Wide Range of Crack Pressures - Three standard crack pressures; others upon request
Variety of Seal Materials - Four standard seals; others upon request
End Fitting Options - Many types including male, female or ORS threaded styles available
Soft Seated Poppet - zero leakage
4:1 Safety Factor

BENEFITS

The 6C & 3C check valves can be configured to meet the needs of any system with the versatility in seals, crack pressures, materials and end fittings. By design, the product line also provides a streamlined flow path producing a low pressure drop. The seal options for these check valves are only limited by the compound availability. The product line is very competitively priced.
