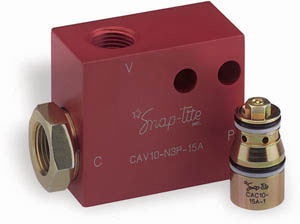

Snap-Tite Cartridge, Pilot & Dual Pilot Check Valves
CPC, CAC, CAV & CAD Series - These cartridge style check valves were designed for hydraulic circuit applications where virtually zero leakage in the checked direction is required. The pilot operated style will lock an actuator or part of a circuit until pilot pressure is applied. Features include a durable molded nylon poppet seal, dampening port in the poppet guide, and a hardened steel body and poppet.
CPC, CAC, CAV & CAD Series : Check Valves Cartridge, Pilot & Dual Pilot Check Valves
规格参数：
Three Sizes Based on Flow - 10 gpm, 25 gpm, & 50 gpm (38, 95 & 189 l/min respectively)
Three Standard Spring Pressures - 15, 25, & 60 psi (1, 1.7, & 4 bar respectively)
Working Pressure - to 3,500 psi (241 bar), 5,000 psi (345 bar) intermittently
4:1 Pilot Ratio on Pilot Operated Check Valves
Construction - Plated steel cartridges, anodized aluminum blocks
Air Pilot Option Available
BENEFITS
This series is designed to be used as a simple cartridge check valve or it can be provided as a pilot operated cartridge. In addition, Snap-tite can supply the pilot operated check in a single body (CAV) or dual body (CAD) with standard ports to 1" in NPSF or SAE o-ring sealed. All standard Snap-tite blocks are red anodized aluminum.
 Item # |
Connection Size |
Seal Material |
7350-16 |
Spares Kit |
Viton |
7350-16A |
Spares Kit |
Buna N |
7350-18 |
Spares Kit |
Viton |
7350-18A |
Spares Kit |
Buna N |
7350-23 |
Spares Kit |
Viton |
7350-23A |
Spares Kit |
Buna N |
7350-27A |
Spares Kit |
Buna N |
7350-27V |
Spares Kit |
Viton |
7350-30 |
Spares Kit |
Viton |
7350-32 |
Spares Kit |
Viton |
7350-32A |
Spares Kit |
Buna N |
7350-6 |
Spares Kit |
Viton |
7350-7A |
Spares Kit |
Buna N |
7350-7V |
Spares Kit |
Viton |
CAC10-15-1 |
Poppet Cartridge Pilot Check Valve 10 gpm-15 psi Cracking Pressure |
Viton |
CAC10-15A-1 |
Poppet Cartridge Pilot Check Valve 10 gpm-15 psi Cracking Pressure |
Buna N |
CAC10-15AP-1 |
Poppet Cartridge Pilot Check Valve 10 gpm-15 psi Cracking Pressure w/ O-ring On Pilot Piston
|
Buna N |
CAC10-15P-1 |
Poppet Cartridge Pilot Check Valve 10 gpm-15 psi Cracking Pressure |
Viton |
CAC10-25-1 |
Poppet Cartridge Pilot Check Valve 10 gpm-25 psi Cracking Pressure |
Viton |
CAC10-25A-1 |
Poppet Cartridge Pilot Check Valve 10 gpm-25 psi Cracking Pressure |
Buna N |
CAC10-25AP-1 |
Poppet Cartridge Pilot Check Valve 10 gpm-25 psi Cracking Pressure w/ O-ring On Pilot Piston |
Buna N |
CAC10-25P-1 |
Poppet Cartridge Pilot Check Valve 10 gpm-25 psi Cracking Pressure w/ O-ring On Pilot Piston |
Viton |
CAC10-25VP-1 |
Poppet Cartridge Pilot Check Valve 10 gpm-25 psi Cracking Pressure w/ O-ring On Pilot Piston |
Viton |
CAC10-60-1 |
Poppet Cartridge Pilot Check Valve 10 gpm-60 psi Cracking Pressure |
Viton |
CAC10-60A-1 |
Poppet Cartridge Pilot Check Valve 10 gpm-60 psi Cracking Pressure |
Buna N |
CAC10-60AP-1 |
Poppet Cartridge Pilot Check Valve 10 gpm-60 psi Cracking Pressure w/ O-ring On Pilot Piston |
Buna N |
CAC25-15-1 |
Poppet Cartridge Pilot Check Valve 25 gpm-15 psi Cracking Pressure |
Viton |
CAC25-15A-1 |
Poppet Cartridge Pilot Check Valve 25 gpm-15 psi Cracking Pressure |
Buna N |
CAC25-25-1 |
Poppet Cartridge Pilot Check Valve 25 gpm-25 psi Cracking Pressure |
Viton |
CAC25-25A-1 |
Poppet Cartridge Pilot Check Valve 25 gpm-25 psi Cracking Pressure |
Buna N |
CAC25-25AP-1 |
Poppet Cartridge Pilot Check Valve 25 gpm-25 psi Cracking Pressure w/ O-ring On Pilot Piston |
Buna N |
CAC25-60-1 |
Poppet Cartridge Pilot Check Valve 25 gpm-60 psi Cracking Pressure |
Viton |
CAC25-60A-1 |
Poppet Cartridge Pilot Check Valve 25 gpm-60 psi Cracking Pressure |
Buna N |
CAC25-60AP-1 |
Poppet Cartridge Pilot Check Valve 25 gpm-60 psi Cracking Pressure w/ O-ring On Pilot Piston |
Buna N |
CAC50-15-1 |
Poppet Cartridge Pilot Check Valve 50 gpm-15 psi Cracking Pressure |
Viton |
CAC50-15A-1 |
Poppet Cartridge Pilot Check Valve 50 gpm-15 psi Cracking Pressure |
Buna N |
CAC50-25-1 |
Poppet Cartridge Pilot Check Valve 50 gpm-25 psi Cracking Pressure |
Viton |
CAC50-25A-1 |
Poppet Cartridge Pilot Check Valve 50 gpm-25 psi Cracking Pressure |
Buna N |
CAC50-60-1 |
Poppet Cartridge Pilot Check Valve 50 gpm-60 psi Cracking Pressure |
Viton |
CAC50-60A-1 |
Poppet Cartridge Pilot Check Valve 50 gpm-60 psi Cracking Pressure |
Buna N |
CAC50-60AP-1 |
Poppet Cartridge Pilot Check Valve 50 gpm-60 psi Cracking Pressure w/ O-ring On Pilot Piston |
Buna N |
CAD10-N2P-15 |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" NPT-15 psi Cracking Pressure |
Viton |
CAD10-N2P-15A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" NPT-15 psi Cracking Pressure |
Buna N |
CAD10-N2P-25A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" NPT-25 psi Cracking Pressure |
Buna N |
CAD10-N2P-60A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" NPT-60 psi Cracking Pressure |
Buna N |
CAD10-N3P-15 |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-15 psi Cracking Pressure |
Viton |
CAD10-N3P-15A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-15 psi Cracking Pressure |
Buna N |
CAD10-N3P-25 |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-25 psi Cracking Pressure |
Viton |
CAD10-N3P-25A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-25 psi Cracking Pressure |
Buna N |
CAD10-N3P-60 |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-60 psi Cracking Pressure |
Viton |
CAD10-N3P-60A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-60 psi Cracking Pressure |
Buna N |
CAD10-N4P-15 |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" NPT-15 psi Cracking Pressure |
Viton |
CAD10-N4P-15A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" NPT-15 psi Cracking Pressure |
Buna N |
CAD10-N4P-25 |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" NPT-25 psi Cracking Pressure |
Viton |
CAD10-N4P-25A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" NPT-25 psi Cracking Pressure |
Buna N |
CAD10-N4P-60 |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" NPT-60 psi Cracking Pressure |
Viton |
CAD10-N4P-60A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" NPT-60 psi Cracking Pressure |
Buna N |
CAD10-N4S-15 |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" SAE-15 psi Cracking Pressure |
Viton |
CAD10-N4S-15A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" SAE-15 psi Cracking Pressure |
Buna N |
CAD10-N6S-15A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" SAE-15 psi Cracking Pressure |
Buna N |
CAD10-N6S-25 |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" SAE-25 psi Cracking Pressure |
Viton |
CAD10-N6S-25A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" SAE-25 psi Cracking Pressure |
Buna N |
CAD10-N6S-60 |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" SAE-60 psi Cracking Pressure |
Viton |
CAD10-N6S-60A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" SAE-60 psi Cracking Pressure |
Buna N |
CAD10-N6S-60P |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" SAE-60 psi Cracking Pressure w/ O-ring On Pilot Piston |
Viton |
CAD10-N8S-15A |
Dual Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" SAE-15 psi Cracking Pressure |
Buna N |
CAD25-N3P-15 |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/8" NPT-15 psi Cracking Pressure |
Viton |
CAD25-N3P-15A |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/8" NPT-15 psi Cracking Pressure |
Buna N |
CAD25-N4P-15 |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" NPT-15 psi Cracking Pressure |
Viton |
CAD25-N4P-15A |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" NPT-15 psi Cracking Pressure |
Buna N |
CAD25-N4P-25 |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" NPT-25 psi Cracking Pressure |
Viton |
CAD25-N4P-25A |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" NPT-25 psi Cracking Pressure |
Buna N |
CAD25-N4P-60A |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" NPT-60 psi Cracking Pressure |
Buna N |
CAD25-N6P-15 |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-15 psi Cracking Pressure |
Viton |
CAD25-N6P-15A |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-15 psi Cracking Pressure |
Buna N |
CAD25-N6P-25 |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-25 psi Cracking Pressure |
Viton |
CAD25-N6P-25A |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-25 psi Cracking Pressure |
Buna N |
CAD25-N6P-60 |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-60 psi Cracking Pressure |
Viton |
CAD25-N6P-60A |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-60 psi Cracking Pressure |
Buna N |
CAD25-N8S-15 |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" SAE-15 psi Cracking Pressure |
Viton |
CAD25-N8S-15A |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" SAE-15 psi Cracking Pressure |
Buna N |
CAD25-N8S-60A |
Dual Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" SAE-60 psi Cracking Pressure |
Buna N |
CAD50-N16S-25 |
Dual Pilot Operated Check Valve 50 gpm, Non-adjustable, 1" SAE-25 psi Cracking Pressure |
Viton |
CAD50-N16S-60 |
Dual Pilot Operated Check Valve 50 gpm, Non-adjustable, 1" SAE-60 psi Cracking Pressure |
Viton |
CAD50-N16S-60PA |
Dual Pilot Operated Check Valve 50 gpm, Non-adjustable, 1" SAE-60 psi Cracking Pressure w/ O-ring On Pilot Piston |
Buna N |
CAD50-N6P-15A |
Dual Pilot Operated Check Valve 50 gpm, Non-adjustable, 3/4" SAE-15 psi Cracking Pressure |
Buna N |
CAD50-N8P-15A |
Dual Pilot Operated Check Valve 50 gpm, Non-adjustable, 1" SAE-15 psi Cracking Pressure |
Buna N |
CAD50-N8P-25 |
Dual Pilot Operated Check Valve 50 gpm, Non-adjustable, 1" SAE-25 psi Cracking Pressure |
Viton |
CAD50-N8P-25A |
Dual Pilot Operated Check Valve 50 gpm, Non-adjustable, 1" SAE-25 psi Cracking Pressure |
Buna N |
CAV10-N2P-15 |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" NPT-15 psi Cracking Pressure |
Viton |
CAV10-N2P-15A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" NPT-15 psi Cracking Pressure |
Buna N |
CAV10-N2P-15P |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" NPT-15 psi Cracking Pressure w/ O-ring On Pilot Piston |
Viton |
CAV10-N2P-25 |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" NPT-25 psi Cracking Pressure |
Viton |
CAV10-N2P-25A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" NPT-25 psi Cracking Pressure |
Buna N |
CAV10-N2P-60 |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" NPT-60 psi Cracking Pressure |
Viton |
CAV10-N2P-60A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" NPT-60 psi Cracking Pressure |
Buna N |
CAV10-N2P-60AP |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" NPT-60 psi Cracking Pressure w/ O-ring On Pilot Piston |
Buna N |
CAV10-N3P-15 |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-15 psi Cracking Pressure |
Viton |
CAV10-N3P-15A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-15 psi Cracking Pressure |
Buna N |
CAV10-N3P-15AP |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-15 psi Cracking Pressure w/ O-ring On Pilot Piston |
Buna N |
| CAV10-N3P-25 |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-25 psi Cracking Pressure |
Viton |
| CAV10-N3P-25A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-25 psi Cracking Pressure |
Buna N |
| CAV10-N3P-60 |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-60 psi Cracking Pressure |
Viton |
| CAV10-N3P-60A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" NPT-60 psi Cracking Pressure |
Buna N |
| CAV10-N4P-15 |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" NPT-15 psi Cracking Pressure |
Viton |
| CAV10-N4P-15A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" NPT-15 psi Cracking Pressure |
Buna N |
| CAV10-N4P-25 |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" NPT-25 psi Cracking Pressure |
Viton |
| CAV10-N4P-25A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" NPT-25 psi Cracking Pressure |
Buna N |
| CAV10-N4P-60A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" NPT-60 psi Cracking Pressure |
Buna N |
| CAV10-N4S-15A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" SAE-15 psi Cracking Pressure |
Buna N |
| CAV10-N4S-25A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/4" SAE-25 psi Cracking Pressure |
Buna N |
| CAV10-N6S-15 |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" SAE-15 psi Cracking Pressure |
Viton |
| CAV10-N6S-15A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" SAE-15 psi Cracking Pressure |
Buna N |
| CAV10-N6S-60A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" SAE-60 psi Cracking Pressure |
Buna N |
| CAV10-N6S-60AP |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 3/8" SAE-60 psi Cracking Pressure w/ O-ring On Pilot Piston |
Buna N |
| CAV10-N8-15 |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" SAE-15 psi Cracking Pressure |
Viton |
| CAV10-N8S-15A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" SAE-15 psi Cracking Pressure |
Buna N |
| CAV10-N8S-25A |
Single Pilot Operated Check Valve 10 gpm, Non-adjustable, 1/2" SAE-25 psi Cracking Pressure |
Buna N |
| CAV25-N12S-15 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" SAE-15 psi Cracking Pressure |
Viton |
| CAV25-N12S-15A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" SAE-15 psi Cracking Pressure |
Buna N |
| CAV25-N12S-25 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" SAE-25 psi Cracking Pressure |
Viton |
| CAV25-N12S-25A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" SAE-25 psi Cracking Pressure |
Buna N |
| CAV25-N3P-15 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/8" NPT-15 psi Cracking Pressure |
Viton |
| CAV25-N3P-15A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/8" NPT-15 psi Cracking Pressure |
Buna N |
| CAV25-N3P-25A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/8" NPT-25 psi Cracking Pressure |
Buna N |
| CAV25-N4P-15 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" NPT-15 psi Cracking Pressure |
Viton |
| CAV25-N4P-15A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" NPT-15 psi Cracking Pressure |
Buna N |
| CAV25-N4P-25 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" NPT-25 psi Cracking Pressure |
Viton |
| CAV25-N4P-25A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" NPT-25 psi Cracking Pressure |
Buna N |
| CAV25-N4P-60A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" NPT-60 psi Cracking Pressure |
Buna N |
| CAV25-N6P-15 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-15 psi Cracking Pressure |
Buna N |
| CAV25-N6P-15A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-15 psi Cracking Pressure |
Buna N |
| CAV25-N6P-25 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-25 psi Cracking Pressure |
Viton |
| CAV25-N6P-25A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-25 psi Cracking Pressure |
Buna N |
| CAV25-N6P-60A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-60 psi Cracking Pressure |
Buna N |
| CAV25-N6S-15 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/8" SAE-15 psi Cracking Pressure |
Viton |
| CAV25-N6S-15A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/8" SAE-15 psi Cracking Pressure |
Buna N |
| CAV25-N6S-25A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/8" SAE-25 psi Cracking Pressure |
Buna N |
| CAV25-N8S-25A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1/2" SAE-25 psi Cracking Pressure |
Buna N |
| CAV50-N12S-15A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" SAE-15 psi Cracking Pressure |
Buna N |
| CAV50-N12S-25 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" SAE-25 psi Cracking Pressure |
Viton |
| CAV50-N12S-60A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" SAE-60 psi Cracking Pressure |
Buna N |
| CAV50-N16S-15 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1" SAE-15 psi Cracking Pressure |
Viton |
| CAV50-N16S-15A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1" SAE-15 psi Cracking Pressure |
Buna N |
| CAV50-N16S-25 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1" SAE-25 psi Cracking Pressure |
Viton |
| CAV50-N16S-25A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1" SAE-25 psi Cracking Pressure |
Buna N |
| CAV50-N6P-15 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-15 psi Cracking Pressure |
Viton |
| CAV50-N6P-15A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-15 psi Cracking Pressure |
Buna N |
| CAV50-N6P-15P |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-15 psi Cracking Pressure w/ O-ring On Pilot Piston |
Viton |
| CAV50-N6P-25A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-25 psi Cracking Pressure |
Buna N |
| CAV50-N6P-60 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-60 psi Cracking Pressure |
Viton |
| CAV50-N6P-60A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 3/4" NPT-60 psi Cracking Pressure |
Buna N |
| CAV50-N8P-15 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1" NPT-15 psi Cracking Pressure |
Viton |
| CAV50-N8P-15A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1" NPT-15 psi Cracking Pressure |
Buna N |
| CAV50-N8P-25A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1" NPT-25 psi Cracking Pressure |
Buna N |
| CAV50-N8P-60 |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1" NPT-60 psi Cracking Pressure |
Viton |
| CAV50-N8P-60A |
Single Pilot Operated Check Valve 25 gpm, Non-adjustable, 1" NPT-60 psi Cracking Pressure |
Buna N |
| CPC10-15-1 |
Poppet Cartridge Check Valve 10 gpm-15 psi Cracking Pressure |
Viton |
| CPC10-15A-1 |
Poppet Cartridge Check Valve 10 gpm- 15 psi Cracking Pressure |
Buna N |
| CPC10-25A-1 |
Poppet Cartridge Check Valve 10 gpm-25 psi Cracking Pressure |
Buna N |
| CPC10-60-1 |
Poppet Cartridge Check Valve 10 gpm-60 psi Cracking Pressure 60 psi |
Viton |
| CPC25-15A-1 |
Poppet Cartridge Check Valve 25 gpm-15 psi Cracking Pressure |
Buna N |
| CPC25-25-1 |
Poppet Cartridge Check Valve 25 gpm-25 psi Cracking Pressure |
Viton |
| CPC25-25A-1 |
Poppet Cartridge Check Valve 25 gpm-25 psi Cracking Pressure |
Buna N |
| CPC25-60-1 |
Poppet Cartridge Check Valve 25 gpm-60 psi Cracking Pressure |
Viton |
| CPC50-15-1 |
Poppet Cartridge Check Valve 50 gpm-15 psi Cracking Pressure |
Viton |
| CPC50-15A-1 |
Poppet Cartridge Check Valve 50 gpm-15 psi Cracking Pressure |
Buna N |
| CPC50-25A-1 |
Poppet Cartridge Check Valve 50 gpm-25 psi Cracking Pressure |
Buna N |
| CPC50-60A-1 |
Poppet Cartridge Check Valve 50 gpm-60 psi Cracking Pressure |
Buna N |
|
