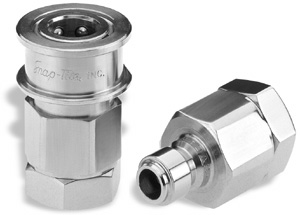

Snap-Tite EA & E Series General Purpose & Vacuum Couplings

EA & E Series - The EA Series coupling is designed for vacuum & medium pressure service, providing a fast & dependable method of fluid line changeover in autoclave applications ranging from aircraft fabrication to plastic molding. The E Series has been proven by years of use on hydraulic & pneumatic applications as well as many other liquids & gases. They are designed & manufactured for years of reliable service.

EA & E Series : General Purpose Poppet Coupling General Purpose, vacuum, and Steam Poppet Coupling/Quick Coupler

规格参数：

EA Sizes - 1/4" thru 3/4"
E Sizes - 1" thru 4"
Construction - Available in aluminum, brass, plated steel and 316 stainless steel
Seal Versatility - Wide range of standard & special seal materials available
High Temperature Capability - Unique EA Series seal configuration allows for high temperature use
Vacuum Capability - Dependable service down to 29.72" Hg
Optional Sleeve Lock - Aids in prevention of accidental disconnection
Pressure Ratings - Working pressures to 3,000 psi (207 bar)
Valve Configurations - Available with double or single shut-off valving or straight through

BENEFITS

Snap-tite's EA and E's "Jet Stream" valve design helps maintain a clean linear flow which equates to low pressure drop. Positive positioning of the valve aids in maintaining a steady even flow under normal working conditions. The couplings two piece body construction allows for many end fitting options from standard industrial styles to stringent military specific designs.

Item #
Type
Connection Size
Seal Material
BPEAC12-12F Brass Coupler 3/4" x 3/4" NPTF Buna N
BPEAC12-12FE Brass Coupler 3/4" x 3/4" NPTF Ethylene Propylene
BPEAC12-12FSL Brass Coupler 3/4" x 3/4" NPTF Buna N
BPEAC12-12FV Brass Coupler 3/4" x 3/4" NPTF Viton
BPEAC4-4F Brass Coupler 1/4" x 1/4" NPTF Buna N
BPEAC4-4FE Brass Coupler 1/4" x 1/4" NPTF Ethylene Propylene
BPEAC4-4FV Brass Coupler 1/4" x 1/4" NPTF Viton
BPEAC4-4FVSL Brass Coupler 1/4" x 1/4" NPTF Viton
BPEAC6-6F Brass Coupler 3/8" x 3/8" NPTF Buna N
BPEAC6-6FV Brass Coupler 3/8" x 3/8" NPTF Viton
BPEAC8-8F Brass Coupler 1/2" x 1/2" NPTF Buna N
BPEAC8-8FSL Brass Coupler 1/2" x 1/2" NPTF Buna N
BPEAC8-8FVSL Brass Coupler 1/2" x 1/2" NPTF Viton
BPEAN12-12F Brass Nipple 3/4" x 3/4" NPTF Buna N
BPEAN4-2F Brass Nipple 1/4" x 1/8" NPTF Buna N
BPEAN4-2M Brass Nipple 1/4" x 1/8" NPTM Buna N
BPEAN4-4F Brass Nipple 1/4" x 1/4" NPTF Buna N
BPEAN4-4RP Brass Nipple 1/4" x 1/4" BSPF Buna N
BPEAN6-6F Brass Nipple 3/8" x 3/8" NPTF Buna N
BPEAN8-8F Brass Nipple 1/2" x 1/2" NPTF Buna N
BPEAN8-8RP Brass Nipple 1/2" x 1/2" BSPF Buna N
BPEC16-16F Brass Coupler 1" x 1" NPTF Buna N
BPEC20-20F Brass Coupler 1-1/4" x 1-1/4" NPTF Buna N
BPEC20-20FV Brass Coupler 1-1/4" x 1-1/4" NPTF Viton
BPEC24-24F Brass Coupler 1-1/2" x 1-1/2" NPTF Buna N
BPEC24-24FSL Brass Coupler 1-1/2" x 1-1/2" NPTF Buna N
BPEC32-32F Brass Coupler 2" x 2" NPTF Buna N
BPEC32-32FV Brass Coupler 2" x 2" NPTF Viton
BPEN16-16F Brass Nipple 1" x 1" NPTF Buna N
BPEN20-20F Brass Nipple 1-1/4" x 1-1/4" NPTF Buna N
BPEN24-24F Brass Nipple 1-1/2" x 1-1/2" NPTF Buna N
BPEN32-32F Brass Nipple 2" x 2" NPTF Buna N
BVEAC12-12F Brass Valved Coupler 3/4" x 3/4" NPTF Buna N
BVEAC12-12FE Brass Valved Coupler 3/4" x 3/4" NPTF Ethylene Propylene
BVEAC12-12FESL Brass Valved Coupler 3/4" x 3/4" NPTF Ethylene Propylene
BVEAC12-12FSL Brass Valved Coupler 3/4" x 3/4" NPTF Buna N
BVEAC12-12FV Brass Valved Coupler 3/4" x 3/4" NPTF Viton
BVEAC12-12M Brass Valved Coupler 3/4" x 3/4" NPTM Buna N
BVEAC12-12ME Brass Valved Coupler 3/4" x 3/4" NPTM Ethylene Propylene
BVEAC12-SPK Brass Valved Coupler Spare Parts Kit 3/4" Buna N
BVEAC4-2F Brass Valved Coupler 1/4" x 1/8" NPTF Buna N
BVEAC4-4F Brass Valved Coupler 1/4" x 1/4" NPTF Buna N
BVEAC4-4FE Brass Valved Coupler 1/4" x 1/4" NPTF Ethylene Propylene
BVEAC4-4FV Brass Valved Coupler 1/4" x 1/4" NPTF Viton
BVEAC4-4H Brass Valved Coupler 1/4" x 1/4" Hose Barb Buna N
BVEAC4-4M Brass Valved Coupler 1/4" x 1/4" NPTM Buna N
BVEAC4-4ME Brass Valved Coupler 1/4" x 1/4" NPTM Ethylene Propylene
BVEAC6-6EM Brass Valved Coupler 1/4" x 1/4" Male SAE 37o Flare Buna N
BVEAC6-6F Brass Valved Coupler 3/8" x 3/8" NPTF Buna N
BVEAC6-6FAS Brass Valved Coupler 3/8" x 3/8" NPTF Aflas
BVEAC6-6FE Brass Valved Coupler 3/8" x 3/8" NPTF Ethylene Propylene
BVEAC6-6FV Brass Valved Coupler 3/8" x 3/8" NPTF Viton
BVEAC6-6M Brass Valved Coupler 3/8" x 3/8" NPTM Buna N
BVEAC6-SPK Brass Valved Coupler Spare Parts Kit 3/8" Buna N
BVEAC8-8F Brass Valved Coupler 1/2" x 1/2" NPTF Buna N
BVEAC8-8FAS Brass Valved Coupler 1/2" x 1/2" NPTF Aflas
BVEAC8-8FE Brass Valved Coupler 1/2" x 1/2" NPTF Ethylene Propylene
BVEAC8-8FESL Brass Valved Coupler 1/2" x 1/2" NPTF Ethylene Propylene
BVEAC8-8FV Brass Valved Coupler 1/2" x 1/2" NPTF Viton
BVEAC8-8M Brass Valved Coupler 1/2" x 1/2" NPTM Buna N
BVEAC8-8ME Brass Valved Coupler 1/2" x 1/2" NPTM Ethylene Propylene
BVEAN12-12F Brass Valved Nipple 3/4" x 3/4" NPTF Buna N
BVEAN12-12FE Brass Valved Nipple 3/4" x 3/4" NPTF Ethylene Propylene
BVEAN12-12FV Brass Valved Nipple 3/4" x 3/4" NPTF Viton
BVEAN12-12M Brass Valved Nipple 3/4" x 3/4" NPTM Buna N
BVEAN12-12ME Brass Valved Nipple 3/4" x 3/4" NPTM Ethylene Propylene
BVEAN4-2F Brass Valved Nipple 1/4" x 1/8" NPTF Buna N
BVEAN4-4F Brass Valved Nipple 1/4" x 1/4" NPTF Buna N
BVEAN4-4FE Brass Valved Nipple 1/4" x 1/4" NPTF Ethylene Propylene
BVEAN4-4FV Brass Valved Nipple 1/4" x 1/4" NPTF Viton
BVEN4-4M Brass Valved Nipple 1/4" x 1/4" NPTM Buna N
BVEAN4-4ME Brass Valved Nipple 1/4" x 1/4" NPTM Ethylene Propylene
BVEAN4-4MV Brass Valved Nipple 1/4" x 1/4" NPTM Viton
BVEAN6-6EB Brass Valved Nipple 3/8" x 3/8" Bulkhead SAE Buna N
BVEAN6-6EM Brass Valved Nipple 3/8" x 3/8" Male SAE 37o Flare Buna N
BVEAN6-6F Brass Valved Nipple 3/8" x 3/8" NPTF Buna N
BVEAN6-6FAS Brass Valved Nipple 3/8" x 3/8" NPTF Aflas
BVEAN6-6FE Brass Valved Nipple 3/8" x 3/8" NPTF Ethylene Propylene
BVEAN6-6FV Brass Valved Nipple 3/8" x 3/8" NPTF Viton
BVEAN6-6M Brass Valved Nipple 3/8" x 3/8" NPTM Buna N
BVEAN6-6ME Brass Valved Nipple 3/8" x 3/8" NPTM Ethylene Propylene
BVEAN8-8F Brass Valved Nipple 1/2" x 1/2" NPTF Buna N
BVEAN8-8FAS Brass Valved Nipple 1/2" x 1/2" NPTF Aflas
BVEAN8-8FE Brass Valved Nipple 1/2" x 1/2" NPTF Ethylene Propylene
BVEAN8-8FV Brass Valved Nipple 1/2" x 1/2" NPTF Viton
BVEAN8-8M Brass Valved Nipple 1/2" x 1/2" NPTM Buna N
BVEAN8-8ME Brass Valved Nipple 1/2" x 1/2" NPTM Ethylene Propylene
BVEC16-16F Brass Valved Coupler 1" x 1" NPTF Buna N
BVEC16-16FE Brass Valved Coupler 1" x 1" NPTF Ethylene Propylene
BVEC16-16FV Brass Valved Coupler 1" x 1" NPTF Viton
BVEC16-16M Brass Valved Coupler 1" x 1" NPTM Buna N
BVEC16-SPK Brass Valved Coupler Spare Parts Kit 1" Buna N
BVEC20-20F Brass Valved Coupler 1-1/4" x 1-1/4" NPTF Buna N
BVEC20-20FE Brass Valved Coupler 1-1/4" x 1-1/4" NPTF Ethylene Propylene
BVEC20-20FV Brass Valved Coupler 1-1/4" x 1-1/4" NPTF Viton
BVEC20-20M Brass Valved Coupler 1-1/4" x 1-1/4" NPTM Buna N
BVEC20-20MV Brass Valved Coupler 1-1/4" x 1-1/4" NPTM Viton
BVEC24-24F Brass Valved Coupler 1-1/2" x 1-1/2" NPTF Buna N
BVEC24-24FE Brass Valved Coupler 1-1/2" x 1-1/2" NPTF Ethylene Propylene
BVEC24-24FV rass Valved Coupler 1-1/2" x 1-1/2" NPTF Viton
BVEC24-24M Brass Valved Coupler 1-1/2" x 1-1/2" NPTM Buna N
BVEC24-24MSL Brass Valved Coupler 1-1/2" x 1-1/2" NPTM Buna N
BVEC32-32F Brass Valved Coupler 2" x 2" NPTF Buna N
BVEC32-32FV Brass Valved Coupler 2" x 2" NPTF Viton
BVEN16-16F Brass Valved Nipple 1" x 1" NPTF Buna N
BVEN16-16FE Brass Valved Nipple 1" x 1" NPTF Ethylene Propylene
BVEN16-16FV Brass Valved Nipple 1" x 1" NPTF Viton
BVEN16-16M Brass Valved Nipple 1" x 1" NPTM Buna N
BVEN16-16ME Brass Valved Nipple 1" x 1" NPTM Ethylene Propylene
BVEN16-SPK Brass Valved Nipple Spare Parts Kit 1" Buna N
BVEN20-20F Brass Valved Nipple 1-1/4" x 1-1/4" NPTF Buna N
BVEN20-20FE Brass Valved Nipple 1-1/4" x 1-1/4" NPTF Ethylene Propylene
BVEN20-20FV Brass Valved Nipple 1-1/4" x 1-1/4" NPTF Viton
BVEN20-20M Brass Valved Nipple 1-1/4" x 1-1/4" NPTM Buna N
BVEN24-24F Brass Valved Nipple 1-1/2" x 1-1/2" NPTF Buna N
BVEN24-24FE Brass Valved Nipple 1-1/2" x 1-1/2" NPTF Ethylene Propylene
BVEN24-24FV Brass Valved Nipple 1-1/2" x 1-1/2" NPTF Viton
BVEN32-32F Brass Valved Nipple 2" x 2" NPTF Buna N
BVEN32-32FV Brass Valved Nipple 2" x 2" NPTF Viton
E16-55A Valve Seal Kit 1" Buna N
E16-55E Valve Seal Kit 1" Ethylene Propylene
E16-55V Valve Seal Kit 1" Viton
E16-58A Nipple Seal Kit 1" Buna N
E16-58E Nipple Seal Kit 1" Ethylene Propylene
E16-58V Nipple Seal Kit 1" Viton
E16-59A Adapter Seal Kit 1" Buna N
E16-59E Adapter Seal Kit 1" Ethylene Propylene
E16-59V Adapter Seal Kit 1" Viton
E20-55A Valve Seal Kit 1-1/4" Buna N
E20-55E Valve Seal Kit 1-1/4" Ethylene Propylene
E20-55V Valve Seal Kit 1-1/4" Viton
E20-58A Nipple Seal Kit 1-1/4" Buna N
E20-58E Nipple Seal Kit 1-1/4" Ethylene Propylene
E20-58V Nipple Seal Kit 1-1/4" Viton
E20-59A Adapter Seal Kit 1-1/4" Buna N
E20-59E Adapter Seal Kit 1-1/4" Ethylene Propylene
E20-59V Adapter Seal Kit 1-1/4" Viton
E24-55A Valve Seal Kit 1-1/2" Buna N
E24-55E Valve Seal Kit 1-1/2" Ethylene Propylene
E24-55V Valve Seal Kit 1-1/2" Viton
E24-58A Nipple Seal Kit 1-1/2" Buna N
E24-58E Nipple Seal Kit 1-1/2" Ethylene Propylene
E24-58V Nipple Seal Kit 1-1/2" Viton
E24-59A Adapter Seal Kit 1-1/2" Buna N
E24-59E Adapter Seal Kit 1-1/2" Ethylene Propylene
E24-59V dapter Seal Kit 1-1/2" Viton
E32-55A Valve Seal Kit 2" Buna N
E32-55V Valve Seal Kit 2" Viton
E32-58A Nipple Seal Kit 2" Buna N
E32-58E Nipple Seal Kit 2" Ethylene Propylene
E32-58V Nipple Seal Kit 2" Viton
E32-59A Adapter Seal Kit 2" Buna N
E32-59V Adapter Seal Kit 2" Viton
EA12-55A Valve Seal Kit 3/4" Buna N
EA12-55E Valve Seal Kit 3/4" Ethylene Propylene
EA12-55V Valve Seal Kit 3/4" Viton
EA12-58A Nipple Seal Kit 3/4" Buna N
EA12-58E Nipple Seal Kit 3/4" Ethylene Propylene
EA12-58V Nipple Seal Kit 3/4" Viton
EA12-59A Adapter Seal Kit 3/4" Buna N
EA12-59E Adapter Seal Kit 3/4" Ethylene Propylene
EA12-59V Adapter Seal Kit 3/4" Viton
EA4-55A Valve Seal Kit 1/4" Buna N
EA4-55V Valve Seal Kit 1/4" Viton
EA4-58A Nipple Seal Kit 1/4" Buna N
EA4-58AS Nipple Seal Kit 1/4" Aflas
EA4-58E Nipple Seal Kit 1/4" Ethylene Propylene
EA4-58V Nipple Seal Kit 1/4" Viton
EA4-59A Adapter Seal Kit 1/4" Buna N
EA4-59E Adapter Seal Kit 1/4" Ethylene Propylene
EA4-59V Adapter Seal Kit 1/4" Viton
EA6-55A Valve Seal Kit 3/8" Buna N
EA6-58A Nipple Seal Kit 3/8" Buna N
EA6-58E Nipple Seal Kit 3/8" Ethylene Propylene
EA6-58V Nipple Seal Kit 3/8" Viton
EA6-59A Adapter Seal Kit 3/8" Buna N
EA6-59E Adapter Seal Kit 3/8" Ethylene Propylene
EA6-59V Adapter Seal Kit 3/8" Viton
EA8-55A Valve Seal Kit 1/2" Buna N
EA8-55V Valve Seal Kit 1/2" Viton
EA8-58A Nipple Seal Kit 1/2" Buna N
EA8-58E Nipple Seal Kit 1/2" Ethylene Propylene
EA8-58V Nipple Seal Kit 1/2" Viton
EA8-59A Adapter Seal Kit 1/2" Buna N
EA8-59E Adapter Seal Kit 1/2" Ethylene Propylene
EA8-59V Adapter Seal Kit 1/2" Viton
PEAC12-12F Plated Steel Non-Valved Coupler 3/4" x 3/4" NPTF Buna N
PEAC12-12FE Plated Steel Non-Valved Coupler 3/4" x 3/4" NPTF Ethylene Propylene
PEAC12-12FM Plated Steel Non-Valved Coupler 3/4" x 3/4" NPTF Military Buna N
PEAC12-12FSL Plated Steel Non-Valved Coupler 3/4" x 3/4" NPTF Buna N
PEAC12-12FV Plated Steel Non-Valved Coupler 3/4" x 3/4" NPTF Viton
PEAC4-4F Plated Steel Non-Valved Coupler 1/4" x 1/4" NPTF Buna N
PEAC4-4FE Plated Steel Non-Valved Coupler 1/4" x 1/4" NPTF Ethylene Propylene
PEAC4-4FJF Plated Steel Non-Valved Coupler 1/4" x 1/4" NPTF Military Buna N
PEAC4-4FSL Plated Steel Non-Valved Coupler 1/4" x 1/4" NPTF Buna N
PEAC4-4FV Plated Steel Non-Valved Coupler 1/4" x 1/4" NPTF Viton
PEAC4-4FVSL Plated Steel Non-Valved Coupler 1/4" x 1/4" NPTF Viton
PEAC6-6F Plated Steel Non-Valved Coupler 3/8" x 3/8" NPTF Buna N
PEAC6-6FAS Plated Steel Non-Valved Coupler 3/8" x 3/8" NPTF Aflas
PEAC6-6FE Plated Steel Non-Valved Coupler 3/8" x 3/8" NPTF Ethylene Propylene
PEAC6-6FV Plated Steel Non-Valved Coupler 3/8" x 3/8" NPTF Viton
PEAC8-8F Plated Steel Non-Valved Coupler 1/2" x 1/2" NPTF Buna N
PEAC8-8FE Plated Steel Non-Valved Coupler 1/2" x 1/2" NPTF Ethylene Propylene
PEAC8-8FSL Plated Steel Non-Valved Coupler 1/2" x 1/2" NPTF Buna N
PEAC8-8FV Plated Steel Non-Valved Coupler 1/2" x 1/2" NPTF Viton
PEAC8-8FVSL Plated Steel Non-Valved Coupler 1/2" x 1/2" NPTF Viton
PEAN12-12F Plated Steel Non-Valved Nipple 3/4" x 3/4" NPTF Buna N
PEAN4-4F Plated Steel Non-Valved Nipple 1/4" x 1/4" NPTF Buna N
PEAN4-4M Plated Steel Non-Valved Nipple 1/4" x 1/4" NPTM Buna N
PEAN6-6F Plated Steel Non-Valved Nipple 3/8" x 3/8" NPTF Buna N
PEAN6-6M Plated Steel Non-Valved Nipple 3/8" x 3/8" NPTM Buna N
PEAN8-8F Plated Steel Non-Valved Nipple 1/2" x 1/2" NPTF Buna N
PEC16-16F Plated Steel Non-Valved Coupler 1" x 1" NPTF Buna N
PEC16-16FE Plated Steel Non-Valved Coupler 1" x 1" NPTF Ethylene Propylene
PEC16-16FESL Plated Steel Non-Valved Coupler 1" x 1" NPTF Ethylene Propylene
PEC16-16FSL Plated Steel Non-Valved Coupler 1" x 1" NPTF Buna N
PEC16-16FV Plated Steel Non-Valved Coupler 1" x 1" NPTF Viton
PEC16-16FVSL Plated Steel Non-Valved Coupler 1" x 1" NPTF Viton
PEC20-20F Plated Steel Non-Valved Coupler 1-1/4" x 1-1/4" NPTF Buna N
PEC20-20FV Plated Steel Non-Valved Coupler 1-1/4" x 1-1/4" NPTF Viton
PEC24-24F Plated Steel Non-Valved Coupler 1-1/2" x 1-1/2" NPTF Buna N
PEC24-24FESL Plated Steel Non-Valved Coupler 1-1/2" x 1-1/2" NPTF Ethylene Propylene
PEC32-32F Plated Steel Non-Valved Coupler 2" x 2" NPTF Buna N
PEC32-32FE Plated Steel Non-Valved Coupler 2" x 2" NPTF Ethylene Propylene
PEC32-32FJF Plated Steel Non-Valved Coupler 2" x 2" NPTF Military Buna N
PEC32-32FSL Plated Steel Non-Valved Coupler 2" x 2" NPTF Buna N
PEC32-32FV Plated Steel Non-Valved Coupler 2" x 2" NPTF Viton
PEN16-16F Plated Steel Non-Valved Nipple 1" x 1" NPTF Buna N
PEN20-20F Plated Steel Non-Valved Nipple 1-1/4" x 1-1/4" NPTF Buna N
PEN24-24F Plated Steel Non-Valved Nipple 1-1/2" x 1-1/2" NPTF Buna N
PEN32-32F Plated Steel Non-Valved Nipple 2" x 2" NPTF Buna N
SPEAC12-12F Stainless Steel Non-Valved Coupler 3/4" x 3/4" NPTF Buna N
SPEAC12-12FJF Stainless Steel Non-Valved Coupler 3/4" x 3/4" NPTF Military Buna N
SPEAC12-12FSL Stainless Steel Non-Valved Coupler 3/4" x 3/4" NPTF Buna N
SPEAC12-12FV Stainless Steel Non-Valved Coupler 3/4" x 3/4" NPTF Viton
SPEAC12-12FVSL Stainless Steel Non-Valved Coupler 3/4" x 3/4" NPTF Viton
SPEAC4-4F Stainless Steel Non-Valved Coupler 1/4" x 1/4" NPTF Buna N
SPEAC4-4FSL Stainless Steel Non-Valved Coupler 1/4" x 1/4" NPTF Buna N
SPEAC6-6FV Stainless Steel Non-Valved Coupler 3/8" x 3/8" NPTF Viton
SPEAC8-8F Stainless Steel Non-Valved Coupler 1/2" x 1/2" NPTF Buna N
SPEAC8-8FV Stainless Steel Non-Valved Coupler 1/2" x 1/2" NPTF Viton
SPEAN12-12F Stainless Steel Non-Valved Nipple 3/4" x 3/4" NPTF Buna N
SPEAN4-4F Stainless Steel Non-Valved Nipple 1/4" x 1/4" NPTF Buna N
SPEAN4-4M Stainless Steel Non-Valved Nipple 1/4" x 1/4" NPTM Buna N
SPEAN8-8F Stainless Steel Non-Valved Nipple 1/2" x 1/2" NPTF Buna N
SPEC16-16F Stainless Steel Non-Valved Coupler 1" x 1" NPTF Buna N
SPEC20-20F Stainless Steel Non-Valved Coupler 1-1/4" x 1-1/4" NPTF Buna N
SPEC20-20FESL Stainless Steel Non-Valved Coupler 1-1/4" x 1-1/4" NPTF Ethylene Propylene
SPEC20-20FV Stainless Steel Non-Valved Coupler 1-1/4" x 1-1/4" NPTF Viton
SPEC20-20FVSL Stainless Steel Non-Valved Coupler 1-1/4" x 1-1/4" NPTF Viton
SPEC24-24F Stainless Steel Non-Valved Coupler 1-1/2" x 1-1/2" NPTF Buna N
SPEC24-24FE Stainless Steel Non-Valved Coupler 1-1/2" x 1-1/2" NPTF Ethylene Propylene
SPEC24-24FSL Stainless Steel Non-Valved Coupler 1-1/2" x 1-1/2" NPTF Buna N
SPEC24-24FV Stainless Steel Non-Valved Coupler 1-1/2" x 1-1/2" NPTF Viton
SPEC24-24FVSL Stainless Steel Non-Valved Coupler 1-1/2" x 1-1/2" NPTF Viton
SPEC32-32F Stainless Steel Non-Valved Coupler 2" x 2" NPTF Buna N
SPEC32-32FSL Stainless Steel Non-Valved Coupler 2" x 2" NPTF Buna N
SPEN16-16F Stainless Steel Non-Valved Nipple 1" x 1" NPTF Buna N
SPEN20-20F Stainless Steel Non-Valved Nipple 1-1/4" x 1-1/4" NPTF Buna N
SPEN24-24F Stainless Steel Non-Valved Nipple 1-1/2" x 1-1/2" NPTF Buna N
SPEN32-32F Stainless Steel Non-Valved Nipple 2" x 2" NPTF Buna N
SVEAC12-12-49 316 Stainless Steel Valved Coupler 3/4" x 3/4" MS33649 Female Buna N
SVEAC12-12-49JF 316 Stainless Steel Valved Coupler for Hydrocarbon Fuel 3/4" x 3/4" MS33649 Female Military Buna N
SVEAC12-12-57 316 Stainless Steel Valved Coupler 3/4" x 3/4" MS33657 Bulkhead Buna N
SVEAC12-12F 316 Stainless Steel Valved Coupler 3/4" x 3/4" NPTF Buna N
SVEAC12-12FAS 316 Stainless Steel Valved Coupler 3/4" x 3/4" NPTF Aflas
SVEAC12-12FE 316 Stainless Steel Valved Coupler 3/4" x 3/4" NPTF Ethylene Propylene
SVEAC12-12FSL 316 Stainless Steel Valved Coupler 3/4" x 3/4" NPTF Buna N
SVEAC12-12FV 316 Stainless Steel Valved Coupler 3/4" x 3/4" NPTF Viton
SVEAC12-12M 316 Stainless Steel Valved Coupler 3/4" x 3/4" NPTM Buna N
SVEAC12-12MVSL 316 Stainless Steel Valved Coupler 3/4" x 3/4" NPTM Viton
SVEAC4-2F 316 Stainless Steel Valved Coupler 1/4" x 1/8" NPTF Buna N
SVEAC4-2FM 316 Stainless Steel Valved Coupler 1/4" x 1/8" NPTF Military Buna N
SVEAC4-2FV 316 Stainless Steel Valved Coupler 1/4" x 1/8" NPTF Viton
SVEAC4-4-49JF 316 Stainless Steel Valved Coupler for Hydrocarbon Fuel 1/4" x 1/4" MS33649 Female Military Buna N
SVEAC4-4-56 316 Stainless Steel Valved Coupler 1/4" x 1/4" MS33656 37o Male Flare Buna N
SVEAC4-4-57E 316 Stainless Steel Valved Coupler 1/4" x 1/4" MS33657 Bulkhead Ethylene Propylene
SVEAC4-4-57V 316 Stainless Steel Valved Coupler 1/4" x 1/4" MS33657 Bulkhead Viton
SVEAC4-4F 316 Stainless Steel Valved Coupler 1/4" x 1/4" NPTF Buna N
SVEAC4-4FE 316 Stainless Steel Valved Coupler 1/4" x 1/4" NPTF Ethylene Propylene
SVEAC4-4FJF 316 Stainless Steel Valved Coupler 1/4" x 1/4" NPTF Military Buna N
SVEAC4-4FV 316 Stainless Steel Valved Coupler 1/4" x 1/4" NPTF Viton
SVEAC4-4FVSL 316 Stainless Steel Valved Coupler 1/4" x 1/4" NPTF Viton
SVEAC4-4M 316 Stainless Steel Valved Coupler 1/4" x 1/4" NPTM Buna N
SVEAC4-4ME 316 Stainless Steel Valved Coupler 1/4" x 1/4" NPTM Ethylene Propylene
SVEAC4-4MV 316 Stainless Steel Valved Coupler 1/4" x 1/4" NPTM Viton
SVEAC4-4MVSL 316 Stainless Steel Valved Coupler 1/4" x 1/4" NPTM Viton
SVEAC6-6-49 316 Stainless Steel Valved Coupler 3/8" x 3/8" MS33649 Female Buna N
SVEAC6-6-49JF 316 Stainless Steel Valved Coupler for Hydrocarbon Fuel 3/8" x 3/8" MS33649 Female Military Buna N
SVEAC6-6-56 316 Stainless Steel Valved Coupler 3/8" x 3/8" MS33656 37o Male Flare Buna N
SVEAC6-6-56E 316 Stainless Steel Valved Coupler 3/8" x 3/8" MS33656 37o Male Flare Ethylene Propylene
SVEAC6-6-56M 316 Stainless Steel Valved Coupler 3/8" x 3/8" MS33656 37o Male Flare Military Buna N
SVEAC6-6-56V 316 Stainless Steel Valved Coupler 3/8" x 3/8" MS33656 37o Male Flare Viton
SVEAC6-6F 316 Stainless Steel Valved Coupler 3/8" x 3/8" NPTF Buna N
SVEAC6-6FAS 316 Stainless Steel Valved Coupler 3/8" x 3/8" NPTF Aflas
SVEAC6-6FE 316 Stainless Steel Valved Coupler 3/8" x 3/8" NPTF Ethylene Propylene
SVEAC6-6FV 316 Stainless Steel Valved Coupler 3/8" x 3/8" NPTF Viton
SVEAC6-6FVSL 316 Stainless Steel Valved Coupler 3/8" x 3/8" NPTF Viton
SVEAC6-6M 316 Stainless Steel Valved Coupler 3/8" x 3/8" NPTM Buna N
SVEAC6-6MV 316 Stainless Steel Valved Coupler 3/8" x 3/8" NPTM Viton
SVEAC6-6MVSL 316 Stainless Steel Valved Coupler 3/8" x 3/8" NPTM Viton
SVEAC8-8-49 316 Stainless Steel Valved Coupler 1/2" x 1/2" MS33649 Female Buna N
SVEAC8-8-49JF 316 Stainless Steel Valved Coupler for Hydrocarbon Fuel 1/2" x 1/2" MS33649 Female Military Buna N
SVEAC8-8-56 316 Stainless Steel Valved Coupler 1/2" x 1/2" MS33656 37o Male Flare Buna N
SVEAC8-8-57 316 Stainless Steel Valved Coupler 1/2" x 1/2" MS33657 Bulkhead Buna N
SVEAC8-8F 316 Stainless Steel Valved Coupler 1/2" x 1/2" NPTF Buna N
SVEAC8-8FE 316 Stainless Steel Valved Coupler 1/2" x 1/2" NPTF Ethylene Propylene
SVEAC8-8FV 316 Stainless Steel Valved Coupler 1/2" x 1/2" NPTF Viton
SVEAC8-8H 316 Stainless Steel Valved Coupler 1/2" x 1/2" Hose Barb Buna N
SVEAC8-8M 316 Stainless Steel Valved Coupler 1/2" x 1/2" NPTM Buna N
SVEAC8-8MESL 316 Stainless Steel Valved Coupler 1/2" x 1/2" NPTM Ethylene Propylene
SVEAC8-8MV 316 Stainless Steel Valved Coupler 1/2" x 1/2" NPTM Viton
SVEAC8-8MVSL 316 Stainless Steel Valved Coupler 1/2" x 1/2" NPTM Viton
SVEAN12-12-49 316 Stainless Steel Valved Nipple 3/4" x 3/4" MS33649 Female Buna N
SVEAN12-12-57 316 Stainless Steel Valved Nipple 3/4" x 3/4" MS33657 Bulkhead Buna N
SVEAN12-12F 316 Stainless Steel Valved Nipple 3/4" x 3/4" NPTF Buna N
SVEAN12-12FE 316 Stainless Steel Valved Nipple 3/4" x 3/4" NPTF Ethylene Propylene
SVEAN12-12FV 316 Stainless Steel Valved Nipple 3/4" x 3/4" NPTF Viton
SVEAN12-12M 316 Stainless Steel Valved Nipple 3/4" x 3/4" NPTM Buna N
SVEAN12-12MAS 316 Stainless Steel Valved Nipple 3/4" x 3/4" NPTM Aflas
SVEAN12-12ME 316 Stainless Steel Valved Nipple 3/4" x 3/4" NPTM Ethylene Propylene
SVEAN12-12MV 316 Stainless Steel Valved Nipple 3/4" x 3/4" NPTM Viton
SVEAN4-2F 316 Stainless Steel Valved Nipple 1/4" x 1/8" NPTF Buna N
SVEAN4-2FV 316 Stainless Steel Valved Nipple 1/4" x 1/8" NPTF Viton
SVEAN4-4-49JF 316 Stainless Steel Valved Nipple 1/4" x 1/4" MS33649 Female Buna N
SVEAN4-4-56 316 Stainless Steel Valved Nipple 1/4" x 1/4" MS33656 37o Male Flare Buna N
SVEAN4-4-56JF 316 Stainless Steel Valved Nipple for Hydrocarbon Fuel 1/4" x 1/4" MS33656 37o Male Flare Military Buna N
SVEAN4-4F 316 Stainless Steel Valved Nipple 1/4" x 1/4" NPTF Buna N
SVEAN4-4FE 316 Stainless Steel Valved Nipple 1/4" x 1/4" NPTF Ethylene Propylene
SVEAN4-4FV 316 Stainless Steel Valved Nipple 1/4" x 1/4" NPTF Viton
SVEAN4-4H 316 Stainless Steel Valved Nipple 1/4" x 1/4" Hose Barb Buna N
SVEAN4-4M 316 Stainless Steel Valved Nipple 1/4" x 1/4" NPTM Buna N
SVEAN4-4ME 316 Stainless Steel Valved Nipple 1/4" x 1/4" NPTM Ethylene Propylene
SVEAN4-4MN 316 Stainless Steel Valved Nipple 1/4" x 1/4" NPTM Military Buna N
SVEAN4-4MV 316 Stainless Steel Valved Nipple 1/4" x 1/4" NPTM Viton
SVEAN6-6-49 316 Stainless Steel Valved Nipple 3/8" x 3/8" MS33649 Female Buna N
SVEAN6-6-49JF 316 Stainless Steel Valved Nipple for Hydrocarbon Fuel 3/8" x 3/8" MS33649 Female Military Buna N
SVEAN6-6-56 316 Stainless Steel Valved Nipple 3/8" x 3/8" MS33656 37o Male Flare Buna N
SVEAN6-6-56M 316 Stainless Steel Valved Nipple 3/8" x 3/8" MS33656 37o Male Flare Military Buna N
SVEAN6-6-56V 316 Stainless Steel Valved Nipple 3/8" x 3/8" MS33656 37o Male Flare Viton
SVEAN6-6-57 316 Stainless Steel Valved Nipple 3/8" x 3/8" MS33657 Bulkhead Buna N
SVEAN6-6F 316 Stainless Steel Valved Nipple 3/8" x 3/8" NPTF Buna N
SVEAN6-6FAS 316 Stainless Steel Valved Nipple 3/8" x 3/8" NPTF Aflas
SVEAN6-6FV 316 Stainless Steel Valved Nipple 3/8" x 3/8" NPTF Viton
SVEAN6-6M 316 Stainless Steel Valved Nipple 3/8" x 3/8" NPTM Buna N
SVEAN6-6MV 316 Stainless Steel Valved Nipple 3/8" x 3/8" NPTM Viton
SVEAN8-8-49 316 Stainless Steel Valved Nipple 1/2" x 1/2" MS33649 Female Buna N
SVEAN8-8-49JF 316 Stainless Steel Valved Nipple for Hydrocarbon Fuel 1/2" x 1/2" MS33649 Female Military Buna N
SVEAN8-8-56 316 Stainless Steel Valved Nipple 1/2" x 1/2" MS33656 37o Male Flare Buna N
SVEAN8-8-57 316 Stainless Steel Valved Nipple 1/2" x 1/2" MS33657 Bulkhead Buna N
SVEAN8-8F 316 Stainless Steel Valved Nipple 1/2" x 1/2" NPTF Buna N
SVEAN8-8FE 316 Stainless Steel Valved Nipple 1/2" x 1/2" NPTF Ethylene Propylene
SVEAN8-8FV 316 Stainless Steel Valved Nipple 1/2" x 1/2" NPTF Viton
SVEAN8-8H 316 Stainless Steel Valved Nipple 1/2" x 1/2" Hose Barb Buna N
SVEAN8-8M 316 Stainless Steel Valved Nipple 1/2" x 1/2" NPTM Buna N
SVEAN8-8ME 316 Stainless Steel Valved Nipple 1/2" x 1/2" NPTM Ethylene Propylene
SVEAN8-8MV 316 Stainless Steel Valved Nipple 1/2" x 1/2" NPTM Viton
SVEC16-16F 316 Stainless Steel Valved Coupler 1" x 1" NPTF Buna N
SVEC16-16FE 316 Stainless Steel Valved Coupler 1" x 1" NPTF Ethylene Propylene
SVEC16-16FJF 316 Stainless Steel Valved Coupler 1" x 1" NPTF Military Buna N
SVEC16-16FSL 316 Stainless Steel Valved Coupler 1" x 1" NPTF Buna N
SVEC16-16FV 316 Stainless Steel Valved Coupler 1" x 1" NPTF Viton
SVEC16-16M 316 Stainless Steel Valved Coupler 1" x 1" NPTM Buna N
SVEC16-16MESL 316 Stainless Steel Valved Coupler 1" x 1" NPTM Ethylene Propylene
SVEC16-16MSL 316 Stainless Steel Valved Coupler 1" x 1" NPTM Buna N
SVEC16-16MV 316 Stainless Steel Valved Coupler 1" x 1" NPTM Viton
SVEC20-20F 316 Stainless Steel Valved Coupler 1-1/4" x 1-1/4" NPTF Buna N
SVEC20-20FE 316 Stainless Steel Valved Coupler 1-1/4" x 1-1/4" NPTF Ethylene Propylene
SVEC20-20FVSL 316 Stainless Steel Valved Coupler 1-1/4" x 1-1/4" NPTF Viton
SVEC20-20M 316 Stainless Steel Valved Coupler 1-1/4" x 1-1/4" NPTM Buna N
SVEC20-20MSL 316 Stainless Steel Valved Coupler 1-1/4" x 1-1/4" NPTM Buna N
SVEC24-24F 316 Stainless Steel Valved Coupler 1-1/2" x 1-1/2" NPTF Buna N
SVEC24-24FE 316 Stainless Steel Valved Coupler 1-1/2" x 1-1/2" NPTF Ethylene Propylene
SVEC24-24FSL 316 Stainless Steel Valved Coupler 1-1/2" x 1-1/2" NPTF Buna N
SVEC24-24FV 316 Stainless Steel Valved Coupler 1-1/2" x 1-1/2" NPTF Viton
SVEC24-24M 316 Stainless Steel Valved Coupler 1-1/2" x 1-1/2" NPTM Buna N
SVEC24-24MSL 316 Stainless Steel Valved Coupler 1-1/2" x 1-1/2" NPTM Buna N
SVEC24-24MV 316 Stainless Steel Valved Coupler 1-1/2" x 1-1/2" NPTM Viton
SVEC32-32F 316 Stainless Steel Valved Coupler 2" x 2" NPTF Buna N
SVEC32-32FV 316 Stainless Steel Valved Coupler 2" x 2" NPTF Viton
SVEC32-32FVSL 316 Stainless Steel Valved Coupler 2" x 2" NPTF Viton
SVEC32-32M 316 Stainless Steel Valved Coupler 2" x 2" NPTM Buna N
SVEC32-32MSL 316 Stainless Steel Valved Coupler w/ Sleeve Lock 2" x 2" NPTM Buna N
SVEC32-32RPESL 316 Stainless Steel Valved Coupler w/ Sleeve Lock 2" x 2" BSPF Ethylene Propylene
SVEN16-16F 316 Stainless Steel Valved Nipple 1" x 1" NPTF Buna N
SVEN16-16FE 316 Stainless Steel Valved Nipple 1" x 1" NPTF Ethylene Propylene
SVEN16-16FJF 316 Stainless Steel Valved Nipple 1" x 1" NPTF Military Buna N
SVEN16-16FV 316 Stainless Steel Valved Nipple 1" x 1" NPTF Viton
SVEN16-16M 316 Stainless Steel Valved Nipple 1" x 1" NPTM Buna N
SVEN16-16ME 316 Stainless Steel Valved Nipple 1" x 1" NPTM Ethylene Propylene
SVEN20-20F 316 Stainless Steel Valved Nipple 1-1/4" x 1-1/4" NPTF Buna N
SVEN20-20FE 316 Stainless Steel Valved Nipple 1-1/4" x 1-1/4" NPTF Ethylene Propylene
SVEN20-20FV 316 Stainless Steel Valved Nipple 1-1/4" x 1-1/4" NPTF Viton
SVEN20-20M 316 Stainless Steel Valved Nipple 1-1/4" x 1-1/4" NPTM Buna N
SVEN24-24F 316 Stainless Steel Valved Nipple 1-1/2" x 1-1/2" NPTF Buna N
SVEN24-24FE 316 Stainless Steel Valved Nipple 1-1/2" x 1-1/2" NPTF Ethylene Propylene
SVEN24-24FV 316 Stainless Steel Valved Nipple 1-1/2" x 1-1/2" NPTF Viton
SVEN24-24M 316 Stainless Steel Valved Nipple 1-1/2" x 1-1/2" NPTM Buna N
SVEN24-24ME 316 Stainless Steel Valved Nipple 1-1/2" x 1-1/2" NPTM Ethylene Propylene
SVEN32-32F 316 Stainless Steel Valved Nipple 2" x 2" NPTF Buna N
SVEN32-32FV 316 Stainless Steel Valved Nipple 2" x 2" NPTF Viton
SVEN32-32M 316 Stainless Steel Valved Nipple 2" x 2" NPTM Buna N
SVEN32-32RPE 316 Stainless Steel Valved Nipple 2" x 2" BSPF Ethylene Propylene
VEAC12-12EF Plated Steel Valved Coupler 3/4" x 3/4" Female SAE Buna N
VEAC12-12F Plated Steel Valved Coupler 3/4" x 3/4" NPTF Buna N
VEAC12-12FSL Plated Steel Valved Coupler 3/4" x 3/4" NPTF Buna N
VEAC12-12FV Plated Steel Valved Coupler 3/4" x 3/4" NPTF Viton
VEAC12-12M Plated Steel Valved Coupler 3/4" x 3/4" NPTM Buna N
VEAC12-12MV Plated Steel Valved Coupler 3/4" x 3/4" NPTM Viton
VEAC12-12RP Plated Steel Valved Coupler 3/4" x 3/4" BSPF Buna N
VEAC12-SPK Plated Steel Valved Coupler Spare Parts Kit 3/4" Buna N
VEAC4-2F Plated Steel Valved Coupler 1/4" x 1/8" NPTF Buna N
VEAC4-2FV Plated Steel Valved Coupler 1/4" x 1/8" NPTF Viton
VEAC4-2M Plated Steel Valved Coupler 1/4" x 1/8" NPTF Military Buna N
VEAC4-4EF Plated Steel Valved Coupler 1/4" x 1/4" Female SAE Buna N
VEAC4-4EM Plated Steel Valved Coupler 1/4" x 1/4" Male SAE 37o Flare Buna N
VEAC4-4F Plated Steel Valved Coupler 1/4" x 1/4" NPTF Buna N
VEAC4-4FAS Plated Steel Valved Coupler 1/4" x 1/4" NPTF Aflas
VEAC4-4FE Plated Steel Valved Coupler 1/4" x 1/4" NPTF Ethylene Propylene
VEAC4-4FSL Plated Steel Valved Coupler 1/4" x 1/4" NPTF Buna N
VEAC4-4FV Plated Steel Valved Coupler 1/4" x 1/4" NPTF Viton
VEAC4-4M Plated Steel Valved Coupler 1/4" x 1/4" NPTM Buna N
VEAC4-4MV Plated Steel Valved Coupler 1/4" x 1/4" NPTM Viton
VEAC4-4RP Plated Steel Valved Coupler 1/4" x 1/4" BSPF Buna N
VEAC4-6M Plated Steel Valved Coupler 1/4" x 3/8" NPTM Buna N
VEAC6-4M Plated Steel Valved Coupler 3/8" x 1/4" NPTM Buna N
VEAC6-6F Plated Steel Valved Coupler 3/8" x 3/8" NPTF Buna N
VEAC6-6FAS Plated Steel Valved Coupler 3/8" x 3/8" NPTF Aflas
VEAC6-6FV Plated Steel Valved Coupler 3/8" x 3/8" NPTF Viton
VEAC6-6M Plated Steel Valved Coupler 3/8" x 3/8" NPTM Buna N
VEAC6-6MV Plated Steel Valved Coupler 3/8" x 3/8" NPTM Viton
VEAC6-6RPE Plated Steel Valved Coupler 3/8" x 3/8" BSPF Buna N
VEAC6-SPK Plated Steel Valved Coupler Spare Parts Kit 3/8" Buna N
VEAC8-8EM Plated Steel Valved Coupler 1/2" x 1/2" Male SAE 37o Flare Buna N
VEAC8-8F Plated Steel Valved Coupler 1/2" x 1/2" NPTF Buna N
VEAC8-8FAS Plated Steel Valved Coupler 1/2" x 1/2" NPTF Aflas
VEAC8-8FM Plated Steel Valved Coupler 1/2" x 1/2" NPTF Military Buna N
VEAC8-8FSL Plated Steel Valved Coupler 1/2" x 1/2" NPTF Buna N
VEAC8-8FV Plated Steel Valved Coupler 1/2" x 1/2" NPTF Viton
VEAC8-8H Plated Steel Valved Coupler 1/2" x 1/2" Hose Barb Buna N
VEAC8-8M Plated Steel Valved Coupler 1/2" x 1/2" NPTM Buna N
VEAC8-8MV Plated Steel Valved Coupler 1/2" x 1/2" NPTM Viton
VEAC8-8RPE Plated Steel Valved Coupler 1/2" x 1/2" BSPF Ethylene Propylene
VEAC8-SPK Plated Steel Valved Coupler Spare Parts Kit 1/2" Buna N
VEAN12-12EF Plated Steel Valved Nipple 3/4" x 3/4" Female SAE Buna N
VEAN12-12F Plated Steel Valved Nipple 3/4" x 3/4" NPTF Buna N
VEAN12-12FV Plated Steel Valved Nipple 3/4" x 3/4" NPTF Viton
VEAN12-12M Plated Steel Valved Nipple 3/4" x 3/4" NPTM Buna N
VEAN12-12MV Plated Steel Valved Nipple 3/4" x 3/4" NPTM Viton
VEAN12-12RPE Plated Steel Valved Nipple 3/4" x 3/4" BSPF Ethylene Propylene
VEAN12-SPK Plated Steel Valved Nipple Spare Parts Kit 3/4" Buna N
VEAN4-2F Plated Steel Valved Nipple 1/4" x 1/8" NPTF Buna N
VEAN4-2M Plated Steel Valved Nipple 1/4" x 1/8" NPTM Buna N
VEAN4-2MV Plated Steel Valved Nipple 1/4" x 1/8" NPTM Viton
VEAN4-4EF Plated Steel Valved Nipple 1/4" x 1/4" Female SAE Buna N
VEAN4-4EM Plated Steel Valved Nipple 1/4" x 1/4" Male SAE 37o Flare Buna N
VEAN4-4F Plated Steel Valved Nipple 1/4" x 1/4" NPTF Buna N
VEAN4-4FAS Plated Steel Valved Nipple 1/4" x 1/4" NPTF Aflas
VEAN4-4FE Plated Steel Valved Nipple 1/4" x 1/4" NPTF Ethylene Propylene
VEAN4-4FV Plated Steel Valved Nipple 1/4" x 1/4" NPTF Viton
VEAN4-4H Plated Steel Valved Nipple 1/4" x 1/4" Hose Barb Buna N
VEAN4-4M Plated Steel Valved Nipple 1/4" x 1/4" NPTM Buna N
VEAN4-4MV Plated Steel Valved Nipple 1/4" x 1/4" NPTM Viton
VEAN4-4RP Plated Steel Valved Nipple 1/4" x 1/4" BSPF Buna N
VEAN4-6MV Plated Steel Valved Nipple 1/4" x 3/8" NPTM Viton
VEAN6-6F Plated Steel Valved Nipple 3/8" x 3/8" NPTF Buna N
VEAN6-6FAS Plated Steel Valved Nipple 3/8" x 3/8" NPTF Aflas
VEAN6-6FV Plated Steel Valved Nipple 3/8" x 3/8" NPTF Viton
VEAN6-6M Plated Steel Valved Nipple 3/8" x 3/8" NPTM Buna N
VEAN6-6MV Plated Steel Valved Nipple 3/8" x 3/8" NPTM Viton
VEAN8-8EF Plated Steel Valved Nipple 1/2" x 1/2" Female SAE Buna N
VEAN8-8EM Plated Steel Valved Nipple 1/2" x 1/2" Male SAE 37o Flare Buna N
VEAN8-8F Plated Steel Valved Nipple 1/2" x 1/2" NPTF Buna N
VEAN8-8FAS Plated Steel Valved Nipple 1/2" x 1/2" NPTF Aflas
VEAN8-8FM Plated Steel Valved Nipple 1/2" x 1/2" NPTF Military Buna N
VEAN8-8FV Plated Steel Valved Nipple 1/2" x 1/2" NPTF Viton
VEAN8-8M Plated Steel Valved Nipple 1/2" x 1/2" NPTM Buna N
VEAN8-8MAS Plated Steel Valved Nipple 1/2" x 1/2" NPTM Aflas
VEAN8-8ME Plated Steel Valved Nipple 1/2" x 1/2" NPTM Ethylene Propylene
VEAN8-8MV Plated Steel Valved Nipple 1/2" x 1/2" NPTM Viton
VEAN8-8RPE Plated Steel Valved Nipple 1/2" x 1/2" BSPF Ethylene Propylene
VEAN8-SPK Plated Steel Valved Nipple Spare Parts Kit 1/2" Buna N
VEAN8-SPKV Plated Steel Valved Nipple Spare Parts Kit 1/2" Viton
VEC16-16F Plated Steel Valved Coupler 1" x 1" NPTF Buna N
VEC16-16FE Plated Steel Valved Coupler 1" x 1" NPTF Ethylene Propylene
VEC16-16FSL Plated Steel Valved Coupler 1" x 1" NPTF Buna N
VEC16-16FV Plated Steel Valved Coupler 1" x 1" NPTF Viton
VEC16-16M Plated Steel Valved Coupler 1" x 1" NPTM Buna N
VEC16-SPK Plated Steel Valved Coupler Spare Parts Kit 1" Buna N
VEC20-20EB Plated Steel Valved Coupler 1-1/4" x 1-1/4" Bulkhead SAE Buna N
VEC20-20F Plated Steel Valved Coupler 1-1/4" x 1-1/4" NPTF Buna N
VEC20-20M Plated Steel Valved Coupler 1-1/4" x 1-1/4" NPTM Buna N
VEC24-24EFV Plated Steel Valved Coupler 1-1/2" x 1-1/2" Female SAE Viton
VEC24-24EFVSL Plated Steel Valved Coupler w/ Sleeve Lock 1-1/2" x 1-1/2" Female SAE Viton
VEC24-24F Plated Steel Valved Coupler 1-1/2" x 1-1/2" NPTF Buna N
VEC24-24FSL Plated Steel Valved Coupler 1-1/2" x 1-1/2" NPTF Buna N
VEC24-24FV Plated Steel Valved Coupler 1-1/2" x 1-1/2" NPTF Viton
VEC24-24M Plated Steel Valved Coupler 1-1/2" x 1-1/2" NPTM Buna N
VEC32-32F Plated Steel Valved Coupler 2" x 2" NPTF Buna N
VEC32-32FV Plated Steel Valved Coupler 2" x 2" NPTF Viton
VEC32-32M Plated Steel Valved Coupler 2" x 2" NPTM Buna N
VEN16-16F Plated Steel Valved Nipple 1" x 1" NPTF Buna N
VEN16-16FE Plated Steel Valved Nipple 1" x 1" NPTF Ethylene Propylene
VEN16-16FV Plated Steel Valved Nipple 1" x 1" NPTF Viton
VEN16-16M Plated Steel Valved Nipple 1" x 1" NPTM Buna N
VEN16-16MV Plated Steel Valved Nipple 1" x 1" NPTM Viton
VEN20-20F Plated Steel Valved Nipple 1-1/4" x 1-1/4" NPTF Buna N
VEN20-20M Plated Steel Valved Nipple 1-1/4" x 1-1/4" NPTM Buna N
VEN24-24F Plated Steel Valved ipple 1-1/2" x 1-1/2" NPTF Buna N
VEN24-24FV Plated Steel Valved Nipple 1-1/2" x 1-1/2" NPTF Viton
VEN24-24M Plated Steel Valved Nipple 1-1/2" x 1-1/2" NPTM Buna N
VEN32-32F Plated Steel Valved Nipple 2" x 2" NPTF Buna N
VEN32-32FV Plated Steel Valved Nipple 2" x 2" NPTF Viton
VEN32-32M Plated Steel Valved Nipple 2" x 2" NPTM Buna N




美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
企业博客Blog： http://blog.sina.com.cn/cnmectech
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 1096 2635 邮编：100102
Http：//www.cnmec.biz E-mail：sales@cnmec.biz
传真：010-8428 8762
