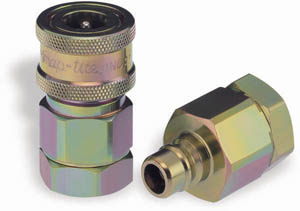

Snap-Tite H Series Quick Disconnects

• Sizes - 1/8" - 4"
• Metals - H Series Quick Disconnect Couplings are available in four metals - steel, brass, aluminum and 316 stainless steel. A variety of protective finishes are available. Please consult factory.
• Seal Versatility - Wide choice of standard and special seal materials enable the H, IH & PH series to handle a great variety of fluids.
• Sleeve Lock - Sleeve lock option aids in preventing accidental disconnection of the coupling. To disconnect, align the pin in the body with the slot in the sleeve and retract sleeve.
• (Valve & Valve) Quick Disconnect Low Pressure Drop - The two-piece body construction permits larger flow passages than the designated size of the coupling, permitting greater flow while maintaining low pressure drop and provides end fitting versatility.
• Smooth Flow - Snap-tite's “Jet Stream” valve design helps maintain a clean linear flow. Positive positioning of the valve aids in maintaining a steady, even flow under normal working conditions.
• Flow on Connection - Valves are designed to automatically open in both the coupler and nipple halves when the unit is connected permitting maximum free flow.
• Shut-off On Disconnection - Valves are designed to automatically close under normal usage conditions in both the coupler and nipple halves when the unit is disconnected.
• Fast Efficient Operation - Connect or disconnect in seconds. To connect, pull back the sleeve, insert the nipple into the coupler and release the sleeve. To disconnect, pull back the sleeve, remove the nipple and the halves are disconnected.
• Dependable Operation - Ball-lock mechanism provides positive connection. Hardened stainless steel balls along with a radiused and induction hardened (steel) ball race gives extended life to the H Series couplings.
• Positive Sealing Connected - O-ring and Teflon back-up ring provide for positive sealing across a wide range of applications. This sealing configuration allows use of the latest elastomeric compounds for those tough media and environments.
• Positive Sealing Disconnected - The metal to metal contact of the valve with the coupler or nipple body is designed to control compression of the valve seal eliminating wear and increasing seal life.

H Series quick disconnects have been proven by years of use on hydraulic-pneumatic applications and in handling of many gases and fluids. The H Series fully engineered design meets or exceeds MIL-C-51234 and provides superior flow characteristics with built in reliability.

型号	规格	连接尺寸	密封材质
PHC12-12F	Plated Steel Non Valved Coupler	3/4" x 3/4" NPTF	Buna N
PHC12-12FE	Plated Steel Non Valved Coupler	3/4" x 3/4" NPTF	Ethylene Propylene
PHC12-12FJF	Plated Steel Non Valved Coupler for Hydrocarbon Fuel	3/4" x 3/4" NPTF	Military Buna N
PHC12-12FM	Plated Steel Non Valved Coupler	3/4" x 3/4" NPTF	Military Buna N
PHC12-12FSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	3/4" x 3/4" NPTF	Buna N
PHC12-12FV	Plated Steel Non Valved Coupler	3/4" x 3/4" NPTF	Viton
PHC12-12FVSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	3/4" x 3/4" NPTF	Viton
PHC12-12RP	Plated Steel Non Valved Coupler	3/4" x 3/4" BSPF	Buna N
PHC16-16F	Plated Steel Non Valved Coupler	1" x 1" NPTF	Buna N
PHC16-16FM	Plated Steel Non Valved Coupler	1" x 1" NPTF	Military Buna N
PHC16-16FSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	1" x 1" NPTF	Buna N
PHC16-16FV	Plated Steel Non Valved Coupler	1" x 1" NPTF	Viton
PHC16-16FVSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	1" x 1" NPTF	Viton
PHC16-16RP	Plated Steel Non Valved Coupler	1" x 1" BSPF	Buna N
PHC20-20F	Plated Steel Non Valved Coupler	1-1/4" x 1-1/4" NPTF	Buna N
PHC20-20FSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	1-1/4" x 1-1/4" NPTF	Buna N
PHC20-20FV	Plated Steel Non Valved Coupler	1-1/4" x 1-1/4" NPTF	Viton
PHC20-20FVSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	1-1/4" x 1-1/4" NPTF	Viton
PHC20-20RP	Plated Steel Non Valved Coupler	1-1/4" x 1-1/4" BSPF	Buna N
PHC24-24F	Plated Steel Non Valved Coupler	1-1/2" x 1-1/2" NPTF	Buna N
PHC24-24FSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	1-1/2" x 1-1/2" NPTF	Buna N
PHC24-24FV	Plated Steel Non Valved Coupler	1-1/2" x 1-1/2" NPTF	Viton
PHC32-32F	Plated Steel Non Valved Coupler	2" x 2" NPTF	Buna N
PHC32-32FSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	2" x 2" NPTF	Buna N
PHC32-32FV	Plated Steel Non Valved Coupler	2" x 2" NPTF	Viton
PHC32-32FVSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	2" x 2" NPTF	Viton
PHC4-2F	Plated Steel Non Valved Coupler	1/4" x 1/8" NPTF	Buna N
PHC4-4F	Plated Steel Non Valved Coupler	1/4" x 1/4" NPTF	Buna N
PHC4-4FJF	Plated Steel Non Valved Coupler for Hydrocarbon Fuel	1/4" x 1/4" NPTF	Military Buna N
PHC4-4FSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	1/4" x 1/4" NPTF	Buna N
PHC4-4FV	Plated Steel Non Valved Coupler	1/4" x 1/4" NPTF	Viton
PHC4-4FVSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	1/4" x 1/4" NPTF	Viton
PHC6-6F	Plated Steel Non Valved Coupler	3/8" x 3/8" NPTF	Buna N
PHC6-6FE	Plated Steel Non Valved Coupler	3/8" x 3/8" NPTF	Ethylene Propylene
PHC6-6FJF	Plated Steel Non Valved Coupler for Hydrocarbon Fuel	3/8" x 3/8" NPTF	Military Buna N
PHC6-6FSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	3/8" x 3/8" NPTF	Buna N
PHC6-6FV	Plated Steel Non Valved Coupler	3/8" x 3/8" NPTF	Viton
PHC6-6RP	Plated Steel Non Valved Coupler	3/8" x 3/8" BSPF	Buna N
PHC8-8F	Plated Steel Non Valved Coupler	1/2" x 1/2" NPTF	Buna N
PHC8-8FESL	Plated Steel Non Valved Coupler w/ Sleeve Lock	1/2" x 1/2" NPTF	Ethylene Propylene
PHC8-8FM	Plated Steel Non Valved Coupler	1/2" x 1/2" NPTF	Military Buna N
PHC8-8FMSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	1/2" x 1/2" NPTF	Military Buna N
PHC8-8FSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	1/2" x 1/2" NPTF	Buna N

PHC8-8FM	Plated Steel Non Valved Coupler	1/2" x 1/2" NPTF	Military Buna N
PHC8-8FMSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	1/2" x 1/2" NPTF	Military Buna N
PHC8-8FSL	Plated Steel Non Valved Coupler w/ Sleeve Lock	1/2" x 1/2" NPTF	Buna N
PHC8-8FV	Plated Steel Non Valved Coupler	1/2" x 1/2" NPTF	Viton
PHC8-8RP	Plated Steel Non Valved Coupler	1/2" x 1/2" BSPF	Buna N
PHN12-12F	Plated Steel Non Valved Nipple	3/4" x 3/4" NPTF	Buna N
PHN12-12M	Plated Steel Non Valved Nipple	3/4" x 3/4" NPTM	Buna N
PHN12-12RP	Plated Steel Non Valved Nipple	3/4" x 3/4" BSPF	Buna N
PHN16-16F	Plated Steel Non Valved Nipple	1" x 1" NPTF	Buna N
PHN16-16M	Plated Steel Non Valved Nipple	1" x 1" NPTM	Buna N
PHN16-16RP	Plated Steel Non Valved Nipple	1" x 1" BSPF	Buna N
PHN20-20F	Plated Steel Non Valved Nipple	1-1/4" x 1-1/4" NPTF	Buna N
PHN20-20M	Plated Steel Non Valved Nipple	1-1/4" x 1-1/4" NPTM	Buna N
PHN20-20RP	Plated Steel Non Valved Nipple	1-1/4" x 1-1/4" BSPF	Buna N
PHN24-24F	Plated Steel Non Valved Nipple	1-1/2" x 1-1/2" NPTF	Buna N
PHN24-24M	Plated Steel Non Valved Nipple	1-1/2" x 1-1/2" NPTM	Buna N
PHN24-24RP	Plated Steel Non Valved Nipple	1-1/2" x 1-1/2" BSPF	Buna N
PHN32-32F	Plated Steel Non Valved Nipple	2" x 2" NPTF	Buna N
PHN32-32M	Plated Steel Non Valved Nipple	2" x 2" NPTM	Buna N
PHN32-32RP	Plated Steel Non Valved Nipple	2" x 2" BSPF	Buna N
PHN4-2F	Plated Steel Non Valved Nipple	1/4" x 1/8" NPTF	Buna N
PHN4-2M	Plated Steel Non Valved Nipple	1/4" x 1/8" NPTM	Buna N
PHN4-4F	Plated Steel Non Valved Nipple	1/4" x 1/4" NPTF	Buna N
PHN4-4M	Plated Steel Non Valved Nipple	1/4" x 1/4" NPTM	Buna N
PHN4-4RP	Plated Steel Non Valved Nipple	1/4" x 1/4" BSPF	Buna N
PHN6-6F	Plated Steel Non Valved Nipple	3/8" x 3/8" NPTF	Buna N
PHN6-6M	Plated Steel Non Valved Nipple	3/8" x 3/8" NPTM	Buna N
PHN6-6RP	Plated Steel Non Valved Nipple	3/8" x 3/8" BSPF	Buna N
PHN8-8F	Plated Steel Non Valved Nipple	1/2" x 1/2" NPTF	Buna N
PHN8-8M	Plated Steel Non Valved Nipple	1/2" x 1/2" NPTM	Buna N
PHN8-8RP	Plated Steel Non Valved Nipple	1/2" x 1/2" BSPF	Buna N
VHC12-12EB	Plated Steel Valved Coupler, Bulkhead SAE	3/4" x 3/4" Bulkhead SAE	Buna N
VHC12-12EF	Plated Steel Valved Coupler, Female SAE	3/4" x 3/4" Female SAE	Buna N
VHC12-12EF-9	Plated Steel Valved Coupler, Female SAE w/ O-Ring And Teflon Back-Up Ring	3/4" x 3/4" Female SAE	Buna N
VHC12-12EF-9V	Plated Steel Valved Coupler, Female SAE w/ O-Ring And Teflon Back-Up Ring	3/4" x 3/4" Female SAE	Viton
VHC12-12EFE	Plated Steel Valved Coupler, Female SAE	3/4" x 3/4" Female SAE	Ethylene Propylene
VHC12-12EFSL	Plated Steel Valved Coupler, Female SAE w/ Sleeve Lock	3/4" x 3/4" Female SAE	Buna N
VHC12-12EFV	Plated Steel Valved Coupler, Female SAE	3/4" x 3/4" Female SAE	Viton
VHC12-12EM	Plated Steel Valved Coupler, Male SAE 37o Flare	3/4" x 3/4" Male SAE 37o Flare	Buna N
VHC12-12EM-9	Plated Steel Valved Coupler, Male SAE 37o Flare w/ O-Ring And Teflon Back-Up Ring	3/4" x 3/4" Male SAE 37o Flare	Buna N
VHC12-12EM-9M	Plated Steel Valved Coupler, Male SAE 37o Flare w/ O-Ring And Teflon Back-Up Ring	3/4" x 3/4" Male SAE 37o Flare	Military Buna N
VHC12-12EMM	Plated Steel Valved Coupler, Male SAE 37o Flare	3/4" x 3/4" Male SAE 37o Flare	Military Buna N
VHC12-12EMV	Plated Steel Valved Coupler, Male SAE 37o Flare	3/4" x 3/4" Male SAE 37o Flare	Viton
VHC12-12F	Plated Steel Valved Coupler	3/4" x 3/4" NPTF	Buna N
VHC12-12F-9	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	3/4" x 3/4" NPTF	Buna N
VHC12-12F-9SL	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring & Sleeve Lock	3/4" x 3/4" NPTF	Buna N
VHC12-12F-9V	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	3/4" x 3/4" NPTF	Viton
VHC12-12FE	Plated Steel Valved Coupler	3/4" x 3/4" NPTF	Ethylene Propylene
VHC12-12FJF	Plated Steel Valved Coupler for Hydrocarbon Fuel	3/4" x 3/4" NPTF	Military Buna N
VHC12-12FM	Plated Steel Valved Coupler	3/4" x 3/4" NPTF	Military Buna N
VHC12-12FSL	Plated Steel Valved Coupler w/ Sleeve Lock	3/4" x 3/4" NPTF	Buna N
VHC12-12FV	Plated Steel Valved Coupler	3/4" x 3/4" NPTF	Viton
VHC12-12FVSL	Plated Steel Valved Coupler w/ Sleeve Lock	3/4" x 3/4" NPTF	Viton
VHC12-12M	Plated Steel Valved Coupler	3/4" x 3/4" NPTM	Buna N
VHC12-12M-9	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	3/4" x 3/4" NPTM	Buna N
VHC12-12M-9SL	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring & Sleeve Lock	3/4" x 3/4" NPTM	Buna N
VHC12-12ME	Plated Steel Valved Coupler	3/4" x 3/4" NPTM	Ethylene Propylene
VHC12-12MSL	Plated Steel Valved Coupler w/ Sleeve Lock	3/4" x 3/4" NPTM	Buna N
VHC12-12MV	Plated Steel Valved Coupler	3/4" x 3/4" NPTM	Viton
VHC12-12RP	Plated Steel Valved Coupler	3/4" x 3/4" BSPF	Buna N
VHC16-16EF	Plated Steel Valved Coupler	1" x 1" Female SAE	Buna N
VHC16-16EFVSL	Plated Steel Valved Coupler w/ Sleeve Lock	1" x 1" Female SAE	Viton
VHC16-16EM	Plated Steel Valved Coupler	1" x 1" Male SAE 37o Flare	Buna N
VHC16-16EM-9	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	1" x 1" Male SAE 37o Flare	Buna N
VHC16-16EMV	Plated Steel Valved Coupler	1" x 1" Male SAE 37o Flare	Viton
VHC16-16F	Plated Steel Valved Coupler	1" x 1" NPTF	Buna N
VHC16-16F-9	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	1" x 1" NPTF	Buna N
VHC16-16F-9SL	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring & Sleeve Lock	1" x 1" NPTF	Buna N
VHC16-16F-9V	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	1" x 1" NPTF	Viton
VHC16-16FE	Plated Steel Valved Coupler	1" x 1" NPTF	Ethylene Propylene
VHC16-16FESL	Plated Steel Valved Coupler w/ Sleeve Lock	1" x 1" NPTF	Ethylene Propylene
VHC16-16FJF	Plated Steel Valved Coupler for Hydrocarbon Fuel	1" x 1" NPTF	Military Buna N
VHC16-16FM	Plated Steel Valved Coupler	1" x 1" NPTF	Military Buna N
VHC16-16FSL	Plated Steel Valved Coupler w/ Sleeve Lock	1" x 1" NPTF	Buna N
VHC16-16FV	Plated Steel Valved Coupler	1" x 1" NPTF	Viton
VHC16-16FVSL	Plated Steel Valved Coupler w/ Sleeve Lock	1" x 1" NPTF	Viton
VHC16-16M	Plated Steel Valved Coupler	1" x 1" NPTM	Buna N
VHC16-16MSL	Plated Steel Valved Coupler w/ Sleeve Lock	1" x 1" NPTM	Buna N
VHC16-16MV	Plated Steel Valved Coupler	1" x 1" NPTM	Viton
VHC16-16MVSL	Plated Steel Valved Coupler w/ Sleeve Lock	1" x 1" NPTM	Viton
VHC16-16RP	Plated Steel Valved Coupler	1" x 1" BSPF	Buna N
VHC20-20EF	Plated Steel Valved Coupler	1-1/4" x 1-1/4" Female SAE	Buna N
VHC20-20EFM	Plated Steel Valved Coupler	1-1/4" x 1-1/4" Female SAE	Military Buna N
VHC20-20EFVSL	Plated Steel Valved Coupler w/ Sleeve Lock	1-1/4" x 1-1/4" Female SAE	Viton
VHC20-20EM	Plated Steel Valved Coupler	1-1/4" x 1-1/4" Male SAE 37o Flare	Buna N
VHC20-20EMM	Plated Steel Valved Coupler	1-1/4" x 1-1/4" Male SAE 37o Flare	Military Buna N
VHC20-20F	Plated Steel Valved Coupler	1-1/4" x 1-1/4" NPTF	Buna N
VHC20-20FJF	Plated Steel Valved Coupler for Hydrocarbon Fuel	1-1/4" x 1-1/4" NPTF	Military Buna N
VHC20-20FSL	Plated Steel Valved Coupler w/ Sleeve Lock	1-1/4" x 1-1/4" NPTF	Buna N
VHC20-20FV	Plated Steel Valved Coupler	1-1/4" x 1-1/4" NPTF	Viton
VHC20-20M	Plated Steel Valved Coupler	1-1/4" x 1-1/4" NPTM	Buna N
VHC20-20MESL	Plated Steel Valved Coupler w/ Sleeve Lock	1-1/4" x 1-1/4" NPTM	Ethylene Propylene
VHC20-20RP	Plated Steel Valved Coupler	1-1/4" x 1-1/4" BSPF	Buna N
VHC24-24EF	Plated Steel Valved Coupler	1-1/2" x 1-1/2" Female SAE	Buna N
VHC24-24EFSL	Plated Steel Valved Coupler w/ Sleeve Lock	1-1/2" x 1-1/2" Female SAE	Buna N
VHC24-24EFV	Plated Steel Valved Coupler	1-1/2" x 1-1/2" Female SAE	Viton
VHC24-24EME	Plated Steel Valved Coupler	1-1/2" x 1-1/2" Male SAE 37o Flare	Ethylene Propylene
VHC24-24F	Plated Steel Valved Coupler	1-1/2" x 1-1/2" NPTF	Buna N
VHC24-24FE	Plated Steel Valved Coupler	1-1/2" x 1-1/2" NPTF	Ethylene Propylene
VHC24-24FJF	Plated Steel Valved Coupler for Hydrocarbon Fuel	1-1/2" x 1-1/2" NPTF	Military Buna N
VHC24-24FM	Plated Steel Valved Coupler	1-1/2" x 1-1/2" NPTF	Military Buna N
VHC24-24FSL	Plated Steel Valved Coupler w/ Sleeve Lock	1-1/2" x 1-1/2" NPTF	Buna N
VHC24-24FV	Plated Steel Valved Coupler	1-1/2" x 1-1/2" NPTF	Viton
VHC24-24FVSL	Plated Steel Valved Coupler w/ Sleeve Lock	1-1/2" x 1-1/2" NPTF	Viton
VHC24-24M	Plated Steel Valved Coupler	1-1/2" x 1-1/2" NPTM	Buna N
VHC24-24MSL	Plated Steel Valved Coupler w/ Sleeve Lock	1-1/2" x 1-1/2" NPTM	Buna N
VHC24-24MV	Plated Steel Valved Coupler	1-1/2" x 1-1/2" NPTM	Viton
VHC24-24RP	Plated Steel Valved Coupler	1-1/2" x 1-1/2" BSPF	Buna N
VHC24-24RPSL	Plated Steel Valved Coupler w/ Sleeve Lock	1-1/2" x 1-1/2" BSPF	Buna N
VHC32-32F	Plated Steel Valved Coupler	2" x 2" NPTF	Buna N
VHC32-32FE	Plated Steel Valved Coupler	2" x 2" NPTF	Ethylene Propylene
VHC32-32FJF	Plated Steel Valved Coupler for Hydrocarbon Fuel	2" x 2" NPTF	Military Buna N
VHC32-32FJFSL	Plated Steel Valved Coupler for Hydrocarbon Fuel w/ Sleeve Lock	2" x 2" NPTF	Military Buna N
VHC32-32FM	Plated Steel Valved Coupler	2" x 2" NPTF	Military Buna N
VHC32-32FSL	Plated Steel Valved Coupler w/ Sleeve Lock	2" x 2" NPTF	Buna N
VHC32-32FV	Plated Steel Valved Coupler	2" x 2" NPTF	Viton
VHC32-32FVSL	Plated Steel Valved Coupler w/ Sleeve Lock	2" x 2" NPTF	Viton
VHC32-32M	Plated Steel Valved Coupler	2" x 2" NPTM	Buna N
VHC32-32MV	Plated Steel Valved Coupler	2" x 2" NPTM	Viton
VHC4-2F	Plated Steel Valved Coupler	1/4" x 1/8" NPTF	Buna N
VHC4-2FV	Plated Steel Valved Coupler	1/4" x 1/8" NPTF	Viton
VHC4-2M	Plated Steel Valved Coupler	1/4" x 1/8" NPTM	Buna N
VHC4-2MV	Plated Steel Valved Coupler	1/4" x 1/8" NPTM	Viton
VHC4-4EF	Plated Steel Valved Coupler	1/4" x 1/4" Female SAE	Buna N
VHC4-4EF-9	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	1/4" x 1/4" Female SAE	Buna N
VHC4-4EFE	Plated Steel Valved Coupler	1/4" x 1/4" Female SAE	Ethylene Propylene
VHC4-4EFSL	Plated Steel Valved Coupler w/ Sleeve Lock	1/4" x 1/4" Female SAE	Buna N
VHC4-4EFV	Plated Steel Valved Coupler	1/4" x 1/4" Female SAE	Viton
VHC4-4EM	Plated Steel Valved Coupler	1/4" x 1/4" Male SAE 37o Flare	Buna N
VHC4-4EM-9	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	1/4" x 1/4" Male SAE 37o Flare	Buna N
VHC4-4EM-9V	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	1/4" x 1/4" Male SAE 37o Flare	Viton
VHC4-4EME	Plated Steel Valved Coupler	1/4" x 1/4" Male SAE 37o Flare	Ethylene Propylene
VHC4-4EMSL	Plated Steel Valved Coupler w/ Sleeve Lock	1/4" x 1/4" Male SAE 37o Flare	Buna N
VHC4-4EMV	Plated Steel Valved Coupler	1/4" x 1/4" Male SAE 37o Flare	Viton
VHC4-4F	Plated Steel Valved Coupler	1/4" x 1/4" NPTF	Buna N
VHC4-4F-9	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	1/4" x 1/4" NPTF	Buna N
VHC4-4F-9M	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	1/4" x 1/4" NPTF	Military Buna N
VHC4-4F-9SL	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring & Sleeve Lock	1/4" x 1/4" NPTF	Buna N
VHC4-4F-9V	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	1/4" x 1/4" NPTF	Viton
VHC4-4FE	Plated Steel Valved Coupler	1/4" x 1/4" NPTF	Ethylene Propylene
VHC4-4FJF	Plated Steel Valved Coupler for Hydrocarbon Fuel	1/4" x 1/4" NPTF	Military Buna N
VHC4-4FM	Plated Steel Valved Coupler	1/4" x 1/4" NPTF	Military Buna N
VHC4-4FMSL	Plated Steel Valved Coupler w/ Sleeve Lock	1/4" x 1/4" NPTF	Military Buna N
VHC4-4FN	Plated Steel Valved Coupler	1/4" x 1/4" NPTF	Neoprene
VHC4-4FSL	Plated Steel Valved Coupler w/ Sleeve Lock	1/4" x 1/4" NPTF	Buna N
VHC4-4FV	Plated Steel Valved Coupler	1/4" x 1/4" NPTF	Viton
VHC4-4FVSL	Plated Steel Valved Coupler w/ Sleeve Lock	1/4" x 1/4" NPTF	Viton
VHC4-4H	Plated Steel Valved Coupler	1/4" x 1/4" Hose Barb	Buna N
VHC4-4M	Plated Steel Valved Coupler	1/4" x 1/4" NPTM	Buna N
VHC4-4M-9	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	1/4" x 1/4" NPTM	Buna N
VHC4-4M-9M	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	1/4" x 1/4" NPTM	Military Buna N
VHC4-4M-9V	Plated Steel Valved Coupler w/ O-Ring And Teflon Back-Up Ring	1/4" x 1/4" NPTM	Viton
VHC4-4ME	Plated Steel Valved Coupler	1/4" x 1/4" NPTM	Ethylene Propylene
VHC4-4MJF	Plated Steel Valved Coupler for Hydrocarbon Fuel	1/4" x 1/4" NPTM	Military Buna N
VHC4-4MM	Plated Steel Valved Coupler	1/4" x 1/4" NPTM	Military Buna N
VHC4-4MN	Plated Steel Valved Coupler	1/4" x 1/4" NPTM	Neoprene
VHC4-4MSL	Plated Steel Valved Coupler w/ Sleeve Lock	1/4" x 1/4" NPTM	Buna N
VHC4-4MV	Plate Steel Valved Coupler	1/4" x 1/4" NPTM	Viton
VHC4-4MVSL	Plated Steel Valved Coupler w/ Sleeve Lock	1/4" x 1/4" NPTM	Viton
VHC4-4RP	Plated Steel Valved Coupler	1/4" x 1/4" BSPF	Buna N
