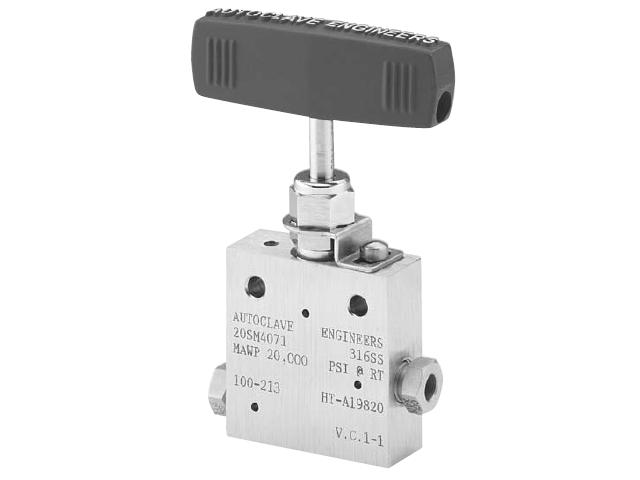

10SM and 20SM Series Medium Pressure Needle Valves on Autoclave Engineers, Fluid Components Div. Of Snap-tite Inc.

Medium Pressure Valve Features:

• Largest-port valves available for medium pressure applications.
• Tubing sizes available from 1/4” to 1”
• Rising stem/barstock body design
• Non-rotating stem prevents stem/seat galling
• New one piece stem design permits ease of assembly and packing replacement
• Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
• PTFE (Teflon) encapsulated packing provides dependable stem and body sealing.
• Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
• Choice of Vee or Regulating stem tip.
• Available in five body patterns.

Autoclave valves are complemented by a complete line of fittings, tubing, check valves and line filters. The SM Series uses Autoclave's Medium pressure connection. The coned-and-threaded connection features orifice sizes to match the high flow characteristics of this series.

Note: SM Series replaces 20SC Series.

10SM and 20SM Series valves are furnished complete with connection components, unless otherwise specified.

Panel mounting drill size: 0.22" all valves.
All dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult factory.
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.

Item #	Pressure Rating at Room Temperature	Outside Diameter Tube	Stem Type	Valve Pattern	Connection Type	Orifice Diameter
20SM4071	20000 psi 1379 bar	1/4 Inch 6.35 mm	VEE	2-Way Straight	SF250CX20	0.125 Inch 3.18 mm
20SM4081	20000 psi 1379 bar	1/4 Inch 6.35 mm	REG	2-Way Straight	SF250CX20	0.125 Inch 3.18 mm
20SM6071	20000 psi 1379 bar	3/8 Inch 9.53 mm	VEE	2-Way Straight	SF375CX20	0.219 Inch 5.56 mm
20SM6081	20000 psi 1379 bar	3/8 Inch 9.53 mm	REG	2-Way Straight	SF375CX20	0.219 Inch 5.56 mm
20SM9071	20000 psi 1379 bar	9/16 Inch 14.29 mm	VEE	2-Way Straight	SF562CX20	0.312 Inch 7.92 mm
20SM9081	20000 psi 1379 bar	9/16 Inch 14.29 mm	REG	2-Way Straight	SF562CX20	0.312 Inch 7.92 mm
20SM12071	20000 psi 1379 bar	3/4 Inch 19.05 mm	VEE	2-Way Straight	SF750CX20	0.438 Inch 11.13 mm
20SM12081	20000 psi 1379 bar	3/4 Inch 19.05 mm	REG	2-Way Straight	SF750CX20	0.438 Inch 11.13 mm
20SM16071	20000 psi 1379 bar	1 Inch 25.4 mm	VEE	2-Way Straight	SF1000CX20	0.562 Inch 14.27 mm
20SM16081	20000 psi 1379 bar	1 Inch 25.4 mm	REG	2-Way Straight	SF1000CX20	0.562 Inch 14.27 mm
10SM9071	10000 psi 690 bar	9/16 Inch 14.29 mm	VEE	2-Way Straight	SF562CX10	0.359 Inch 9.12 mm
10SM9081	10000 psi 690 bar	9/16 Inch 14.29 mm	REG	2-Way Straight	SF562CX10	0.359 Inch 9.12 mm
10SM12071	10000 psi 690 bar	3/4 Inch 19.05 mm	VEE	2-Way Straight	SF750CX10	0.516 Inch 13.11 mm
10SM12081	10000 psi 690 bar	3/4 Inch 19.05 mm	REG	2-Way Straight	SF750CX10	0.516 Inch 13.11 mm
10SM16071	10000 psi 690 bar	1 Inch 25.4 mm	VEE	2-Way Straight	SF1000CX10	0.688 Inch 17.48 mm
10SM16081	10000 psi 690 bar	1 Inch 25.4 mm	REG	2-Way Straight	SF1000CX10	0.688 Inch 17.48 mm
20SM4072	20000 psi 1379 bar	1/4 Inch 6.35 mm	VEE	2-Way Angle	SF250CX20	0.125 Inch 3.18 mm
20SM4082	20000 psi 1379 bar	1/4 Inch 6.35 mm	REG	2-Way Angle	SF250CX20	0.125 Inch 3.18 mm
20SM6072	20000 psi 1379 bar	3/8 Inch 9.53 mm	VEE	2-Way Angle	SF375CX20	0.219 Inch 5.56 mm
20SM6082	20000 psi 1379 bar	3/8 Inch 9.53 mm	REG	2-Way Angle	SF375CX20	0.219 Inch 5.56 mm
20SM9072	20000 psi 1379 bar	9/16 Inch 14.29 mm	VEE	2-Way Angle	SF562CX20	0.312 Inch 7.92 mm
20SM9082	20000 psi 1379 bar	9/16 Inch 14.29 mm	REG	2-Way Angle	SF562CX20	0.312 Inch 7.92 mm
20SM12072	20000 psi 1379 bar	3/4 Inch 19.05 mm	VEE	2-Way Angle	SF750CX20	0.438 Inch 11.13 mm
20SM12082	20000 psi 1379 bar	3/4 Inch 19.05 mm	REG	2-Way Angle	SF750CX20	0.438 Inch 11.13 mm
20SM16072	20000 psi 1379 bar	1 Inch 25.4 mm	VEE	2-Way Angle	SF1000CX20	0.562 Inch 14.27 mm

20SM16082	20000 psi 1379 bar	1 Inch 25.4 mm	REG	2-Way Angle	SF1000CX20	0.562 Inch 14.27 mm
10SM9072	10000 psi 690 bar	9/16 Inch 14.29 mm	VEE	2-Way Angle	SF562CX10	0.359 Inch 9.12 mm
10SM9082	10000 psi 690 bar	9/16 Inch 14.29 mm	REG	2-Way Angle	SF562CX10	0.359 Inch 9.12 mm
10SM12072	10000 psi 690 bar	3/4 Inch 19.05 mm	VEE	2-Way Angle	SF750CX10	0.516 Inch 13.11 mm
10SM12082	10000 psi 690 bar	3/4 Inch 19.05 mm	REG	2-Way Angle	SF750CX10	0.516 Inch 13.11 mm
10SM16072	10000 psi 690 bar	1 Inch 25.4 mm	VEE	2-Way Angle	SF1000CX10	0.688 Inch 17.48 mm
10SM16082	10000 psi 690 bar	1 Inch 25.4 mm	REG	2-Way Angle	SF1000CX10	0.688 Inch 17.48 mm
20SM4073	20000 psi 1379 bar	1/4 Inch 6.35 mm	VEE	3-Way / 2 on Pressure	SF250CX20	0.125 Inch 3.18 mm
20SM4083	20000 psi 1379 bar	1/4 Inch 6.35 mm	REG	3-Way / 2 on Pressure	SF250CX20	0.125 Inch 3.18 mm
20SM6073	20000 psi 1379 bar	3/8 Inch 9.53 mm	VEE	3-Way / 2 on Pressure	SF375CX20	0.219 Inch 5.56 mm
20SM6083	20000 psi 1379 bar	3/8 Inch 9.53 mm	REG	3-Way / 2 on Pressure	SF375CX20	0.219 Inch 5.56 mm
20SM9073	20000 psi 1379 bar	9/16 Inch 14.29 mm	VEE	3-Way / 2 on Pressure	SF562CX20	0.312 Inch 7.92 mm
20SM9083	20000 psi 1379 bar	9/16 Inch 14.29 mm	REG	3-Way / 2 on Pressure	SF562CX20	0.312 Inch 7.92 mm
20SM12073	20000 psi 1379 bar	3/4 Inch 19.05 mm	VEE	3-Way / 2 on Pressure	SF750CX20	0.438 Inch 11.13 mm
20SM12083	20000 psi 1379 bar	3/4 Inch 19.05 mm	REG	3-Way / 2 on Pressure	SF750CX20	0.438 Inch 11.13 mm
20SM16073	20000 psi 1379 bar	1 Inch 25.4 mm	VEE	3-Way / 2 on Pressure	SF1000CX20	0.562 Inch 14.27 mm
20SM16083	20000 psi 1379 bar	1 Inch 25.4 mm	REG	3-Way / 2 on Pressure	SF1000CX20	0.562 Inch 14.27 mm
10SM9073	10000 psi 690 bar	9/16 Inch 14.29 mm	VEE	3-Way / 2 on Pressure	SF562CX10	0.359 Inch 9.12 mm
10SM9083	10000 psi 690 bar	9/16 Inch 14.29 mm	REG	3-Way / 2 on Pressure	SF562CX10	0.359 Inch 9.12 mm
10SM12073	10000 psi 690 bar	3/4 Inch 19.05 mm	VEE	3-Way / 2 on Pressure	SF750CX10	0.516 Inch 13.11 mm
10SM12083	10000 psi 690 bar	3/4 Inch 19.05 mm	REG	3-Way / 2 on Pressure	SF750CX10	0.516 Inch 13.11 mm
10SM16073	10000 psi 690 bar	1 Inch 25.4 mm	VEE	3-Way / 2 on Pressure	SF1000CX10	0.688 Inch 17.48 mm
10SM16083	10000 psi 690 bar	1 Inch 25.4 mm	REG	3-Way / 2 on Pressure	SF1000CX10	0.688 Inch 17.48 mm
20SM4074	20000 psi 1379 bar	1/4 Inch 6.35 mm	VEE	3-Way / 1 on Pressure	SF250CX20	0.125 Inch 3.18 mm
20SM4084	20000 psi 1379 bar	1/4 Inch 6.35 mm	REG	3-Way / 1 on Pressure	SF250CX20	0.125 Inch 3.18 mm
