23 系列

应用:
   移动设备、液压设备、厂用液压装置、餐厅设备和液压回收设备。
   球锁式一按即连结构;
   标准安全套锁;
   操作时的带压压力可达200psi;
   材质:高强度钢表面镀锌,耐腐蚀;
   尺寸规格:3/8″和1/2″
   工作压力:3000psi
   选型资料(插入链接)

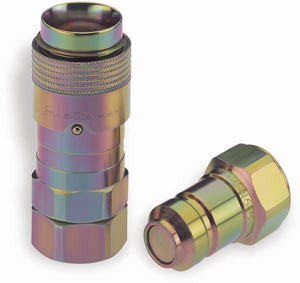

23 Series - Snap-tite's 23 Series quick disconnect coupling is designed for demanding hydraulic applications. Typical applications include mobile equipment, hydraulic tools, fluid reclamation equipment and in-plant hydraulics including test stands where a dry break/no-spill disconnect is required for cleanliness.

23 Series : Drybreak, Non-Spill Couplings
General Purpose, Dry Break, Hydraulic Coupling

FEATURES
?Drybreak, Flat Face, No-Spill design

?Ball locking type with push-to-connect feature allows one-handed connection

?Working Pressure -- to 3,000 psi (207 bar)

?3/8" and 1/2" Sizes Available

?Compact Envelope Dimensions

?Heavy Duty Plated Steel Construction

?Connects against Static Pressure to 200 psi (14 bar)

?Safety Sleeve Lock as Standard

BENEFITS

This rugged compact coupling performs its duties very well. The flush face nipple valve aids in the prevention of system contamination by reducing the build up of dirt and grit. Combine this with the coupler's tapered internal recessed valve design and this unit will allow for easy connection when installed in areas with difficult accessibility by guiding the nipple into a positive connection.
