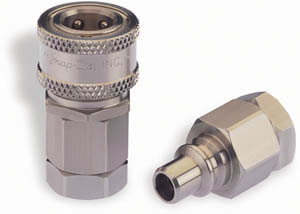

Snap-tite 25系列不锈钢材质316SS快速接头核电、化工和取样系统及超低温行业应用
Parker Snap-tite 25 Series Chemical、Nuclear power and
Sampling system equipment Applications
Parker Snap-tite 25 Series Chemical Coupling



美国Snap-tite 25系列不锈钢快速接头设计用于化工、核电和超低温液体行业零下249度,采用Kel F seals 凯尔氟密封 适用介质包括液体如芳香烃、酒精、醇、 酯、酮、醚、强腐蚀、 硫酸和氢氟酸以及许多其他 高腐蚀性物质构成都可以适用于25系列完全没有问题 。Liquids such as aromatic hydrocarbons, alcohols, esters, ketones, ethers, strong caustics, sulfuric acid and hydrofluoric acid as well as many other highly corrosive materials pose no problem for the 25 Series.

Snap-tite 25系列快速接头应用

化工、核电、取样系统设备和超低温行业;可以耐芳氢、脂、醚、酮、浓氢氧化钠、硫磺酸、氢氟酸和其他一些高腐蚀性介质及冷媒介质。Parker Snap-tite 25 Series Chemical、Nuclear power and Sampling system equipment Applications.


Snap-tite 25系列快速接头产品特性


   单单向阀球锁结构;
   高温断开;
   材质:不锈钢316SS;
   尺寸规格:1/4″—1-1/4″;
   工作压力:1,000 psi (70 bar)
   符合ANSI Z21.41标准,获得CSA认证;
   选型资料(插入链接)
   温度:零下240度到149度( 母头),零下73度到177度(公头)


Snap-tite 25 Series_PDF下载

Snap-tite 25 Series - Although economically priced, the 25 Series will handle virtually all types of chemicals. These quick disconnects are ideally suited for systems that must come in contact with families of fluids that have widely varying chemical characteristics. This unit utilizes a barrel-type valve with either a Teflon or Kel-F seal mounted in the valve to assure equalized valve-seat sealing.



Snap-tite 25 Series : General Purpose Poppet Coupling
Chemical and Cryogenic Coupling FEATURES
Construction - Machined from 316 stainless steel

Seals - Teflon or Kel- F
Tubular Valve Design
Minimal Pressure Drop
Working Pressure - to 1,000 psi (69 bar)
Sizes - available 1/4" thru 1/2"
Double Shut-Off or Straight Through Configurations
Optional Sleeve Lock Available
- 取样系统及设备大量配套应用

Snap-tite 25系列快速接头性能特点:

Liquids such as aromatic hydrocarbons, alcohols, esters, ketones, ethers, strong caustics, sulfuric acid and hydrofluoric acid as well as many other highly corrosive materials pose no problem for the 25 Series. The 25 Series may also be used with cryogenic liquids to -400 degrees F under certain conditions when Kel F seals are specified. 液体如 芳香烃 ,酒精, 醇 , 酯 , 酮 , 醚 , 强 腐蚀, 硫酸和氢氟酸 以及许多其他 高腐蚀性物质构成都可以适用于25系列 。Snap-tite 25系列也可用于 低温液体 - 400华氏度 一定的条件下, 凯尔氟密封指定 。

Part No. Connection Size Seal Material
SDC25-4 1/4" Dust Cap Teflon
SDC25-8 1/2" Dust Cap Teflon
SDP25-4 1/4" Dust Plug Teflon
SDP25-8 1/2" Dust Plug Teflon
SP25C4-4F Stainless Steel Non-Valved Coupler, 1/4" x 1/4" NPFT Teflon
SP25C4-4FKF Stainless Steel Non-Valved Coupler, 1/4" x 1/4" NPFT Kel F
SP25C8-8F Stainless Steel Non-Valved Coupler, 1/2" x 1/2" NPFT Teflon
SP25C8-8FKF Stainless Steel Non-Valved Coupler, 1/2" x 1/2" NPFT Kel F
SP25C8-SPK Stainless Steel Non-Valved Coupler, 1/2" Spare Parts Kit Teflon
SP25N4-4F Stainless Steel Non-Valved Nipple, 1/4" x 1/4" NPFT Teflon
SP25N8-8F Stainless Steel Non-Valved Nipple, 1/2" x 1/2" NPFT Teflon
SV25C4-4F 316 Stainless Steel Valved Coupler, 1/4" x 1/4" NPFT Teflon
SV25C4-SPK
316 Stainless Steel Valved Coupler, 1/4" Spare Parts Kit Teflon
SV25C8-6F 316 Stainless Steel Valved Coupler, 1/2" x 3/8" NPFT Teflon
SV25C8-6MKFSL 316 Stainless Steel Valved Coupler, 1/2" x 3/8" NPTM w/ Sleeve Lock Kel F
SV25C8-8F 316 Stainless Steel Valved Coupler, 1/2" x 1/2" NPFT Teflon
SV25C8-8FKFSL 316 Stainless Steel Valved Coupler, 1/2" x 1/2" NPFT w/ Sleeve Lock Kel F
SV25C8-8FSL 316 Stainless Steel Valved Coupler, 1/2" x 1/2" NPFT w/ Sleeve Lock Teflon
SV25C8-SPK 316 Stainless Steel Valved Coupler, 1/2" Spare Parts Kit Teflon
SV25N4-4F 316 Stainless Steel Valved Nipple, 1/4" x 1/4" NPFT Teflon
SV25N4-SPK 316 Stainless Steel Valved Nipple, 1/4" Spare Parts Kit Teflon
SV25N8-6F 316 Stainless Steel Valved Nipple, 1/2" x 3/8" NPFT Teflon
SV25N8-6M 316 Stainless Steel Valved Nipple, 1/2" x 3/8" NPTM Teflon
SV25N8-8F 316 Stainless Steel Valved Nipple, 1/2" x 1/2" NPFT Teflon
SV25N8-SPK 316 Stainless Steel Valved Nipple, 1/2" Spare Parts Kit Teflon
