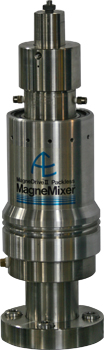

Production Scale High Pressure Magnetic Mixer: 2.75 磁力搅拌器

Autoclave Engineers 产品提供了高度的通用性，为用户大程度减少使用和维护成本。不同型号的产品，其部件通用性高达70%，通过更换反应釜体，搅拌部件，阀门管路等方法，扩展使用范围，达到设备大的利用率。搅拌机MagneDrive第二搅拌器使用稀土磁铁，允许在更高的速度在较大的船只，并具有较高的粘度流体的无填料混合。外驱动磁体，由电动机驱动皮带旋转，封装内磁铁大会施加强大的吸引力。作为外部驱动器磁体旋转，内在的磁铁驱动，致使搅拌轴旋转。污染无搅拌，无填料的设计消除了轴填料和润滑需要。零泄漏到大气的MagneDrive II是一个密封的系统， 封闭的气氛，所以即使是敏感的液体可以被安全地处理 。连续，高速运转，没有必要把自己关在反应中改变失败的包装。

MagneDrive? II agitators use rare earth magnets, permitting packless mixing at higher speeds in larger vessels and with higher viscosity fluids. Outer drive magnets, rotated by a motor-driven belt, exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

2.75 Series MagneDrive II® Specification
Maximum RPM, torque, and horsepower

Production Scale High Pressure Magnetic Mixer: 2.75
Magnetically Coupled Mixers
Magnetic agitator with shaft & torque for high pressure production reactors

FEATURES

Capable of mixing gas as high as 1700 rpm.
Operating pressures as high as 3,600 psi @ 650° F (455 bar @ 343°C).
Carbon graphite and Rulon LR7 bearings available.
Material Construction: 316 Stainless Steel, Hastelloy C-276, Monel 400,
for additional material please consult factory.

BENEFITS

MagneDrive? II agitators use rare earth magnets, permitting packless mixing at higher speeds in larger vessels and with higher viscosity fluids. Outer drive
magnets, rotated by a motor-driven belt, exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

Contamination-free mixing - Packless design eliminates shaft packing and need for lubrication.

Zero leakage to atmosphere - The MagneDrive? II is a sealed system, closed to the atmosphere, so even sensitive fluids can be processed safely.

Continuous, high speed operation - No need to shut down in mid-reaction to change failed packing.

APPLICATIONS

Agitator recognized worldwide as a highly efficient method of promoting chemical reactions and catalyst testing among gases, liquids and solids in high pressure autoclaves.

Dispersimax? agitation available for gas dispersion through liquid during mixing. Facilitating tomorrows requirements in a proven mixing package for production facilities the world over.
