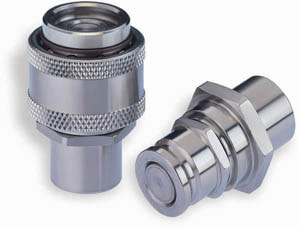

美国Snap-tite 28-1 and 29系列快速接头 Snap-tite 28-1 and 29 Series Couplings
Military and Aerospace Dry Break Coupling



美国Snap-tite 28-1 and 29 Series系列快速接头是体积小、重量轻的快插式设计,适合狭小空间的应用。Snap-tite 28-1和29系列无溢流阀芯,具有最小的溢出量,可避免气泡混杂,同时具有高流量和低压降的优点。接头体积小并且可选择铝合金材质,这些都是附加价值。28-1系列的额定压力高达1000psi,69bar,可提供1/4''至2''的本体尺寸。安装指示器确认安装到位。29系列的额定工作压力高达5500psi,可提供1/8''至 1/4''的尺寸。



Snap-tite 28-1 & 29 Series Couplings PDF
资料下载

Snap-tite 28-1 and 29 Series Couplings应用:

   军工、航空和医药以及部分腐蚀性的化学介质较高的场合。

   球锁式一按即连结构;
   平面设计,基本杜绝介质泄漏和气泡混入,同时便于系统检查和清洗;
   结构紧凑,重量轻;
   流线型设计、大流量、压力损耗低;
   材质:铝、316不锈钢;
   尺寸规格:1/8″—11/4″;
   工作压力:5500psi;
   符合美国军标:MIL-C-7413B和MIL-C-25427A
   选型资料(插入链接)



Snap-tite 28-1 and 29 Series Couplings : Snap-tite 29 Series - Snap-tite's 29 Series quick disconnects offer full flow characteristics, can handle high pressure as well as gravity flow systems, and contain minimal seals for greater reliability. The 29 Series has established an excellent performance record over the past 30 years. Like all Snap-tite quick disconnect couplings, the 29 Series provides a smooth positive shut off upon disconnection.

Snap-tite 28-1 and 29 Series Couplings

29 Series Dust Caps
Size Coupler Nipple Pressure Cap
for Nipple
1/8" ADP29-2
ADC29-2
APC29-2
1/4" ADP29-4
ADC29-4
APC29-4
3/8" ADP29-6
ADC29-6
APC29-6
1/2" ADP29-8
ADC29-8
APC29-8
3/4" ADP29-12
ADC29-12
APC29-12
1" ADP29-16
ADC29-16
APC29-16
1 1/4" ADP29-20
ADC29-20
APC29-20

29 Series : Drybreak, Non-Spill Couplings
Military and Aerospace Dry Break Coupling



规格参数:

High Pressure Design - working pressures to 5,500 psi (379 bar) with low pressure drop

Available Sizes - 1/8" thru 1-1/4"

Construction Options - Stainless steel or aluminum construction

Drybreak/Flat Face, no-spill design

Minimal Air Inclusion End Fitting Options - Wide range of military and industrial end fittings available

Wide Range of Seal Materials

Smooth Push-to-Connect Action

Performance - Meets or exceeds the requirements of MIL-C-7413B & MIL-C-25427A

BENEFITS

This unit is a perfect fit in applications such as high reliability military, aerospace, and medical systems as well as handling chemicals and other corrosive materials. The 29 Series is the ideal choice where minimal spillage and air inclusion, safety, cleanliness, and precise function in high pressure hydraulic systems are prime requisites.

Snap-tite 28-1 and 29 Series Couplings

Compact, lightweight, push-to-connect couplings for small space applications. 28-1 and 29 Series nonspill valving offers minimal spillage and air inclusion while providing maximum flow and low pressure drop. Their small envelope size and aluminum material option are added pluses. The 28-1 Series is rated for pressures up to 1,000 psi (69 bar) and is available in 1/4" to 2" body sizes. A visual indicator confirms connection. The 29 Series is rated for pressures up to 5,500 psi (37 bar) and comes in 1/8" to 1-1/4" body sizes.

FEATURES AND BENEFITS

- Low pressure drop
- Push-to-connect
- Lightweight, compact design
- Wide range of seal materials
- Aluminum or stainless construction



Applications:

- Low pressure hydraulic systems
- High purity systems
- Fuel systems

> Learn more about Snap-tite 28-1 and 29 Series Non-Spill Couplings
