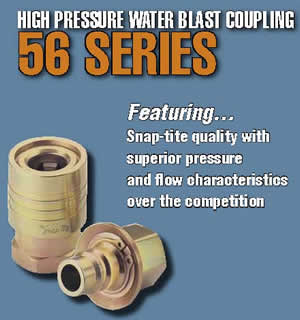

Snap-tite 56 Series 高压水清洗专用快速接头
High Pressure Water Blast, Interchange Coupling - Snap-tite 56 Series

• 应用：用于去除氧化层、油漆的抗震、耐高压的高压水清洗设备；

工作压力：12000psi / 828bari；
尺寸规格：1/2″
材质：高强度钢表面带防腐镀层安全套锁机构，防止意外松脱；
零泄露；
4倍安全系数。
Operating Pressure - to 12,000 psi (690 bar)
4:1 Safety Factor
Available in 1/2" size
Construction - High strength steel with corrosion resistant yellow zinc dichromate plating
Safety Sleeve Lock - Protects against accidental disconnection
Proven Dog-Lock Mechanism - Provides safe, positive, smooth connection & eliminates ball brinnelling
Smooth, Straight-Through Bore Configuration
Safety Guard prevents accidental disconnection and protects the opening between the nipple and coupler from the environment

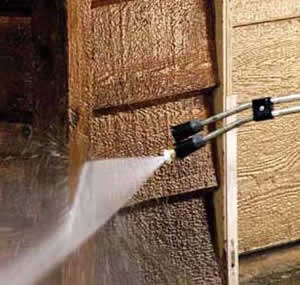

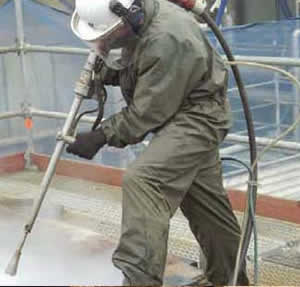

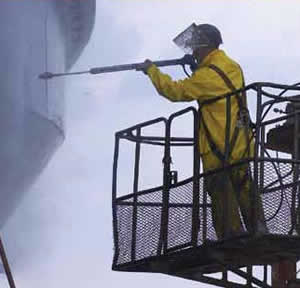

56 Series - Snap-tite's 56 Series couplings are designed for rugged, high pressure water blasting equipment used in cleaning applications to 12,000 psi (828 bar). In addition to paint removal, water blast equipment is used in the cleaning of maritime vessels and equipment as well as the removal of mill scale. The 56 Series interchanges with Parker WB and Aeroquip FD69 Series units.

BENEFITS

The dog-lock mechanism used in this particular product allows for greater surface contact which equates to longer service life due to the even load distribution. A safety guard is also included to prevent accidental disconnection while dragging connected hoses over rough terrain and our straight-through design allows for excellent flow with minimal pressure drop across the connection.

Item #	Coupling Half	Coupling Size	End Fitting Size	End Fitting Type	Body Material	Interchanges With	Maximum Operating Pressure
56C8-6F	Coupler (Female)	1/2 in.	3/8 in.	Female NPTF	Steel	Aeroquip FD69 and Parker WB Series	12000 psi 828 bar
56C8-8F	Coupler (Female)	1/2 in.	1/2 in.	Female NPTF	Steel	Aeroquip FD69 and Parker WB Series	12000 psi 828 bar
56N8-6F	Nipple (Male)	1/2 in.	3/8 in.	Female NPTF	Steel	Aeroquip FD69 and Parker WB Series	12000 psi 828 bar
56N8-8F	Nipple (Male)	1/2 in.	1/2 in.	Female NPTF	Steel	Aeroquip FD69 and Parker WB Series	12000 psi 828 bar
