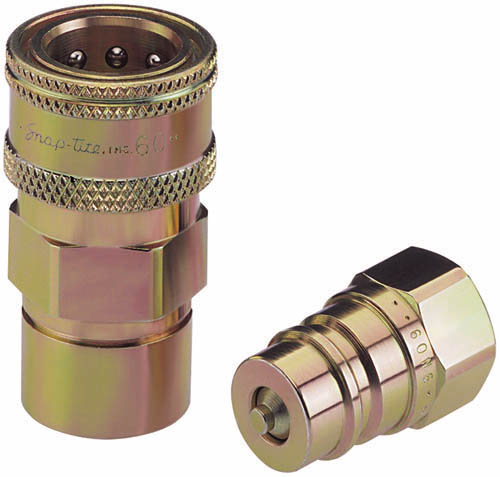

Parker 4000 Interchange Quick Disconnect Hose Coupling - Snap-tite 60 Series

• 应用:
雪橇、农林业机械、工程机械、石油设备、矿用设备等。

• 技术成熟的球锁结构,连接可靠;
双单向阀;
材质:镀钢;
尺寸规格:1/4″、3/8″
工作压力:3000psi;
选型资料(插入链接)

4:1 Safety Factor
Self-Sealing Poppet Style Valve design provides excellent high and low pressure sealing
High Strength Steel Construction
Yellow Zinc Dichromate Plating for Superior Corrosion Resistance
Seal Variety - Choice of seals to handle wide range of media, Buna-N standard
Available Sizes - 1/4" and 3/8"
Working Pressure - To 3,000 psi (207 bar)



60 Series - The Snap-tite 60 Series is designed to accommodate high surge flows found in demanding hydraulic applications. Typical applications include snow plows, agricultural equipment, oil tools, forestry, steel mill, & construction equipment. The 60 Series will interchange with Aeroquip's FD42 Series and Parker's (Pioneer) 4000 Series.

60 Series : General Purpose Poppet Coupling
General Purpose, Parker 4000 Interchange Coupling


BENEFITS

The 60 Series coupler is provided with a retaining groove for bulkhead mounting. In addition, Snap-tite believes in supplying poppet style valving in lieu of the ball style check which is supplied by the competition in many cases. While interchangeable with Pioneer 4000 couplings, our design provides excellent sealing coupled in both high and low pressure applications as well as in the disconnected mode, unlike ball check styles.

Part No # Coupling Half Coupling Size End Fitting Size End Fitting Type Body Material Seal Material Maximum Operating Pressure
60C4-4F Coupler (Female) 1/4 in. 1/4 in. Female NPTF Steel Buna-N (Nitrile) 3000 psi
210 bar
60C6-6F Coupler (Female) 3/8 in. 3/8 in. Female NPTF Steel Buna-N (Nitrile) 3000 psi
210 bar
60N4-4F Nipple (Male) 1/4 in. 1/4 in. Female NPTF Steel Buna-N (Nitrile) 3000 psi
210 bar
60N6-6F Nipple (Male) 3/8 in. 3/8 in. Female NPTF Steel Buna-N (Nitrile) 3000 psi
210 bar
