Parker Snap-tite 75 Series Thread-to-Connect Quick Disconnect Coupling快速接头
“Fire Safe” Coupling Approved for use in Canada and on Offshore Oil & Gas platforms

“Fire Safe” 和挪威DNV认证,BOP 和API标准 -耐温达700度



Parker Snap-Tite 75系列快速接头产品应用:

抗震性液压场合应用。油田 、近海钻探、采油机械(连续油管作业车)、液压打桩锤、起重机、牵引车等“Fire Safe” Coupling Approved for use in Canada and on Offshore Oil & Gas platforms


Parker Snap-tite 75 Series Couplings PDF_下载
Parker 75系列快换接头中文技术资料下载



Parker Snap-Tite 75系列快速接头 产品特性

ACME螺纹连接结构Acme Thread-to-Connect Design
双单向阀,双截止结构;Double Shut-Off Configuration
材质:镀钢、316不锈钢;Construction - Plated steel or 316 stainless steel
尺寸规格:3/4″到4″;Available Sizes - 3/4" thru 4"
工作压力:3000psi (345bar);Working Pressure - To 5,000 psi (345 bar)
符合API16D标准"Firesafe" version to API 16D & EUB directive #36
获得挪威船级社DNV认证
选型资料(插入链接)
压降低Low Pressure Drop
高流量下工作High Flow Capacity
连接压力可高达3000psi(207bar)Connect Under Pressure Capability - Can be connected against pressures up to 3,000 psi (207 bar)


Parker Snap-Tite 75 Series Thread to Connect Couplings PDF Catalog
液压打桩锤和连续油管车抗震性液压场合应用翼型快速接头


特征:

- 螺纹连接型快换
- 最大尺寸可达4"
- 可在背压下连接
- 可选碳钢和不锈钢材料


应用举例:

- 油田设备
- 海工行业
- 发动机测试台
- 液压打桩锤
- 连续油管车

Snap-Tite 75 Series Thread to Connect Couplings

Parker 75系列技术参数
本体尺寸
3/4
1
1 1/4
1 1/2
2
2 1/2
3
4
额定压力
碳钢
345
345
345
345
345
207
207
28
不锈钢
207
207
207
207
207
注:
1、本体材料:碳钢,316不锈钢
2、密封材料及温度范围:丁晴橡胶:-40°C 至+100°C
3、额定压力:该额定压力为静压状态下的最大工作压力,应用于动态压力场合时,快换的最大工作压力约为所列值的0.6倍。爆破压力为额定压力的2-4倍,详情请咨询我司销售人员。

Parker Snap-tite 75 Series Construction Mobile Heavy Duty, thread-to-Connect Hydraulic Coupling for Construction/Mobile Equipment

型号
Material
Coupling Half
Coupling Size
End Size
End Type
Seal Material
75C12-12F
Plated Steel
Coupler
3/4
3/4
Female
Buna N
75C16-16F
Plated STeel
Coupler
1
1
Female
Buna N
75C20-20F
Plated Steel
Coupler
1-1/4
1-1/4
Female
Buna N
75C24-24F
Plated Steel
Coupler
1-1/2
1-1/2
Female
Buna N
75C32-32F
Plated Steel
Coupler
2
2
Female
Buna N
75N12-12F
Plated STeel
Nipple
3/4
3/4
Female
Buna N
75N16-16F
Plated STeel
Nipple
1
1
Female
Buna N
75N20-20F
Plated Steel
Nipple
1-1/4
1-1/4
Female
Buna N
75N24-24F
Plated Steel
Nipple
1-1/2
1-1/2
Female
Buna N
75N32-32F
Plated Steel
Nipple
2
2
Female
Buna N

Parker Snap-Tite 75 Series - The very rugged 75 Series coupling is designed and constructed for high pressure hydraulics transfer service. It's heavy duty Acme Thread-to-Connect design is great for fluid transfer and where connection-under-pressure (static) to 3,000 psi (207 bar) is required.

Also available in "Dry-Break" no-spill design to help meet environmental requirements.
75 Series : General Purpose Poppet Coupling
Heacy Duty, Thread-to-Connect Hydraulic Coupling


Parker Snap-Tite 75 Series Thread to Connect Couplings PDF Catalog



Snap-Tite 75 Series Thread to Connect Couplings BENEFITS

The 75 Series thread-to-connect quick disconnect coupling is a screw together style unit designed to shut off automatically under normal conditions in both the coupler and nipple halves when the unit is being disconnected. A wide range of seal materials is available for various applications including those involving the use of fire-resistant hydraulic fluids. The 75 Series is a very rugged unit capable of use in abusive situations. A "Dry-Break" version is also available (75 db)
75N12-12F
75N16-16F
75N20-20F
75N24-24F
75N32-32F
75N40-40F
75N64-64F
75N12-SPK
75N16-SPK
75N20-SPK
75N24-SPK
75N32-SPK
75N40-SPK
75N64-SPK
75MDC-12
75MDC-16
75MDC-20
75MDC-24
75MDC-32
75MDC-40
75MDC-64
Size Dust Plug Dust Cap Coupler Kits Nipple Kits 3/4 1 1-1/4 1-1/2 2 2-1/2 4 75MDP-12 75MDP-16 75MDP-20 75MDP-24 75MDP-32 75MDP-40 75MDP-64 75MDC-12 75MDC-16 75MDC-20 75MDC-24 75MDC-32 75MDC-40 75MDC-64 75C12-SPK 75C16-SPK 75C20-SPK 75C24-SPK 75C32-SPK 75C40-SPK 75C64-SPK 75N12-SPK 75N16-SPK 75N20-SPK 75N24-SPK 75N32-SPK 75N40-SPK 75N64-SPK
75C12-12RP
75C16-16RP
75C20-20RP
75C24-24RP
75C12-12RP 3/4" 345
75C16-16RP 1" 345
75C20-20RP 1 1/4"" 345
75C24-24RP 1 1/2" 345
75C32-32RP 2" 345
75N12-12RP
75N16-16RP
75N20-20RP
75N24-24RP
75MDC-12
75MDC-16
75MDC-20
75MDC-24
75MDC-32
75MDP-12
75MDP-16
75MDP-20
75MDP-24
75MDP-32
75N12-12F
75N12-12FV
75N12-12RP
75N12-12RPV
75N16-16F
75N16-16FV
75N16-16RP
75N16-16RPV
75N20-20F
75N20-20FV
75N20-20RP
75N20-20RPV
75N24-24F
75N24-24FV
75N24-24RP
75N24-24RPV
75N32-32F
75N32-32FV
75N-32-32RP
75N-32-32RPV

3/4 75C12-12F 345 S75C12-12F 207 3/4-14 NPTF** 72 1 7/8" *** 1 3/4-8
3/4 75C12-12RP 345 S75C12-12RP 207 G 3/4 72 1 7/8" *** 1 3/4-8
1 75C16-16F 345 S75C16-16F 207 1-11 1/2 NPTF** 88 108 2 1/4-6
1 75C16-16RP 345 S75C16-16RP 207 G 1 88 108 2 1/4-6
1 1/4 75C20-20F 345 S75C20-20F 207 1 1/4-11 1/2 NPTF** 112 121 2 5/8-6
1 1/4 75C20-20RP 345 S75C20-20RP 207 G 1 1/4 112 121 2 5/8-6
1 1/2 75C24-24F 345 S75C24-24F 207 1 1/2-11 1/2 NPTF** 128 146 3 1/4-4
1 1/2 75C24-24RP 345 S75C24-24RP 207 G 1 1/2 128 146 3 1/4-4
2 75C32-32F 345 S75C32-32F 207 2-11 1/2 NPTF** 154 172 4-4
2 75C32-32RP 345 S75C32-32RP 207 G 2 154 172 4-4
2 1/2 75C40-40F 207 -- -- 2 1/2-8 NPTF** 135 203 5-4
3 75C48-48F 207 -- -- 3-8 NPTF** 149 216 6-4
4 75C64-64F 28 -- -- 4-8 NPT 181 280 6 5/8-4

3/4 75N12-12F 345 S75N12-12F 207 3/4-14 NPTF** 83 40 1 3/4-8
3/4 75N12-12RP 345 S75N12-12RP 207 G 3/4 83 40 1 3/4-8
1 75N16-16F 345 S75N16-16F 207 1-11 1/2 NPTF** 106 48 2 1/4-6
1 75N16-16RP 345 S75N16-16RP 207 G 1 106 48 2 1/4-6
1 1/4 75N20-20F 345 S75N20-20F 207 1 1/4-11 1/2 NPTF** 136 61 2 5/8-6
1 1/4 75N20-20RP 345 S75N20-20RP 207 G 1 1/4 136 61 2 5/8-6
1 1/2 75N24-24F 345 S75N24-24F 207 1 1/2-11 1/2 NPTF** 152 70 3 1/4-4
1 1/2 75N24-24RP 345 S75N24-24RP 207 G 1 1/2 152 70 3 1/4-4
2 75N32-32F 345 S75N32-32F 207 2-11 1/2 NPTF** 179 76 4-4
2 75N32-32RP 345 S75N32-32RP 207 G 2 179 76 4-4
2 1/2 75N40-40F 207 -- -- 2 1/2-8 NPTF** 190 68 5-4
3 75N48-48F 207 -- -- 3-8 NPTF** 210 59 6-4
4 75N64-64F 28 -- -- 4-8 NPT 239 75 6
3/4 75MDP-12 75MDC-12
1 75MDP-16 75MDC-16
1 1/4 75MDP-20 75MDC-20
1 1/2 75MDP-24 75MDC-24
2 75MDP-32 75MDC-32
2 1/2 75MDP-40 75MDC-40
3 75MDP-48 75MDC-48
4 75MDP-64 75MDC-64
3/4 75C12-SPK 75N12-SPK
1 75C16-SPK 75N16-SPK
1 1/4 75C20-SPK 75N20-SPK
1 1/2 75C24-SPK 75N24-SPK
2 75C32-SPK 75N32-SPK
2 1/2 75C40-SPK 75N40-SPK
3 75C48-SPK 75N48-SPK
4 75C64-SPK 75N64-SPK
Snap-Tite 75 Series Thread to Connect Couplings

Parker Hannifin 75C16-16F-DBP Snap-tite Series 75 Hydraulic Quick Coupling, Fire Safe, 1" Size, 1-11"-1/2 NPSF Port

Parker Snap-tite 75 Series are double shut-off, connect under pressure, thread-to-connect quick couplings



Snap-tite 75 Series 钻井平台专用DNV防火接头
“Fire Safe” Coupling Approved for use in Canada and on Offshore Oil & Gas platforms

Snap-tite全球首家挪威船级社DNV认证、符合API16D标准和"Fire-safe"Approved 的海洋近海钻探、采油机械用软管BOP快速接头。Snap-tite Adds “FIRE-SAFE” Drilling Blow-Out Prevention (DBP) Option to its 75 Series Screw-to-Connect Quick Disconnect
Product Line:


UNION CITY, July 1, 2007 - Snap-tite’s Quick Disconnect & Valve Division announces the release of a Lloyd’s Register certified “FIRE-SAFE” version of 75 Series Screwto-Connect Quick Disconnect Coupling. It is approved for use on Blow-Out Prevention (BOP) Circuits used in the Oil and Gas Industry. This third-party certification (Lloyd’s Register Certificate NAO 0701023/1) verifies that this product meets the standards of API 16D and the Alberta Energy and Utilities Board - EUB Directive #36. These units were tested at 700°C (1300°F) fire exposure for 5 minutes at full operating pressure without loss of pressure or leakage.




The “FIRE-SAFE” rating has become a requirement for couplings used in BOP circuits in Western Canada and is being requested by oil and gas production companies throughout North America and other parts of the world. The design ensures that the coupling will maintain seal integrity during a short term fire to prevent spillage of a potential fuel source.


The -DBP “Fire Safe” option is available in ”, 1”, & 1 ?” Steel units. Consult factory for additional material

or size options.


Please refer to bulletin “01-0001BE-0607” titled: 75 Series Thread-to-Connect Couplings, for additional
information.

SNAP-TITE 75 Series Thread-to-Connect Couplings
液压打桩锤和连续油管车抗震性液压场合应用翼型快速接头
快速接头实物照片

Snap-tite 75C24-24F Coupler 1-1/2" x 1-1/2" NPTF 母头

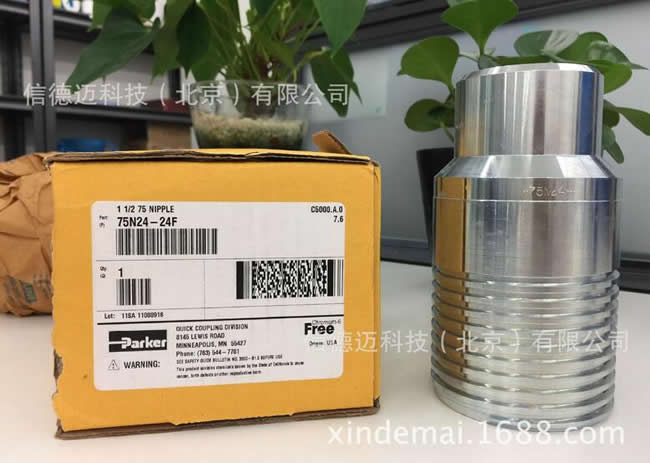

Snap-tite 75N24-24F Coupler 1-1/2" x 1-1/2" NPTF公头
Snap-tite 75C24-24F Coupler 1-1/2" x 1-1/2" NPTF 母头
Snap-tite 75C24-24F Coupler 1-1/2" x 1-1/2" NPTF 公头
Snap-tite 75MDC-24 1-1/2" Dust Cap 防尘帽
Snap-tite 75MDP-24 1-1/2" Dust Plug 防尘塞



- 液压打桩锤和连续油管车抗震性液压场合应用翼型快速接头



Pneumatic/Hydraulic Fittings & Couplings > Snap-Tite QD Couplings > Snap-Tite 75 Series Thread to Connect Couplings > View Items

75-12-56 3/4" Spares Kit Buna N

75-16-56 1" Spares Kit Buna N

75-16-56V 1" Spares Kit Viton

75-20-56 1-1/4" Spares Kit Buna N

75-20-56V 1-1/4" Spares Kit Viton

75-24-56 1-1/2" Spares Kit Buna N

75-32-56 2" Spares Kit Buna N

75C12-12EF Coupler 3/4" x 3/4" Female SAE Buna N

75C12-12EFE Coupler 3/4" x 3/4" Female SAE a Ethylene Propylene

75C12-12EFV Coupler 3/4" x 3/4" Female SAE P Viton

75C12-12F Coupler 3/4" x 3/4" NPTF Buna N


75C12-12F-DBP Coupler 3/4" x 3/4" NPTF Fire Safe Buna N

75C12-12FE Coupler 3/4" x 3/4" NPTF Ethylene Propylene

75C12-12FV Coupler 3/4" x 3/4" NPTF Viton


75C12-12FW Coupler 3/4" x 3/4" NPTF W/ Wrench Flat Buna N

75C12-12RP Coupler 3/4" x 3/4" BSPF Buna N

75C12-12RPE Coupler 3/4" x 3/4" BSPF Ethylene Propylene

75C12-12RPV Coupler 3/4" x 3/4" BSPF Viton

75C12-SPK Coupler 3/4" Spare Parts Kit Buna N

75C12-SPKE Coupler 3/4" Spare Parts Kit Ethylene Propylene

75C12-SPKV Coupler 3/4" Spare Parts Kit Viton

75C16-16EF Coupler 1" x 1" Female SAE Buna N

75C16-16EFE Coupler 1" x 1" Female SAE Ethylene Propylene

75C16-16EFV Coupler 1" x 1" Female SAE Viton

75C16-16F Coupler 1" x 1" NPTF Buna N

75C16-16F-DBP Coupler 1" x 1" NPTF Fire Safe Buna N

75C16-16FE Coupler 1" x 1" NPTF Ethylene Propylene

75C16-16FV Coupler 1" x 1" NPTF Viton

75C16-16FW Coupler 1" x 1" NPTF W/ Wrench Flat Buna N

75C16-16RP Coupler 1" x 1" BSPF Buna N

75C16-16RPE Coupler 1" x 1" BSPF Ethylene Propylene

75C16-16RPV Coupler 1" x 1" BSPF Viton
75C16-SPK Coupler 1" Spare Parts Kit Buna N

75C16-SPKV Coupler 1" Spare Parts Kit Viton

75C20-20EF Coupler 1-1/4" x 1-1/4" Female SAE Buna N

75C20-20EFE Coupler 1-1/4" x 1-1/4" Female SAE Ethylene Propylene

75C20-20EFV Coupler 1-1/4" x 1-1/4" Female SAE Viton

75C20-20EFW Coupler 1-1/4" x 1-1/4" Female SAE W/ Wrench Flat Buna N

75C20-20F Coupler 1-1/4" x 1-1/4" NPTF Buna N

75C20-20F-DBP Coupler 1-1/4" x 1-1/4" NPTF Fire Safe Buna N

75C20-20FE Coupler 1-1/4" x 1-1/4" NPTF Ethylene Propylene

75C20-20FEW Coupler 1-1/4" x 1-1/4" NPTF W/ Wrench Flat Ethylene Propylene

75C20-20FV Coupler 1-1/4" x 1-1/4" NPTF Viton

75C20-20RP Coupler 1-1/4" x 1-1/4" BSPF Buna N

75C20-20RPE Coupler 1-1/4" x 1-1/4" BSPF Ethylene Propylene

75C20-20RPV Coupler 1-1/4" x 1-1/4" BSPF Viton

75C20-SPK Coupler 1-1/4" Spare Parts Kit Buna N

75C20-SPKE Coupler 1-1/4" Spare Parts Kit Ethylene Propylene

75C20-SPKV Coupler 1-1/4" Spare Parts Kit Viton

75C24-24EF Coupler 1-1/2" x 1-1/2" Female SAE Buna N

75C24-24EFE Coupler 1-1/2" x 1-1/2" Female SAE Ethylene Propylene

75C24-24F Coupler 1-1/2" x 1-1/2" NPTF Buna N

75C24-24FE Coupler 1-1/2" x 1-1/2" NPTF Ethylene Propylene

75C24-24FV Coupler 1-1/2" x 1-1/2" NPTF Viton

75C24-24FW Coupler 1-1/2" x 1-1/2" NPTF W/ Wrench Flat Buna N

75C24-24RP Coupler 1-1/2" x 1-1/2" BSPF Buna N

75C24-24RPE Coupler 1-1/2" x 1-1/2" BSPF Ethylene Propylene

75C24-24RPV Coupler 1-1/2" x 1-1/2" BSPF Viton

75C24-SPK Coupler 1-1/2" Spare Parts Kit Buna N

75C24-SPKV Coupler 1-1/2" Spare Parts Kit Viton

75C32-32EF Coupler 2" x 2" Female SAE Buna N

75C32-32EFE Coupler 2" x 2" Female SAE Ethylene Propylene

75C32-32EFV Coupler 2" x 2" Female SAE Viton

75C32-32F Coupler 2" x 2" NPTF Buna N

75C32-32FE Coupler 2" x 2" NPTF Ethylene Propylene

75C32-32FV Coupler 2" x 2" NPTF Viton

75C32-32RP Coupler 2" x 2" BSPF Buna N

75C32-32RPE Coupler 2" x 2" BSPF Ethylene Propylene

75C32-32RPV Coupler 2" x 2" BSPF Viton

75C32-SPK Coupler 2" Spare Parts Kit Buna N

75C32-SPKE Coupler 2" Spare Parts Kit Ethylene Propylene

75C32-SPKV Coupler 2" Spare Parts Kit Viton

75C40-40F Coupler 2-1/2" x 2-1/2" NPTF Buna N

75C40-40RP Coupler 2-1/2" x 2-1/2" BSPF Buna N

75C40-SPK Coupler 2-1/2" Spare Parts Kit Buna N

75C48-48F Coupler 3" x 3" NPTF Buna N

75C48-48RP Coupler 3" x 3" BSPF Buna N

75C64-64F Coupler 4" x 4" NPTF Buna N

75C64-64RP Coupler 4" x 4" BSPF Buna N

75MDC-12 3/4" Dust Cap N/A

75MDC-16 1" Dust Cap N/A

75MDC-20 1-1/4" Dust Cap N/A

75MDC-24 1-1/2" Dust Cap N/A

75MDC-32 2" Dust Cap N/A

75MDC-40 2-1/2" Dust Cap N/A

75MDC-64 4" Dust Cap N/A

75MDP-12 3/4" Dust Plug N/A

75MDP-16 1" Dust Plug N/A

75MDP-20 1-1/4" Dust Plug N/A

75MDP-24 1-1/2" Dust Plug N/A

75MDP-32 2" Dust Plug N/A

75MDP-40 2-1/2" Dust Plug N/A

75MDP-48 3" Dust Plug N/A

75MDP-64 4" Dust Plug N/A

75N12-12EF Nipple 3/4" x 3/4" Female SAE Buna N

75N12-12EFE Nipple 3/4" x 3/4" Female SAE Ethylene Propylene

75N12-12EFV Nipple 3/4" x 3/4" Female SAE Viton

75N12-12F Nipple 3/4" x 3/4" NPTF Buna N


75N12-12F-DBP Nipple 3/4" x 3/4" NPTF Fire Safe Buna N

75N12-12FE Nipple 3/4" x 3/4" NPTF Ethylene Propylene

75N12-12FV Nipple 3/4" x 3/4" NPTF Viton /

75N12-12FW Nipple 3/4" x 3/4" NPTF W/ Wrench Flat Buna N

75N12-12RP Nipple 3/4" x 3/4" BSPF Buna N


75N12-12RPE Nipple 3/4" x 3/4" BSPF Ethylene Propylene

75N12-12RPV Nipple 3/4" x 3/4" BSPF Viton


75N12-SPK Nipple 3/4" Spare Parts Kit Buna N

75N12-SPKE Nipple 3/4" Spare Parts Kit Ethylene Propylene

75N12-SPKV Nipple 3/4" Spare Parts Kit Viton

75N16-16EF Nipple 1" x 1" Female SAE Buna N

75N16-16EFE Nipple 1" x 1" Female SAE Ethylene Propylene

75N16-16EFV Nipple 1" x 1" Female SAE Viton

75N16-16F Nipple 1" x 1" NPTF Buna N

75N16-16F-DBP Nipple 1" x 1" NPTF Fire Safe Buna N

75N16-16FE Nipple 1" x 1" NPTF Ethylene Propylene

75N16-16FV Nipple 1" x 1" NPTF Viton

75N16-16FW Nipple 1" x 1" NPTF W/ Wrench Flats Buna N

75N16-16RP Nipple 1" x 1" BSPF Buna N

75N16-16RPE Nipple 1" x 1" BSPF Ethylene Propylene

75N16-16RPV Nipple 1" x 1" BSPF Viton

75N16-SPK Nipple 1" Spare Parts Kit Buna N

75N16-SPKV Nipple 1" Spare Parts Kit Viton

75N20-20EF Nipple 1-1/4" x 1-1/4" Female SAE Buna N

75N20-20EFE Nipple 1-1/4" x 1-1/4" Female SAE Ethylene Propylene

75N20-20EFV Nipple 1-1/4" x 1-1/4" Female SAE Viton

75N20-20EFW Nipple 1-1/4" x 1-1/4" Female SAE W/ Wrench Flats Buna N

75N20-20F Nipple 1-1/4" x 1-1/4" NPTF Buna N

75N20-20F-DBP Nipple 1-1/4" x 1-1/4" NPTF Fire Safe Buna N

75N20-20FE Nipple 1-1/4" x 1-1/4" NPTF Ethylene Propylene

75N20-20FV Nipple 1-1/4" x 1-1/4" NPTF Viton

75N20-20RP Nipple 1-1/4" x 1-1/4" BSPF Buna N

75N20-20RPE Nipple 1-1/4" x 1-1/4" BSPF Ethylene Propylene

75N20-20RPV Nipple 1-1/4" x 1-1/4" BSPF Viton

75N20-SPK Nipple 1-1/4" Spare Parts Kit Buna N

75N20-SPKE Nipple 1-1/4" Spare Parts Kit Ethylene Propylene

75N20-SPKV Nipple 1-1/4" Spare Parts Kit Viton

75N24-24EF Nipple 1-1/2" x 1-1/2" Female SAE Buna N

75N24-24F Nipple 1-1/2" x 1-1/2" NPTF Buna N

75N24-24FE Nipple 1-1/2" x 1-1/2" NPTF Ethylene Propylene

75N24-24FV Nipple 1-1/2" x 1-1/2" NPTF Viton

75N24-24FW Nipple 1-1/2" x 1-1/2" NPTF W/ Wrench Flats Buna N

75N24-24RP Nipple 1-1/2" x 1-1/2" BSPF Buna N

75N24-24RPE Nipple 1-1/2" x 1-1/2" BSPF Ethylene Propylene

75N24-24RPV Nipple 1-1/2" x 1-1/2" BSPF Viton

75N24-SPK Nipple 1-1/2" Spare Parts Kit Buna N

75N24-SPKV Nipple 1-1/2" Spare Parts Kit Viton

75N32-32EF Nipple 2" x 2" Female SAE Buna N

75N32-32F Nipple 2" x 2" NPTF Buna N

75N32-32FE Nipple 2" x 2" NPTF Ethylene Propylene

75N32-32FV Nipple 2" x 2" NPTF Viton

75N32-32RP Nipple 2" x 2" BSPF Buna N

75N32-32RPE Nipple 2" x 2" BSPF Ethylene Propylene

75N32-32RPV Nipple 2" x 2" BSPF Viton

75N32-SPK Nipple 2" Spare Parts Kit Buna N

75N32-SPKV Nipple 2" Spare Parts Kit Viton

75N40-40F Nipple 2-1/2" x 2-1/2" NPTF Buna N

75N40-40RP Nipple 2-1/2" x 2-1/2" BSPF Buna N

75N40-SPK Nipple 2-1/2" Spare Parts Kit Buna N

75N48-48F Nipple 3" x 3" NPTF Buna N

75N48-48RP Nipple 3" x 3" BSPF Buna N

75N64-64F Nipple 4" x 4" NPTF Buna N

75N64-64RP Nipple 4" x 4" BSPF Buna N

S75C12-12F 316 Stainless Steel Coupler, 3/4" x 3/4" NPTF Buna N

S75C12-12FV 316 Stainless Steel Coupler, 3/4" x 3/4" NPTF Viton

S75C12-12RP 316 Stainless Steel Coupler, 3/4" x 3/4" BSPF Buna N

S75C16-16F 316 Stainless Steel Coupler, 1" x 1" NPTF Buna N

S75C16-16FV 316 Stainless Steel Coupler, 1" x 1" NPTF Viton

S75C20-20F 316 Stainless Steel Coupler, 1-1/4" x 1-1/4" NPTF Buna N

S75C20-20RP 316 Stainless Steel Coupler, 1-1/4" x 1-1/4" BSPF Buna N

S75C24-24F 316 Stainless Steel Coupler, 1-1/2" x 1-1/2" NPTF Buna N

S75C32-32F 316 Stainless Steel Coupler, 2" x 2" NPTF Buna N

S75N12-12F 316 Stainless Steel Nipple, 3/4" x 3/4" NPTF Buna N

S75N12-12FV 316 Stainless Steel Nipple, 3/4" x 3/4" NPTF Viton

S75N12-12RP 316 Stainless Steel Nipple, 3/4" x 3/4" BSPF Buna N

S75N16-16F 316 Stainless Steel Nipple, 1" x 1" NPTF Buna N

S75N16-16FE 316 Stainless Steel Nipple, 1" x 1" NPTF Ethylene Propylene

S75N16-16FV 316 Stainless Steel Nipple, 1" x 1" NPTF Viton

S75N20-20F 316 Stainless Steel Nipple, 1-1/4" x 1-1/4" NPTF Buna N

S75N20-20RP 316 Stainless Steel Nipple, 1-1/4" x 1-1/4" BSPF Buna N

S75N24-24F 316 Stainless Steel Nipple, 1-1/2" x 1-1/2" NPTF Buna N

S75N32-32F 316 Stainless Steel Nipple, 2" x 2" NPTF Buna N

S75N32-32FE 316 Stainless Steel Nipple, 2" x 2" NPTF Ethylene Propylene

THREAD TO CONNECT WING NUT, API 16D, HEAVY DUTY HIGH PRESSURE COUPLINGS (HYD) UP TO 5000 PSI - SNAP-TITE 75 SERIES COUPLERS
Snap-tite 75 series steel coupler (fire safe) with wing nut sleeve

PART NUMBER: 75C16-16F-DBP
MAXIMUM WORKING PRESSURE (PSI): 5000
INDUSTRY STANDARDS: API 16D
SLEEVE TYPE: Wing nut
BODY SIZE (INCH): 1
BODY MATERIAL: Steel
CONNECTION THREAD SIZE (INCH): 1 - 11 1/2
CONNECTION TYPE: NPSF






美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology


E-mail:sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址:北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编:100102
电话:010-8428 2935, 8428 9077, 8428 3983
手机:139 101 22694
Http://www.cnmec.biz
传真:010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
