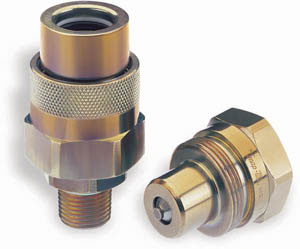

Snap-tite 76 Series screw-together coupling

应用:
   液压工具和救生设备等。

产品特性
   双单向阀,为零泄漏软座提升阀结构;
   可以带压操作;
   材质:镀钢;
   尺寸规格:1/4″和3/8″;
   工作压力:14500psi;

   螺纹连接,确保安全;
   选型资料(插入链接)


Snap-tite 76 Series screw-together coupling PDF_下载

Snap-tite 76 Series - The Snap-tite 76 Series screw-together coupling design was created specifically for high pressure extreme applications such as are found on portable hydraulic rams, pumps, bolt tensioners, rescue equipment, and other high impulse applications. This unit is interchangeable with other manufacturers' units; however, Snap-tite's 76 Series quick disconnect is rated with a higher working pressure than our competition.

Snap-tite 76 Series : High Pressure Coupling High Pressure, Thread-to-Connect Hydraulic Coupling

FEATURES 产品特性

Heavy Duty Threaded Retainer - provides maximum strength and safety
Construction - High strength steel construction with yellow zinc dichromate plating
Working Pressures to 14,500 psi (1,000 bar)
Soft Seated Poppet Valves - insure zero leakage & higher flow rates than ball check designs
Sizes - Available in 1/4" and 3/8"
Interchangeable with Competitive models
End Fitting Versatility - Wide range of end fittings are available



BENEFITS

The 76 Series coupler's threaded sleeve is specially designed with knurling on the front to facilitate connection by hand and hex on the back to allow connection with the use of a wrench. The 76 Series Quick Disconnects will interchange with Parker 3000 Series, Faster PVV Series, Perfecting 300 Series, Powerteam C39, and Enerpac C-604 Series to name a few.

Part No.
Connection Size Seal Material
76C4-4F Coupler 1/4" x 1/4" NPTF Buna N
76C4-4FV Coupler 1/4" x 1/4" NPTF Viton
76C4-4M Coupler 1/4" x 1/4" NPTM Buna N
76C4-4RP Coupler 1/4" x 1/4" BSPF Buna N
76C6-6F Coupler 3/8" x 3/8" NPTF Buna N
76C6-6M Coupler 3/8" x 3/8" NPTM Buna N
76C6-6MV Coupler 3/8" x 3/8" NPTM Viton
76C6-6RP Coupler 3/8" x 3/8" BSPF Buna N
76MDC-6 3/4" Dust Cap N/A
76MDP-6 3/4" Dust Plug N/A
76N4-4F Nipple 1/4" x 1/4" NPTF Buna N
76N4-4FV Nipple 1/4" x 1/4" NPTF Viton
76N4-4RP Nipple 1/4" x 1/4" BSPF Buna N
76N6-6F Nipple 3/8" x 3/8" NPTF Buna N
76N6-6RP Nipple 3/8" x 3/8" BSPF Buna N
