Reliability at 3000 Meters
Stab connections designed for function, engineered for life.
Parker’s MCD Series Stab Plates provide maximum performance, ease of installation, long life, and a sound hydraulic connection in harsh subsea conditions.
Engineered to function under demanding conditions, MCD Series Stab Plates have been designed to handle separation loads in excess of 100,000 lbs allowing connections with all lines at 15,000 psi. A high strength locking bayonet assures the plates remain securely connected for reliable performance. With the versatility to be custom configured for each application, MCD Series Stab Plates can accommodate combinations of 1/8” to 1-1/2” quick couplings. When used with Parker’s DSL Series Couplings, the MCD Series Stab Plates provide unparalleled performance and reliability.
MCD Series Stab Plates have best-in-class guiding features and are light weight for ease of handling during installation. Connection indicators are clearly visible to show the ROV pilot when a proper connection has been made. Additionally, an ROV operated secondary release is a standard feature of the MCD Series Stab Plates. A standard work class ROV equipped with a Class 4 ROV torque tool securely connects the mating plates. Parker offers stab plates, quick couplings, termination frames and tube bundle assemblies, to provide a complete subsea hydraulic connection solution. Manufacturing strength, engineering and quality focused culture, along with global service and distribution – This is Parker.
MCD Stab Plates with Parker
DSL Quick Couplings installed.
Depth 3000 meters (9842 feet)
Life 30 years
Separation Load 70,000 lbf (311 kN) at design pressure 105,000 lbf (467 kN) at proof pressure
Alignment Capability Vertical and Lateral: +/- 75mm (3”)
Orientation: +/- 10 degrees
Elevation: +/- 10 degrees
Bearing: +/- 10 degrees
Operating Temperature -18° C to 70° C (-0.4° F to 158° F)
Storage Temperature -25° C to 70° C (-13° F to 158° F)
Pressures/Arrangement 15,000 psi (1034 bar) on all lines
Weight in water
(without termination frame)
80 kg (176 lbs)
ISO 13628 - 1 /-4 / -5 / -6 / -8
API 17 E / F / H
14 way: (13) 1/2” - (1) 1”
Other configurations available
Hydrostatic Proof Pressure - Mated and unmated
Connect - All lines and combination of lines under pressure
Secondary Release Mechanism
Low Separation Force Subsea Quick Couplings

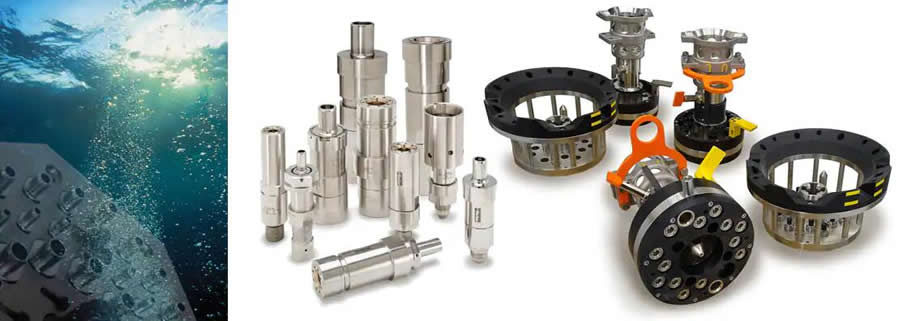

DSL Series couplings are designed for low separation force while under pressure. Durable PEEK or optional metal seals provide confidence for connection and disconnection at full pressure and depths down to 3000 meters.
- Sizes 1/4" - 1 1/2"
- Up to 15,000 psi (1034 bar)
- Poppet valves
- Redundant sealing
- Metal or PEEKprimary seal,PEEK secondary seal
- Parker Nitrile O-rings standard
- Body material: Nitronic? 50HS
- Internal component materials: Nitronic? 50HS,316 SST, ToughMET? AT110.Springs are Inconel? X-750 or Elgiloy
- Various O-ring materials
- Guide sleeve
- Vented valving
- Welded assembly or 2-piece threaded version
- Various end configurations: Autoclave,Weld prep, tube stub (others available upon request)
- Rear plate mounting
