Autoclave Engineers Pressure Gauges 压力表 0 to 80000 psi (0 to 5116 bar)
Pressure Gauges SOG Gauges to 20000 psi (1379 bar)

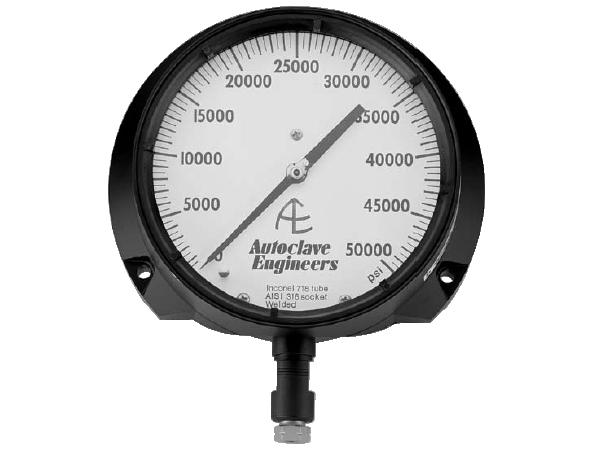

Parker Autoclave Engineer SOG压力表适用于酸性含H2S的油和气体,满足或超过NACE MR0175标准的所有要求。 Parker Autoclave Engineer's SOG gauges are designed for reliable use in systems with H2S present. These gauges are constructed from stainless steel and are supplied with API Type III connection. Parker Autoclave Engineers severe service gauges are used in fluid handling systems for oil and gas where H2S is present. They are suitable for a wide range of service in applications NACE MR0175 is required.


Autoclave Engineers gauges PDF
资料下载

规格参数-材质和特性:

- 量程:0到80,000psi(5116bar)
- 塑料刻度盘盖/铝合金外壳
- 吹扫背板可在波登管发生故障时泄压
- 316不锈钢波登管
- 精密不锈钢确保精度和耐空气腐蚀性
- 指针调零装置位于表盘后盖上,操作方便
- 连接尺寸:1/4”,9/16”,4-1/2” and 6” (114.3 mm and 152.4 mm)
- 全量程的精度:+/-0.5%
- 材质:316SS,Monel
- Accuracy within 1.0% of full scale range.
- Stainless steel case and ring.
- Monel Bourdon tube and socket.
- M562C male tube connection in bottom. (API Type III).
- Precision stainless steel movement for accuracy and resistance to atmospheric corrosion.
- Pointer zero adjustment located on front of gauge behind dial cover for convenience.
- Gauges can be liquid filled
- All gauges are furnished with SOG collar and gland.
- Pressure gauges are used to monitor and control pressure. Pressure gauges are available in two sizes, 4-1/2” and 6” (114.3 mm and 152.4 mm), and ranges from 0 to 80,000 psi (0 to 5116 bar).

Gauge/Instrument Snubber

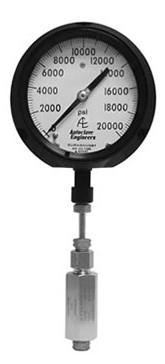

Autoclave Engineers gauges snubbers are offered for use in medium, and high pressure flow systems. Gauge/instrument snubbers protect components from pressure surges, pulsation, and shock in systems up to pressures of 60,000 psi (4137 bar).


Autoclave Engineers gauges PDF Catalog

规格参数:

Protection without compromising accuracy
Available in 1/4" and 3/8" medium and high pressure connection
316 stainless steel contruction
Female to female, male to female, and male to male connections

Instrument Quality Pressure Gauges

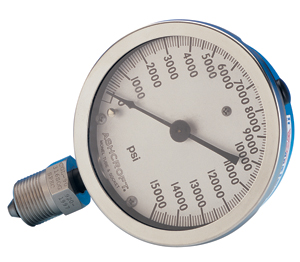

Gauges - Pressure gauges are offered for use in low, medium and high pressure systems. Instrument quality gauges are available to pressure of 80,000 psi (5115.7 bar).

Item #
产品型号
Type Pressure Range
压力范围
Minor Interval Value
最小分度值
Dial Diameter
刻度盘直径
P-0499-CG Bottom connection calibrated in psi only 0-1000 psi
0-69 bar
10 psi
0.69 bar
4-1/2 in
114.3 mm
P-0479-CG Bottom connection calibrated in psi only 0-1500 psi
0-103 bar
10 psi
0.69 bar
4-1/2 in
114.3 mm
P-0480-CG Bottom connection calibrated in psi only 0-3000 psi
0-207 bar
20 psi
1.38 bar
4-1/2 in
114.3 mm
P-0481-CG Bottom connection calibrated in psi only 0-5000 psi
0-345 bar
50 psi
3.44 bar
4-1/2 in
114.3 mm
P-0482-CG Bottom connection calibrated in psi only 0-10000 psi
0-690 bar
100 psi
6.89 bar
4-1/2 in
114.3 mm
P-0483-CG Bottom connection calibrated in psi only 0-15000 psi
0-1034 bar
100 psi
6.89 bar
4-1/2 in
114.3 mm
P-0487-CG Bottom connection calibrated in psi only 0-20000 psi
0-1379 bar
200 psi
13.79 bar
4-1/2 in
114.3 mm
P-0488-CG Bottom connection calibrated in psi only 0-30000 psi
0-2068 bar
250 psi
17.24 bar
6 in
152.4 mm
P-0489-CG Bottom connection calibrated in psi only 0-50000 psi
0-3447 bar
500 psi
34.47 bar
6 in
152.4 mm
P-0490-CG Bottom connection calibrated in psi only 0-80000 psi
0-5116 bar
1.000 psi
68.94 bar
6 in
152.4 mm
P-0482B-CG Back connection gauges calibrated in psi only 0-10000 psi
0-690 bar
100 psi
6.89 bar
4-1/2 in
114.3 mm
P-0483B-CG Back connection gauges calibrated in psi only 0-15000 psi
0-1034 bar
100 psi
6.89 bar
4-1/2 in
114.3 mm
P-0487B-CG Back connection gauges calibrated in psi only 0-20000 psi
0-1379 bar
200 psi
13.79 bar
4-1/2 in
114.3 mm
P-0488B-CG Back connection gauges calibrated in psi only 0-30000 psi
0-2068 bar
250 psi
17.24 bar
6 in
152.4 mm
P-0489B-CG Back connection gauges calibrated in psi only 0-50000 psi
0-3447 bar
500 psi
34.47 bar
6 in
152.4 mm
P-0490-CG Bottom connection calibrated in psi only 0-80000 psi
0-5116 bar
1.000 psi
68.94 bar
6 in
152.4 mm


Gauge/Instrument Snubbers

Autoclave Engineers Pressure Snubbers provide protection to gauges and instrumentation from pressure surges, pulsation and shock. The unique snubber design provides superior instrument protection while not compromising instrument accuracy or reaction time. This is accomplished by the use of existing technology from our excess flow check valve with additional design features.

When sudden flow is seen, the poppet will rise, blocking the pressure surge and a small bleed hole in the poppet will allow pressure to slowly equalize. When the pressure is equalized, the poppet will then drop back down allowing normal flow to the gauge. A filter is used to prevent the hole in the plug from becoming plugged. The snubber must be mounted in the vertical position as indicated on the unit.

Snubbers are offered in 316SS as standard, with either male, female or male/female connections in 1/4" and 3/8" sizes. Optional materials available upon request.

All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.

Item # Pressure Rating A - Length B - Length C - Length D - Hex HEX
SNBFH4FH4 60000 psi
4137 bar
3.36 Inch
85.34 mm
2.50 Inch
63.50 mm
0.50 Inch
12.70 mm
0.63 Inch
15.33 mm
1.19 Inch
30.15 mm
SNBFH4MH4 60000 psi
4137 bar
4.05 Inch
102.87 mm
2.50 Inch
63.50 mm
0.50 Inch
12.70 mm
0.63 Inch
15.33 mm
1.19 Inch
30.15 mm
SNBMH6MH4 60000 psi
4137 bar
3.68 Inch
93.47 mm
2.13 Inch
54.1 mm
1.50 Inch
38.10 mm
0.75 Inch
19.05 mm
1.19 Inch
30.15 mm



可选电气接触面
产品型号
表盘安装直径
inches
P-0713
4 -1/2 inch
P-0714
6 inch

* 该表背部连接形式可选。请在产品型号中添加B。例如 P-047B-CG , 1/4 INCH F250C Coned and Threaded连接形式,并配备Collar 和Gland.
