Wellhead Gauge Needle Valves
Autoclave's Wellhead Gauge valves are designed for reliable shut-off service at a maximum working pressure of 30000 psi (2068 bar). The Wellhead Gauge and Bleed Valves are standard in 316 stainless steel material. Special materials available on request.
Gauge Valve Features:
- One inlet, three outlet ports
- Metal-to-metal bubble tight shut-off
- Packing below stem threads
- Two piece non-rotating stem on standard valves
Applications:
- Sample Lines
- Instrument calibration
Glands and collars included
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
| Item # |
Connection Type |
Connection Size |
Pressure Rating at Room Temperature |
| 20GV6078 |
SF375CX |
3/8 Inch
9.53 mm |
20000 psi
1379 bar |
| 20GV9078 |
SF562CX |
9/16 Inch
14.29 mm |
20000 psi
1379 bar |
| 30GV9078 |
F562C |
9/16 Inch
14.29 mm |
30000 psi
2068 bar |

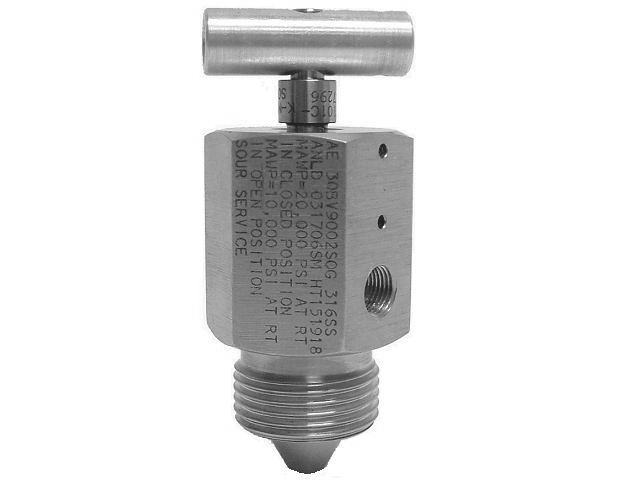

Bleed Needle Valves
Autoclave's Wellhead Gauge valves are designed for reliable shut-off service at a maximum working pressure of 30000 psi (2068 bar). The Wellhead Gauge and Bleed Valves are standard in 316 stainless steel material. Special materials available on request.
Bleed Valve Features:
- One piece hex construction allows easy installation
- Vent port tapped for plumbing to safe area
- Tee handle for easy operation
- Positive blow out prevention on stem
Applications:
Glands and collars included
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
| Item # |
Connection Type |
Connection Size |
Pressure Rating at Room Temperature |
| 20BV6002 |
SM375CX |
3/8 Inch
9.53 mm |
20000 psi
1379 bar |
| 20BV9002 |
SM562CX |
/16 Inch
14.29 mm |
20000 psi
1379 bar |
| 30BV9002 |
M562C |
9/16 Inch
14.29 mm |
30000 psi
2068 bar |
|
