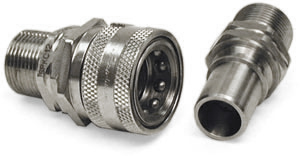

Snap-tite K 系列超低温快速接头
K Series cryogenic fluids couplings

Snap-tite K系列-K系列快速接头是为温度在-400°F范围内的低温流体而设计的,使用Kel-F密封。这些K系列联轴节在处理会使其他类型密封件(如芳香烃、醇类、酯类、酮类、醚类、强苛性碱、硫酸和氢氟酸)变质的流体时也被证明是可靠的。Snap-tite K Series - K Series couplings are designed for cryogenic fluids with temperatures ranging to -400°F using Kel-F seals. These K Series couplings have also proved reliable in the handling of fluids that would deteriorate other types of seals, such as aromatic hydrocarbons, alcohols, esters, ketones, ethers, strong caustics, sulfuric acid and hydrofluoric acid.

双单向阀或无单向阀结构;
流线型设计、压力损耗低;
材质:316不锈钢、铝;
尺寸规格:3/8″— 2″;
工作压力:2000psi;
工作温度:零下240℃




Snap-tite K Series Chemical Couplings 化工行业快速接头
Poppet Style, Cryogenic, Quick Disconnect Coupling

FEATURES

Pressure Capability - to 1,000 psi (69 bar), Dependent on Seal Material
Sizes Available - 3/8" thru 2"
Temperature Range of -400° to 400°F (-240° to 205°C)
Kel F or Teflon Seals Available
Construction - Stainless steel or optional Exotic Alloy
Valve Configurations - Available with double or single shut-off valving or straight through as required
Optional Sleeve Lock feature is available

BENEFITS

Snap-tite K Series couplings can be used with such a wide variety of chemicals that it is a perfect choice for testing or research facilities. In addition, they may be used to speed the transfer of cryogenic fluids from bulk storage to transport equipment. Other applications include frozen food processing machinery utilizing liquid nitrogen, ground support & fueling applications at missile bases.
