Autoclave Engineers MAG 075压力磁力搅拌器，Mag075 Pressure Magnetic Mixer

Autoclave Engineers 产品提供了高度的通用性，为用户大程度减少使用和维护成本。不同型号的产品，其部件通用性高达70%，通过更换反应釜体，搅拌部件，阀门管路等方法，扩展使用范围，达到设备大的利用率。搅拌机MagneDrive第二搅拌器使用稀土磁铁，允许在更高的速度在较大的船只，并具有较高的粘度流体的无填料混合。外驱动磁体，由电动机驱动皮带旋转，封装内磁铁大会施加强大的吸引力。作为外部驱动器磁体旋转，内在的磁铁驱动，致使搅拌轴旋转。污染无搅拌，无填料的设计消除了轴填料和润滑需要。零泄漏到大气的MagneDrive II是一个密封的系统， 封闭的气氛，所以即使是敏感的液体可以被安全地处理 。连续，高速运转，没有必要把自己关在反应中改变失败的包装。

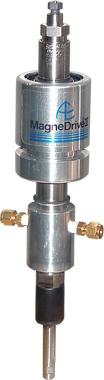

Mag075 Pressure Magnetic Mixer

The MagneDrive? agitator uses rare earth magnets, permitting packless mixing at higher speeds and with higher viscosity fluids. Outer drive magnets, rotated by a motor driven belt exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

Mag075压力磁性搅拌机 MagneDrive搅拌器使用稀土磁铁，允许在更高的速度和高粘度流体的无填料混合 。外的驱动器磁铁，旋转电机驱动皮带封装内磁铁大会施加强大的吸引力 。作为外部驱动磁铁旋转时，内部的磁铁驱动，导致在搅拌轴的转动 。

MAG 075压力磁力搅拌机：

磁耦合调音
台高压实验室反应堆轴

搅拌器特点:

混合容器的大小从50毫升到4000毫升的能力。
能够在3,600 rpm和20,000 CP搅拌。
工作压力高达6000磅的高@ 650 ° F（414栏，343 ° C）。
设计紧凑，用7-16磅（0.79至1.8米）的静态扭矩。
设计简单的拆卸和维修。
碳石墨和含氟聚合物与碳纤维轴承可供选择。

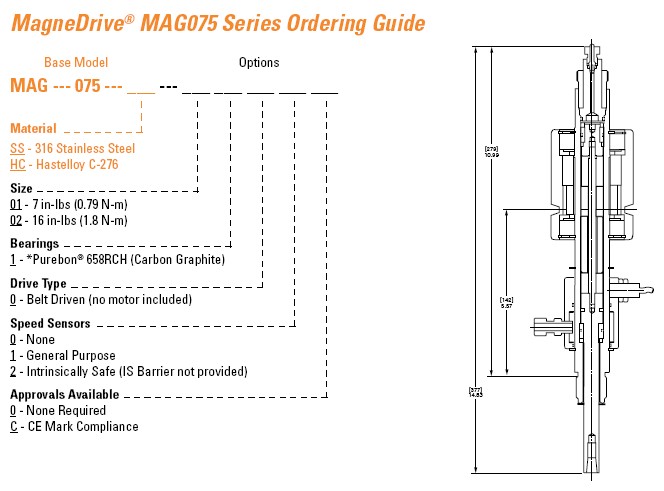

MAG075 Series MagneDrive® Specification

Material of Construction: All wetted parts 316 SS or Hastelloy
C-276. For information on other materials, please
consult factory.
Bearing Material: Purebon? 658RCH.4
Maximum Allowable Working Pressure (MAWP) at
Connection: 6,000 psi @ 650° F (414 bar @ 343° C)
Minimum Metal Design Temperature: -20° F @ 6000 psi
(-29° C @ 414 bar)
Maximum Temperature at Magnet Zone: 300° F (149 °C)5
Maximum Temperature at Connection: 650° F (343 °C)6
Cover Connection: 1”-14 NF with 5/16” Drill.
Purge Connection: 075 Series MagneDrives? are provided
with a 0.125” (3 mm) gas purge connection (top).
Tachometer Pick-up: Magnetic proximity sensor.
Shaft and Impeller: 075 Series MagneDrives? are supplied
without shafts or impellers, allowing for customization
of shaft length and impeller style. A drive shaft, supplied
separately, is screwed into the MagneDrive? encapsulation
assembly. Autoclave Engineers offers a wide selection of
impellers, including the Dispersimax gas dispersion system.
Please consult factory for more information.

Mag075 Pressure Magnetic Mixer

The MagneDrive? agitator uses rare earth magnets, permitting packless mixing at higher speeds and with higher viscosity fluids. Outer drive magnets, rotated by a motor driven belt exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

A magnetically coupled, packless, rotary impeller system designed to provide continuous, high-speed mixing without contamination.

Mag 075 Pressure Magnetic Mixer:
Magnetically Coupled Mixers
Magnetic agitator with shaft of high pressure laboratory reactors

FEATURES:

Capable of mixing vessel sizes from 50 ml up to 4000 ml.
Capable of mixing at 3,600 rpm and 20,000 cp.
Operating pressures as high as 6,000 psi @ 650° F (414 bar @ 343°C).
Compact design with 7-16 in-lb (0.79 to 1.8 N-m) of static torque.
Designed for simple disassembly and maintenance. Bearings can be replaced with minimal effort.
Carbon graphite and fluoropolymer with carbon fiber bearings available.

APPLICATION:

The MagneDrive? agitator uses rare earth magnets, permitting packless mixing at higher speeds and with higher viscosity fluids. Outer drive magnets, rotated by a motor driven belt exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

Contamination-free mixing- Packless design eliminates shaft packing and need for lubrication.

Zero leakage to atmosphere- The MagneDrive? is a sealed system, closed to the atmosphere, so even sensitive fluids can be processed safely.
Continuous, high speed operation- No need to shut down in mid-reaction to change failed packing.
