Autoclave Engineers MAG III MagneDrive 磁力搅拌器

Autoclave Engineers 产品提供了高度的通用性，为用户大程度减少使用和维护成本。不同型号的产品，其部件通用性高达70%，通过更换反应釜体，搅拌部件，阀门管路等方法，扩展使用范围，达到设备大的利用率。搅拌机MagneDrive第二搅拌器使用稀土磁铁，允许在更高的速度在较大的船只，并具有较高的粘度流体的无填料混合。外驱动磁体，由电动机驱动皮带旋转，封装内磁铁大会施加强大的吸引力。作为外部驱动器磁体旋转，内在的磁铁驱动，致使搅拌轴旋转。污染无搅拌，无填料的设计消除了轴填料和润滑需要。零泄漏到大气的MagneDrive II是一个密封的系统， 封闭的气氛，所以即使是敏感的液体可以被安全地处理 。连续，高速运转，没有必要把自己关在反应中改变失败的包装。

The MagneDrive®s agitator uses rare earth magnets, permitting packless mixing at higher speeds and with higher viscosity fluids. Outer drive magnets, rotated by a direct coupled motor exert powerful attraction on the encapsulated inner magnet assembly. As the outer drive magnets are rotated, the inner magnets are actuated, resulting in rotation of the agitator shaft.

Contamination-free mixing- Packless design eliminates shaft packing and need for lubrication.
Zero leakage to atmosphere- The MagneDrive? is a sealed system, closed to the atmosphere, so even sensitive fluids can be processed safely.
Continuous, high speed operation- No need to shut down in mid-reaction to change failed packing.

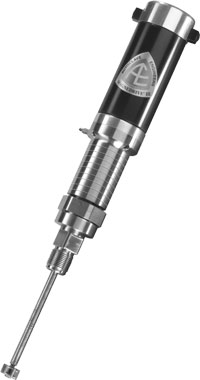

MAG III MagneDrive Magnetically Coupled Mixers
A Compact, In-line, Magnetically Coupled Drive

FEATURES
Capable of mixing vessel sizes from 25 ml up to 150 ml.
Capable of mixing at 3,600 rpm and 20,000 cps.
Operating pressures as high as 5,400 psi @ 650° F (372 bar @ 343°C).
In-line motor eliminates belts, reduces size, and creates nearly silent operation.
Compact design with up to 5 in-lb (565 N-mm) of static torque.
Designed for simple disassembly and maintenance. Bearings can be replaced with minimal effort.
Carbon graphite and fluoropolymer with carbon fiber bearings available.
Various connections available for existing AE and other pressure vessels as well as for glassware.
Motors available up to 1/4 Hp.
Various impellers available, contact factory for details.



BENEFITS

The in-line motor eliminates belts, reduces size, and creates nearly silent operation.
Designed for simple disassembly and maintenance.
Bearings can be changed quickly from either the top or the bottom of the unit.
Contact the factory for operation at conditions exceeding these ratings or for custom applications.
