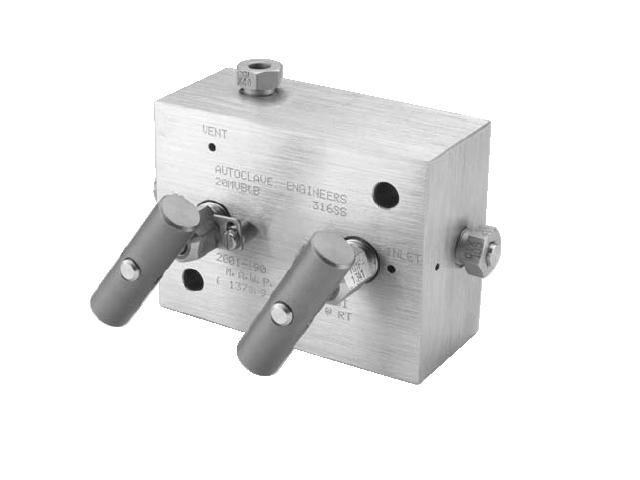

Parker Autoclave MVBB Series Needle Valve,Mini Block and Bleed - 20,000 PSI
针阀，微型阻塞和排放-20000 PSI

Parker Autoclave MVBB系列是一个小型阻塞和排放阀，设计用于阻塞，排放和校准仪器系统。该阀门为旋转上升阀杆设计，额定压力为20000 psi（1379巴）。Parker Autoclave MVBB系列微型断流和放气针阀是一种双阀杆歧管阀门，提供了一种经济方便的阻塞、放气和校准压力变送器和压力计的方法。该阀门采用微型阀门填料和阀杆设计，使其紧凑且易于使用。为了安全操作，阀门可以安装在表面或面板上。此外，歧管式阀门减少了安装所需的配件数量和空间。这些阀门有一个上升阀杆杆体设计，工作压力为20000磅/平方英寸（1379巴）。锥管和螺纹连接采用Parker高压灭菌器管，尺寸从1/4“到3/8”。使用特殊的石墨编织纱填料（GY），工作温度可以从0°F到800°F（-17.8°C到427°C）。316不锈钢结构是标准材料，有其他选择。这些阀门具有许多特点，可在各种应用中提供可靠和无故障的服务。

Parker Autoclave’s MVBB Series is a mini block and bleed valve that is designed for blocking, bleeding, and calibration of instrumentation systems. This valve is a rotating rising stem design, rated to 20,000 psi (1379 bar).Parker Autoclave's MVBB Series mini block and bleed needle valves are a two stem manifold valve providing an economical and convenient method of blocking, bleeding and calibrating pressure transmitters and gauges. The valve utilizes the mini valve packing and stem design making it compact and easy to use. The valve can be surface or panel mounted for safe operation. In addition, manifold style valves reduce the number of fittings and space required for installation.These valves have a rising stem bar stock body design with working pressures to 20,000 psi (1379 bar). The cone and thread connections utilize Parker Autoclave tubing with sizes from 1/4" to 3/8”". Operating temperatures can go from 0°F to 800°F (-17.8°C to 427°C) with special graphite braided yarn packing (GY). 316 stainless steel construction is the standard material with other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.

Markets:
- Oil and Gas
- Petrochemical
- Chemical

Features/Benefits:
- MVBB Series valve design provides large valve performance in a small package
- Tubing sizes: 1/4" and 3/8"
- Rising stem/bar stock body design.
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem and packing gland design have been selected to achieve extended thread cycle life and reduced handle torque.

Applications:
- Calibrating Transmitters
- Gauge Testing
- High Pressure Fluid handling

MVBB Series Block and Bleed Needle Valves | MVBB Series Block and Bleed Needle Valves on Autoclave Engineers, Fluid Components Div. Of Snap-tite Inc.

• MVBB Series valve design provides large valve performance in a small package
• Tubing sizes: 1/4" and 3/8"
• Rising stem/barstock body design.
• Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
• PTFE (Teflon) encapsulated packing provides dependable stem and body sealing.
• Stem and packing gland design have been selected to achieve extended thread cycle life and reduced handle torque.

Technical Specifications
Maximum Operating Pressure: 1379 bar
Tube Outside Diameter: 1/4, 3/8 inch
Connection Type: SF250CX , SF375CX
Bore Diameter: 0.094 inch, 2.39 mm

Part Maximum Working Pressure (psi) Tube O.D. (mm) Stem Type Valve Type
20MVBB 20,000 6.35 mm Vee Rising Stem
20MVBB6 20,000 9.53 mm Vee Rising Stem
