Autoclave Engineers弯管工具

Autoclave Engineers工厂以生产高压阀、接头和管子而著名。压力可以从 0到150,000 psi (10342 bar)，温度从-423°F (-252°C) 到1200°F (649°C)。 没有别的工厂能比Autoclave Engineers 在高压要求方面做的更好，也没有别的工厂能比Autoclave Engineers做的系统更可靠、更具有创新的特性。

Autoclave Engineer产品包括气驱液压泵、高温高压磁力泵，超高压针阀、球阀、单向阀、安全阀、仪表阀、不锈钢管、接头，高温高压反应釜、管式反应器、小型反应系统等。 依托产品资源及工厂的大力支持，我们在海上钻井、石油石化、天然气、航空航天、军工、电力、机床模具、工程机械、实验室设备等行业和领域取得了良好业绩，同时也拥有了大量优质客户，也请广大新老客户继续给予支持，我们也会加倍努力，为您提供更优质服务。

Manual Coning & Threading Tools	Manual Coning & Threading Tools

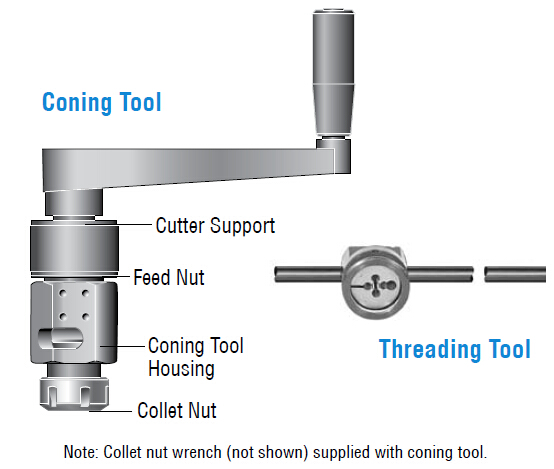

Autoclave Engineers Manual Coning & Threading Tools

Autoclave Engineers manufactures a manual coning and threading tool for optimum performance with tubing sizes up to 9/16” (14.3 mm) outside diameter. These precision quality manual tools permit on-site end preparation for Autoclave Engineers medium and high pressure tubing installations. One coning and one threading tool with optional sizes of collets,blades dies and guide bushings eliminates the need of multiple tools for different size tubing.

Autoclave Engineers Tube Size Coning Tools and Components Catalog Number
AE High Pressure AE Medium Pressure
1/4 (6.35) .109 (2.77) MCTM4 90248 101F-1577 402A 402 P-0214 1/4-28 1010-0343
3/8 (9.53) .203 (5.16) MCTM6 90250 101F-1601 402C 402 P-0215 3/8-24 1010-0344
=9/16 (14.3) .312 (7.92) MCTM920 90251 1010-5218 402E 402 P-0216 9/16-18 1010-0345
9/16 (14.3) .359 (9.12) MCTM910 90251 101A-1897 402E 402 P-0216 9/16-18 1010-0345
1/4 (6.35) .083 (2.11) MCTH4 90248 101F-3939 402A 402 P-0214 1/4-28 1010-0343
5/16 (7.92) .062 (1.57) MCTH5 90249 101F-3939 402B 402 P-0205 5/16-24 1030-0343
3/8 (9.53) .125 (3.18) MCTH6 90250 101F-1578 402C 402 P-0215 3/8-24 1010-0344
9/16 (14.3) .188 (4.78) MCTH960 90251 1010-0883 402E 402 P-0216 9/16-18 1010-0345
9/16 (14.3) .250 (6.35) MCTH940 90251 101C-7214 402E 402 P-0216 9/16-18 1010-0345
Autoclave Engineers KMCT-HT Coning tool
Autoclave Engineers KMCT-MT Coning tool
Medium Pressure
1/4” SF250CX 0.55 (13.97)
3/8” SF375CX 0.69 (17.53)
9/16” SF562CX 0.84 (21.34)
3/4” SF750CX 1.00 (25.4)
1” SF1000CX 1.44 (36.6)
1-1/2" SF1500CX 1.875" (47.63)
HighPressure
1/4” F250C 0.50 (12.70)
5/16” F312C150 1.25 (31.75)
3/8” F375C 0.69 (17.53)
9/16” F562C 0.84 (21.34)
9/16” F562C40 0.81 (20.57)
1” F1000C-43 1.62 (41.1)
SM562CX10 9/16” x 0.359
SM375CX20 3/8” x 0.203
Autoclave Engineers
SM250CX20
SM562CX20
M562C40-312
SM750CX10 3/4” x 0.516
SM750CX20 3/4” x 0.438
M1000C43 1” x 0.438
SM1500CX SM1000CX10 SM1000CX20
M375C M375C100 M312C150 M250C100 M250C
SM250CX20 6-1/2
SM375CX20 7-1/2
SM562CX20 6
SM562CX10 6-3/4
M250C 12
M312C150 12
M375C 14
M562C 12
M562C40 13
M562C40 M562C
M250C100 and M375C100 used in F312C150 connection at 100,000 psi (6895 bar).
HST-912: Complete tool kit with hand pump (shown in photo)
HST-912TW: Complete tool kit with torque wrench and adapters
HST-912A: Complete tool kit with air-operated pump (Air operated pump #P-1948)
HST-912ATW: Complete tool kit with torque wrench and adapters
Description Part #
Hydraulic Cylinder 90588
Gauge 90594
Adapter 90593
Base 101F-3407
Housing 101F-3408
Hydraulic Pump P-1893
Hose P-1894
3/4” Die HSTD12
9/16” Die HSTD9
3/4” Cap HSTC12
9/16” Cap HSTC9
Tool Chest P-10011
Moly Paste P-9766
1/4” Die HSTD4
1/4” Cap HSTC4
3/8” Die HSTD6
3/8” Cap HSTC6
(TW) Kits with torque and adapters
20 to 150 ft-lbs (27-203 Nm) Torque Wrench P-1680
75 to 250 ft-lbs (102-339 Nm) Torque Wrench 91020
5/8” wrench adapter P-1683
3/4” wrench adapter P-9813
1-3/16” wrench adapter P-1689
1-1/2” wrench adapter P-6040
Gland Series KCBGLX 20,000 psi (1379 bar)
High pressure Series KCGL 60,000 psi (4137 bar)
Nut Assembly Reamer Handle
SF250CX P-0270CX A101A-2005 P-0270 202D-0596
SF375CX P-0271CX A2020-7310 P-0271 202D-0596
SF562CX P-0272CX A2030-7310 P-0896 202D-0596
SF750CX P-1726CX A102A-3376 P-1726 201D-0595
SF1000CX P-1727CX A102A-3375 P-1727 201D-0595
F250C P-0270C A1010-0453 P-0270 202D-0596
F312C150 P-0271C150 A2040-7310 P-0271 202D-0596
F375C P-0271C A1020-0453 P-0271 202D-0596
F562C / C40 P-0272C A1030-0453 P-0272 202D-0596
Model Description
AEGCTM-2 115 VAC 60Hz
AEGCTM-2E-CE 220 VAC 50Hz
AEGCTM-2WOH Standard units "with oil heater"
AEGCTM-2EWOH-CE
CTM4C-2 CTM4BX AEGCTM4D AEGCTM4X-2
CTM4C-2 CTM4B AEGCTM4D AEGCTM4-2
CTM5C-2 CTM5B AEGCTM5D AEGCTM5-2
CTM6C-2 CTM6BX AEGCTM6D AEGCTM6X-2
CTM6C-2 CTM6B AEGCTM6D AEGCTM6-2
CTM9C-2 CTM9BXX AEGCTM9D AEGCTM9XX-2
CTM9C-2 CTM9BX AEGCTM9D AEGCTM9X-2
CTM9C-2 CTM9B AEGCTM9D AEGCTM9-2
CTM9C-2 CTM9B40 AEGCTM9D AEGCTM940-2
CTM12C-2 CTM12BX AEGCTM12D AEGCTM12X-2
CTM12C-2 CTM12B AEGCTM12D AEGCTM12-2
CTM16C-2 CTM16BX AEGCTM16D AEGCTM16X-2
CTM16C-2 CTM16B AEGCTM16D AEGCTM16-2
CTM16C-2 CTM16BXX AEGCTM16D AEGCTM16XX-2
To order a guard with a model, just add a G to the catalog number.
AEGCTM-2G
AEGCTM-2E-CEG
AEGCTM-2GK Retrofit kit catalog number
Autoclave Micrometer Adjustable Torque Wrenches

P-1680 20 to 150 ft. lbs. (27 to 203 Nm)
91020 75 to 250 ft. lbs. (102 to 339 Nm)
Wrench Adapter Number Packing Gland
Tube Nut Hex Size (inches)
P-1681 1/2
P-1682 9/16
P-1683 5/8
P-9813 3/4
P-1685 13/16
P-1686 7/8
P-1687 15/16
P-9901 1
P-1688 1-1/16
P-1689 1-3/16
P-1690 1-3/8
P-6040 1-1/2
P-10076 1-7/8
Autoclave Engineer Tube Connection Glands
9/16 10,000 (690) F562FT 60 (81.3)
Flat Bottom Gasket
7/16 10,000 (690) F437FB 25 (33.9)
9/16 10,000 (690) F562FB 40 (54.2)
3/4 5,000 (345) F750FB 60 (81.3)
Autoclave Engineers Packing Glands Autoclave Engineers Packing Glands
SF250CX
SF375CX
SF562CX10
SF562CX20
SF750CX10
SF750CX20
SF1000CX10
SF1000CX20
F1000C43
F562C40 F562C F375C F250C
201A-6016
201A-6018
201A-6020
201A-6014
201A-6014
201A-6016
201A-6018
201A-6020
201A-6020
201A-6014
201A-6014
201A-6016
201A-6016
