高压阀门、接头和钢管

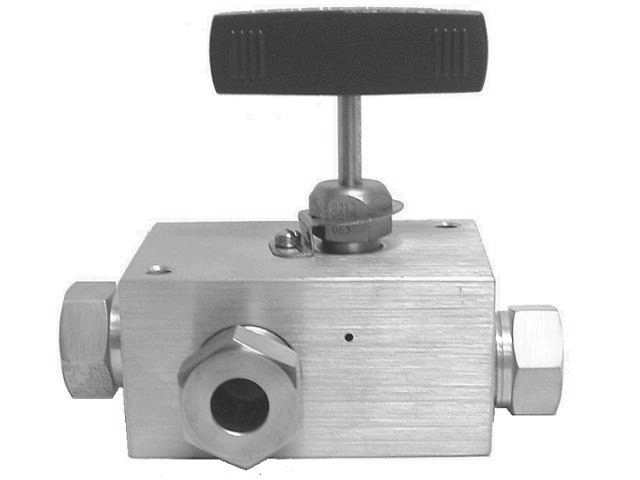

井口计酸性服务阀
Wellhead Gauge Sour Service Valves

Autoclave的井口量规阀设计为在最大工作压力为20000 psi（1379巴）的可靠关闭服务。井口压力表和放泄阀采用316不锈钢退火材料制成，符合NACE MR0175标准。可根据要求提供特殊材料。Autoclave's Wellhead Gauge valves are designed for reliable shut-off service at a maximum working pressure of 20000 psi (1379 bar). The Wellhead Gauge and Bleed Valves are standard in 316 stainless steel annealed material and comply with NACE MR0175. Special materials available on request.





仪表阀特点Gauge Valve Features:

  • 一个入口，三个出口，所有端口均为9/16“API测试和仪表连接端口
    One inlet, three outlet ports, all ports are 9/16" API test and gauge connection ports
  • 金属对金属气密关闭
    Metal-to-metal bubble tight shut-off
  • 阀杆螺纹下面的填料
    Packing below stem threads
  • 标准服务和SOG阀门上的两件式非旋转阀杆
    Two piece non-rotating stem on standard service and SOG valves
  • 可选择在进口处使用长管嘴安装在隔热集管上
    Optional use of long nipples in the inlet for installation on headers that are insulated



Applications: 应用：

所有一般销售条款和条件，包括我们的责任限制，适用于所有销售的产品和服务。



- 采样线 Sample Lines
- 仪器校准 Instrument calibration

所有一般销售条款和条件，包括我们的责任限制，适用于所有销售的产品和服务。All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.



Item # Connection Type Connection Size Pressure Rating at Room Temperature
20GV6078-SOG SF375CX 3/8 Inch
9.53 mm 		10000 psi
690 bar
20GV9078-SOG SF562CX 9/16 Inch
14.29 mm 		10000 psi
690 bar
30GV9078-SOG F562C 9/16 Inch
14.29 mm 		20000 psi
1379 bar

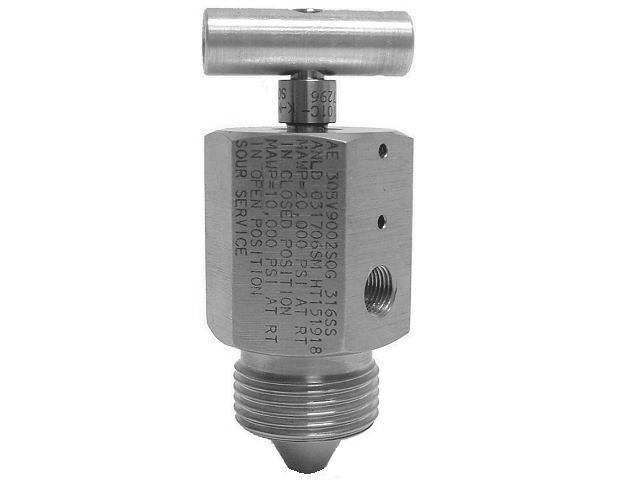

排放酸性介质阀门Bleed Sour Service Valves

高压釜的井口量规阀设计为在最大工作压力为20000 psi（1379巴）的可靠关闭服务。井口压力表和放泄阀采用316不锈钢退火材料制成，符合NACE MR0175标准。可根据要求提供特殊材料。Autoclave's Wellhead Gauge valves are designed for reliable shut-off service at a maximum working pressure of 20000 psi (1379 bar). The Wellhead Gauge and Bleed Valves are standard in 316 stainless steel annealed material and comply with NACE MR0175. Special materials available on request.


排气阀特点Bleed Valve Features:

  • One piece hex construction allows easy installation
  • Vent port tapped for plumbing to safe area
  • Tee handle for easy operation
  • Positive blow out prevention on stem
  • Compatible with standard API test and gauge connections for 15000 psi (1034 bar) service.
Applications:
  • Pressure bleed 压力泄放

All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.



Item # Connection Type Connection Size Pressure Rating at Room Temperature
20BV6002-SOG SM375CX 3/8 Inch
9.53 mm 		10000 psi
690 bar
20BV9002-SOG SM562CX 9/16 Inch
14.29 mm 		10000 psi
690 bar
30BV4002-SOG M250C 1/4 Inch
6.35 mm 		20000 psi
1379 bar
30BV9002-SOG M562C 9/16 Inch
14.29 mm 		20000 psi
1379 bar
