Thomas & Betts通贝压接工具 | Color-Keyed Tools压接工具
Color-Keyed Tools
Manual Compression Tools — #8 to 250 MCM
Manual Compression Tools — #8 to 500 MCM
Power-Assisted Compression Tools — #8 to 600 MCM
Power-Assisted Compression Tools — #8 to 750 MCM
Power-Assisted Compression Tools — #8 to 900 MCM
Power-Assisted Compression Tools — #8 to 1500 MCM
Hydraulic Pumps
Battery Connector Tools
Strippers, Cutters and Other Tools
Crimping Dies
Color-Keyed Tools压接工具
|
|
TBM25S Crimp tool with Shure-Stake mechanism
for #8–#2 copper and #10–#6 aluminum |
TBM4S Dieless crimp tool with Shure-Stake mechanism
for #8–250 kcmil copper and #8–4/0 aluminum |
|
|

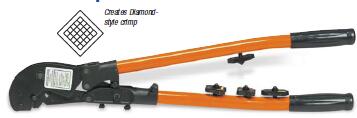

TBM5S Crimp Tool |
Carrying Cases for TBM5S and TBM6S
295-31365M Steel Carrying Case for TBM5S and TBM6S
295-31365 Plastic Carrying Case for TBM5S and TBM6S |
|
|
25000 Air-Operated Bench-Mount Crimp Tool |

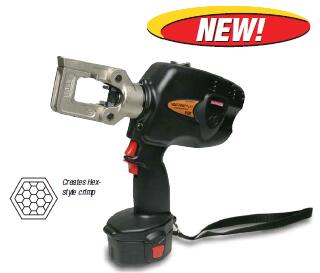

Battpac LT BPLT62BSCR/BPLT62500BSCR 6-Ton Compression Tools |
|
|
BPLT6BSCR Battpac LT Tool Kit. Includes tool, two batteries, charger, 1
shoulder strap, carrying case (no dies) |
TBM6H 6-Ton Hydraulic Head with Steel Case
TBM6HD-1 Die Set for #8 thru 500 kcmil (6-TON21 thru 6-TON87) |
|
|

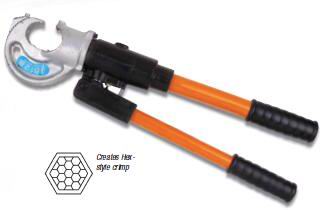

JB12B 12-Ton Manual Hydraulic Crimp Tool
JB12B 12-Ton Manual Hydraulic Crimp Tool with Carrying Case |

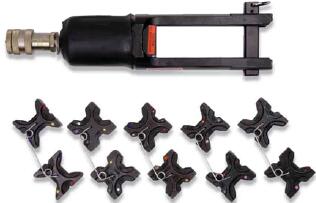

TBM12 12-Ton Hydraulic Crimp Head |
|
|
13642M 12-Ton Hydraulic Crimping Head |
TBM8-750M-1 12-Ton Dieless Manual Hydraulic Tool |
|
|
Battpac LT TBM8-750BSCR 12-Ton Dieless Battery-Powered Tool |
TBM8-750 12-Ton Dieless Hydraulic Head |
|
|
TBM14M 14-Ton Manual Hydraulic Crimp Tool |
TBM14MC 14-Ton Compact Manual Hydraulic Crimp Tool |
|
|

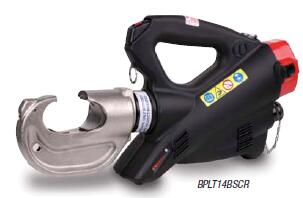

Battpac LT BPLT14BSCR/BPLT14BSCRI 14-Ton Battery-Powered Compression Tools |

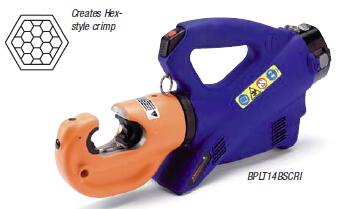

BPLT14BSCRI Same as above, but insulated head |
|
|
13100A 14-Ton Hydraulic Crimping Head |

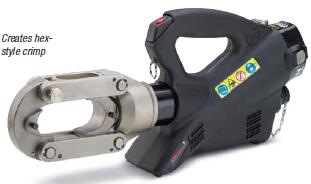

BPLT15BSCR 15-Ton Battery-Powered Compression Tool Includes carrying case |
|
|

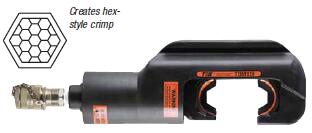

TBM15I 15-Ton Hydraulic Crimping Head |
21940 40-Ton Hydraulic Crimping Head |
|
|
13606 Combination Hand or Foot-Operated Hydraulic Pump
13604 Hand-Operated Hydraulic Pump
13606 Foot-/Hand-Operated and 13604 Hand-Operated Hydraulic Pump |
Battpac LT BPLT13970P2 Pump
BPLT13970P2 Battpac LT Pump includes canvas accessories carrying
bag, carrying strap, remote hand controller, two batteries,
battery charger and non-drip couplings
BPLT13970RB Ni-MH 24V Replacement battery
BPLT13970RP Canvas backpack for pump
BPLT13970DC Power connecting cable with clips
BPLT13970FS Remote foot pedal controller |
|
|
13600 Electric Hydraulic Pump
13600 Electric Hydraulic Pump — hand or foot switch and
non-metallic hose (sold separately) required for operation
You may also need…
13620 Hand Switch – 10 ft.
13589A Foot Switch – 10 ft.
13619 10 ft. Non-Metallic Hose
13618 20 ft. Non-Metallic Hose
13600S “Sled” type stand for 13600 pump |
13610A Electric Hydraulic Pump with Shure-Stake Control
13610A Electric Hydraulic Pump with Shure-Stake control
— hand or foot switch and non-metallic hose
(sold separately) required for operation
You may also need…
13611 Hand Switch — 10 ft.
13612 Foot Switch — 10 ft.
13619 10 ft. Non-Metallic Hose
13618 20 ft. Non-Metallic Hose |
|
|
13810 Heavy-Duty Electric Hydraulic Pump with Shure-Stake Control
13810 Heavy-duty electric hydraulic pump with Shure-Stake
control — hand or foot switch and non-metallic hose
(sold separately) required for operation
You may also need…
13611 Hand switch — 10 ft.
13612 Foot switch — 10 ft.
13619 10 ft. Non-Metallic Hose
13618 20 ft. Non-Metallic Hose |
Battery Connector Crimp Tools
BCT840 Dieless Crimp Tool for cast and tubular battery connectors
BCT840S Dieless Crimp Tool with Shure-Stake mechanism for
cast and tubular battery connectors
TBM5V Ratchet Crimp Tool with die for 8 AWG
to 4/0 battery connectors
TBM5SV Ratchet Crimp Tool with Shure-Stake mechanism
and die for 8 AWG to 4/0 battery connectors |
|
|
BCS8-40 Cable stripper for 8 AWG-4/0 battery cable with replacement blade provided in the handle |
368-CK Cable Stripper |
|
|
364RF Cutter for up to 500 kcmil copper and aluminum
366RF Cutter for up to 1,000 kcmil copper and aluminum |
TBM40HC Hand-Operated Hydraulic Cutting Tool |
|
|
CSR750 Cutter for up to 750 kcmil copper or aluminum |
BPLT54BSCT Battpac LT Fast-Cycle Cutting Tool. Includes carrying
case, charger, two batteries, carry strap |
|
|
TBM54BSCTS Battery-powered cutter for up to 750 kcmil Cu, 21?8" O.D. Al and 636 kcmil ACSR
TBM54BSCT Battery-powered cutter for up to 1,500 kcmil Cu, 21?8" O.D. Al (not for use on ACSR)
|
Battpac TBM58BSCT Battery-Powered Cutter |
|
|
BPLT58BSCT Battery-Powered Cutter with carrying case, charger,two batteries and carry strap |
297-32136 Hydraulic Cutting Head |
|
|
TBM40HCRH Hydraulic Cutting Head |
21649 Cable Bender |
|
|
CTR-1 C-Tap Removal Tool |
Blackburn OD581 Mechanical Compression Tool
OD581 Mechanical Compression Tool with Fixed 5?8" Nose Die, Insert Die Cavity for “O,” “D” or 840 Die (sold separately) and 21" Fiberglass Handles |
|
|
Blackburn TBMODBSCR 6-Ton Battery-Powered Compression Tool
TBMODBSCR Battery-Powered 6-TON Crimping Tool — Includes Shoulder Strap, Charger, Carrying Case, Battery Cartridge and Owners Manuals |
