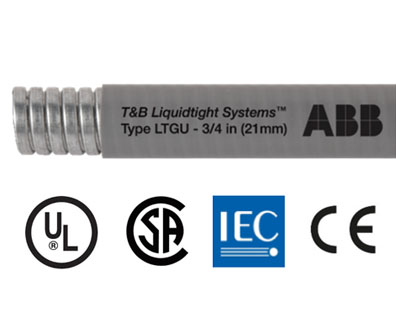

Type LTGU – general purpose UL Listed
Liquid-tight flexible metallic conduit
General Purpose, UL Listed liquid-tight flexible metallic conduits providing premier performance in the toughest applications.
Type LTGU – general purpose UL Listed -
Liquid-tight flexible metallic conduit
Features & benefits:
Global certification to UL, CSA and IEC requirements high quality cores and jackets for excellent strength and durability
Trade sizes from 3/8” to 4” (12mm to 100mm)
Coordinated performance with Ser. 52/53 Steel Fittings
UL, CSA and IP ingress protection ratings aligned with industrial enclosures
Smooth extruded jackets provide best performance with fittings
Applications:
General purpose, UL Listed industrial grade flexible metallic conduit
Used extensively in machine tool and other industrial environments where flexibility is necessary for motion, vibration and bending
Listed and marked for direct burial in earth or in poured concrete
Liquid-tight applications against water, oils, cutting fluids and mild acids NEC Article 250 equipment grounding:
– 3/8” and 1/2” — grounding in circuits up to 20A
– 3/4” to 1-1/4” — grounding in circuits up to 60A
– 1-1/2” to 4” — separate ground wire is required
NEC installations in hazardous (classified) locations:
– Article 501.10 (B) (2) & 501.30 (B) Class I Div. 2
– Article 502.10 (A) (2) & 502.30 (B) Class II Div. 1; 502.10 (B) (2) Class II Div. 2
– Article 503.10 (A) (2) & 503.30 (B) Class III Div. 1; 503.10 (A) (2) Class III Div. 2
– NEC Code requirements must be complied with when LFMC is used as Equipment Grounding Conductors
Construction / Material / Finish:
Hot-dipped zinc galvanized steel core
PVC (polyvinyl chloride) extruded smooth jacket
Inkjet printed technical information and ratings
Full range of trade sizes from 3/8” to 4” (12 to 103mm)
– 3/8” to 1-1/4”, integral copper bonding wire, square lock design
– 1-1/2” to 4” fully interlocked design
Colors: machine tool gray standard; black optional
Part No. |
Package Length |
Trade Size |
Materials |
Feet |
Meters |
UL |
CSA |
ISO/BS EN |
Core |
Jacket |
Color |
LTGUS01G-C |
100 |
30 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Gray |
LTGUS02G-C |
100 |
30 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Gray |
LTGUS03G-C |
100 |
30 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Gray |
LTGUS04G-C |
100 |
30 |
1" |
27mm |
32mm |
Galv Steel |
PVC |
Gray |
LTGUS05G-B |
50 |
15 |
1-1/4" |
35mm |
40mm |
Galv Steel |
PVC |
Gray |
LTGUS06G-B |
50 |
15 |
1-1/2" |
41mm |
50mm |
Galv Steel |
PVC |
Gray |
LTGUS07G-B |
50 |
15 |
2" |
53mm |
63mm |
Galv Steel |
PVC |
Gray |
LTGUS08G-A |
25 |
8 |
2-1/2" |
63mm |
70mm |
Galv Steel |
PVC |
Gray |
LTGUS09G-A |
25 |
8 |
3" |
78mm |
80mm |
Galv Steel |
PVC |
Gray |
LTGUS11G-A |
25 |
8 |
4" |
103mm |
100mm |
Galv Steel |
PVC |
Gray |
LTGUS01G-K |
500 |
150 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Gray |
LTGUS02G-K |
500 |
150 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Gray |
LTGUS03G-K |
500 |
150 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Gray |
LTGUS04G-J |
400 |
120 |
1" |
27mm |
32mm |
Galv Steel |
PVC |
Gray |
LTGUS05G-E |
200 |
60 |
1-1/4" |
35mm |
40mm |
Galv Steel |
PVC |
Gray |
LTGUS06G-D |
150 |
45 |
1-1/2" |
41mm |
50mm |
Galv Steel |
PVC |
Gray |
LTGUS07G-C |
100 |
30 |
2" |
53mm |
63mm |
Galv Steel |
PVC |
Gray |
LTGUS08G-G |
275 |
80 |
2-1/2" |
63mm |
70mm |
Galv Steel |
PVC |
Gray |
LTGUS09G-P |
175 |
50 |
3" |
78mm |
80mm |
Galv Steel |
PVC |
Gray |
LTGUS11G-C |
100 |
30 |
4" |
103mm |
100mm |
Galv Steel |
PVC |
Gray |
LTGUS01G-L |
1000 |
300 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Gray |
LTGUS02G-L |
1000 |
300 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Gray |
LTGUS03G-L |
1000 |
300 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Gray |
LTGUS01B-C |
100 |
30 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Black |
LTGUS02B-C |
100 |
30 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Black |
LTGUS03B-C |
100 |
30 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Black |
LTGUS04B-C |
100 |
30 |
1" |
27mm |
32mm |
Galv Steel |
PVC |
Black |
LTGUS05B-B |
50 |
15 |
1-1/4" |
35mm |
40mm |
Galv Steel |
PVC |
Black |
LTGUS06B-B |
50 |
15 |
1-1/2" |
41mm |
50mm |
Galv Steel |
PVC |
Black |
LTGUS07B-B |
50 |
15 |
2" |
53mm |
63mm |
Galv Steel |
PVC |
Black |
LTGUS08B-A |
25 |
8 |
2-1/2" |
63mm |
70mm |
Galv Steel |
PVC |
Black |
LTGUS09B-A |
25 |
8 |
3" |
78mm |
80mm |
Galv Steel |
PVC |
Black |
LTGUS11B-A |
25 |
8 |
4" |
103mm |
100mm |
Galv Steel |
PVC |
Black |
LTGUS01B-K |
500 |
150 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Black |
LTGUS02B-K |
500 |
150 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Black |
LTGUS03B-K |
500 |
150 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Black |
LTGUS04B-J |
400 |
120 |
1" |
27mm |
32mm |
Galv Steel |
PVC |
Black |
LTGUS05B-E |
200 |
60 |
1-1/4" |
35mm |
40mm |
Galv Steel |
PVC |
Black |
LTGUS06B-D |
150 |
45 |
1-1/2" |
41mm |
50mm |
Galv Steel |
PVC |
Black |
LTGUS07B-C |
100 |
30 |
2" |
53mm |
63mm |
Galv Steel |
PVC |
Black |
LTGUS08B-G |
275 |
80 |
2-1/2" |
63mm |
70mm |
Galv Steel |
PVC |
Black |
LTGUS09B-P |
175 |
50 |
3" |
78mm |
80mm |
Galv Steel |
PVC |
Black |
LTGUS11B-C |
100 |
30 |
4" |
103mm |
100mm |
Galv Steel |
PVC |
Black |
LTGUS01B-L |
1000 |
300 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Black |
LTGUS02B-L |
1000 |
300 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Black |
LTGUS03B-L |
1000 |
300 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Black |
|
