Parker Autoclave Tubing, Autoclave Series - 15,000 PSI
15,000 PSI不锈钢管

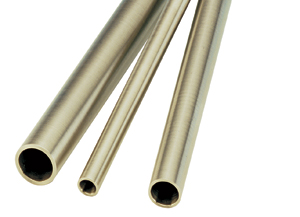

Parker Autoclave's low pressure tubing is capable of operating to 15,000 psi (1034 bar) and range in size from 1/16" to 1/2" tube size. Standard tubing is available in 316 and 304 stainless steel.
Parker Autoclave's low pressure tubing utilizes the proven Speed Bite connection. A low pressure package can be designed with Parker Autoclave tubing and a fitting that utilizes a single ferrule compression sleeve for systems up to 15,000 PSI (1034 BAR). This connection delivers fast, easy make-up and reliable bubble-tight performance, in a variety of liquid or gas service applications.
|
| Application: |
Hydraulic, Instrumentation, Media Transfer, Suction / Vacuum |
| Specifications Met: |
ASTM, ISO |
| Materials of Construction: |
6Mo, 904L, Alloy 625, Alloy 825, Alloy C-276, Duplex, Monel, Other Stainless Steel, Stainless Steel, Super Duplex, Titanium, 316 Stainless Steel, 304 Stainless Steel |
| Maximum Operating Pressure: |
34 (and over) bar, up to 34 bar, up to 7 bar, 500 and over psi, up to 100 psi, up to 500 psi |
| Maximum Operating Temperature: |
240 and over °C, up to 100 °C, up to 125 °C, up to 150 °C, up to 240 °C, up to 650 °C, up to 1200 °F, up to 212 °F, up to 257 °F, up to 302 °F, up to 464 °F |
| Media: |
Abrasives, Adhesives / Glue, Chemical Fluids, Food & Beverages, Fuels, Gases, Hydraulic Fluids, Medical Fluids, Oil / Petroleum, Pharmaceutical Fluids, Pneumatic Media, Steam, Water |
| Minimum Operating Temperature: |
0 (and up) °C, 10 and up °C, -40 and up °C, -50 and up °C, -70 and up °C, 32 and up °F, -40 and up °F, 50 and up °F, -58 and up °F, -94 and up °F |
| Outside Diameter: |
1 to 1-1/4 inch, 1/2 to 3/4 inch, 1/4 to 1/2 inch, 1-1/4 to 1-1/2 inch, 3/4 to 1 inch |
| Assembly: |
Special Tool Required |
| Connection Type: |
W062 , W125 , SW250 / W250 , SW375 / W375, SW500 / W500 |
| Tube Outside Diameter: |
1/16, 1/8, 1/4, 3/8, 1/2 inch, 1.59 , 3.18 , 6.35 , 9.53 , 12.70 mm |
| Maximum Tube Inside Diameter: |
0.026, 0.052, 0.062, 0.069, 0.125, 0.180, 0.194, 0.084, 0.195, 0.277, 0.305, 0.139, 0.375, 0.402, 0.264 inch, 0.66 , 1.32 , 1.57 , 1.75 , 3.18 , 4.57 , 4.93 , 2.13 , 4.95 , 7.04 , 7.75 , 3.53 , 9.53 , 10.21 , 6.71 mm |
| Tube Wall Thickness: |
0.018, 0.036, 0.032, 0.028, 0.062, 0.035, 0.083, 0.090, 0.049, 0.118, 0.048 inch, 0.46 , 0.91 , 0.81 , 0.71 , 1.57 , 0.89 , 2.11 , 2.29 , 1.24 , 3.00 , 1.22 mm |
| Flow Area: |
0.0005 , 0.002 , 0.003 , 0.004 , 0.012 , 0.026 , 0.029 , 0.030 , 0.060 , 0.073 , 0.110 , 0.127 , .055 inch2, 0.32 , 1.29 , 1.94 , 2.58 , 7.74 , 16.77 , 18.71 , 19.35 , 38.71 , 47.10 , 70.97 , 81.94 , 35.48 inch2 |
Markets:
- Chemical
- Petro-Chemical
- Oil and Gas
- Research
Features/Benefits:
- Tubing sizes are 1/16, 1/8", 1/4", 3/8", and 1/2"
- Tubing is manufactured from annealed stainless steel
- Operating temperatures from 0°F (-17.8°C ) to 650°F (343°C)
- Stock tubing lengths from 20 to 26.5 foot (6 to 8 meters)
- Special material and special length tubing available
Applications:
- Fluid Handling Systems
- Skid Panel Fabricators
- Test Panels
- Medium Pressure Systems
Part |
Material |
Tube O.D. (inch) |
Tube O.D. (mm) |
Maximum Tube I.D (inch) |
Maximum Tube I.D (mm) |
MS15-051 |
316 Stainless Steel |
1/8" |
3.18 mm |
0.062" |
1.57 mm |
MS15-055 |
316 Stainless Steel |
1/4" |
6.35 mm |
0.125" |
3.18 mm |
MS15-065 |
316 Stainless Steel |
1/2" |
12.70 mm |
0.375" |
9.53 mm |
MS15-069 |
316 Stainless Steel |
1/4" |
6.35 mm |
0.180" |
4.57 mm |
MS15-070 |
316 Stainless Steel |
1/16" |
1.59 mm |
0.026" |
0.66 mm |
MS15-084 |
316 Stainless Steel |
3/8" |
9.53 mm |
0.195" |
4.95 mm |
MS15-157 |
304 Stainless Steel |
1/2" |
12.70 mm |
0.375" |
9.53 mm |
MS15-158 |
304 Stainless Steel |
1/4" |
6.35 mm |
0.194" |
4.93 mm |
MS15-162 |
304 Stainless Steel |
3/8" |
9.53 mm |
0.305" |
7.75 mm |
MS15-164 |
304 Stainless Steel |
3/8" |
9.53 mm |
0.277" |
7.04 mm |
MS15-165 |
304 Stainless Steel |
1/2" |
12.70 mm |
0.402" |
10.21 mm |
MS15-166 |
304 Stainless Steel |
1/8" |
3.18 mm |
0.069" |
1.75 mm |
MS15-184 |
304 Stainless Steel |
3/8" |
9.53 mm |
0.195" |
4.95 mm |
MS15-200 |
316 Stainless Steel |
1/8" |
3.18 mm |
0.052" |
1.32 mm |
MS15-203 |
316 Stainless Steel |
1/4" |
6.35 mm |
0.084" |
2.13 mm |
MS15-204 |
316 Stainless Steel |
3/8" |
9.53 mm |
0.139" |
3.53 mm |
MS15-205 |
316 Stainless Steel |
1/2" |
12.70 mm |
0.264" |
6.71 mm |
MS15-206 |
304 Stainless Steel |
1/4" |
6.35 mm |
0.084" |
2.13 mm |
MS15-208 |
304 Stainless Steel |
1/2" |
12.70 mm |
0.264" |
6.71 mm |
|
