Parker Autoclave FCC 系列22,500 PSI卡套接头
Parker Autoclave FCC系列22,500 PSI 扩口式卡套接头
Compression Fitting, 22,500 PSI - FCC Series

派克 Autoclave 的扩口锥形连接 (FCC) 技术将压缩式连接的组装和安装简单性与锥形和螺纹的强度相结合。它使用单个压缩套管和扩口管端来创建双重高完整性金属对金属密封连接，适用于高达 22,500 PSI (1,550 bar) 的各种中压应用。该设计结合了防弹出功能，并且作为标准防振 - 消除了对防振压盖组件的任何需要。

FCC 系列 22,500 PSI 压缩套管接头提供 1/4"、3/8"、9/16"、3/4" 和 1" 连接尺寸。该系列包括：

- 压盖、塞子和套筒组件（与所有 FCC 阀门一起提供）
- 弯头、三通和十字接头
- 直接头和隔板接头

FCC 接头由冷加工的 316 不锈钢制成，作为标准，可提供 2507 超级双工版本。所有 316SS 接头的额定压力为 20,000 PSI（1,379 bar），工作温度范围为 -73 至 316°C（-100 至 600°F），所有 2507 超级双工接头的额定压力为 22,500 PSI（1,550 巴）温度范围为 -45 至 316°C（-50 至 600°F）。

FCC 压缩套筒由 Inconel 718 制成，压盖螺母涂有二硫化钼以防止磨损。

市场：
- 石油和天然气
- 石化
- 研究
- 化学

特性：
- 22,500 psi (2507 SD) 或 20,000 psi (316 SS) 工作压力
- 扩口管防止管子拔出
- 冗余金属对金属密封表面
- 第一个密封在管扩口的 ID 上
- 第二个密封在压缩套管和接头或阀体之间
- 2507 SD 具有 -100°F (-73°C) 至 600°F (316°C) 和 -50°F (-45°C) 的宽温度范围
- 单个 Inconel 718 压缩套管可减少装配错误
- 无需要防振压盖配件 - 振动在标准设计中得到控制

应用：
- 高压测试面板
- 海上撬板
- 化学品注入
- 高压气体系统

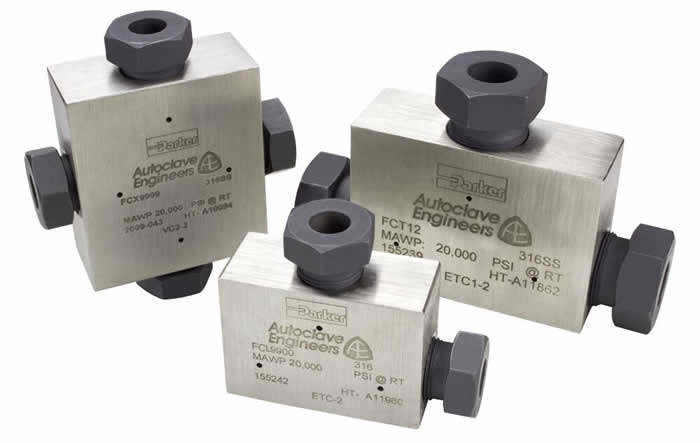

派克抯扩口式卡套接头 (FCC)，承压高达22,500 PSI (1,550 bar)，适用于连接尺寸从1/4英寸到1英寸的弯头，三通接头，四通接头和螺纹转换接头。Parker Autoclave's FCC Series utilizes the make-up and installation simplicity of compression style connections with the strength of cone and thread. It uses a dual high integrity metal-to-metal seal connection that is suitable up to 22,500 PSI.

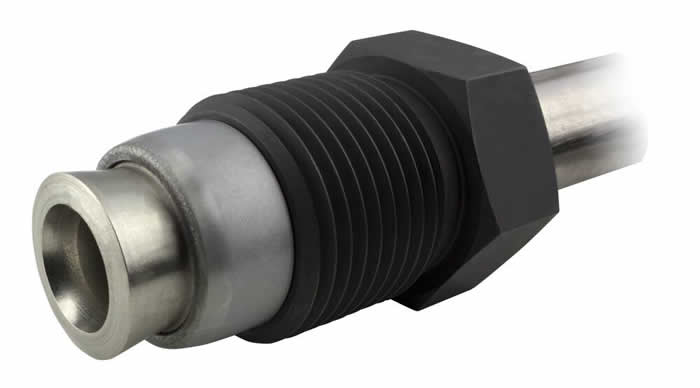

Parker Autoclave's Flared Cone Connection (FCC) technology combines the make-up and installation simplicity of compression style connections with the strength of cone and thread. It uses a single compression sleeve and a flared tube end to create a dual high integrity metal-to-metal seal connection that is suitable for a wide range of medium pressure applications up to 22,500 PSI (1,550 bar). The design incorporates an anti-ejection features and also is vibration proof as standard – eliminating any need for an anti-vibration gland assembly.

FCC series 22,500 PSI compression sleeve fittings are available in 1/4", 3/8”, 9/16”, 3/4" and 1” connection sizes. The range includes:

- Gland, plug and sleeve components (supplied with all FCC valves)
- Elbow, tee and cross fittings
- Straight and bulkhead couplings

The FCC fittings are manufactured from cold worked 316 stainless steel as standard, with 2507 super duplex versions optionally available. All 316SS fittings have a pressure rating of 20,000 PSI (1,379 bar) and an operating temperature range of -73 to 316?C (-100 to 600?F), and all 2507 Super Duplex fittings are rated at 22,500 PSI (1,550 bar) with a temperature range of -45 to 316?C (-50 to 600?F).

FCC compression sleeves are manufactured from Inconel 718, and the gland nuts are coated with molybdenum disulfide to prevent galling.

Technical Specifications

Markets:
- Oil and Gas
- Petrochemical
- Research
- Chemical

Features:
- 22,500 psi (2507 SD) or 20,000 psi (316 SS) working pressures
- Flared Tubing Prevents Tube Extraction
- Redundant Metal to Metal Sealing Surfaces
- First Seal is on ID of Tube Flare
- Second Seal is Between Compression Sleeve and Fitting or Valve body
- Wide Temperature Range from -100°F (-73°C) to 600°F (316°C), and -50°F (-45°C) for 2507 SD
- Single Inconel 718 Compression Sleeve Reduces Assembly Errors
- No Anti-vibration gland fitting needed - vibration is controlled in the standard design

Applications:
- High Pressure Test Panels
- Offshore Skid Panels
- Chemical Injection
- High Pressure Gas Systems
