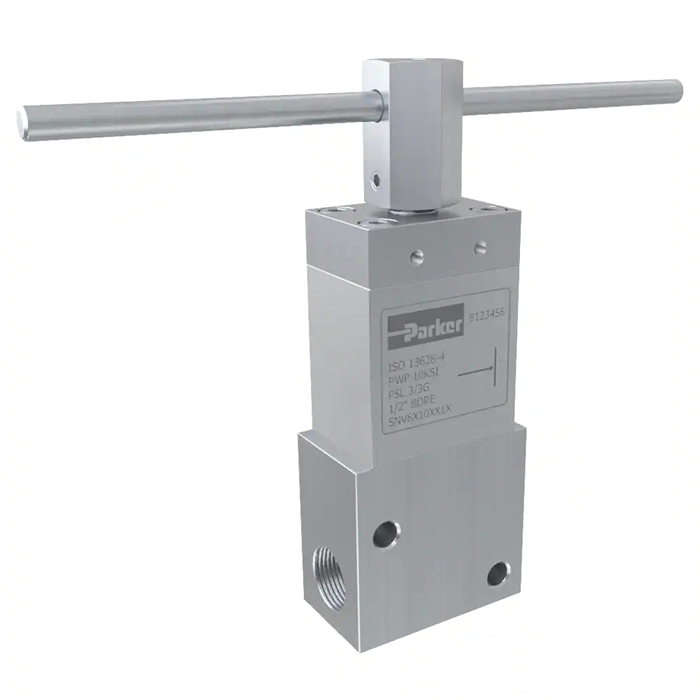

派克2 通海底针阀
Parker 2-way subsea needle valve
Subsea Needle valve, Non-Rising, Non-Rotating Stem
派克的非上升、非旋转阀杆针阀专门设计用于在海底应用中提供平稳、低扭矩的性能。具有用于气密关闭的金属对金属阀座、更长的阀杆/阀座寿命、更高的耐用性以适应重复开/关循环以及阀杆螺纹下方的强化 PTFE/PEEK V 形填料，可实现可靠的阀杆和阀体密封。这种海底针阀包含额外的 O 形圈密封件，可防止海水进入阀门，这会对阀门的操作产生不利影响并污染工艺流体。
单向阀有多种耐腐蚀合金可供选择，适用于深度低至 3,050m 的设备。
这些阀门旨在促进手动或遥控车辆 ROV 的操作。
派克海底针阀的设计满足或超过 API 17D PSL 3/3G 的严格鉴定测试要求。劳埃德检验员见证了 AP??I 17D 阀门设计验证协议，证实了该设计的结构完整性和性能。这是在基础 316SS 模型上进行的，包括 API 6A PR2F PSL3/3G 单向测试协议以及 API 17D 高压测试协议。
市场：
- 上游石油和天然气的
特性/优势：
- 三片式螺栓连接阀盖结构
- 单向流动
- 金属对金属阀座可实现气密关闭、更长的阀杆/阀座寿命、更耐用的重复开/关循环和出色的耐腐蚀性。
- 双 O 形环阀杆密封可防止海水和泥沙进入任何螺纹或旋转部件
- 额外的阀盖密封件旨在防止水和泥沙进入任何螺纹或旋转部件
- 低摩擦、压力辅助 PTFE/PEEK 轴密封可延长循环寿命并降低操作扭矩。填料位于阀杆螺纹下方，提供可靠的阀杆和阀体密封。
- 非上升、非旋转阀杆可防止阀杆磨损和阀座损坏
- 设计用于接受多种类型的管子和管道端部连接
- 有多种耐腐蚀材料可供选择
- 按照 API 17D/API 6A 标准进行设计和测试
应用：
- 海底液压歧管
- 海底控制脐带缆
- 海底井口和控制包
- 化学品注入
- DBB、放气、通风口、测试管线
| Parts |
Bore Diameter (mm) |
Body Material |
Maximum Pressure Rating |
Connection Type |
Connection Size |
Valve Configuration |
Options |
Additional Options |
| SNV8E106B1-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8E106B1-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8E106B1-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E106B1-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8E106N1-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8E106N1-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8E106N1-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E106N1-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8E108B1-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8E108B1-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8E108B1-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E108B1-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8E108N1-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8E108N1-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8E108N1-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E108N1-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8E10M121-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
N/A |
| SNV8E10M121-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
NACE certification |
| SNV8E10M121-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E10M121-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8E10M61-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8E10M61-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8E10M61-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E10M61-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8E10M91-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
N/A |
| SNV8E10M91-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
NACE certification |
| SNV8E10M91-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E10M91-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F106B1-H |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8F106B1-HN |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8F106B1-P |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F106B1-PN |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F106N1-H |
12 |
Super Duplex |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8F106N1-HN |
12 |
Super Duplex |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8F106N1-P |
12 |
Super Duplex |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F106N1-PN |
12 |
Super Duplex |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F108B1-H |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8F108B1-HN |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8F108B1-P |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F108B1-PN |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F108N1-H |
12 |
Super Duplex |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8F108N1-HN |
12 |
Super Duplex |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8F108N1-P |
12 |
Super Duplex |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F108N1-PN |
12 |
Super Duplex |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F10M121-H |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
N/A |
| SNV8F10M121-HN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
NACE certification |
| SNV8F10M121-P |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F10M121-PN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F10M61-H |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8F10M61-HN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
NACE certification |
| Parts |
Bore Diameter (mm) |
Body Material |
Maximum Pressure Rating |
Connection Type |
Connection Size |
Valve Configuration |
Options |
Additional Options |
| SNV8F10M61-P |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F10M61-PN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F10M91-H |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
N/A |
| SNV8F10M91-HN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
NACE certification |
| SNV8F10M91-P |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F10M91-PN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M106B1-H |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8M106B1-HN |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8M106B1-P |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M106B1-PN |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M106N1-H |
12 |
Inconel 625 |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8M106N1-HN |
12 |
Inconel 625 |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8M106N1-P |
12 |
Inconel 625 |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M106N1-PN |
12 |
Inconel 625 |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M108B1-H |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8M108B1-HN |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8M108B1-P |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M108B1-PN |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M108N1-H |
12 |
Inconel 625 |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8M108N1-HN |
12 |
Inconel 625 |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8M108N1-P |
12 |
Inconel 625 |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M108N1-PN |
12 |
Inconel 625 |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M10M121-H |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
N/A |
| SNV8M10M121-HN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
NACE certification |
| SNV8M10M121-P |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M10M121-PN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M10M61-H |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8M10M61-HN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8M10M61-P |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M10M61-PN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M10M91-H |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
N/A |
| SNV8M10M91-HN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
NACE certification |
| SNV8M10M91-P |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M10M91-PN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8S106B1-H |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8S106B1-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8S106B1-P |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8S106B1-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8S106N1-H |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8S106N1-HN |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8S106N1-P |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8S106N1-PN |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8S108B1-H |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8S108B1-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8S108B1-P |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8S108B1-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8S108N1-H |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8S108N1-HN |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8S108N1-P |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
|
|
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
Parts |
Bore Diameter (mm) |
Body Material |
Maximum Pressure Rating |
Connection Type |
Connection Size |
Valve Configuration |
Options |
Additional Options |
SNV8S10M121-H |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
N/A |
SNV8S10M121-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
NACE certification |
SNV8S10M121-P |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S10M121-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8S10M61-H |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8S10M61-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8S10M61-P |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S10M61-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8S10M91-H |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
N/A |
SNV8S10M91-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
NACE certification |
SNV8S10M91-P |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S10M91-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
|
fcg.cnmec@parkerdistribution.com.cn
