Parker Autoclave Engineers Reactor反应釜
Autoclave Engineers公司作为高压反应设备方面的生产厂商已经有50年历史。Autoclave Engineers 被世人关注不仅仅因他在安全性和可靠性方面的辉煌历史，更是因为AE公司同时是技术上的一个开创者。MagneDrive（磁性驱动）就是由AE公司设计并应用在一系列的新型压力容器上的。我们在建立研究型实验室级别的先进搅拌型高压反应釜上有着广泛并占优势地位的经验。
Autoclave Engineers公司一系列的模件配置支持客户在相当广泛的选项上自定义特殊要求。 压力容器配置的首要选择因素为压力和温度要求、容量、固定方式和封印兼容性。其次为搅拌装置的详细要求，包括扭矩要求、叶轮结构和马达类型。适合您研究的内部元件、预装阀门和仪器也是必须考虑的。
Autoclave Engineers Reactor反应釜产品范围
- Stirred Reactors 搅拌反应器
|
|

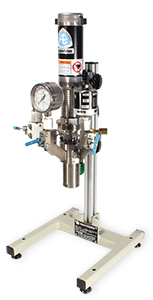

Parker Autoclave Engineers’ Mini-Reactor
- 2,900psi at temperatures up to 600oF (depending upon O-Ring material)
- Volumes of 25, 50, 100, and 150 ml
- Design Pressure of 3,000 psi at 600o F (207 Bar at 315o C)
- 316SS and Hastelloy C-276 stock materials for quick delivery
- imple hand-tight O-ring closure for quick opening
- Compact design featuring the MagneDrive III agitator
- Control of Temperature, Pressure, and Speed available
- Compact design for simple integration into a multi-reactor system
- Glove box friendly |

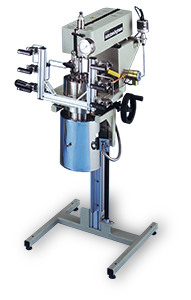

Bolted Closure Laboratory Batch Reactors
The highest pressure rating of the standard laboratory stirred reactors
- 316SS & HASTELLOY? C-276 materials are standard; other corrosion resistant alloys are offered
- Maximum Pressure is 5,500 psi @ 650o F (379 bar @ 343oC)
- Metal-to-metal seals resists chemicals & extreme temperature
- Standard capacity range of 100 to 4,000 ml is used as a lab continuous stirred tank reactor (CSTR) or slurry reactor
- Sparging, charging, blowpipe, sampling & cooling coil process connections are ideal for most chemical reactor processes
- The MagneDrive? magnetic mixer used in the stirred reactor eliminates dynamic seals & assures trouble free mixing. It has a maximum speed of 3,300 rpm dependent on style of drive and customer process. |
|
|
High Temperature, Bolted Closure Laboratory Batch Reactors
The highest pressure rating of the standard laboratory stirred reactors
Parker Autoclave Engineers’ Bolted Closure Reactor
- Versatile product configuration.
- Operating pressures as high as 5000 @ 950o F (345 bar @ 510o C).
- Open vessel and remove body without disassembling pressure connection.
- Available worldwide to meet codes such as ASME, CE, CRN.
- Insulated cover and vessel flange doe heating efficiency. |
EZE-Seal Stirred Laboratory Reactors
Seal this (100 to 4,000ml) high pressure laboratory reactor with low torque
- The closure design can be sealed with O-rings for improved sealing ease with compatible process fluids / temperatures
- 316SS & HASTELLOY? C-276 materials are standard; other corrosion resistant alloys are offered
- Standard capacity range of 100 to 4,000 ml is suitable for lab use as a continuous stirred tank reactor (CSTR) & slurry
|
|
|

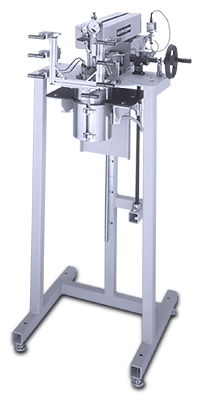

Zipperclave Stirred Reactors
Open this (500 to 4,000 ml) high pressure, laboratory reactor by hand
Parker Autoclave Engineers’ ZipperClave Reactor
- Versatile product configuration
- Operating pressures as high as 1,900 psi @ 450oF (131 bar @ 232oC)
- Maximum Allowable Working Pressure (MAWP) - Design Pressure: 2,200 psi @ 450oF (151 bar @ 232oC)
- Maximum Design Metal Temperature: 40oF @ 2,200 psi (4oC @ 151 Bar)
- Maximum Recommended Operating Pressure (MROP: Varies based on gauge, transducer, and rupture disk selection
- Material: 316 Stainless Steel or Hastelloy? C-276
- Open vessel and remove body without disassembling pressure connections
- Available worldwide to meet codes such as CE and CRN |
High Temperature, Bolted Closure Laboratory Batch Reactors
The highest pressure rating of the standard laboratory stirred reactors
Parker Autoclave Engineers’ Bolted Closure Reactor
- Versatile product configuration.
- Operating pressures as high as 5000 @ 950o F (345 bar @ 510o C).
- Open vessel and remove body without disassembling pressure connection.
- Available worldwide to meet codes such as ASME, CE, CRN.
- Insulated cover and vessel flange doe heating efficiency. |
|
|
Multi-Reactor Systems
Laboratory reactor system simulates production chemical processes |

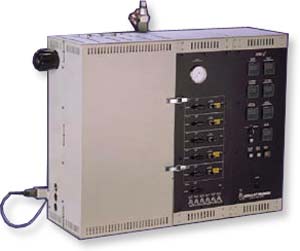

Parker Autoclave Engineers’ BTRS - Jr |
|
|

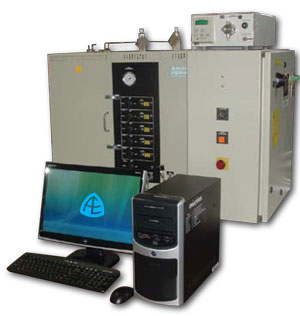

BTRS-JR PC
Automatic Bench Top Reactor System at a reasonable price |

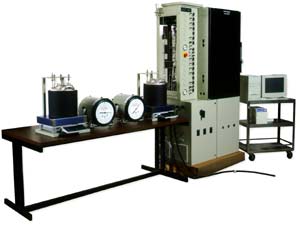

BTRS-900 Automatic Tube Reactor System
Automatic Bench Top Reaction System for
complex laboratory simulations |
|
|
URC II - Universal Reactor Controller |
URC II Mini - Universal Reactor Controller |
|
|
UHC - Universal Heater Controller |

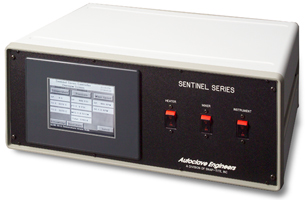

Sentinel Series Controller |
|
|
Watchtower Software |
UTD: Universal Tach Display |
|
|
UMC: Universal Motor Control |
UFC: Universal Flow Control |
|
|
MagnePump: 3/4 and 1-1/2 HP Circulating Pumps
A magnetically coupled, packless, high-pressure pump
Parker Autoclave Engineers MagnePumps |

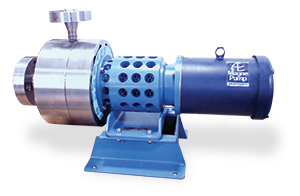

MagnePump: 5 and 7-1/2 HP Circulating Pumps
A magnetically coupled, packless, high-pressure pump
Parker Autoclave Engineers MagnePumps |
Welcome to Parker Autoclave Engineers Research Systems
Parker Autoclave Engineers - Erie, PA
Parker Autoclave Engineers
Instrumentation Products Division
Erie, Pennsylvania USA
Parker Autoclave Engineer Research was founded by Fred Gasche in 1945 to fill a gap in the world of high pressure and high temperature technology. Parker Autoclave Engineers has created and produced many novel pressure vessel designs as well as made significant break throughs in high pressure technology such as the MagneDrive? magnetically coupled agitator. We have made these developments through commitments to constant innovation and hiring the best technical personnel available.
Applications include:
Downhole simulation, catalyst research, gas dispersion, liquid blending, solid suspension, monitoring and contr0l of pressures, temperatures, mixing speed, gas flow, reactor functions, high-pressure pumping.
|
