Autoclave Needle Valve高压针阀
Parker 提供针阀用于液体和气体的可靠密封关闭和调节，具有多种阀杆类型，包括直列式和角式。为石油和天然气加工设施提供了多种设计，以及用于腐蚀性化学和天然气应用的 PFA 产品。
Autoclave高压针阀规格
类型：两通阀、三通阀/直线型、角型；
最大工作压力：1034.3 MPa；
工作温度范围：-423℉ (-252℃) 到1200℉ (649℃)；
连接尺寸：英制：1/16”到1-1/2”；公制：10mm到16mm；
流通尺寸：0.055”（1.4mm）到0.937”（23.8mm）；
材质：316SS。
|
|
|
针型阀, SM 系列- 20,000 PSI
派克 Autoclave 的SM系列针形阀是非旋转上升式阀杆设计，工作压力可达20,000 psi(1379 bar).管道尺寸从1/4" 到 1-1/2".钢管连接采用派克 Autoclave Engineers 锥形和螺纹设计。Medium Pressure SM Series Needle Valve with Pressures to 20,000 psi (1379 bar) |
|
|
15SM Medium Pressure Needle Valve
Medium Pressure SM Series Needle Valve with Pressures to 15,000 psi (1034 bar) |
|
|
|
针型阀，高压 - 150V 系列 150,000 PSI
Needle Valve, High Pressure - 150V Series 150,000 PSI
High Pressure Needle Valve
派克 Autoclave 的高压系列针型阀中小孔仪表阀的压力能达到 150,000 PSI，在石油和天然气加工工业上广泛应用.Parker Autoclave's 150V Series needle valves are a non-rotating rising stem design, with working pressures to 150,000 psi ( 10350 bar) with 5/16” ” end connections. These valves are a cylindrical body of high strength 15-5PH Stainless Steel.Part Number 150V5072。30SC, 43SC, 30VM, 40VM, 60VM, 100VM, and 150V Series Needle Valves for operation to 150,000 psi (10345 bar)
|
|
|
|
|
气瓶阀，BTV 系列 - 15,000 PSI
Bottle Valve, BTV Series - 15,000 PSI
派克 Autoclave 部门的 BTV 系列阀门接口尺寸从"1/8" 到 "1/2" NPT 外螺纹，这个设计是用于样品瓶和气缸进行远程取样。Parker Autoclave's BTV Series bottle valve is designed with male NPT threaded inlet connections from 1/8" to 1/2" NPT. These compact, bar stock valves are to be used with sample bottles and cylinders for remote sampling.
|
|
|
微计量针型阀 - VRMM 系列60,000 PSI
Needle Valve,MicroMetering - VRMM Series 60,000PSI
15SM Medium Pressure Needle Valve
派克 Autoclave 的 VRMM 系列微计量阀用于流体精确计量，工作压力可达 60,000 psi（4137 bar）。Parker Autoclave's VRMM Series micro-metering valves are used for the precise metering of fluids up to 60,000 psi (4137 bar). These bar stock valves are designed with a finely tapered stem that closes in a precisely mated replaceable seat.Medium Pressure SM Series Needle Valve with Pressures to 15,000 psi (1034 bar)Micro-Metering Needle Valve ，VRMM Series, Micro Metering Valves to 60,000 psi (4137 bar)。
|
针型阀，迷你隔断 & 排放 MVBB 系列 - 20,000 PSI
Needle Valve,Mini Block and Bleed MVBB Series - 20,000 PSI
设计作用于阻断，截流及校准。阀门为上升式提升阀杆，压力可达 20,000 psi(1379 bar).钢管尺寸1/4".与钢管连接端为锥形接头设计。Parker Autoclave's MVBB Series is a mini block and bleed valve that is designed for blocking, bleeding, and calibration of instrumentation systems. This valve is a rotating rising stem design, rated to 20,000 psi (1379 bar).
Block and Bleed Needle Valve MVBB Series Block and Bleed Valve to 20,000 psi (1379 bar)
|
|
|
|
Wellhead Gauge Valve, Needle Style
Wellhead Gauge and Bleed Needle Valve to 30,000 psi (2068 bar) |
|
|
Extreme Temperature Needle Valve HT, LT & PV Series Severe Temperature Needle valves to 60,000 psi (4137 bar) |
针型阀，分配 20DV系列- 20,000 PSI
Needle Valve, Diverter 20DV Series - 20,000 PSI
派克 Autoclave 的 20DV 系列的分配阀在压力 20,000 psi(1379 bar)条件下安全可靠的运行.这款阀门的实际是可以使流体从一个入口流入，分配到两个出口，允许介质直接改变方向或者混合的过程。Diverter Needle Valve 20DV Series Diverter Valves to 20,000 psi (1379 bar)。Parker Autoclave's 20DV Series diverter valves are built to operate safely and reliably up to 20,000 psi (1379 bar). This compact valve is used to divert flow from one inlet to two outlets permitting flow direction change and/or mixing of processes.
|
|
|
|
针型阀，Yoke 型 - Y系列 50,000 PSI
Needle Valve, Yoke Style - Y Series 50,000 PSI
派克 Autoclave 的 Y 系列 Yoke 阀门可安全可靠地工作于 50,000 psi（3447 bar）.Yoke 阀是用于工业和应用的额外重型工厂级仪表阀。 Parker Autoclave's Y Series yoke valves are a non-rotating rising stem design, built to operate safely and reliably to 50,000 psi (3447 bar). Yoke valves are extra heavy-duty, plant grade valves for industrial and severe service applications. |

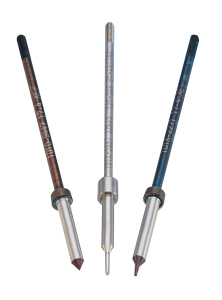

Needle Valve Options and Optional Materials Available Options for Standard Needle Valves |
|
|
针阀，高压 - VM 系列 100,000 PSI
派克 Autoclave 中压及高压系列针阀可达 100,000 PSI,锥螺纹设计应用于油气过程控制行业。Parker Autoclave's 100VM Series needle valves are a non-rotating rising stem design, with working pressures to 100,000 psi (6895 bar) with ?” to 9/16” ” end connections. These valves are available in 316 Stainless Steel and two body patterns. |
SC Series 高压针型阀
派克 Autoclave 的 SC 系列针阀，适用于中压环境，可承受 43,000 PSI。Parker Autoclave's SC Series needle valves are a non-rotating rising stem design, with working pressures to 43,000 psi (2965 bar). These valves are available in 316 Stainless Steel and utilize the proven autoclave cone and thread connection. |
|
|
针阀，FCNV 系列 - 22,500 PSI
Needle Valve, FCNV Series - 22,500 PSI
派克 Autoclave Engineers 中压针阀接口为 FCC 法兰连接可达 22,500 psi (1,550 bar).Parker Autoclave's FCNV Series needle valve is specifically designed to interface with the FCC Flared Cone Connection to 22,500 psi (1,550 bar). The needle valves are available to connect with 1/4" to 1” O.D. Parker Autoclave tube sizes. |
Needle Valves, 15,000 PSI - MAN Series
Parker's MAN Series MPI Needle Valves are designed for multi-turn control of media regulation and shutoff up to 15,000 psi. They offer a packing below the thread design for improved performance in severe service.
Technical Specifications
Connection 1 Size: 1/4" to 1", MPI Compression Fitting, NPT F
Connection 2 Size: 1/4" to 1", MPI Compression Fitting, NPT F
Connection 3 Thread Size: 1/4 to 1 inch
Connection 3 Size: N/A, MPI Compression Fitting
Packing Material: PTFE
Body Material: 316 Stainless Steel
Maximum Operating Pressure: 15,000 psi
Fitting Type: InLine, Three Way,Two Pressure Connections, Three Way,One Pressure Connection, Angle
Stem Type: Blunt, Regulating
|
|
|

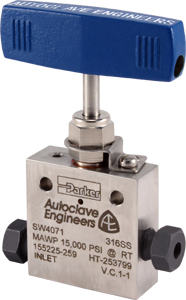

Needle Valves, SW Series - 15,000 PSI
Parker Autoclave's SW Series needle valves are a non-rotating rising stem design, with working pressures to 15,000 psi (1034 bar). These high flow valves are available in 316 Stainless Steel and utilize the Speed Bite single ferrule connection.
Technical Specifications
Maximum Operating Pressure: 15,000, 10,000 psi
Tube O.D.: 1/4", 3/8", 1/2"
Stem Type: VEE, REG
Valve Type: 3 Way Straight, 3-Way Angle, 3-Way,Two on Pressure, 3-Way,One on Pressure, 3-Way,Two Stem Manifold |
|
Medium Pressure SM Series Needle Valve with Pressures to 20,000 psi (1379 bar)
针型阀, SM 系列- 20,000 PSI
派克 Autoclave 的SM系列针形阀是非旋转上升式阀杆设计，工作压力可达20,000 psi(1379 bar).管道尺寸从1/4" 到 1-1/2".钢管连接采用派克 Autoclave Engineers 锥形和螺纹设计。
针阀，高压 - VM 系列 100,000 PSI
派克 Autoclave 中压及高压系列针阀可达 100,000 PSI,锥螺纹设计应用于油气过程控制行业。Parker Autoclave's 100VM Series needle valves are a non-rotating rising stem design, with working pressures to 100,000 psi (6895 bar) with ?” to 9/16” ” end connections. These valves are available in 316 Stainless Steel and two body patterns.
针型阀，高压 - SC Series
派克 Autoclave 的 SC 系列针阀，适用于中压环境，可承受 43,000 PSI。Parker Autoclave's SC Series needle valves are a non-rotating rising stem design, with working pressures to 43,000 psi (2965 bar). These valves are available in 316 Stainless Steel and utilize the proven autoclave cone and thread connection.
针型阀，管道阀P 系列- 15,000 PSI
派克 Autoclave 阀门中 P 系列的多样化小孔仪表阀在石油和天然气加工工业也有应用.工作压力达到 15,000 PSI，规格范围 "1/4-1"
针型阀，管道阀P 系列- 15,000 PSI
P Series NPT Style Needle Valves
派克 Autoclave 阀门中 P 系列的多样化小孔仪表阀在石油和天然气加工工业也有应用.工作压力达到 15,000 PSI，规格范围 "1/4-1"。Pressures to 15,000 psi (1034 bar)
针型阀，迷你隔断 & 排放 MVBB 系列 - 20,000 PSI
Needle Valve,Mini Block and Bleed MVBB Series - 20,000 PSI
设计作用于阻断，截流及校准。阀门为上升式提升阀杆，压力可达 20,000 psi(1379 bar).钢管尺寸1/4".与钢管连接端为锥形接头设计。Parker Autoclave's MVBB Series is a mini block and bleed valve that is designed for blocking, bleeding, and calibration of instrumentation systems. This valve is a rotating rising stem design, rated to 20,000 psi (1379 bar).
Block and Bleed Needle Valve MVBB Series Block and Bleed Valve to 20,000 psi (1379 bar)
针型阀, 10V系列- 15,000 PSI
派克 Autoclave 阀门的旋转上升的阀杆设计工作压力能达到 15,000 psi(1034 bar).阀门接口尺寸从"1/8" 到 "1/2"，管路连接利用速度咬合单卡套设计.
针型阀，分配 20DV系列- 20,000 PSI
Needle Valve, Diverter 20DV Series - 20,000 PSI
派克 Autoclave 的 20DV 系列的分配阀在压力 20,000 psi(1379 bar)条件下安全可靠的运行.这款阀门的实际是可以使流体从一个入口流入，分配到两个出口，允许介质直接改变方向或者混合的过程。Diverter Needle Valve 20DV Series Diverter Valves to 20,000 psi (1379 bar)。Parker Autoclave's 20DV Series diverter valves are built to operate safely and reliably up to 20,000 psi (1379 bar). This compact valve is used to divert flow from one inlet to two outlets permitting flow direction change and/or mixing of processes.
气瓶阀，BTV 系列 - 15,000 PSI
Bottle Valve, BTV Series - 15,000 PSI
派克 Autoclave 部门的 BTV 系列阀门接口尺寸从"1/8" 到 "1/2" NPT 外螺纹，这个设计是用于样品瓶和气缸进行远程取样。Parker Autoclave's BTV Series bottle valve is designed with male NPT threaded inlet connections from 1/8" to 1/2" NPT. These compact, bar stock valves are to be used with sample bottles and cylinders for remote sampling.
迷你针型阀，MVE/MV 系列 - `15,000 PSI
Mini Needle Valves, MVE/MV Series - `15,000 PSI
派克 Autoclave 的 MVE/MV 迷你型阀门在压力15,000 psi（1,034 bar)的条件下用于实验室和构建安全可靠的操作。Parker Autoclave's MVE/MV Mini Needle Valves are designed for laboratory applications and built for safe reliable operation up to 15,000 psi (1,034 bar).
针型阀，双截断排放20DBNV系列- 20,000 PSI
Needle Valve, Double Block and Bleed 20DBNV Series - 20,000 PSI
Parker Autoclave's 20DBNV Series is a three valve block and bleed compact system that is designed for blocking, bleeding, and calibration of instrumentation systems. This valve is a non-rotating rising stem design, rated to 20,000 psi (1379 bar).
针型阀，Yoke 型 - Y系列 50,000 PSI
Needle Valve, Yoke Style - Y Series 50,000 PSI
派克 Autoclave 的 Y 系列 Yoke 阀门可安全可靠地工作于 50,000 psi（3447 bar）.Yoke 阀是用于工业和应用的额外重型工厂级仪表阀。
Parker Autoclave's Y Series yoke valves are a non-rotating rising stem design, built to operate safely and reliably to 50,000 psi (3447 bar). Yoke valves are extra heavy-duty, plant grade valves for industrial and severe service applications.
针型阀，高压 - 150V 系列 150,000 PSI
Needle Valve, High Pressure - 150V Series 150,000 PSI
High Pressure Needle Valve
派克 Autoclave 的高压系列针型阀中小孔仪表阀的压力能达到 150,000 PSI，在石油和天然气加工工业上广泛应用.Parker Autoclave's 150V Series needle valves are a non-rotating rising stem design, with working pressures to 150,000 psi ( 10350 bar) with 5/16” ” end connections. These valves are a cylindrical body of high strength 15-5PH Stainless Steel.Part Number 150V5072。30SC, 43SC, 30VM, 40VM, 60VM, 100VM, and 150V Series Needle Valves for operation to 150,000 psi (10345 bar)
针型阀，QS系列 - 15,000 PSI
Needle Valve, QS Series - 15,000 PSI
Quick Set (QS Series) Medium Pressure Needle Valves
派克 Autoclave 阀门采用非旋转上升阀杆设计，全尺寸工作压力均为 15,000 psi（1034 bar）。管道尺寸范围从"1/4" 到 "1"。Parker Autoclave's QS Series needle valves are rated for operation up to 15,000 PSI. The bar stock valve has a non-rotating rising stem design to prevent galling in severe service applications.QS Series Needle Valves with Pressures to 15,000 psi (1034 bar)
针型阀，微计量 - VRMM 系列60,000 PSI
Needle Valve,MicroMetering - VRMM Series 60,000PSI
15SM Medium Pressure Needle Valve
派克 Autoclave 的 VRMM 系列微计量阀用于流体精确计量，工作压力可达 60,000 psi（4137 bar）。Parker Autoclave's VRMM Series micro-metering valves are used for the precise metering of fluids up to 60,000 psi (4137 bar). These bar stock valves are designed with a finely tapered stem that closes in a precisely mated replaceable seat.Medium Pressure SM Series Needle Valve with Pressures to 15,000 psi (1034 bar)Micro-Metering Needle Valve ，VRMM Series, Micro Metering Valves to 60,000 psi (4137 bar)。
针阀，FCNV 系列 - 22,500 PSI
Needle Valve, FCNV Series - 22,500 PSI
派克 Autoclave Engineers 中压针阀接口为 FCC 法兰连接可达 22,500 psi (1,550 bar).Parker Autoclave's FCNV Series needle valve is specifically designed to interface with the FCC Flared Cone Connection to 22,500 psi (1,550 bar). The needle valves are available to connect with 1/4" to 1” O.D. Parker Autoclave tube sizes.
针阀
Parker 提供针阀，用于液体和气体的可靠密封关闭和调节，具有多种阀杆类型，包括直列式和角式。为石油和天然气加工设施提供了多种设计，以及用于腐蚀性化学和天然气应用的 PFA 产品。
Needle Valve, 5000 PSI - V Series
Parker's V Series Needle Valves are designed for positive leak tight shut-off and regulation of fluids and gases. These valves are for instrumentation and general purpose applications up to 5,000 PSI.
Needle Valve,Union Bonnet 6,000 PSI - U Series
Parker's union bonnet needle valves, U Series have been engineered for use in high pressure and high temperature instrumentation and industrial applications. These severe service needle valves have packing below the threads to protect the valve stem
Needle Valves, SM Series - 20,000 PSI
Parker Autoclave's SM Series needle valves are a non-rotating rising stem design, with working pressures to 20,000 psi (1379 bar). Tubing sizes range from 1/4" to 1-1/2".The valve connections utilize the Parker Autoclave coned and threaded design.
Needle Valve, High Presssure - VM Series 100,000 PSI
Parker Autoclave's 100VM Series needle valves are a non-rotating rising stem design, with working pressures to 100,000 psi (6895 bar) with ?” to 9/16” ” end connections. These valves are available in 316 Stainless Steel and two body patterns.
Brass Needle Valve, Low Pressure - NV Series
Parker's all brass needle valves have a metal-to-metal seats and are for use in applications in which the desired flow must be maintained with little to no variance.
Gauge Valve V2-V3
Parker 的 V2 和 V3 坚固耐用、全钢体、微型手动阀设计用于密封并允许隔离小型系统组件。它们主要用作压力表 (V2) 和排放 (V3) 阀。
针式流量控制阀
派克提供标准针阀和带反向自由流动检查的针阀。派克的针阀是非补偿可调孔口，流量高达 225 lpm (60 gpm)，压力高达 420 bar (6000 psi)。
TN系列针阀
派克 TN 系列针阀具有高性能和多种连接方式，可供用户用于各种市场、行业和应用。可在高达 6,000psi (414 bar) 的压力和高达 1,000°F (538 °C) 的温度下使用。
针阀
Parker Legris 紧凑型针阀可安装在任何系统中，专为需要精确无泄漏流体控制和出色使用寿命的应用而设计。
精密针型阀 – MVI 系列
Parker 的 MVI 系列是一种插装式计量阀，可计量双向流量。
针形阀，底板安装式 – NS 系列
Parker 的 NS 系列针阀为不需要自由逆流检查的液压应用提供出色的速度控制和关闭。
针阀，整体式阀帽 6000 PSI - SN6 系列
派克的 SN6 系列针阀是紧凑的一体式阀盖阀，用于关闭和粗调压力高达 6,000 PSI (414 BAR) 的液体和气体。
Colorflow 在线通用针型阀 – N 系列
Parker 的 Colorflow N 系列液压流量控制、在线针阀可测量双向流量或提供可靠的关闭。这种针阀流量控制用于空气和油应用，并具有标准和精细计量选项。
直插式精密针阀 – MV 系列
Parker 的 MV 系列阀门是一种高精度调节针阀，可测量双向流量。
手动阀，立式旋塞 – HRPV 系列
派克棒材上升旋塞手动阀带有软阀座尖端和直通流路，专为隔离和调节受污染介质而设计。压力等级高达 10,000 psi (689 bar)。
针阀、管阀 P 系列 - 15,000 PSI
派克 Autoclave 的 P 系列针阀为石油和天然气加工行业的小口径仪表应用提供了多种管道阀。它们的额定压力为 15,000 psi (1034 bar)，管道尺寸从 1/4" 到 1" 不等。
针阀、肘节阀 - VQ 系列
Parker 的 VQ 系列肘节阀是快速作用阀，适用于具有低压 (300 PSI) 要求的简单打开或关闭系统。
针阀，15,000 PSI - MAN 系列
派克的 MAN 系列 MPI 针阀设计用于介质调节的多回转控制和高达 15,000 psi 的关闭。它们在螺纹设计下方提供填料，以提高严苛工况下的性能。
针阀，10V 系列 - 15,000 PSI
Parker Autoclave 的 10 V 系列针阀采用非旋转上升杆设计，工作压力高达 15,000 psi (1034 bar)。这些阀门采用 316 不锈钢材质，并采用经过验证的 Speed Bite 单套圈连接。
针阀，螺纹阀盖 6000 PSI - NP6 系列
Parker 的 NP6 针阀设计在阀杆螺纹下方带有填料和两件式阀杆，适用于压力高达 6,000 PSI (414 BAR) 的关键应用。
针阀、双关断和排放 20DBNV 系列 - 20,000 PSI
Parker Autoclave 的 20DBNV 系列是一种三阀块和排放紧凑型系统，专为仪器系统的阻断、排放和校准而设计。该阀门采用非旋转上升杆设计，额定压力为 20,000 psi (1379 bar)。
针阀，SW 系列 - 15,000 PSI
派克 Autoclave 的 SW 系列针阀采用非旋转升降杆设计，工作压力高达 15,000 psi (1034 bar)。这些高流量阀门采用 316 不锈钢材质，并采用 Speed Bite 单套圈连接。
针阀，高压 - SC 系列
派克 Autoclave 的 SC 系列针阀采用非旋转升降杆设计，工作压力高达 43,000 psi (2965 bar)。这些阀门采用 316 不锈钢材质，并采用经过验证的高压釜锥体和螺纹连接。
针阀，微量计量 - VRMM 系列 60,000PSI
Parker Autoclave's VRMM Series micro-metering valves are used for the precise metering of fluids up to 60,000 psi (4137 bar). These bar stock valves are designed with a finely tapered stem that closes in a precisely mated replaceable seat.
Needle Valve,Mini Block and Bleed MVBB Series - 20,000 PSI
Parker Autoclave’s MVBB Series is a mini block and bleed valve that is designed for blocking, bleeding, and calibration of instrumentation systems. This valve is a rotating rising stem design, rated to 20,000 psi (1379 bar).
派克汉尼汾公司
Mini Needle Valves, MVE/MV Series - `15,000 PSI
Parker Autoclave's MVE/MV Mini Needle Valves are designed for laboratory applications and built for safe reliable operation up to 15,000 psi (1,034 bar).
Needle Valve, Yoke Style - Y Series 50,000 PSI
Parker Autoclave's Y Series yoke valves are a non-rotating rising stem design, built to operate safely and reliably to 50,000 psi (3447 bar). Yoke valves are extra heavy-duty, plant grade valves for industrial and severe service applications.
Multi-port Gauge Valves, Needle pattern – H series
Parker's bar stock multi-port gauge valves with two side ports designed for safe isolation and control of flow to pressure measuring devices and venting or draining of trapped process media. Available in pressure ratings up to 6,000 psi and 10,000 psi.
Needle Valve,Rising Plug 6000 PSI - PV Series
Parker 的 PV 系列立式旋塞阀和仪表/罗茨阀采用螺纹阀盖设计。这些明杆旋塞阀的工作压力高达 6,000 PSI (414 BAR)。由于各种阀座和密封材料，它们可以满足高压和高温应用。
针阀，QS 系列 - 15,000 PSI
派克 Autoclave 的 QS 系列针阀额定运行压力高达 15,000 PSI。棒料阀采用不旋转的上升杆设计，以防止在严苛的服务应用中磨损。
针阀，分流器 20DV 系列 - 20,000 PSI
派克 Autoclave 的 20DV 系列分流阀可在高达 20,000 psi (1379 bar) 的压力下安全可靠地运行。这种紧凑型阀门用于将流体从一个入口转移到两个出口，从而允许流向改变和/或过程混合。
瓶阀，BTV 系列 - 15,000 PSI
Parker Autoclave 的 BTV 系列瓶阀设计有外螺纹 NPT 螺纹入口连接，从 1/8" 到 1/2" NPT。这些紧凑的棒料阀与样品瓶和钢瓶一起用于远程采样。
针阀，高压 - 150V 系列 150,000 PSI
派克 Autoclave 的 150V 系列针阀采用非旋转升杆设计，工作压力为 150,000 psi (10350 bar)，带 5/16” ” 端接。这些阀门是由高强度 15-5PH 不锈钢制成的圆柱形阀体。
针阀 (6,000 PSI) - HYNV 系列
外螺纹和轭式球形针阀设计用于主要隔离应用，工作压力高达 6000 psi (414 bar)，可选 10000 psi (689 bar) 额定值，适用于石油和天然气加工行业的小口径仪表应用。
FCNV 系列针阀 - 22,500 PSI
派克 Autoclave 的 FCNV 系列针阀专门设计用于与 FCC 扩口锥连接接口连接至 22,500 psi (1,550 bar)。针阀可用于连接 1/4" 至 1" OD Parker Autoclave 管尺寸。
6,000 PSI 分配歧管 - H 系列
派克的 H 系列分配歧管单元提供 5 或 10 金属阀座针阀选择，带有 PTFE 压盖填料、“H”系列头组件，易于操作和可靠的气密关闭。
针型阀，H 系列 - 20,000 PSI
派克的 20,000 PSI H 系列针形阀专为使用高达 20,000 psi (1379 bar) 额定值的任何流体而设计。
YG系列阀门
派克YG系列阀门是Y型截止阀，广泛应用于电力工业、石油、化工/石化行业。最高工作压力为 414bar(6,000psi)，最高工作温度为 676℃(1,250°F)。
带单排气口、针型的表压阀 – H 系列
派克的带单排气口的棒料计量阀，设计用于安全隔离和控制压力测量设备的流量以及排放或排放被困过程介质。可提供高达 6,000 psi 和 10,000 psi 的压力等级。
Needle Pattern Hand Valves, Straight and Angle Styles – H Series
Parker's bar stock hand valves designed for isolation and regulation in low flow critical applications. Available in straight (HNV) and angle (HNAV) styles, in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar).
Subsea Needle valve, Non-Rising, Non-Rotating Stem
Parker's 2-way subsea needle valve featuring non-rising, non-rotating stem for operations up to 10,000 PSI and depths to 3050m. Designed and tested to API 17D PSL 3/3G (including API 6A PR2F) for safe and reliable performance in subsea applications.
Needle Valve, 5000 PSI - V Series
Parker's V Series Needle Valves are designed for positive leak tight shut-off and regulation of fluids and gases. These valves are for instrumentation and general purpose applications up to 5,000 PSI.
Needle Valve,Union Bonnet 6,000 PSI - U Series
Parker's union bonnet needle valves, U Series have been engineered for use in high pressure and high temperature instrumentation and industrial applications. These severe service needle valves have packing below the threads to protect the valve stem
Needle Valves, SM Series - 20,000 PSI
Parker Autoclave's SM Series needle valves are a non-rotating rising stem design, with working pressures to 20,000 psi (1379 bar). Tubing sizes range from 1/4" to 1-1/2".The valve connections utilize the Parker Autoclave coned and threaded design.
Needle Valve, High Presssure - VM Series 100,000 PSI
Parker Autoclave's 100VM Series needle valves are a non-rotating rising stem design, with working pressures to 100,000 psi (6895 bar) with ?” to 9/16” ” end connections. These valves are available in 316 Stainless Steel and two body patterns.
Brass Needle Valve, Low Pressure - NV Series
Parker's all brass needle valves have a metal-to-metal seats and are for use in applications in which the desired flow must be maintained with little to no variance.
Gauge Valve V2-V3
Parker’s V2 and V3, rugged, all steel bodied, tiny hand valves are designed to seat tight and permit isolation of small system components. They are primarily used as gauge (V2) and drain (V3) valves.
Needle Flow Control Valves
Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).
TN Series Needle Valve
Parker TN series needle valve with high performance and various connections available to users for a wide variety of markets, industries and applications. For use at pressure up to 6,000psi (414 bar) and temperature up to 1,000°F (538 °C).
Needle Valves
Parker Legris compact needle valves can be installed in any system and are designed for applications requiring accurate leak-free fluid control and excellent service life.
Precision Needle Valve – MVI Series
Parker’s MVI series is a cartridge-type metering valve that meters flow in both directions.
Needle Valve, Subplate Mounted – NS Series
Parker's NS series needle valve provides excellent speed control and shutoff for hydraulic applications where a free reverse-flow check is not needed.
42 Parts
Needle Valve,Integral Bonnet 6000 PSI - SN6 Series
Parker's SN6 Series needle valves are compact, integral bonnet valves for shut-off and coarse regulation of liquids and gases up to 6,000 PSI (414 BAR).
In-Line General Purpose Needle Valve – N Series
The N series of hydraulic flow control, in-line needle valves meters flow in both directions or provides a reliable shut off. This needle valve flow control is used in air and oil applications and has standard and fine metering options.
In-Line Precision Needle Valve – MV Series
Parker’s MV series valves is a high precision adjust needle valve that meters flow in both directions.
Hand valves, Rising Plug – HRPV Series
Parker's bar stock rising plug hand valves with soft seat tip and a straight through flow path, specifically designed for isolation and regulation of contaminated media. Pressure rating up to 10,000 psi (689 bar).
Needle Valve, Pipe Valve P Series - 15,000 PSI
Parker Autoclave's P Series needle valves offer a diverse line of pipe valves for small bore instrumentation applications in the oil and gas processing industry. These are rated to 15,000 psi (1034 bar) with sizes ranging from 1/4" to 1" pipe.
Needle Valve, Toggle Valve - VQ Series
Parker's VQ Series toggle valves are quick acting valves for simple open or close systems with low pressure (300 PSI) requirements.
Needle Valves, 15,000 PSI - MAN Series
Parker’s MAN Series MPI Needle Valves are designed for multi-turn control of media regulation and shutoff up to 15,000 psi. They offer a packing below the thread design for improved performance in severe service.
Needle Valves, 10V Series - 15,000 PSI
Parker Autoclave's 10 V Series needle valves are a non-rotating rising stem design, with working pressures to 15,000 psi (1034 bar). These valves are available in 316 Stainless Steel and utilize the proven Speed Bite single ferrule connection.
Needle Valve,Screwed Bonnet 6000 PSI - NP6 Series
Parker's NP6 needle valves are designed with packing below the stem threads and a two-piece stem for critical applications up to 6,000 PSI (414 BAR).
Needle Valve, Double Block and Bleed 20DBNV Series - 20,000 PSI
Parker Autoclave’s 20DBNV Series is a three valve block and bleed compact system that is designed for blocking, bleeding, and calibration of instrumentation systems. This valve is a non-rotating rising stem design, rated to 20,000 psi (1379 bar).
Needle Valves, SW Series - 15,000 PSI
Parker Autoclave's SW Series needle valves are a non-rotating rising stem design, with working pressures to 15,000 psi (1034 bar). These high flow valves are available in 316 Stainless Steel and utilize the Speed Bite single ferrule connection.
Needle Valve, High Pressure - SC Series
Parker Autoclave's SC Series needle valves are a non-rotating rising stem design, with working pressures to 43,000 psi (2965 bar). These valves are available in 316 Stainless Steel and utilize the proven autoclave cone and thread connection.
Needle Valve,MicroMetering - VRMM Series 60,000PSI
Parker Autoclave's VRMM Series micro-metering valves are used for the precise metering of fluids up to 60,000 psi (4137 bar). These bar stock valves are designed with a finely tapered stem that closes in a precisely mated replaceable seat.
Needle Valve,Mini Block and Bleed MVBB Series - 20,000 PSI
Parker Autoclave’s MVBB Series is a mini block and bleed valve that is designed for blocking, bleeding, and calibration of instrumentation systems. This valve is a rotating rising stem design, rated to 20,000 psi (1379 bar).
Mini Needle Valves, MVE/MV Series - `15,000 PSI
Parker Autoclave's MVE/MV Mini Needle Valves are designed for laboratory applications and built for safe reliable operation up to 15,000 psi (1,034 bar).
Needle Valve, Yoke Style - Y Series 50,000 PSI
Parker Autoclave's Y Series yoke valves are a non-rotating rising stem design, built to operate safely and reliably to 50,000 psi (3447 bar). Yoke valves are extra heavy-duty, plant grade valves for industrial and severe service applications.
Multi-port Gauge Valves, Needle pattern – H series
Parker's bar stock multi-port gauge valves with two side ports designed for safe isolation and control of flow to pressure measuring devices and venting or draining of trapped process media. Available in pressure ratings up to 6,000 psi and 10,000 psi.
Needle Valve,Rising Plug 6000 PSI - PV Series
Parker’s PV Series Rising Plug and Gauge/Root Valves are a screwed bonnet design. These rising stem plug valves operate up to 6,000 PSI (414 BAR). They can meet high pressure and temperature applications due to various seat and seal materials.
Needle Valve, QS Series - 15,000 PSI
Parker Autoclave's QS Series needle valves are rated for operation up to 15,000 PSI. The bar stock valve has a non-rotating rising stem design to prevent galling in severe service applications.
Needle Valve, Diverter 20DV Series - 20,000 PSI
Parker Autoclave's 20DV Series diverter valves are built to operate safely and reliably up to 20,000 psi (1379 bar). This compact valve is used to divert flow from one inlet to two outlets permitting flow direction change and/or mixing of processes.
Bottle Valve, BTV Series - 15,000 PSI
Parker Autoclave's BTV Series bottle valve is designed with male NPT threaded inlet connections from 1/8" to 1/2" NPT. These compact, bar stock valves are to be used with sample bottles and cylinders for remote sampling.
Needle Valve, High Pressure - 150V Series 150,000 PSI
Parker Autoclave's 150V Series needle valves are a non-rotating rising stem design, with working pressures to 150,000 psi ( 10350 bar) with 5/16” ” end connections. These valves are a cylindrical body of high strength 15-5PH Stainless Steel.
Needle Valve (6,000 PSI) - HYNV Series
Outside screw and yoke globe pattern needle valves designed for primary isolating applications operating up to 6000 psi (414 bar) with optional 10000 psi (689 bar) rating for small bore instrumentation applications in the oil and gas processing industry.
Needle Valve, FCNV Series - 22,500 PSI
Parker Autoclave’s FCNV Series needle valve is specifically designed to interface with the FCC Flared Cone Connection to 22,500 psi (1,550 bar). The needle valves are available to connect with 1/4" to 1” O.D. Parker Autoclave tube sizes.
6,000 PSI Distribution Manifold - H Series
Parker's H-Series distribution manifold unit offers choice of 5 or 10 metal seated needle valves with PTFE gland packing, ‘H’ series head assemblies for easy operation and positive bubble tight shut off.
Needle Valve, H Series - 20,000 PSI
Parker's 20,000 PSI H-Series needle valve has been purpose designed for operation with any fluid up to 20,000 psi (1379 bar) rating.
YG Series Valve
Parker YG series valves are Y pattern globe valves that are widely used in the power industry, petroleum,and chemical/petrochemical industries. With a maximum operating pressure of 414bar(6,000psi) and a maximum operating temperature of 676℃(1,250°F).
Gauge Valves with Single Vent Port, Needle Pattern – H Series
Parker's bar stock gauge valves with single vent, designed for safe isolation and control of flow to pressure measuring devices and venting or draining of trapped process media. Available in pressure ratings up to 6,000 psi and 10,000 psi.
Needle Pattern Hand Valves, Straight and Angle Styles – H Series
Parker's bar stock hand valves designed for isolation and regulation in low flow critical applications. Available in straight (HNV) and angle (HNAV) styles, in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar).
Subsea Needle valve, Non-Rising, Non-Rotating Stem
Parker's 2-way subsea needle valve featuring non-rising, non-rotating stem for operations up to 10,000 PSI and depths to 3050m. Designed and tested to API 17D PSL 3/3G (including API 6A PR2F) for safe and reliable performance in subsea applications.
|
fcg.cnmec@parkerdistribution.com.cn
.jpg)
