Dynalco SC-2124 Series 24-Channel Universal Scanners/Monitors
Dynalco SC-2124系列24通道通用扫描仪/显示器
SC2124
我们的SC2124扫描仪/控制器是基于微处理器的控制器，具有24个模拟输入通道，提供A，B或C类警报和停机，以及4个用于控制的继电器输出。 CSA批准。 基于SC-2000系列微处理器的扫描仪可连续采样温度，压力和其他模拟信号。 大型多信息显示屏既指示每个通道的值，又指示任何警报情况。 SC-2124型号具有大型4x20字符显示屏，最多可接收24个0-5 V输入，并具有8个板载电阻器，最多可用于8个4-20 mA输入。 键盘可让您访问和配置J或K型热电偶以及RTD和线性输入。
Dynalco SC-2124 Series 24-Channel Universal Scanners/Monitors Datasheet
SC2124M-使用Modbus通讯
基于SC-2000系列微处理器的扫描仪可连续采样温度，压力和其他模拟信号。 大型多信息显示屏既指示每个通道的值，又指示任何警报情况。 SC-2124M型具有4x20大型字符显示屏，并使用Modbus?RTU通信进行远程监控。 它最多接受24个0-5 V输入，并具有8个板载电阻，最多8个4-20 mA输入。 键盘可让您访问和配置J或K型热电偶以及RTD和线性输入。
特征
- 基于微处理器的通信，用于远程监控或便携式计算机配置。
- 24个通用模拟输入通道可配置为监视热电偶，电压和4–20
- 毫安输入。
- A，B或C类警报和关闭。
- 开路热电偶和RTD检测。
- 宽直流电源范围（9–38 Vdc）。
- 大型的4行乘20字符的字母数字显示屏显示所有通道的状态以及通道名称。
- 仪表总线（远程显示总线）：最多八个IDM-200显示器，用于任何通道的专用显示。
- 符合人体工程学的密封膜键盘，带触觉反馈。
-
坚固的前密封外壳。
-
DB型连接器可提供干净，可靠的接线。
SC-2124M
配件类
- SC-CBLE25MM：6英尺电缆和接线盒，用于12个输入（24个输入系统需要2个）。
- SC-CBLE25MF：6英尺电缆和继电器接线端子。
- SC-CBLE15MF：6英尺电缆和电源等的接线端子
所有型号：选项
- SC-RTD：过滤和调节模块，最多可读取12个100 ohm Pt或120 ohm Ni RTD通道。
- ETS-202：热电偶的冷端补偿。
- IDM-200：直径为33/8英寸（?85.7毫米）的数字远程显示器。
资料下载Downloads
Dynalco SC-2124 Series 24-Channel Universal Scanners/Monitors CSA Approval (EN)
Dynalco SC-2124 Series 24-Channel Universal Scanners/Monitors Manual (EN)
Dynalco Scanner WinHost Version 2.13 Software (EN)
Dynalco SC-2124 Series 24-Channel Universal Scanners/Monitors Datasheet (EN)
Dynalco SC-2124系列24通道通用扫描仪/显示器 CSA认证（EN）
Dynalco SC-2124系列24通道通用扫描仪/显示器手册（ZH）
Dynalco Scanner WinHost版本2.13软件（ZH）
Dynalco SC-2124系列24通道通用扫描仪/监控器数据表（ZH）
SC-2124 Series
Description
SC2124

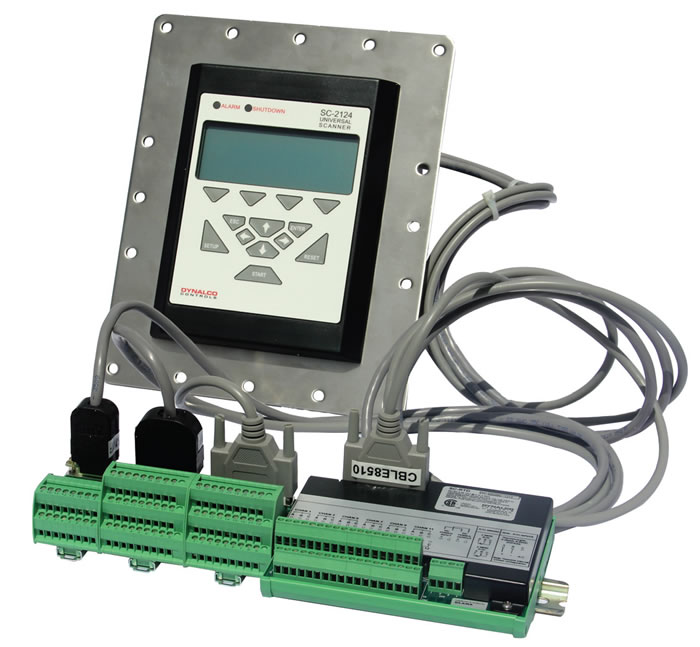

Our SC2124 scanner/controller is a microprocessor based controller that has 24 channels of Analog input, offers Class A, B or C alarms and shutdowns and 4 relay outputs for controls. CSA approved.
The SC-2000 series microprocessor-based scanners continuously samples temperature, pressure, and other analog signals. The large multi-informational display indicates both the value of each channel and any alarm conditions.
Model SC-2124 has a large 4x20 character display and accepts up to 24 0-5 V inputs and has 8 onboard resistors for up to 8 4-20 mA inputs. The keypad lets you access and configure J or K type thermocouples as well as RTD's and linear inputs.
SC2124M - with Modbus communications
The SC-2000 series microprocessor-based scanners continuously samples temperature, pressure, and other analog signals. The large multi-informational display indicates both the value of each channel and any alarm conditions.
Model SC-2124M has a large 4x20 character display and uses Modbus? RTU communication for remote monitoring. It accepts up to 24 0-5 V inputs and has 8 onboard resistors for up to 8 4-20 mA inputs. The keypad lets you access and configure J or K type thermocouples as well as RTD's and linear inputs.
Features
- Microprocessor-based with communications for remote monitoring or laptop configuration.
- 24 universal analog input channels configurable for monitoring thermocouples, voltages, and 4–20
- mA inputs.
- Class A, B, or C alarms and shutdowns.
- Open thermocouple and RTD detection.
- Wide DC power range (9–38 Vdc).
- Large 4-row by 20-character alphanumeric display shows status of all channels along with channel names.
- Meter Bus (remote display bus): up to eight IDM-200 displays for dedicated display of any channel.
- Ergonomic, sealed-membrane keypad with tactile feedback.
- Rugged, front-sealed enclosure.
- DB-style connectors for clean, reliable wiring.
SC-2124M
- SC-2124 with Modbus communications.
ACCESSORIES
- SC-CBLE25MM: 6 ft cable & terminal block for 12 inputs (2 required for 24 input system).
- SC-CBLE25MF: 6 ft cable & terminal block for relays.
- SC-CBLE15MF: 6 ft cable & terminal block for power, etc.
ALL MODELS: Options
- SC-RTD: Filtering and conditioning module to read up to 12 channels of 100 ohm Pt or 120 ohm Ni RTDs.
- ETS-202: Cold-junction compensation for thermocouples.
- IDM-200: 33/8 in. (~85.7 mm) diameter digital remote display.
|
