Dynalco Products - Speed Sensors速度传感器

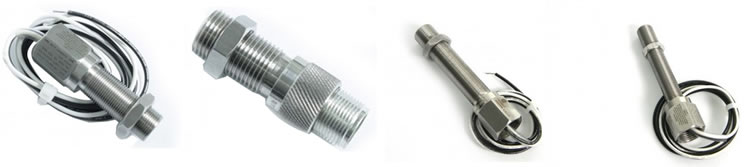

Dynalco Magnetic Pickups Dynalco Speed Sensors磁性传感器/速度传感器

美国戴纳科公司DYNALCO提供可变磁阻传感器选择,包括测量为速度和方向感测以及流量、功率、计数、定时和同步。并且获得第三方认证CSA,UL,ATEX等。We offer the largest selection of variable reluctance sensors for speed and direction sensing as well as flow, power, counting, timing and synchronization. Third-party approvals available.



美国德纳科Dynalco公司控制仪表公司简介:

美国德纳科Dynalco公司设计和制造高度工程坚固,可靠的,第三方的监测,控制和往复式发动机,蒸汽涡轮机,燃气涡轮机,泵和输送系统的保护认证仪表。我们为一个在石油和天然气,化工/过程,建筑业及越野设备,交通运输,发电,船舶,采矿,水和废水市场的客户和工厂自动化等。Dynalco sensors have many uses including speed, direction sensing, flow and power measurement, counting, timing, and synchronization. Our sensors come in a wide variety of lengths, body and pole piece diameters, and output levels. Styles include self-powered magnetic, miniature, dc-powered, and Hall effect. Dynalco also engineers sensors for custom applications.



Standard Magnetic Pickups
标准磁性传感器

标准磁性传感器用于大多数应用。这些传感器有两个插脚,可接受标准MS样式的连接器。它们有短、中、长和超长螺纹长度。灵敏度可以是标准的、高的或超高的。有时需要具有更高灵敏度的拾波器以在低速下产生更高的输出。Standard magnetic pickups are used for most applications. These pickups have 2 pins that will accept a standard MS style connector. They are available in short, medium, long and extra-long thread lengths. The sensitivity is available as either standard, high or ultra-high. A pickup with higher sensitivity is sometimes required to produce higher output at low speed。



MODEL 型号 Thread size 螺纹尺寸 Sensitivity 灵敏度
5/8-18 X 1.125
Standard
5/8-18 X 1.125
High
5/8-18 X 1.125
Ultra-high
5/8-18 X 2.500
Standard
5/8-18 X 2.500
High
5/8-18 X 2.500
Ultra-high
5/8-18 X 4.000
Standard
5/8-18 X 4.000
High
5/8-18 X 4.000
Ultra-high
5/8-18 X 6.000
Standard
5/8-18 X 6.000
High



Intrinsically-safe Magnetic Pickups
本安型磁性传感器

本安全型磁性传感器的输出电流有限,用于可能存在爆炸性气体的危险场所。这些皮卡将由CSA、UL或ATEX批准,阅读适用证书非常重要,证书中应说明批准地点、批准的产品以及安装说明。与标准拾音器类似,这些拾音器有两个插脚,可接受标准MS样式的连接器,并提供短和长螺纹长度。灵敏度可以是标准的,也可以是高的。有时需要具有更高灵敏度的拾波器以在低速下产生更高的输出。Intrinsically-safe magnetic pickups have a limited output current for use in hazardous locations where explosive gases may be present. These pickups will be approved by either CSA, UL or ATEX and it is important to read the applicable certificate that will have a description on where they are approved, which products they are approved with, as well as installation instructions. Similar to the standard pickups, these pickups have 2 pins that will accept a standard MS style connector and are available in short and long thread lengths. The sensitivity is available as either standard or high. A pickup with higher sensitivity is sometimes required to produce higher output at low speed.

MODEL 型号 Thread size 螺纹尺寸 Sensitivity 灵敏度
5/8-18 X 1.125
Standard
5/8-18 X 1.125
High
5/8-18 X 4.000
Standard
5/8-18 X 4.000
High



Explosion-proof Magnetic Pickups
防爆磁性传感器

防爆磁性传感器采用带“NPT内螺纹”的盲端外壳建造,用于连接到NGID或柔性导管,包括电缆导管内的所有电线和连接,这种结构允许在可能存在爆炸性气体的危险位置使用。这些皮卡将由CSA、UL或ATEX批准,阅读适用证书非常重要,证书中应说明批准地点、批准的产品以及安装说明。这些皮卡有2-AWG 18导线,可以定制长度订购。螺纹体有短螺纹和长螺纹两种。Explosion-proof magnetic pickups are constructed using a blind-end housing with a "NPT female thread for connection to either ngid or flexible conduit By containing all wires and connections within the cable conduit,this construction allows for use in hazardous locations where explosive gases may be present. These pickups will be approved by either CSA, UL or ATEX and it is important to read the applicable certificate that will have a description on where they are approved, which products they are approved with, as well as installation instructions. These pickups have 2-AWG 18 leads that can be ordered in custom lengths. The bodies are available in short and long thread lengths

MODEL 型号 Thread size 螺纹尺寸 Approval认证
M104 4-20 X 1.875 CSA / UL
M140 4-20 X 1.875 UL
M180 5/8-18 X 1.500 CSA / UL / ATEX
M219 5/8-18 X 3.500 CSA
M318 3/4-20 X 3.500 CSA
M319 5/8-18 x 3.500 CSA/ATEX



Hall-effect Sensors
霍尔效应传感器

霍尔效应传感器需要直流电源,工作速度低于0转/分。这些传感器有3个插脚,可接受标准的3插座MS型连接器。有两种型号。M806型号设计用于感应目标磁铁的北极或南极。该传感器是点火系统,需要从凸轮轴脉冲正确的点火正时。M951型设计用于检测黑色金属;齿轮齿、单个铁销或孔/键槽。任何一个传感器的输出都是一个数字方波,使其成为输入到PLC脉冲卡的选择。Hall-effect sensors require DC power and operate at speeds down to 0 RPM. These sensors have 3 pins that will accept a standard 3-socket MS style connector. There are two models available. The model M806 is designed to sense either the north or south pole of a target magnet. This sensor is ideal for ignition systems that require a pulse from the camshaft for proper ignition timing. The model M951 is designed to sense ferrous metal; either gear teeth, a single iron pin or hole/keyway. The output of either sensor is a digital square wave making them ideal for input to a PLC pulse card.

MODEL 型号 Thread size 螺纹尺寸 Supply input
5/8-18 X 4.500
8-32VDC
5/8-18 X 4.500
8-32VDC



- DYNALCO Magnetic Pickups/Speed Sensors 磁性传感器/速度传感器



Dynalco电磁传感器和速度传感器

Dynalco于1968年成立,初提供三种产品,目标是为石油和天然气行业生产工程解决方案。如今,Dynalco已成为全球行业的领导者,以其在石油和天然气,化工,电力,船舶和建筑行业中使用的高质量仪器和控制装置而闻名。2011年10月,Dynalco被其姊妹公司Barksdale,Inc.收购,现已成为Barksdale品牌家族的一部分。返回Dynalco主要产品页面。





有源(有源)-普通区域
有源(有源)-危险
被动(可变磁阻)-普通区域
被动(可变磁阻)-危险区域
速度感应配件

M321系列
M321高灵敏度传感器
多种螺纹尺寸和长度
被动(可变磁阻)-危险区域
高灵敏度(小速度> 300 RPM)

数据表
Dynalco M321资料表

磁性拾音器
批准书
M321 ATEX证书
M321 IECEx证书
安装手册
M321安装说明





M134-6
M134-6电磁传感器/速度传感器
5 / 8-18 x 6“-2针

被动(可变磁阻)-普通区域

标准灵敏度(小速度> 500 RPM)




数据表
Dynalco M134-6-5 / 8-18 x 6“-2针数据表

磁性拾音器

M185
M185电磁传感器/速度传感器
5/8-18 x 4" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

Ultra-High Sensitivity (min. Speed < 300 RPM)







Datasheets
Dynalco M185 - 5/8-18 x 4" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M184
M184电磁传感器/速度传感器
5/8-18 x 2.5" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

Ultra-High Sensitivity (min. Speed < 300 RPM)






Datasheets
Dynalco M184 - 5/8-18 x 2.5" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M183-6
M183-6电磁传感器/速度传感器
5/8-18 x 6" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

High Sensitivity (min. Speed > 300 RPM)







Datasheets
Dynalco M183-6 - 5/8-18 x 6" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M183
M183电磁传感器/速度传感器
5/8-18 x 2.5" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

High Sensitivity (min. Speed > 300 RPM)







Datasheets
Dynalco M183 - 5/8-18 x 2.5" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M180
M180电磁传感器/速度传感器
5/8-18 x 1.5" - 30" Leads

Passive (Variable Reluctance) - Hazardous Area

High Sensitivity (min. Speed > 300 RPM)


Magnetic Pickup look-up
Magnetic Pickups/Speed Sensors
Active (Powered) Magnetic Pickups
Passive (Variable Reluctance) Magnetic Pickups
Ordinary Area
Hazardous Area
M101 - 5/8-18 x 1.125” - 2 Pin
M101-6 - 5/8-18 x 6” - 2 Pin
M104-6 - 3/4-20 x 1.875”- 30” Leads
M107 - 5/8-18 x 1.125” - 2 Pin - Power Source
M131 - 5/8-18 x 4” - 2 Pin
M131-6 - 5/8-18 x 6” - 2 Pin
M134-6 - 5/8-18 x 6” - 2 Pin
M137 - 3/8-24 x 1.250” - 6” Leads - Miniature, Gear <2”
M104 - 3/4-20 x 1.875”- 30” Leads
M134 - 5/8-18 x 1.125” - 2 Pin
C101 Magnetic Pickup/Speed Sensor 2-Pin Cable/
Connector Assembly
C910 Magnetic Pickup/Speed Sensor 3-Pin Cable/
Connector Assembly
M102 - 5/8-18 x 1.125” - 2 Pin
M133 - 5/8-18 x 4” - 2 Pin
M138 - 3/8-24 x 1.250” - 6” Leads - Miniature, Gear <2”
M155 - 5/8-18 x 1.125” - 2 Pin - Low Drag, flow meter
M155-6 - 5/8-18 x 6” - 2 Pin - Low Drag, flow meter
M140 - 3/4-20 x 1.875” -30” Leads
M180 - 5/8-18 x 1.5” - 30” Leads
M202 - 5/8-18 x 1.125” - 2 Pin
M142 - 5/8-18 x 1.125” - 2 Pin
M184 - 5/8-18 x 2.5” - 2 Pin
M185 - 5/8-18 x 4” - 2 Pin
M203 - 5/8-18 x 4” - 2 Pin - Zener-Limited
Standard Sensitivity (min. Speed > 500 RPM)
Standard Sensitivity (min. Speed > 500 RPM)
High Sensitivity (min. Speed > 300 RPM)
High Sensitivity (min. Speed > 300 RPM)
Ultra-High Sensitivity (min. Speed < 300 RPM)
Ultra-High Sensitivity (min. Speed < 300 RPM)
Ordinary Area
M928 - 5/8-18 x 2.5” - 3 Pin
TTL Output Source Tracking
Hazardous Area
M920 Series
Zero Speed Hall-Effect Sensors
M143 - 10-32 x 0.875” - 14” Leads - Miniature, Gear <2”
M151 - 5/8-18 x 2.5” - 2 Pin
M183-6-N - No Header, #20, 12” Leads
M189 - 5/8-18 x 2.5” - 2 Pin
M192 - 5/8-18 x 4” - 72” Leads
M304 - 3/4-16 x 4” - 2 Pin
M320 - M18 x 1.5 - 2 Pin
M343 - 3/4-20 x 2” - 6 Pin - Dual output (Bi directional)
M135 - 5/8-18 x 4” - 2 Pin
M139 - 3/4-20 x 2” - 2 Pin
M354 - M16 x 1.5 - 17” cable
M356 - 3/4-16 x 2” - 17” cable - Power Source
M367 - M16 x 1.5 - 10” cable
M332 - 5/8-18 x 2.5” - 2 Pin
M193 - 5/8-18 x 4” - 72” Leads
M306 - REF. 800-13041
M201 - 5/8-18 x 1.125” - 2 Pin
M231 - 5/8-18 x 4” - 2 Pin
M168 - 5/8-18 x 1.75” - 12” Leads
M183 - 5/8-18 x 2.5” - 2 Pin
M183-6 - 5/8-18 x 6” - 2 Pin
M202-6 - 5/8-18 x 6” - 2 Pin
M207 - 3/4-16 x 4” - 2 Pin - Power Source
M219 - 5/8-18 x 3.5” - 15’ Leads
M233 - 5/8-18 x 4” - 2 Pin
M318 - 3/4-20 x 3.5” - 30” Leads
M203-6 - 5/8-18 x 6” - 2 Pin - Zener-Limited
M204-6 - 5/8-18 x 6” - 2 Pin - Zener-Limited
M205-6 - 5/8-18 x 6” - 2 Pin - Zener-Limited
M233-6 - 5/8-18 x 6” - 2 Pin
M303 - 5/8-18 x 1.125” - 2 Pin
M334 - 3/8-24 x 1.25” - 12’ cable - Miniature, Gear <2”
M321 -
M208 - 3/4-16 x 4” - 2 Pin - Power Source
M281 - M16 x 1.5 - 2 Pin
C917 Magnetic Pickup/Speed Sensor 6-Pin Cable/
Connector Assembly
PG-100 Pulser
M319 - 5/8-18 x 3.5”- 30” Leads
M337 - 5/8-18 x 6” - 30” Leads
TT-100 Tach Tape
ISB-101 Intrinsically Safe Barrier (Hazardous Area)
M928-24 - 5/8-18 x 2.5” - 3 Pin
M806 - 5/8-18 x 4.5” - 3 Pin
M951 - 5/8-18 x 4.5” - 3 Pin
Zero Speed Hall-Effect Sensors
M919-3-25 - 5/8-18 x 2.5” - 3 Pin
M919-3-25 - 5/8-18 x 2.5” - 3 Pin
M919-3-45 - 5/8-18 x 4.5” - 3 Pin
M204 - 5/8-18 x 2.5” - 2 Pin - Zener-Limited M205 - 5/8-18 x 4” - 2 Pin - Zener-Limited
Speed Sensing Accessories

C101 Magnetic Pickup/Speed Sensor 2-Pin Cable/Connector Assembly
C910 Magnetic Pickup/Speed Sensor 3-Pin Cable/Connector Assembly
C917 Magnetic Pickup/Speed Sensor 6-Pin Cable/Connector Assembly
PG-100 Pulser
TT-100 Tach Tape
ISB-101 Intrinsically Safe Barrier (Hazardous Area)







Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Dynalco M180/ M319 Magnetic Pickup/Speed Sensor ATEX Approval
Datasheets
Dynalco M180 - 5/8-18 x 1.5" - 30" Leads Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M168
M168电磁传感器/速度传感器
5/8-18 x 1.75" - 12" Leads

Passive (Variable Reluctance) - Ordinary Area

High Sensitivity (min. Speed > 300 RPM)





Datasheets
Dynalco M168 - 5/8-18 x 1.75" - 12" Leads Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M928
M928-5 / 8-18 x 2.5
5/8-18 x 2.5" - 3 Pin

Active (Powered) - Ordinary Area

TTL Output Source Tracking





Datasheets
Dynalco M928 - 5/8-18 x 2.5" - 3 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M143
M143电磁传感器/速度传感器
10-32 x 0.875" - 14" Leads - Miniature, Gear <2"

Passive (Variable Reluctance) - Ordinary Area

Standard Sensitivity (min. Speed > 500 RPM)





Datasheets
Dynalco M143 - 10-32 x 0.875" - 14" Leads - Miniature, Gear <2" Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M151
M151电磁传感器/速度传感器
5/8-18 x 2.5" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

Standard Sensitivity (min. Speed > 500 RPM)







Datasheets
Dynalco M151 - 5/8-18 x 2.5" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M142
M142电磁传感器/速度传感器
5/8-18 x 1.125" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

Ultra-High Sensitivity (min. Speed < 300 RPM)





Datasheets
Dynalco M142 - 5/8-18 x 1.125" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M140
M140电磁传感器/速度传感器
3/4-20 x 1.875" -30" Leads

Passive (Variable Reluctance) - Hazardous Area

High Sensitivity (min. Speed > 300 RPM)




Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Datasheets
Dynalco M140 - 3/4-20 x 1.875" -30" Leads Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M139
M139电磁传感器/速度传感器
3/4-20 x 2" - 2 Pin

Passive (Variable Reluctance) - Hazardous Area

Standard Sensitivity (min. Speed > 500 RPM)




Approvals
Dynalco M135/ M139 Magnetic Pickup/Speed Sensor CSA Approval
Datasheets
Dynalco M139 - 3/4-20 x 2" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M138
M138电磁传感器/速度传感器
3/8-24 x 1.250" - 6" Leads - Miniature, Gear <2"

Passive (Variable Reluctance) - Ordinary Area

High Sensitivity (min. Speed > 300 RPM)




Datasheets
Dynalco M138 - 3/8-24 x 1.250" - 6" Leads - Miniature, Gear <2" Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M137
M137电磁传感器/速度传感器
3/8-24 x 1.250" - 6" Leads - Miniature, Gear <2"

Passive (Variable Reluctance) - Ordinary Area

Standard Sensitivity (min. Speed > 500 RPM)




Datasheets
Dynalco M137 - 3/8-24 x 1.250" - 6" Leads - Miniature, Gear <2" Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M135
M135电磁传感器/速度传感器
5/8-18 x 4" - 2 Pin

Passive (Variable Reluctance) - Hazardous Area

Standard Sensitivity (min. Speed > 500 RPM)




Datasheets
Dynalco M135 - 5/8-18 x 4" - 2 Pin Datasheets
Approvals
Dynalco M135/ M139 Magnetic Pickup/Speed Sensor CSA Approval
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M201
M201电磁传感器/速度传感器
5/8-18 x 1.125" - 2 Pin

Passive (Variable Reluctance) - Hazardous Area

Standard Sensitivity (min. Speed > 500 RPM)





Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Datasheets
Dynalco M201 - 5/8-18 x 1.125" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M133
M133电磁传感器/速度传感器
5/8-18 x 4" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

High Sensitivity (min. Speed > 300 RPM)




Datasheets
Dynalco M133 - 5/8-18 x 4" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M131-6
M131-6电磁传感器/速度传感器
5/8-18 x 6" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

Standard Sensitivity (min. Speed > 500 RPM)




Datasheets
Dynalco M131-6 - 5/8-18 x 6" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M131
M131电磁传感器/速度传感器
5/8-18 x 4" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

Standard Sensitivity (min. Speed > 500 RPM)




Datasheets
Dynalco M131 - 5/8-18 x 4" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M104
M104电磁传感器/速度传感器
3/4-20 x 1.875"- 30" Leads

Passive (Variable Reluctance) - Hazardous Area

Standard Sensitivity (min. Speed > 500 RPM)





Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Datasheets
Dynalco M104 - 3/4-20 x 1.875"- 30" Leads Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M102
M102 Magnetic Pickup/Speed Sensor
5/8-18 x 1.125" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

High Sensitivity (min. Speed > 300 RPM)




Datasheets
Dynalco M102 - 5/8-18 x 1.125" - 2 Pin Datasheets
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M101-6
M101-6 Magnetic Pickup/Speed Sensor
5/8-18 x 6" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

Standard Sensitivity (min. Speed > 500 RPM)




Datasheets
Dynalco M101-6 - 5/8-18 x 6" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

ISB-101
ISB-101
Intrinsically Safe Barrier (Hazardous Area)




Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Operating Manuals
Dynalco ISB-101 Intrinsically Safe Barrier (Hazardous Area)
Installation Manuals
Dynalco ISB-101 Intrinsically Safe Barrier (Hazardous Area) Installation Bulletin
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

C917
C917-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly
Magnetic Pickup/Speed Sensor 6-Pin Cable/Connector Assembly




Datasheets
Dynalco C917 Magnetic Pickup/Speed Sensor 6-Pin Cable/Connector Assembly Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

C910
C910-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly
Magnetic Pickup/Speed Sensor 3-Pin Cable/Connector Assembly





Datasheets
Dynalco C910 Magnetic Pickup/Speed Sensor 3-Pin Cable/Connector Assembly Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

C101
C101-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly
Magnetic Pickup/Speed Sensor 2-Pin Cable/Connector Assembly




Datasheets
Dynalco C101 Magnetic Pickup/Speed Sensor 2-Pin Cable/Connector Assembly Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M334
M334 Magnetic Pickup/Speed Sensor
3/8-24 x 1.25" - 12' cable - Miniature, Gear <2"

Passive (Variable Reluctance) - Ordinary Area

High Sensitivity (min. Speed > 300 RPM)






Datasheets
Dynalco M334 Magnetic Pickup/Speed Sensor Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M318
M318 Magnetic Pickup/Speed Sensor
3/4-20 x 3.5" - 30" Leads

Passive (Variable Reluctance) - Hazardous Area

High Sensitivity (min. Speed > 300 RPM)





Datasheets
Dynalco M318 - 3/4-20 x 3.5" - 30" Leads Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up
Approvals
Dynalco SPD-100/SPD-108/M219/M318/M319 CSA Approval

M920 Series
M920 Zero Speed Hall-Effect Sensors
Multiple Thread Sizes and Lengths

Active (Powered) - Hazardous Area

Zero Speed Hall-Effect Sensors







Datasheets
Dynalco M920 Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up
Approvals
M920 ATEX Certificate
M920 IECEx Certificate
Installation Manuals
M920 Installation Instructions

M319
M319
5/8-18 x 3.5"- 30" Leads

Passive (Variable Reluctance) - Hazardous Area

High Sensitivity (min. Speed > 300 RPM)




Approvals
Dynalco M180/ M319 Magnetic Pickup/Speed Sensor ATEX Approval
Dynalco SPD-100/SPD-108/M219/M318/M319 CSA Approval
Datasheets
Dynalco M319 - 5/8-18 x 3.5"- 30" Leads Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

TT-100
TT-100
Tach Tape






Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up
Datasheets
Dynalco TT-100 Tach Tape Datasheet and Manual

PG-100
PG-100
Pulser






Datasheets
Dynalco PG-100 Pulser Datasheet and Manual
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M155-6
M155-6 Magnetic Pickup/ Speed Sensor
5/8-18 x 6" - 2 Pin - Low Drag, flow meter

Passive (Variable Reluctance) - Ordinary Area

High Sensitivity (min. Speed > 300 RPM)








Datasheets
Dynalco M155-6 - 5/8-18 x 6" - 2 Pin - Low Drag, flow meter Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M343
M343 Magnetic Pickup/Speed Sensor
3/4-20 x 2" - 6 Pin - Dual output (Bi directional)

Passive (Variable Reluctance) - Ordinary Area

Standard Sensitivity (min. Speed > 500 RPM)






Datasheets
Dynalco M343 - 3/4-20 x 2" - 6 Pin - Dual output (Bi directional) Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M806
M806 - 5/8-18 x 4.5
5/8-18 x 4.5" - 3 Pin

Active (Powered) - Ordinary Area

Zero Speed Hall-Effect Sensors




Datasheets
Dynalco M806 - 5/8-18 x 4.5" - 3 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M928-24
M928-24 - 5/8-18 x 2.5
5/8-18 x 2.5" - 3 Pin

Active (Powered) - Ordinary Area

TTL Output Source Tracking






Datasheets
Dynalco M928-24 - 5/8-18 x 2.5" - 3 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M320
M320 Magnetic Pickup/Speed Sensor
M18 x 1.5 - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

Standard Sensitivity (min. Speed > 500 RPM)




Datasheets
Dynalco M320 - M18 x 1.5 - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M101
M101 Magnetic Pickup/Speed Sensor
5/8-18 x 1.125" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

Standard Sensitivity (min. Speed > 500 RPM)




Datasheets
Dynalco M101 - 5/8-18 x 1.125" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M107
M107 Magnetic Pickup/Speed Sensor
5/8-18 x 1.125" - 2 Pin - Power Source

Passive (Variable Reluctance) - Ordinary Area

Standard Sensitivity (min. Speed > 500 RPM)




Datasheets
Dynalco M107 - 5/8-18 x 1.125" - 2 Pin - Power Source Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M134
M134 Magnetic Pickup/Speed Sensor
5/8-18 x 1.125" - 2 Pin

Passive (Variable Reluctance) - Hazardous Area

Standard Sensitivity (min. Speed > 500 RPM)




Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Datasheets
Dynalco M134 - 5/8-18 x 1.125" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M155
M155 Magnetic Pickup/Speed Sensor
5/8-18 x 1.125" - 2 Pin - Low Drag, flow meter

Passive (Variable Reluctance) - Ordinary Area

High Sensitivity (min. Speed > 300 RPM)




Datasheets
Dynalco M155 - 5/8-18 x 1.125" - 2 Pin - Low Drag, flow meter Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M189
M189 Magnetic Pickup/Speed Sensor
5/8-18 x 2.5" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

Standard Sensitivity (min. Speed > 500 RPM)




Datasheets
Dynalco M189 - 5/8-18 x 2.5" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M202
M202 Magnetic Pickup/Speed Sensor
5/8-18 x 1.125" - 2 Pin

Passive (Variable Reluctance) - Hazardous Area

High Sensitivity (min. Speed > 300 RPM)




Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Datasheets
Dynalco M202 - 5/8-18 x 1.125" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M951
M951 - 5/8-18 x 4.5
5/8-18 x 4.5" - 3 Pin

Active (Powered) - Ordinary Area

Zero Speed Hall-Effect Sensors




Datasheets
Dynalco M951 Hall Effect Speed Sensor Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M304
M304 Magnetic Pickup/Speed Sensor
3/4-16 x 4" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

Standard Sensitivity (min. Speed > 500 RPM)






Datasheets
Dynalco M304 - 3/4-16 x 4" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M233-6
M233-6 Magnetic Pickup/Speed Sensor
5/8-18 x 6" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

High Sensitivity (min. Speed > 300 RPM)






Datasheets
Dynalco M233-6 - 5/8-18 x 6" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M233
M233 Magnetic Pickup/Speed Sensor
5/8-18 x 4" - 2 Pin

Passive (Variable Reluctance) - Hazardous Area

High Sensitivity (min. Speed > 300 RPM)




Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Datasheets
Dynalco M233 Magnetic Pickup/Speed Sensor Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M231
M231 Magnetic Pickup/Speed Sensor
5/8-18 x 4" - 2 Pin

Passive (Variable Reluctance) - Hazardous Area

Standard Sensitivity (min. Speed > 500 RPM)





Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Datasheets
Dynalco M231 - 5/8-18 x 4" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M219
M219 Magnetic Pickup/Speed Sensor
5/8-18 x 3.5" - 15' Leads

Passive (Variable Reluctance) - Hazardous Area

High Sensitivity (min. Speed > 300 RPM)





Datasheets
Dynalco M219 Magnetic Pickup/Speed Sensor Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up
Approvals
Dynalco SPD-100/SPD-108/M219/M318/M319 CSA Approval

M208
M208 Magnetic Pickup/Speed Sensor
3/4-16 x 4" - 2 Pin - Power Source

Passive (Variable Reluctance) - Ordinary Area

Ultra-High Sensitivity (min. Speed < 300 RPM)





Approvals
Dynalco M207/ M208 Magnetic Pickup/Speed Sensor CSA Approval
Datasheets
Dynalco M208 - 3/4-16 x 4" - 2 Pin - Power Source Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M207
M207 Magnetic Pickup/Speed Sensor
3/4-16 x 4" - 2 Pin - Power Source

Passive (Variable Reluctance) - Ordinary Area

High Sensitivity (min. Speed > 300 RPM)





Datasheets
Dynalco M207 - 3/4-16 x 4" - 2 Pin - Power Source Datasheet
Approvals
Dynalco M207/ M208 Magnetic Pickup/Speed Sensor CSA Approval
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M205-6
M205-6 Magnetic Pickup/Speed Sensor
5/8-18 x 6" - 2 Pin - Zener-Limited

Passive (Variable Reluctance) - Ordinary Area

Ultra-High Sensitivity (min. Speed < 300 RPM)





Datasheets
Dynalco M205-6 - 5/8-18 x 6" - 2 Pin - Zener-Limited Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M205
M205 Magnetic Pickup/Speed Sensor
5/8-18 x 4" - 2 Pin - Zener-Limited

Passive (Variable Reluctance) - Hazardous Area

Ultra-High Sensitivity (min. Speed < 300 RPM)





Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Datasheets
Dynalco M205 - 5/8-18 x 4" - 2 Pin - Zener-Limited Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M204-6
M204-6 Magnetic Pickup/Speed Sensor
5/8-18 x 6" - 2 Pin - Zener-Limited

Passive (Variable Reluctance) - Ordinary Area

Ultra-High Sensitivity (min. Speed < 300 RPM)







Datasheets
Dynalco M204-6 - 5/8-18 x 6" - 2 Pin - Zener-Limited Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M204
M204 Magnetic Pickup/Speed Sensor
5/8-18 x 2.5" - 2 Pin - Zener-Limited

Passive (Variable Reluctance) - Hazardous Area

Ultra-High Sensitivity (min. Speed < 300 RPM)





Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Datasheets
Dynalco M204 - 5/8-18 x 2.5" - 2 Pin - Zener-Limited Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M203-6
M202-6 Magnetic Pickup/Speed Sensor
5/8-18 x 6" - 2 Pin - Zener-Limited

Passive (Variable Reluctance) - Ordinary Area

Ultra-High Sensitivity (min. Speed < 300 RPM)





Datasheets
Dynalco M203-6 - 5/8-18 x 6" - 2 Pin - Zener-Limited Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M203
M203 Magnetic Pickup/Speed Sensor
5/8-18 x 6" - 30" Leads

Passive (Variable Reluctance) - Hazardous Area

Ultra-High Sensitivity (min. Speed < 300 RPM)





Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Datasheets
Dynalco M203 - 5/8-18 x 4" - 2 Pin - Zener-Limited Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up

M202-6
M202-6 Magnetic Pickup/Speed Sensor
5/8-18 x 6" - 2 Pin

Passive (Variable Reluctance) - Ordinary Area

High Sensitivity (min. Speed > 300 RPM)







Datasheets
Dynalco M202-6 - 5/8-18 x 6" - 2 Pin Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up


Barksdale Inc. – All rights reserved. | Data Protection | Imprint | Sitemap | Login

Pressure Temperature Level Flow Industrial Valves
Pressure switches, mechanical
Pressure switches, electronical
Transducer
Indication Instruments
Temperature switches, mechanical
Temperature switches, electronical
Temperature Transducer
Single Level Switches
Multi Level Switches
液位探头
旁路液位指示器
流量开关
流量传感器

- Dynalco Products - Speed Sensors速度传感器

M104 Magnetic Pickup/Speed Sensor
M131 Magnetic Pickup/Speed Sensor
M319 Magnetic Pickup/Speed Sensor
M204 Magnetic Pickup/Speed Sensor
M180 Magnetic Pickup/Speed Sensor
M343 Bi-Directional Magnetic Pickup
M101 Magnetic Pickup/Speed Sensor
M233 Magnetic Pickup/Speed Sensor
C101-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly
M133 Magnetic Pickup/Speed Sensor
M137 Magnetic Pickup/Speed Sensor
M134 Magnetic Pickup/Speed Sensor
M138 Magnetic Pickup/Speed Sensor
M135 Magnetic Pickup/Speed Sensor
M139 Magnetic Pickup/Speed Sensor
M202 Magnetic Pickup/Speed Sensor
M334 Magnetic Pickup/Speed Sensor
M107 Magnetic Pickup/Speed Sensor

- DYNALCO Magnetic Pickups/Speed Sensors

Product
Description
M101   MAGNETIC PICKUP: standard sensitivity and reach
M102   MAGNETIC PICKUP: high sensitivity, standard reach
M131   MAGNETIC PICKUP: standard sensitivity, long reach
M133   MAGNETIC PICKUP: high sensitivity, long reach
M142   MAGNETIC PICKUP: ultra-high sensitivity, standard reach
M151   MAGNETIC PICKUP: standard sensitivity, medium reach
M155   MAGNETIC PICKUP: turbine flow meter, low drag
M168   MAGNETIC PICKUP: high sensitivity, standard reach
M183   MAGNETIC PICKUP: high sensitivity, medium reach
M184   MAGNETIC PICKUP: ultra-high sensitivity, medium reach
M185   MAGNETIC PICKUP: ultra-high sensitivity, long reach
M189   MAGNETIC PICKUP: standard sensitivity, medium reach
M343   MAGNETIC PICKUP: bi-directional sensor for DST-2000C



M104   MAGNETIC PICKUP: explosion-proof housing, UL/CSA approved
M134   MAGNETIC PICKUP: intrinsically safe, standard reach
M135   MAGNETIC PICKUP: intrinsically safe, long reach
M139   MAGNETIC PICKUP: intrinsically safe, medium reach
M140   MAGNETIC PICKUP: explosion-proof housing
M180   MAGNETIC PICKUP: explosion-proof housing, ATEX/CSA approved
M201   MAGNETIC PICKUP: intrinsically safe, standard reach
M202   MAGNETIC PICKUP: intrinsically safe, standard reach
M203   MAGNETIC PICKUP: intrinsically safe, power zener, long reach
M204   MAGNETIC PICKUP: intrinsically safe, power zener, medium reach
M205   MAGNETIC PICKUP: intrinsically safe, power zener, long reach
M231   MAGNETIC PICKUP: intrinsically safe, long reach
M233   MAGNETIC PICKUP: intrinsically safe, long reach
M318   MAGNETIC PICKUP: explosion-proof housing, CSA approved
M319   MAGNETIC PICKUP: explosion-proof housing, ATEX/CSA approved



M107   MAGNETIC PICKUP: power source, standard sensitivity, standard reach
M163   MAGNETIC PICKUP: power source, blind end
M207   MAGNETIC PICKUP: power source, low impedance
M208   MAGNETIC PICKUP: power source, long reach



M801   MAGNETIC PICKUP: Hall effect, active sensor, near zero velocity
M802   MAGNETIC PICKUP: Hall effect, active sensor, near zero velocity,

60 inch leads

M928   MAGNETIC PICKUP: zero velocity, active sensor, TTL output



M137   MAGNETIC PICKUP: miniature housing, standard sensitivity
M138   MAGNETIC PICKUP: miniature housing, high sensitivity
M143   MAGNETIC PICKUP: miniature housing, 14 inch leads



C101-10   PICKUP CABLE ASSEMBLIES: for passive, magnetic pickups, 2-pin, 10 feet (3.048 m), minimum.
C910-10   PICKUP CABLE ASSEMBLIES: for active magnetic pickups, 3-pin, 10 feet (3.048 m), minimum.
C917-10   PICKUP CABLE ASSEMBLIES: for active magnetic pickups, 6-pin, 10 feet (3.048 M), mimimum.
HTM-801   TARGET MAGNET ASSEMBLY: target magnet assemblies for Hall effect pickups



- DYNALCO Magnetic Pickups/Speed Sensors

C101-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly
Cable/connector assembly for 2-pin magnetic pickups, shielded, straight clamp, MS 3106A-10SL-4S c..
C910-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly
C910-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly
Cable/connector assembly for 3-pin active magnetic pickups, shielded, straight clamp, MS 3106A-10..
C917-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly
C917-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly
Cable/connector assembly for M343 bi-directional magnetic pickup, shielded, 6-pin, 10 feet ..
M101 Magnetic Pickup/Speed Sensor
M101 Magnetic Pickup/Speed Sensor
This standard magnetic pickup has standard sensitivity which makes it best suited for high speed ..
M102 Magnetic Pickup/Speed Sensor
M102 Magnetic Pickup/Speed Sensor
This standard magnetic pickup has high sensitivity which makes it good for mid-speed (300 to 50..
M104 Magnetic Pickup/Speed Sensor
M104 Magnetic Pickup/Speed Sensor
This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environmen..
M107 Magnetic Pickup/Speed Sensor
M107 Magnetic Pickup/Speed Sensor
This standard magnetic pickup can power other instruments. It has standard sensitivity, standard ..
M131 Magnetic Pickup/Speed Sensor
M131 Magnetic Pickup/Speed Sensor
This standard magnetic pickup has standard sensitivity long reach (4.000inches) and a 5/8-18 thre..
M133 Magnetic Pickup/Speed Sensor
M133 Magnetic Pickup/Speed Sensor
This highly sensitivity magnetic pickup is well suited for lower speed (300 to 500 rpm) applicati..
M134 Magnetic Pickup/Speed Sensor
M134 Magnetic Pickup/Speed Sensor
This intrinsically-safe, low-output magnetic pickup has a standard reach (1.125 inches), 5/8-18 t..
M135 Magnetic Pickup/Speed Sensor
M135 Magnetic Pickup/Speed Sensor
This intrinsically safe magnetic pickup has a long reach(4.000 inches), 5/8-18 thread, and is CSA ap..
M137 Magnetic Pickup/Speed Sensor
M137 Magnetic Pickup/Speed Sensor
This miniature magnetic pickup has standard sensitivity which is appropriate for higher speed (&g..
M138 Magnetic Pickup/Speed Sensor
M138 Magnetic Pickup/Speed Sensor
This miniature magnetic pickup is highly sensitive which makes it appropriate for lower speed (30..
M139 Magnetic Pickup/Speed Sensor
M139 Magnetic Pickup/Speed Sensor
The low output of this magnetic pickup makes it intrinsically safe and CSA approved. It has a medium..
M140 Magnetic Pickup/Speed Sensor
M140 Magnetic Pickup/Speed Sensor
This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environmen..
M142 Magnetic Pickup/Speed Sensor
M142 Magnetic Pickup/Speed Sensor
This standard magnetic pickup is ultra-sensitive making it appropriate for low speed (less than 3..
M143 Magnetic Pickup/Speed Sensor
M143 Magnetic Pickup/Speed Sensor
This magnetic pickup has a micro-miniature housing and 14 inch leads. Its housing length is a sho..
M151 Magnetic Pickup/Speed Sensor
M151 Magnetic Pickup/Speed Sensor
This standard magnetic pickup has standard sensitivity which makes it appropriate for higher spee..
M155 Magnetic Pickup/Speed Sensor
M155 Magnetic Pickup/Speed Sensor
This special magnetic pickup is a low drag, flow meter sensor with thread x thread length x housi..
M168 Magnetic Pickup/Speed Sensor
M168 Magnetic Pickup/Speed Sensor
This highly sensitive magnetic pickup is perfect for lower speed (300 to 500 rpm), larger gear (&..
M180 Magnetic Pickup/Speed Sensor
This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environmen..
M183 Magnetic Pickup/Speed Sensor
M183 Magnetic Pickup/Speed Sensor
This highly sensitive magnetic pickup makes it good for mid-speed (300 to 500 rpm), larger gear (..
M184 Magnetic Pickup/Speed Sensor
M184 Magnetic Pickup/Speed Sensor
This ultra-sensitive magnetic pickup is perfect for low speed (<300 rpm), larger gear (>2 i..
M185 Magnetic Pickup/Speed Sensor
M185 Magnetic Pickup/Speed Sensor
This ultra-sensitive magnetic pickup is perfect for low speed (<300 rpm), larger gear (>2 i..
M189 Magnetic Pickup/Speed Sensor
M189 Magnetic Pickup/Speed Sensor
This standard magnetic pickup has standard sensitivity which makes it appropriate for high speed ..
M201 Magnetic Pickup/Speed Sensor
M201 Magnetic Pickup/Speed Sensor
The low output of this standard magnetic pickup makes it intrinsically safe and CSA approved for ..
M202 Magnetic Pickup/Speed Sensor
M202 Magnetic Pickup/Speed Sensor
The low output of this magnetic pickup makes it intrinsically safe and CSA approved for use in ha..
M203 Magnetic Pickup/Speed Sensor
M203 Magnetic Pickup/Speed Sensor
The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It..
M204 Magnetic Pickup/Speed Sensor
M204 Magnetic Pickup/Speed Sensor
The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It..
M205 Magnetic Pickup/Speed Sensor
M205 Magnetic Pickup/Speed Sensor
The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It..
M207 Magnetic Pickup/Speed Sensor


ISB-101 Magnetic Pickup/Speed Sensor
INTRINSIC SAFETY BARRIER: Energy limiting device for magnetic pickups, CSA Class I, Division 1, G..
M101-6 Magnetic Pickup/Speed Sensor
M101-6 Magnetic Pickup/Speed Sensor
Magnetic Pickup: standard sensitivity and extra long reach This standard magnetic pickup has ..
M131-6 Magnetic Pickup/Speed Sensor
M131-6 Magnetic Pickup/Speed Sensor
Magnetic Pickup: standard sensitivity and extra long reach This standard magnetic pickup has ..
M134-6 Magnetic Pickup/Speed Sensor
M134-6 Magnetic Pickup/Speed Sensor
Magnetic Pickup: intrinsically safe, extra long reach This intrinsically-safe, low-output mag..
M155-6 Magnetic Pickup/Speed Sensor
M155-6 Magnetic Pickup/Speed Sensor
Magnetic Pickup: turbine flow meter, low drag and extra long reach This special ma..
M183-6 Magnetic Pickup/Speed Sensor
M183-6 Magnetic Pickup/Speed Sensor
Magnetic Pickup: high sensitivity, extra long reach This highly sensitive magnetic pickup mak..
M202-6 Magnetic Pickup/Speed Sensor
M202-6 Magnetic Pickup/Speed Sensor
Magnetic Pickup: intrinsically safe, extra long reach The low output of this magnetic pickup ..
M203-6 Magnetic Pickup/Speed Sensor
M203-6 Magnetic Pickup/Speed Sensor
Magnetic Pickup: intrinsically safe, power zener extra long reach The zener-limited output of..
M204-6 Magnetic Pickup/Speed Sensor
M204-6 Magnetic Pickup/Speed Sensor
Magnetic Pickup: intrinsically safe, power zener, extra long reach The zener-limited output o..
M205-6 Magnetic Pickup/Speed Sensor
M205-6 Magnetic Pickup/Speed Sensor
Magnetic Pickup: intrinsically safe, power zener, extra long reach The zener-limited output o..
M320 Magnetic Pickup/Speed Sensor
M320 Magnetic Pickup/Speed Sensor
This metric thread magnetic pickup has standard sensitivity which makes it best suited for high s..
M334 Magnetic Pickup/Speed Sensor
M334 Magnetic Pickup/Speed Sensor
This miniature magnetic pickup is highly sensitive which makes it appropriate for lower speed (300 t..
M928-24 Magnetic Pickup/Speed Sensor
M928-24 Magnetic Pickup/Speed Sensor
This active magnetic pickup is a 24 VDC version of the standard model M928, with a digital TTL outpu..
M233-6 Magnetic Pickup/Speed Sensor
M233-6 Magnetic Pickup/Speed Sensor
Magnetic Pickup: high sensitivity, intrinsically safe, extra long reach The low output ..

M207 Magnetic Pickup/Speed Sensor
This magnetic pickup can power other instruments. It produces output even at low speed (300 to 50..
M208 Magnetic Pickup/Speed Sensor
M208 Magnetic Pickup/Speed Sensor
This magnetic pickup can power other instruments. It has high sensitivity which produces output e..
M219 Magnetic Pickup/Speed Sensor
M219 Magnetic Pickup/Speed Sensor
The explosion-proof housing on this magnetic pickup makes it intrinsically safe and CSA approved ..
M231 Magnetic Pickup/Speed Sensor
M231 Magnetic Pickup/Speed Sensor
The low output of this magnetic pickup makes it intrinsically safe and CSA approved. It has a lon..
M233 Magnetic Pickup/Speed Sensor
M233 Magnetic Pickup/Speed Sensor
The low output of this magnetic pickup makes it intrinsically safe and CSA approved. It has a lon..
M304 Magnetic Pickup/Speed Sensor
M304 Magnetic Pickup/Speed Sensor
This standard magnetic pickup has a standard sensitivity which makes it suitable for high speed (..
M318 Magnetic Pickup/Speed Sensor
M318 Magnetic Pickup/Speed Sensor
This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environmen..
M319 Magnetic Pickup/Speed Sensor
M319 Magnetic Pickup/Speed Sensor
This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environmen..
M343 Bi-Directional Magnetic Pickup
M343 Bi-Directional Magnetic Pickup
This special magnetic pickup is for exclusive use with DST-2000C, a direction-sensing tachometer. Th..
M928 Magnetic Pickup/Speed Sensor
M928 Magnetic Pickup/Speed Sensor
This active magnetic pickup has digital TTL output suitable for zero velocity applications.

Product Name



M155-6 Magnetic Pickup/Speed Sensor -- M155-6 Magnetic Pickup: turbine flow meter, low drag and extra long reach This special magnetic pickup is a low drag flow meter sensor with extra-long 6 inch threaded housing
M233-6 Magnetic Pickup/Speed Sensor -- M233-6 Magnetic Pickup: high sensitivity, intrinsically safe, extra long reach The low output of this magnetic pickup makes it intrinsically safe and CSA approved. It has an extra-long 6 inch threaded...
M134-6 Magnetic Pickup/Speed Sensor -- M134-6 Magnetic Pickup: intrinsically safe, extra long reach This intrinsically-safe, low-output magnetic pickup has an extra-long 6 inch threaded housing and is CSA approved. Most CSA-certified pickups retain that approval only...
M101-6 Magnetic Pickup/Speed Sensor -- M101-6 Magnetic Pickup: standard sensitivity and extra long reach This standard magnetic pickup has standard sensitivity which makes it best suited for high speed (>500 rpm), large gear (>12 inch diam.)...
M183-6 Magnetic Pickup/Speed Sensor -- M183-6 Magnetic Pickup: high sensitivity, extra long reach This highly sensitive magnetic pickup makes it good for mid-speed (300 to 500 rpm), larger gear (>2 inch diam.) applications. It has...
M202-6 Magnetic Pickup/Speed Sensor -- M202-6 Magnetic Pickup: intrinsically safe, extra long reach The low output of this magnetic pickup makes it intrinsically safe and CSA approved for use in hazardous areas. It has an...
M203-6 Magnetic Pickup/Speed Sensor -- M203-6 Magnetic Pickup: intrinsically safe, power zener extra long reach The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low...
M204-6 Magnetic Pickup/Speed Sensor -- M204-6 Magnetic Pickup: intrinsically safe, power zener, extra long reach The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low...
M131-6 Magnetic Pickup/Speed Sensor -- M131-6 Magnetic Pickup: standard sensitivity and extra long reach This standard magnetic pickup has standard sensitivity with extra-long 6 inch threaded housing.
ISB-101 Magnetic Pickup/Speed Sensor -- ISB-101 INTRINSIC SAFETY BARRIER: Energy limiting device for magnetic pickups, CSA Class I, Division 1, Groups C & D. The ISB-101 is designed to be used in a safe area to...
M205-6 Magnetic Pickup/Speed Sensor -- M205-6 Magnetic Pickup: intrinsically safe, power zener, extra long reach The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low speed...
M219 Magnetic Pickup/Speed Sensor -- M219 The explosion-proof housing on this magnetic pickup makes it intrinsically safe and CSA approved to operate in high temperature environments. It has a long reach (3.50 inches) and 5/8-18 thread.
M202 Magnetic Pickup/Speed Sensor -- M202 The low output of this magnetic pickup makes it intrinsically safe and CSA approved for use in hazardous areas. It has a standard reach (1.125 inches) and a 5/8-18 thread.
M231 Magnetic Pickup/Speed Sensor -- M231
M233 Magnetic Pickup/Speed Sensor -- M233 The low output of this magnetic pickup makes it intrinsically safe and CSA approved. It has a long reach (4.000 inches) and a 5/8-18 thread. Most CSA-certified pickups retain that...
M139 Magnetic Pickup/Speed Sensor -- M139 The low output of this magnetic pickup makes it intrinsically safe and CSA approved. It has a medium reach (2.000 inches) and a 3/4-20 thread. Most CSA-certified pickups retain that...
M201 Magnetic Pickup/Speed Sensor -- M201 The low output of this standard magnetic pickup makes it intrinsically safe and CSA approved for use in hazardous areas. It has a standard reach (1.125 inches) and 5/8-18 thread.
M203 Magnetic Pickup/Speed Sensor -- M203 The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low speed (<300 RPM), has a long reach 4.000 inches) and...
M205 Magnetic Pickup/Speed Sensor -- M205 The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low speed (<300 rpm), larger gear (>2 inch diam. applications. It...
M204 Magnetic Pickup/Speed Sensor -- M204 The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low speed (<300 rpm), larger gear (>2 inch diam.) applications. It...
M928 Magnetic Pickup/Speed Sensor -- M928 This active magnetic pickup has digital TTL output suitable for zero velocity applications. It has a medium reach (2.500 inches) and a 5/8-18 thread. For complete details call a customer...
M928-24 Magnetic Pickup/Speed Sensor -- M928-24 This active magnetic pickup is a 24 VDC version of the standard model M928, with a digital TTL output suitable for zero velocity applications. It has a medium reach (2.500...
M951 Hall Effect Magnetic Pickup/Speed Sensor -- M951 This hall effect sensor is designed to sense ferrous material (gear teeth, hole or pin) for speed measurement down to zero-speed. The digital output is compatible with most PLC input...
M806 Hall Effect Magnetic Pickup/Speed Sensor -- M806 This hall effect sensor is designed to sense the presence of either the north or south pole of a target magnet. Applications are typically cam reference signal for industrial ignition...
M168 Magnetic Pickup/Speed Sensor -- M168 This highly sensitive magnetic pickup is perfect for lower speed (300 to 500 rpm), larger gear (>2 inch diam.) applications. It has a 1.75" housing length, 5/8-18 thread and includes...
M183 Magnetic Pickup/Speed Sensor -- M183 This highly sensitive magnetic pickup makes it good for mid-speed (300 to 500 rpm), larger gear (>2 inch diam.) applications. It has a medium reach (2.500 inches) and a 5/8-18...
M133 Magnetic Pickup/Speed Sensor -- M133 This highly sensitivity magnetic pickup is well suited for lower speed (300 to 500 rpm) applications. It has long reach(4.000inches) and 5/8-18 thread.
M135 Magnetic Pickup/Speed Sensor -- M135 This intrinsically safe magnetic pickup has a long reach(4.000 inches), 5/8-18 thread, and is CSA approved. Most CSA-certified pickups retain that approval only when used as part of a specific...
M134 Magnetic Pickup/Speed Sensor -- M134 This intrinsically-safe, low-output magnetic pickup has a standard reach (1.125 inches), 5/8-18 thread and is CSA approved. Most CSA-certified pickups retain that approval only when used as part of a...
M208 Magnetic Pickup/Speed Sensor -- M208 This magnetic pickup can power other instruments. It has high sensitivity which produces output even at low speed (<300 rpm), larger gear (>2 inch diam.) applications. It has a long...
M207 Magnetic Pickup/Speed Sensor -- M207 This magnetic pickup can power other instruments. It produces output even at low speed (300 to 500 rpm) applications. It also has a long reach (4.000 inches), a 3/4-16 thread...
M143 Magnetic Pickup/Speed Sensor -- M143 This magnetic pickup has a micro-miniature housing and 14 inch leads. Its housing length is a short 0.875 inches and has a 10-32 thread. It is appropriate for small gear...
M104 Magnetic Pickup/Speed Sensor -- M104 This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It has a medium reach (1.875 inches) and 3/4-20 thread. It is UL/CSA approved for...
M319 Magnetic Pickup/Speed Sensor -- M319 This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It is a sensitive pickup suitable for mid-speed applications (300 to 500 rpm). It has...
M318 Magnetic Pickup/Speed Sensor -- M318 This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It is a sensitive pickup which makes it suitable for mid-speed (300 to 500 rpm)...
M140 Magnetic Pickup/Speed Sensor -- M140 This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It is intended for standard temperature, lower speed (300 to 500 rpm) applications. It has...
M180 Magnetic Pickup/Speed Sensor -- M180 This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It is suited for use in standard temperature, mid speed (300 to 500 rpm), larger...
M320 Magnetic Pickup/Speed Sensor -- M320 This metric thread magnetic pickup has standard sensitivity which makes it best suited for high speed (>500 rpm), large gear (>12 inch diam.) applications. It has a 51 mm reach...
M137 Magnetic Pickup/Speed Sensor -- M137 This miniature magnetic pickup has standard sensitivity which is appropriate for higher speed (>500 rpm), small gear(less than 2 inch diameter) applications. It has a housing length of 1.250 inches...
M138 Magnetic Pickup/Speed Sensor -- M138
M334 Magnetic Pickup/Speed Sensor -- M334 This miniature magnetic pickup is highly sensitive which makes it appropriate for lower speed (300 to 500 rpm), small gear (less than 2 inch diam.) applications. Its housing is 1.25...
M155 Magnetic Pickup/Speed Sensor -- M155 This special magnetic pickup is a low drag, flow meter sensor with thread x thread length x housing length = 5/8-18x1.125T x 2.250L.
M107 Magnetic Pickup/Speed Sensor -- M107 This standard magnetic pickup can power other instruments. It has standard sensitivity, standard reach (1.125 inches), and a 5/8-18 inch thread.
M304 Magnetic Pickup/Speed Sensor -- M304 This standard magnetic pickup has a standard sensitivity which makes it suitable for high speed (>500 rpm) applications. It has a long reach (5.125 inches) and a 3/4-16 thread.
M102 Magnetic Pickup/Speed Sensor -- M102 This standard magnetic pickup has high sensitivity which makes it good for mid-speed (300 to 500 rpm), large gear (>12 inch diam.) applications. It has a standard reach (1.125inches) and...
M131 Magnetic Pickup/Speed Sensor -- M131 This standard magnetic pickup has standard sensitivity long reach (4.000inches) and a 5/8-18 thread.
M189 Magnetic Pickup/Speed Sensor -- M189 This standard magnetic pickup has standard sensitivity which makes it appropriate for high speed (>500 rpm), larger gear (>2 inch diam.) applications. It has a medium reach (2.500 inches) and...
M151 Magnetic Pickup/Speed Sensor -- M151 This standard magnetic pickup has standard sensitivity which makes it appropriate for higher speed (>500 rpm), larger gear(greater than 2 inch diam.)applications. This pickup has a medium reach (2.500 inches)and...
M101 Magnetic Pickup/Speed Sensor -- M101 This standard magnetic pickup has standard sensitivity which makes it best suited for high speed (>500 rpm), large gear (>12 inch diam.) applications. It has a standard reach (1.125inches) and...
M142 Magnetic Pickup/Speed Sensor -- M142 This standard magnetic pickup is ultra-sensitive making it appropriate for low speed (less than 300 rpm), larger gear(greater than 2 inch diam.)applications. It has a standard reach (1.125inches) and 5/8-18...
M185 Magnetic Pickup/Speed Sensor -- M185 This ultra-sensitive magnetic pickup is perfect for low speed (<300 rpm), larger gear (>2 inch diam.) applications. It has a long reach (4.000 inches) and a 5/8-18 thread.
M184 Magnetic Pickup/Speed Sensor -- M184 This ultra-sensitive magnetic pickup is perfect for low speed (<300 rpm), larger gear (>2 inch diam.) applications. It has a medium reach (2.500 inches) and a 5/8-18 thread.

如果需要技术咨询、产品询价、下单和索要产品技术资料,请与我们联络010-84282935。






美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology


地址:北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编:100102
电话:010-8428 2935, 8428 9077, 8428 3983
手机:139 101 22694
Http://www.cnmec.biz
E-mail:sales@cnmec.biz
传真:010-8428 8762

京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
