Dynalco M319 Magnetic Pickup/Speed Sensor传感器
Dynalco M319 Magnetic Pickup/Speed Sensor电磁感应速度传感器

Download Info:

Dynalco M319 Data Sheet
Dynalco M319 Agency Approval (CSA)
Dynalco M319 Agency Approval (ATEX)

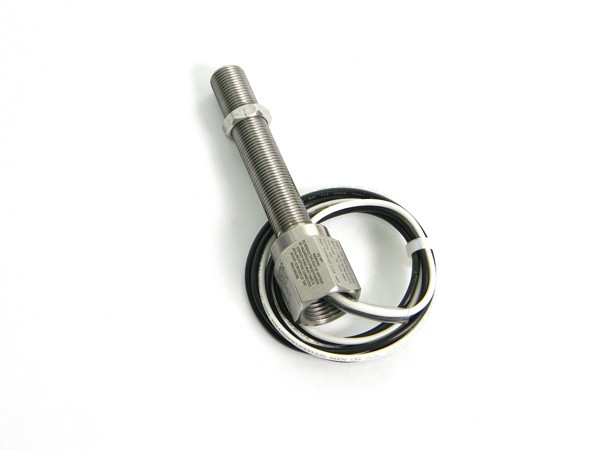

Dynalco M319 Magnetic Pickup/Speed Sensor电磁感应速度传感器

Product Code: M319

Description

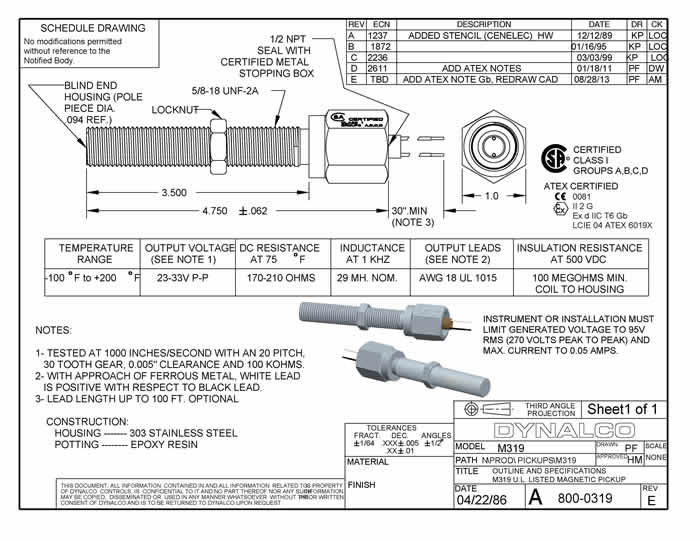

这种电磁感应速度传感器有一个防爆外壳，非常适合在危险环境中使用。它是一种适用于中速应用（300至500转/分）的灵敏传感器。它有一个很长的长度（3.500英寸）和5/8-18螺纹。This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It is a sensitive pickup suitable for mid-speed applications (300 to 500 rpm). It has a long reach (3.500 inches) and 5/8-18 thread.

大多数经CSA认证的皮卡仅在用作特定认证系统或组件的一部分时保留该认证。UL和一些经CSA批准的拾音器可用于任何仪器。Most CSA-certified pickups retain that approval only when used as part of a specific certified system or assembly. UL and some CSA approved pickups may be used with any instrumentation.
