DynalcoM321 magnetic pickup sensor IECEx 批准的磁性拾音器/速度传感器



该标准可变磁阻 IECEx 批准的磁性拾音器具有标准灵敏度,使其最适合速度 > 300 rpm、大齿轮(> 12 英寸直径)。它可以选择螺纹长度、螺纹类型(公制和英制)和电气连接。

IECEx Ex mb IIC 和 Ex ia IIC 双重认证
ATEX认证



M321系列描述

多种螺纹尺寸和长度
无源(可变磁阻)-危险区域
高灵敏度(最低速度 > 300 RPM)

该磁性拾音传感器通过了 ATEX 和 IECEx 认证,可用于危险区域:Ex mb(1、2 区)和 Ex ia(0、1、2 区)。它是一款灵敏的拾音器,适用于中速应用(最低 300 至 500 rpm)、较大齿轮(> 2 英寸直径)应用。M321 具有 UNF2A 和 M(公制)型多种螺纹尺寸,螺纹长度从 1.875" 到 6"。

300 系列不锈钢外壳完全采用危险区域级环氧树脂封装,内部没有气隙,这使得它在危险区域使用时可靠、坚固且绝对安全。



下载





M321 IECEx Approved Magnetic Pickup / Speed Sensor

This standard variable reluctance IECEx approved magnetic pickup has standard sensitivity which makes it best suited for speeds >300 rpm, large gear (>12 inch diam.). It has a choice of threaded lengths, thread type (Metrix and imperial) and electrical connections.

Dual approval for IECEx Ex mb IIC and Ex ia IIC



M321 Series
Description
Multiple Thread Sizes and Lengths
Passive (Variable Reluctance) - Hazardous Area
High Sensitivity (min. Speed > 300 RPM)

This magnetic pickup sensor is ATEX and IECEx approved for use in hazardous areas: Ex mb (Zone 1, 2) and Ex ia (Zone 0, 1, 2). It is a sensitive pickup suitable for mid-speed applications (300 to 500 minimum rpm), larger gear (>2 inch diam) applications. M321 has multiple thread sizes of UNF2A and M (metric) type, and thread lengths from 1.875” to 6”.

The 300 series Stainless Steel housing is fully potted with hazardous area rated epoxy resin with no air gap inside, which makes it a reliable, robust and absolutely safe for use in Hazardous areas.


M321 Series M321 High Sensitivity Sensors Multiple Thread Sizes and Lengths Passive (Variable Reluctance) - Hazardous Area High Sensitivity (min. Speed > 300 RPM)



MAGNETIC PICKUP WITH HAZARDOUS AREA APPROVAL

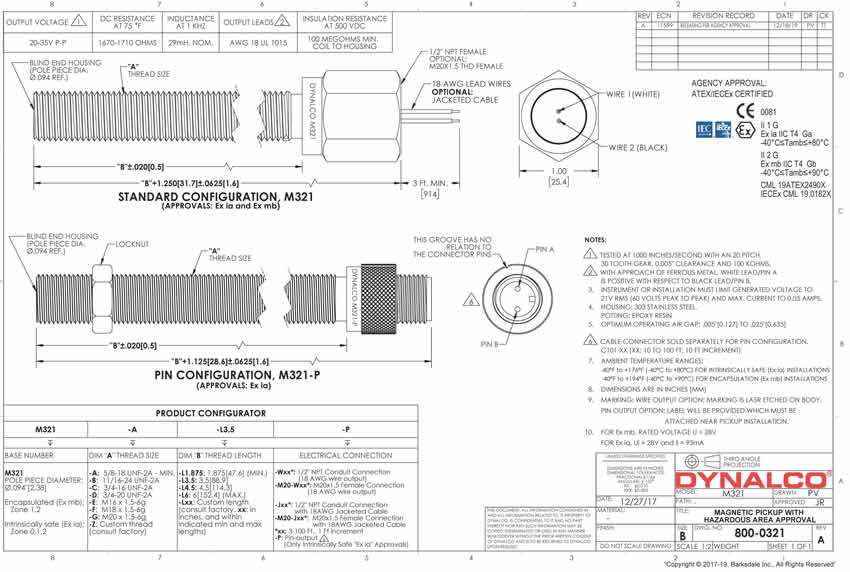

图纸
