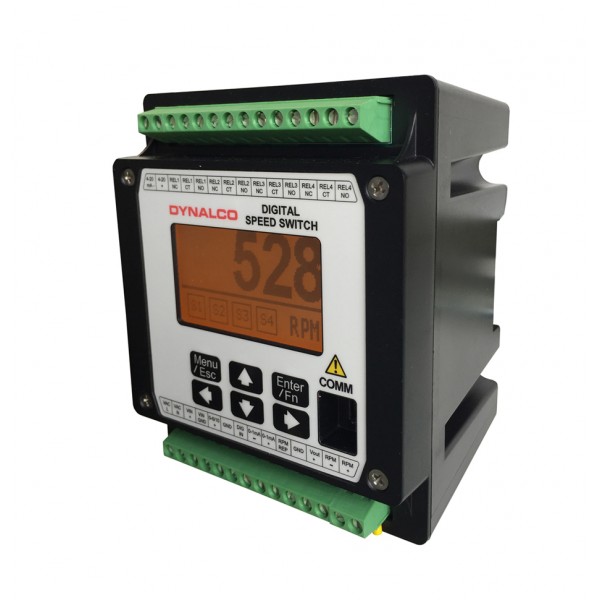

Dynalco SST-7400D Digital Speed Switch
SST-7400D Digital Speed Switch 数显速度开关

工业发动机、涡轮机械和泵的速度测量和超速保护仪表



技术资料下载:

Dynalco SST-7200 / 7200D / 7400 / 7400D Data Sheet
Dynalco SST-7200D / 7400D Manual

Product Code: SST-7400D


产品简介:

Dynalco SST-7400D是一个可编程的PC,安装在DIN轨道上的速度开关,具有显示和键盘编程功能。它有4个标准继电器,通过提供可靠的欠速/超速保护来保护旋转设备免受故障的影响。SST-7200(D)和SST-7400(D)接受脉冲输入,并提供4-20mA输出,该输出非常精确和稳定,温度变化代表本地面板仪表或PLC模拟输入卡的旋转机械速度。它们还提供2个“SST-7200(D)”和4个“SST-7400(D)”快速继电器对超速/低速条件的响应。应用范围包括工业发动机、涡轮机械和泵的速度测量和超速保护。Dynalco SST-7400D is a PC-programmable, DIN rail mounted speed switch with display and keypad programmability. It has 4 standard relays to protect your rotating equipment from failure by providing reliable under/over speed protection

Dynalco SST-7200 / 7200D / 7400 / 7400D Digital Speed Switch Data Sheet
产品技术资料 PDF Catalog下载





SST-7200, SST-7400 SST-7200D & SST-7400D Product Data Sheet
Instrumentation & Controls Speed Switch / Transmitter

- 接受2线或3线制速度传感器
- 0-50 KHz输入频率范围
- 4–20毫安输出(隔离)
- 0–5/0–10 VDC线性输出
- 50毫秒继电器响应时间
- 2或4 SPDT继电器
- 拾取感测失败(打开)
- 方波中继器输出
- 10–36伏直流输入电源
- 可用输入隔离变压器
- PC可通过USB端口编程
- 前键盘可编程(适用于带LCD显示屏的机型)
-– I后缀:
电源的隔离转速输入
300伏以上峰值接地
-– AC后缀(适用于带LCD显示屏的机型): VAC L/VAC N端子使用的交流电源电压(见电气规范)



DYNALCO SST-7200(D)和SST-7400(D)接受脉冲输入,并提供4-20mA输出,该输出非常精确和稳定,温度变化代表本地面板仪表或PLC模拟输入卡的旋转机械速度。它们还提供2个“SST-7200(D)”和4个“SST-7400(D)”快速继电器对超速/低速条件的响应。应用范围包括工业发动机、涡轮机械和泵的速度测量和超速保护。SST-7200(D) & SST-7400(D) accept a pulsed input and provide a 4-20 mA output that is very accurate and stable with temperature changes representing speed of rotating machinery for a local panel meter or PLC analog input card. They also provide 2 “SST-7200(D)” and 4 “SST-7400(D)” quick relay responses to over/under speed conditions. Applications include speed measurement & overspeed protection of industrial engines, turbomachinery and pumps.

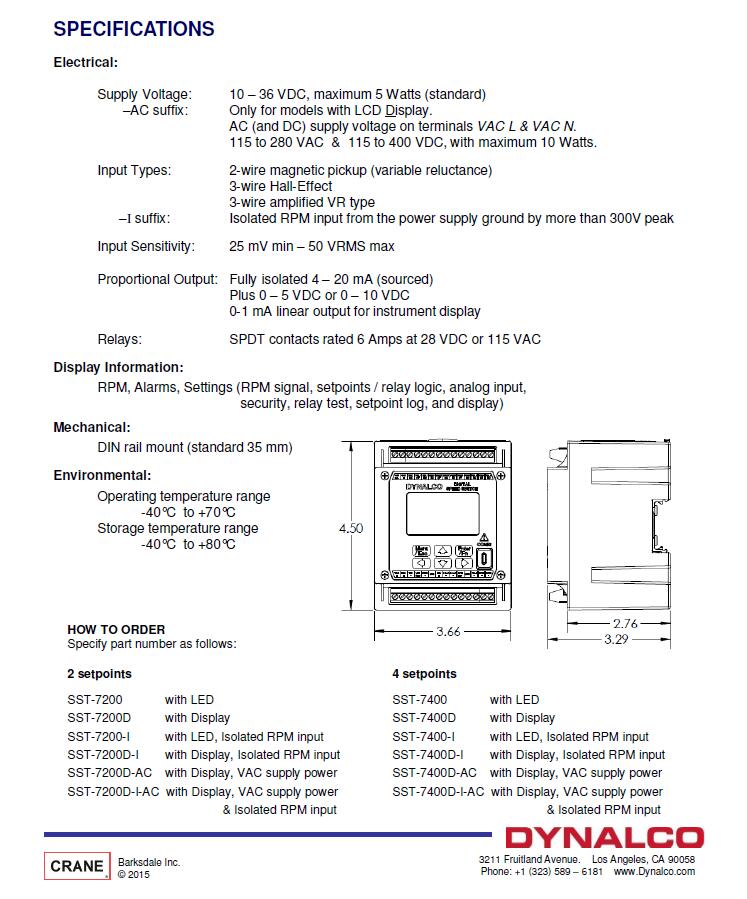

规格参数

电气:

电源电压:10至36伏直流电,5瓦(标准)
–AC后缀:仅适用于带LCD显示屏的型号。
端子上的交流(和直流)电源电压VAC L和VAC N。
115至280伏交流电和115至400伏直流电,10瓦。
输入类型:2线制磁性拾波器(可变磁阻)
三线霍尔效应
三线放大VR型
–I后缀:电源接地的隔离转速输入超过300V峰值
输入灵敏度:25 mV–50 VRMS
比例输出:完全隔离4–20毫安(来源)
加上0–5伏直流电或0–10伏直流电
仪表显示0-1毫安线性输出
继电器:额定电流为6安培、电压为28伏直流电或115伏交流电的单刀双掷触点


显示信息:
转速、警报、设置(转速信号、设定点/继电器逻辑、模拟输入、安全、继电器测试、设定点日志和显示)

机械: 导轨安装(标准35 mm)

环境的:

工作温度范围 :-40°C至+70°C
储存温度范围:-40°C至+80°C



订货指导:
Specify part number as follows:

2 setpoints
SST-7200 with LED
SST-7200D with Display
SST-7200-I with LED, Isolated RPM input
SST-7200D-I with Display, Isolated RPM input
SST-7200D-AC with Display, VAC supply power
SST-7200D-I-AC with Display, VAC supply power & Isolated RPM input

4 setpoints
SST-7400 with LED
SST-7400D with Display
SST-7400-I with LED, Isolated RPM input
SST-7400D-I with Display, Isolated RPM input
SST-7400D-AC with Display, VAC supply power
SST-7400D-I-AC with Display, VAC supply power & Isolated RPM input


资料下载:

Declaration of Conformity - SST7000 Series (EN)
SST-7000 Series Digital Speed Switch/Transmitter/Repeater Host Software (EN)

Dynalco SST-7000 Series Digital Speed Switch/Transmitter/Repeater CSA Approval (EN)
Dynalco SST-7200 & SST-7400 Manual (EN)
Dynalco SST-7000 & SST-7100 Manual (EN)
Dynalco SST-7200D & SST-7400D Manual (EN)
Dynalco SST-7000 Series Digital Speed Switch/Transmitter/Repeater Datasheet (EN)
