UHP PFA手动隔膜（1/2英寸）三通阀– MV-11系列
Parker PFA阀 - Parker PFA Valves

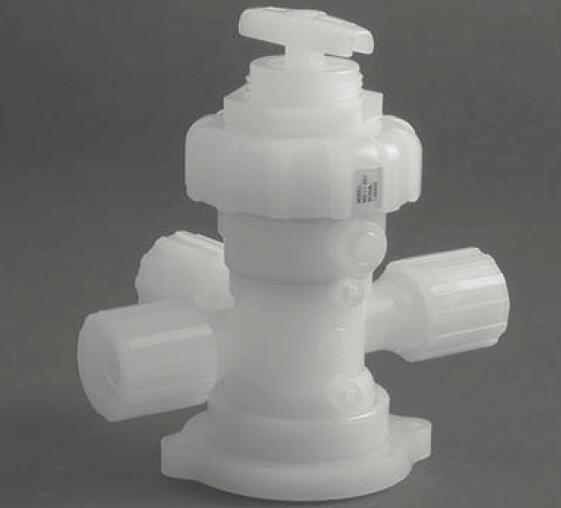

UHP PFA Manual Diaphragm (1/2 inch) 3 Way Valve – MV-11 Series

MV-11系列PFA阀具有很高的泄漏完整性和出色的耐腐蚀性。它具有三通配置，专为超高纯度UHP和腐蚀性液体应用（最高100 psig）而设计。MV-11系列是1/2英寸PFA手动隔膜阀，设计用于超高纯度（UHP）和腐蚀性气体和液体处理系统，包括半导体制造操作。该阀具有三通配置，并采用模制的PFA阀体和精密加工的密封区域，具有出色的泄漏完整性和耐化学性。使用多位置安装基座时，三向配置可提高安装灵活性并减少连接器装配，从而使其在可使用空间有限的区域具有优势。MV-11系列PFA阀具有涂有氟聚合物的不锈钢弹簧，可减少腐蚀性环境的影响，并确保与各种腐蚀性工艺介质的兼容性。该阀还配备了一件式机器改进的PTFE隔膜，与传统的PTFE相比，它具有更长的循环寿命。为了提高灵活性，MV-11系列阀门可以安装多种口径配置，包括Parflare和Pargrip管件。这些配件减少了组装时间和安装成本，同时确保了密封性，以确保清洁度至关重要的应用中的可靠性。MV-11系列阀门的榫槽密封确保了膜片与阀体的密封性，从而延长了使用寿命。其完整的1/2英寸孔口在紧凑的包装中提供了最大的流量。流容量取决于端口大小和配置类型（最高3.7 Cv）。MV-11系列PFA阀门具有潜水选项，可将组件与外部环境隔离，并允许该阀门在潮湿或气态腐蚀性环境中运行时保持功能。

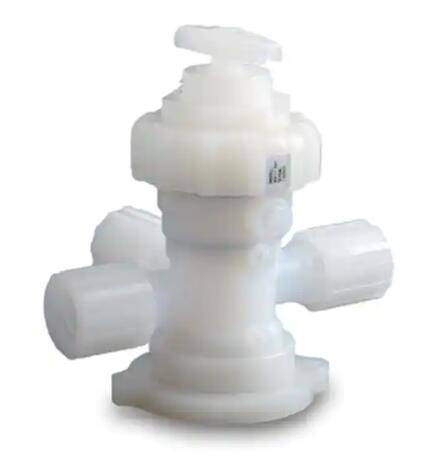

UHP PFA Manual Diaphragm (1/2 inch) 3 Way Valve – MV-11 Series

The MV-11 Series PFA Valve offers high leak integrity and excellent resistance to corrosion. It is available in 3-way configurations and is designed for ultra-high purity (UHP) and aggressive fluid applications (up to 100 psig). The MV-11 Series is a 1/2 inch PFA manual diaphragm valve that is designed for use in ultra-high purity (UHP) and aggressive gas and liquid handling systems, including semiconductor manufacturing operations. The valve is available in 3-way configurations and utilizes a molded PFA body with precision-machined sealing areas for superior leak integrity and chemical resistance. With a multi-position mounting base, the 3-way configuration allows for increased mounting flexibility and connector fitting reduction, making it advantageous in areas where workable space is limited. The MV-11 Series PFA valve features a Fluoropolymer-coated stainless steel spring which reduces the effects of corrosive environments and ensures compatibility with a wide range of aggressive process media. The valve is also equipped with a one-piece machine modified PTFE diaphragm, which provides higher cycle life when compared to conventional PTFE. For increased flexibility, MV-11 Series valves can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings. The fittings reduce assembly time and installation costs, while ensuring a leak-tight seal for reliability in applications where cleanliness is critical. The tongue and groove seal of the MV-11 Series valve ensures a positive diaphragm to body seal, resulting in high cycle life. Its full 1/2 inch orifice offers maximum flow capability in a compact package. Flow capacities vary depending on port size and configuration type (up to 3.7 Cv). The MV-11 Series PFA valve is available with a submergible option, which isolates components from the external environment and allows the valve to remain functional while operating in wet or gaseous corrosive environments.

UHP PFA Manual Diaphragm (1/2 inch) 3 Way Valve – MV-11 Series

市场：

- 半导体
- 分析实验室
- 制药
- 生物制药
- 航空航天
- 工业

功能/优点：

- 出色的泄漏完整性
- 改性的PTFE膜片和含氟聚合物涂层的不锈钢弹簧提供高循环寿命和出色的耐腐蚀性能
- 3通配置可用
- 可以与包括Parflare和Parbond管接头在内的多种端口配置配合使用
- 提供完整的1/2英寸孔紧凑的包装中具有最大的流量能力
- 真空至100 psig时 具有全功能- 环境温度范围：0°F至+ 150°F（-17°C至+ 66°C）
- 流体温度范围：0°F至+266 °F（-17°C到+ 130°C）

应用：
- 腐蚀性和特种气体
- 半导体工具
- 工具连接器
- 阀歧管（VMB）

Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- Excellent leak integrity
- Modified PTFE diaphragm and Fluoropolymer-coated stainless steel spring provide high cycle life and exceptional resistance to corrosion
- Available in 3-way configuration
- Can be fitted with a variety of port configurations, including Parflare and Parbond tube fittings
- Full ? inch orifice provides maximum flow capability in a compact package
- Fully functional from vacuum to 100 psig
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +266° F (-17°C to +130° C)

Applications:
- Corrosive and specialty gases
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMBs)

Technical Specifications

UHP PFA Manual Diaphragm (1/2 inch) 3 Way Valve – MV-11 Series 型号
