UHP PFA手动隔膜（1/4英寸）三通阀– MV-10系列手动隔膜
Parker PFA阀 - Parker PFA Valves

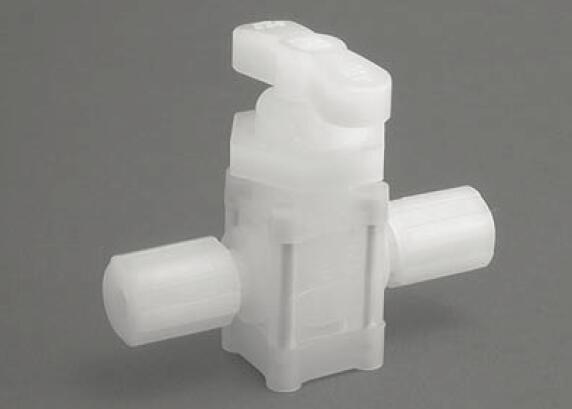

UHP PFA Manual Diaphragm (1/4 inch) 3 Way Valve – MV-10 Series

MV-10系列PFA手动阀具有很高的泄漏完整性和出色的耐腐蚀性。它具有三通配置，专为超高纯度UHP和腐蚀性流体应用（最高80 psig）而设计。MV-10系列是1/4英寸手动操作的PFA隔膜阀，设计用于超高纯度（UHP）和腐蚀性气体和液体处理系统，包括那些在半导体制造和清洁区域应用中看到的系统。该阀具有三通配置，并采用模制的PFA阀体和精密加工的密封区域，具有出色的泄漏完整性和耐化学性。MV-10系列配备了一件式的改性PTFE隔膜，具有出色的柔韧性和高循环寿命，可降低更换成本并减少停机时间。它还具有含氟聚合物涂层的不锈钢弹簧，可减少腐蚀性环境的影响，并与多种工艺介质兼容。根据客户要求，MV-10系列阀门可以安装多种口径配置，包括Parflare和Pargrip管件。这些配件减少了组装和安装时间，同时确保了密封性，以确保清洁度至关重要的应用中的性能。

MV-10系列PFA阀的严格设计可控制阀座和隔膜的应力，从而提供可靠且免维护的使用寿命。它的榫槽密封确保了隔膜与阀体之间的可靠密封，从而最大程度地减少了颗粒截留和隔离工艺介质。该阀具有一个完整的1/4英寸孔口，在最高80 psig的工作压力下没有最大流量的限制。流量范围为0.20 – 0.62，具体取决于端口大小和配置。MV-10是1/4圈操作的，具有可拆卸的手柄，可防止篡改，从而无需单独的锁定装置。

UHP PFA Manual Diaphragm (1/4 inch) 3 Way Valve – MV-10 Series

The MV-10 Series PFA Manual Valve offers high leak integrity and excellent resistance to corrosion. It is available in 3-way configurations and is designed for ultra-high purity (UHP) and aggressive fluid applications (up to 80 psig).

The MV-10 Series is a 1/4 inch manually operated PFA diaphragm valve that is designed for use in ultra-high purity (UHP) and aggressive gas and liquid handling systems, including those seen in semiconductor manufacturing and clean-area applications. The valve is available in 3-way configurations and utilizes a molded PFA body with precision-machined sealing areas for superior leak integrity and chemical resistance.

The MV-10 Series is equipped with a one-piece modified PTFE diaphragm, which provides excellent flexibility and high cycle life for lower replacement costs and less downtime. It also features a Fluoropolymer-coated stainless steel spring, which reduces the effects of corrosive environments and enables compatibility with a wide range of process media. Depending on customer requirements, MV-10 Series valves can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings. The fittings reduce assembly and installation time, while ensuring a leak-tight seal for performance in applications where cleanliness is critical.

The MV-10 Series PFA valve's exacting design controls seat and diaphragm stresses to provide a reliable and maintenance-free service life. Its tongue and groove seal ensures a positive diaphragm to body seal, resulting in minimal particle entrapment and isolation of process media. The valve features a full 1/4 inch orifice with no restrictions for maximum flow at working pressures up to 80 psig. Flow capacities range from 0.20 – 0.62 depending on port size and configuration.

The MV-10 is 1/4 turn operated and has a removable handle for tamper resistance, which eliminates the requirement for a separate lockout device.

市场：
- 半导体
- 分析实验室
- 制药
- 生物制药
- 航空航天
- 工业

特性/优点：
- 出色的泄漏完整性
- 改性的PTFE隔膜和涂有氟聚合物的不锈钢弹簧可提供较高的循环寿命和出色的耐腐蚀性
- 额定压力范围为正负，从真空至80 psig
- 3向配置
- 可以配备多种端口配置，包括Parflare和Pargrip管配件
- 1/4圈，可移动手柄，可防止篡改
- 环境温度范围：0°F至+ 150°F（-17°C至+ 66° C）
- 流体温度范围：0°F至+ 266°F（-17°C至+ 130°C）

应用：
- 腐蚀性和特种气体
- 半导体工具
- 工具连接
- 阀汇流箱（VMB）

Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- Excellent leak integrity
- Modified PTFE diaphragm and Fluoropolymer-coated stainless steel spring provide high cycle life and exceptional resistance to corrosion
- Pressure rated in both forwards and backwards direction from vacuum to 80 psig
- Available in 3-way configurations
- Can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings
- 1/4 turn operated with removable handle for tamper resistance
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +266° F (-17°C to +130° C)

Applications:
- Corrosive and specialty gases
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMBs)

Technical Specifications

UHP PFA Manual Diaphragm (1/4 inch) 3 Way Valve – MV-10 Series 型号
