Parker Autoclave 的 BTV 系列瓶阀

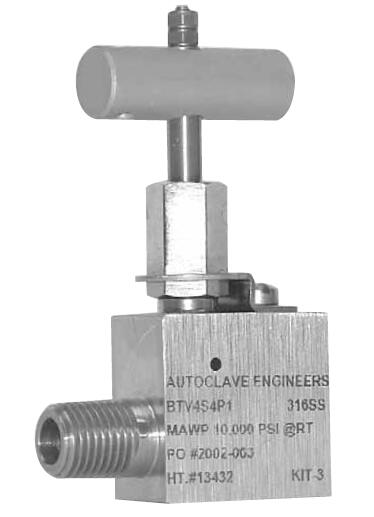

Bottle Valve, BTV Series - 15,000 PSI

Parker 瓶阀，BTV 系列 - 15,000 PSI | #BTV4B2L2

Parker Autoclave 的 BTV 系列瓶阀设计有外螺纹 NPT 螺纹入口连接，从 1/8" 到 1/2" NPT。这些紧凑的棒料阀与样品瓶和钢瓶一起用于远程采样。Parker Autoclave 的 BTV 系列瓶阀是紧凑型取样阀，设计用于压力高达 15,000 PSI (1034 BAR)。提供五种不同的体型以满足任何采样应用。为了在恶劣条件下提供更长的循环寿命，这些阀门具有不旋转的阀杆以防止阀座磨损。这些瓶阀使用经过验证的 Speed Bite 连接。这种单套圈压缩套筒连接可在液体或气体服务中提供快速、简便的组装和可靠的气密性能。

Bottle Valve, BTV Series - 15,000 PSI

市场：
- 石油和天然气
- 石化
- 研究

特点/优势：
- BTV 系列阀门设计提供从 1/8" 到 1/2" NPT 的外螺纹入口连接。
- NPT 或低压管中的出口连接至 1/4"。
- 上升的把立/杆身设计。
- 非旋转阀杆可防止阀杆/阀座磨损。
- 金属对金属阀座可实现气密关闭、更长的阀杆/阀座寿命在磨料流中、更耐用的重复开/关循环和出色的耐腐蚀性。
- PTFE 封装填料提供可靠的阀杆和阀体密封。
- 选择了阀杆套筒和填料压盖材料以延长螺纹循环寿命并降低手柄扭矩。
- 可提供V 形阀杆尖端。
- 有五种体型可供选择。

应用：
- 样品瓶
- 测试系统
- 远程采样

Parker Autoclave's BTV Series bottle valve is designed with male NPT threaded inlet connections from 1/8" to 1/2" NPT. These compact, bar stock valves are to be used with sample bottles and cylinders for remote sampling.

Parker Autoclave's BTV Series bottle valves are compact, sampling valves designed for pressures up to 15,000 PSI (1034 BAR). Five different body patterns are provided to meet any sampling application. To provide extended cycle life in harsh conditions, these valves have a non-rotating stem to prevent seat galling.

These bottle valves use the proven Speed Bite connection. This single-ferrule compression sleeve connection delivers fast, easy make-up and reliable bubble-tight performance in liquid or gas service.

Markets:
- Oil and Gas
- Petrochemical
- Research


Features/Benefits:
- BTV Series valve design provides male inlet connections from 1/8" to 1/2" NPT.
- Outlet connections in NPT or Low Pressure tube to 1/4".
- Rising stem/bar stock body design.
- Non-rotating stem prevents stem/seat galling.
- Metal-to-metal seating achieves bubble-tight shut- off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Available with Vee stem tips.
- Available in five body patterns.


Applications:
- Sample Cylinders
- Testing Systems
- Remote Sampling

Technical Specifications

Bottle Valve, BTV Series - 15,000 PSI 型号
