Parker 针阀
Parker Needle Valves

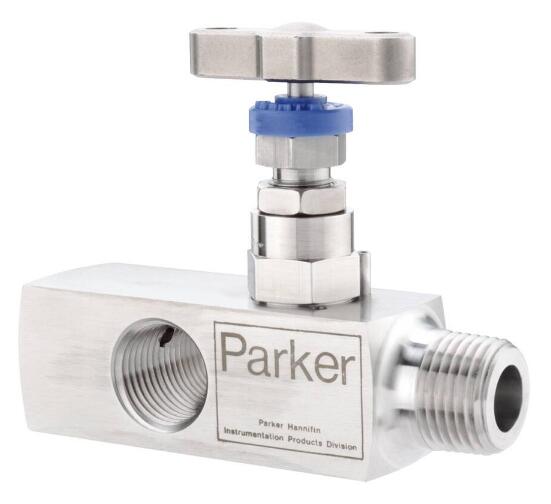

10,000 PSI Needle Valve - HGV Multi Port Series

Parker's multi-port gauge valves are purpose designed valves for operation up to 6,000 psig (414 bar) and 10,000 psig (689 bar).





Parker's Multi-port gauge valves are purpose designed valves for operation up to 6000 psig (414 bar) and 10000 psi (689 bar). Complete with standard PTFE gland packing and self centering none rotational tip gives the user assurance of bubble tight seat shut off. For gaseous application soft tipped optional seating is available. A wide variety of connector ends are offered for all types of installations. NACE compliance and oxygen clean are also available along with an extensive list of materials. Each valve has 3 female outlets giving the user optimum selection for instrument positioning and location.



10,000 PSI Needle Valve - HGV Multi Port Series



Features:
- Rolled spindle operating threads
- Stainless steel construction as standard
- PTFE packing standard, optional graphite
- Alternative tip and materials of construction available
- Self centering non rotating spindle tip for bubble tight shut off
- Colour coded functional identification
- Back stop spindle for blowout prevention and minimal atmospheric leakage
- Low torque operating T bar handle.
- Externally adjustable gland
- Base mount option
- Variety of end connections including integral compression one piece bodies
- Dust cap to prevent ingress of contamination to operating thread
- Bonnet locking pin fitted as standard



Technical Specifications

Inlet Connection Size: 1/2 (NPT), 3/4 (NPT) inch, Male
Outlet Connection Size: 3x 1/2 (NPT) inch, Female x 3
Materials of Construction: Stainless Steel, Monel, Duplex, Super Duplex, Hasteloy, Carbon Steel, 6Mo, Titanium, Incoloy 825, Incoloy 625
Flow Coefficient 1: 0.35 standard Cv
Maximum Operating Pressure: 6000, 10000 psi, 414, 689 bar
Minimum Operating Temperature: -54 °C, -65 °F
Maximum Operating Temperature: +538 °C, +1000 °F
Seat Material: Metal/metal seated
Packing Material: PTFE as standard, graphite optional
Valve Option: To order individual bleed valves and plugs contact factory
Product Series: HGV



10,000 PSI Needle Valve - HGV Multi Port Series 型号

Part Inlet Connection Inlet Size (inch) Outlet Connection Outlet Size (inch) Material Maximum Working Pressure (psi)
HGV62512 Male 3/4 NPT Female x 3 3 x 1/2 NPT Incoloy 625 6000
HGV6258 Male 1/2 NPT Female x 3 3 x 1/2 NPT Incoloy 625 6000
HGV6258HP Male 1/2 NPT Female x 3 3 x 1/2 NPT Incoloy 625 10000
HGV6MO12 Male 3/4 NPT Female x 3 3 x 1/2 NPT 6Mo 6000
HGV6MO8 Male 1/2 NPT Female x 3 3 x 1/2 NPT 6Mo 6000
HGV6MO8HP Male 1/2 NPT Female x 3 3 x 1/2 NPT 6Mo 10000
HGV82512 Male 3/4 NPT Female x 3 3 x 1/2 NPT Incoloy 825 6000
HGV8258 Male 1/2 NPT Female x 3 3 x 1/2 NPT Incoloy 825 6000
HGV8258HP Male 1/2 NPT Female x 3 3 x 1/2 NPT Incoloy 825 10000
HGVC12 Male 3/4 NPT Female x 3 3 x 1/2 NPT Carbon Steel 6000
HGVC8 Male 1/2 NPT Female x 3 3 x 1/2 NPT Carbon Steel 6000
HGVC8HP Male 1/2 NPT Female x 3 3 x 1/2 NPT Carbon Steel 10000
HGVD112 Male 3/4 NPT Female x 3 3 x 1/2 NPT Duplex 6000
HGVD18 Male 1/2 NPT Female x 3 3 x 1/2 NPT Duplex 6000
HGVD18HP Male 1/2 NPT Female x 3 3 x 1/2 NPT Duplex 10000
HGVD212 Male 3/4 NPT Female x 3 3 x 1/2 NPT Super Duplex 6000
HGVD28 Male 1/2 NPT Female x 3 3 x 1/2 NPT Super Duplex 6000
HGVD28HP Male 1/2 NPT Female x 3 3 x 1/2 NPT Super Duplex 10000
HGVHC12 Male 3/4 NPT Female x 3 3 x 1/2 NPT Hasteloy 6000
HGVHC8 Male 1/2 NPT Female x 3 3 x 1/2 NPT Hasteloy 6000
HGVHC8HP Male 1/2 NPT Female x 3 3 x 1/2 NPT Hasteloy 10000
HGVM12 Male 3/4 NPT Female x 3 3 x 1/2 NPT Monel 5000
HGVM8 Male 1/2 NPT Female x 3 3 x 1/2 NPT Monel 5000
HGVM8HP Male 1/2 NPT Female x 3 3 x 1/2 NPT Monel 9000
HGVS12 Male 3/4 NPT Female x 3 3 x 1/2 NPT Stainless Steel 6000
HGVS8 Male 1/2 NPT Female x 3 3 x 1/2 NPT Stainless Steel 6000
HGVS8HP Male 1/2 NPT Female x 3 3 x 1/2 NPT Stainless Steel 10000
HGVT12 Male 3/4 NPT Female x 3 3 x 1/2 NPT Titanium 6000
HGVT8 Male 1/2 NPT Female x 3 3 x 1/2 NPT Titanium 6000
HGVT8HP Male 1/2 NPT Female x 3 3 x 1/2 NPT Titanium 10000
