Parker HYNV series outside screw and yoke needle valves

Parker 针阀 - Parker Needle Valves
Parker Needle Valve (6,000 PSI) - HYNV Series外螺纹和轭式球形针阀

Parker HYNV series outside screw and yoke needle valves
针阀 (6,000 PSI) - HYNV 系列 | #HYNVS4FF

派克外螺纹和轭式球形针阀设计用于主要隔离应用，工作压力高达 6000 psi (414 bar)，可选 10000 psi (689 bar) 额定值，适用于石油和天然气加工行业的小口径仪表应用。派克的 HYNV 系列外螺纹和轭式针阀设计用于工作压力高达 6000 psi (414 bar) 和可选的 10000 psi (689 bar) 额定值的初级隔离应用。派克针阀配有标准石墨压盖填料，自定心非旋转尖端提供气密密封。对于气体应用，可提供软头可选座。为所有类型的安装提供各种连接器端，包括多端口根/主隔离服务。还提供 NACE 合规性和氧气清洁以及广泛的材料清单。

Parker HYNV series outside screw and yoke needle valves
PARKER Needle Valve (6,000 PSI) - HYNV Series

市场：
- 海上
石油和天然气
- 陆上石油和天然气- 石化
- 化工
- 发电

特点/优势：
- 符合 NACE
- 100% 可重复的气密关闭
- 可追溯加热代码
- 防火符合 BS 6755 第 2 部分和 API 607 标准，采用石墨填料。

应用：
- 过程到仪器接口
- 压力和流量测量
- 润滑撬
- 水处理
- 化学品注入撬
- 用于井口控制的液压系统
- 紧急关闭
- 泵组
- 气体增压系统
- 测试设备

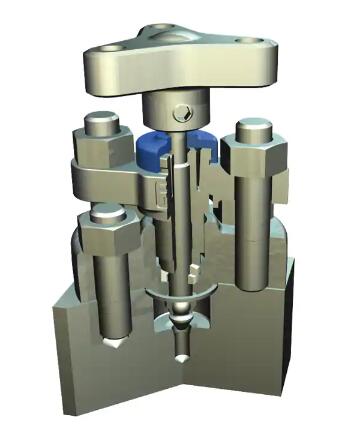

Parker HYNV series outside screw and yoke needle valves : Outside screw and yoke globe pattern needle valves designed for primary isolating applications operating up to 6000 psi (414 bar) with optional 10000 psi (689 bar) rating for small bore instrumentation applications in the oil and gas processing industry .Parker's HYNV series outside screw and yoke needle valves are designed for primary isolating applications operating up to 6000 psi (414 bar) with optional 10000 psi (689 bar) rating. The Parker needle valve is supplied complete with standard graphite gland packing and the self centering non rotational tip gives bubble tight sealing. For gaseous application soft tipped optional seating is available. A wide variety of connector ends are offered for all types of installations including multi-ported root/primary isolate service. NACE compliance and oxygen clean are also available along with an extensive list of materials.

Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical
- Power Generation

Features/Benefits:
- NACE compliant
- 100% repeatable bubble-tight shut-off
- Heat code traceable
- Firesafe to BS 6755 Part 2 and API 607 standard with graphite packing.

Applications:
- Process to instrument interface
- Pressure & Flow measurement
- Lubrication skids
- Water Treatment
- Chemical injection skids
- Hydraulic systems for wellhead control
- Emergency shut down
- Pumping packages
- Gas booster systems
- Test equipment

Technical Specifications

Needle Valve (6,000 PSI) - HYNV Series 型号
