Parker 提升式旋塞阀 - Rising Plug Valve, 10,000 PSI - H Series
派克Parker提升式旋塞阀，10000 PSI-H 系列 - Hand valves, Rising Plug – HRPV Series

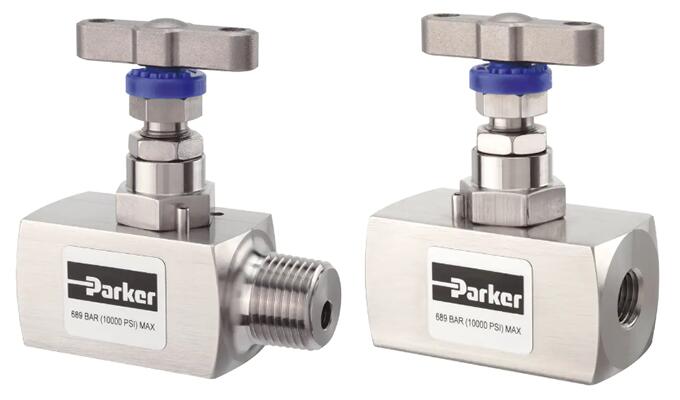

Parker bar stock rising plug hand valves

派克Parker这些高质量、高性能、低扭矩提升插头软阀座阀门被设计用于油气行业经常出现高污染液体的工艺中。派克H系列提升式旋塞阀针对高污染流体设计，有高稳定性，常应用于油气处理设施。该阀具有直通流型，并且标配有软PEEK阀座和PTFE压盖填料.由 316 不锈钢作为标配，适用于10000 PSI（689bar）压力，工作温度0?200℃（32?392°F）。阀杆配备有用于防漏气的止回阀，并且压盖可从外部调节.有两种模式可以选择，一种是"1/4"和"1/2"母 NPT 连接，另一种由"1/2"公母 NPT 连接.也可用于多端口测量仪式结构，具有"1/2"公 NPT 入口连接和三个1/2“母 NPT 出口连接。Parker's bar stock rising plug hand valves with soft seat tip and a straight through flow path, specifically designed for isolation and regulation of contaminated media. Pressure rating up to 10,000 psi (689 bar).

PARKER Rising Plug Valve, 10,000 PSI - H Series

市场:
- 海上油气
- 岸上油气
- 石油化工
- 化工行业

特点/优点:
- 高生命周期持续节能
- 与传统阀门相比重量减轻 30%
- 低工作转矩
- 集成端接

应用:
- 仪表线
- 液压动力装置
- 顶端控制终端单元

These unique, high quality, high performance, low torque rising plug soft-seated valves have been specifically designed to perform with fluids containing high levels of contamination frequently found in oil and gas processing facilities.

The Parker rising plug valve offers complete customer system compatibility that reduces installation time and potential leak paths. The rising plug valve operates a straight through flow path which is ideal for handling viscous fluids. The soft seat deign is tolerant of small particulates found in the media which ensures leak free operation once valve is closed - vital for system safety. Further safety features include the multi turn open and close function, with gradual opening ensuring safer operation that avoids sudden pressure surges, ultimately protecting the integrity of the system. The rising plug valve is rated to 10,000 PSI as standard, with range of end different connections, including Parker's two and single ferrule fittings. Retrofitting anti tamper devices, hand and locking wheels can all be achieved in the field.

Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Refining
- Petrochemical
- Chemical

Features / Benefits:
- Straight through flow path
- Soft seat design ensures leak free operation
- Gradual opening avoids pressure surges
- Integral ended connections saves installation time

Applications
- Lubrication skids
- Gas cylinder filling stations
- Instrumentation isolation lines

Technical Specifications

Rising Plug Valve, 10,000 PSI - H Series 型号
