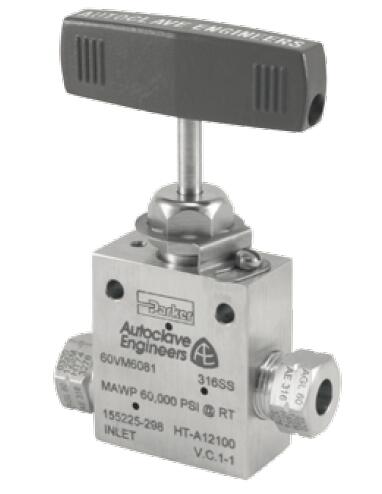

派克 Autoclave 100VM 系列针阀采用非旋转升杆设计，工作压力为 100,000 psi (6895 bar)，带有 1/4” 至 9/16”” 端接。这些阀门有 316 不锈钢材质和两种阀体样式。
派克 Autoclave 100VM 系列针阀采用非旋转升降杆设计，工作压力高达 100,000 psi (6895 bar)。管道尺寸范围从 1/4” 到 9/16”。管道连接采用派克 Autoclave 锥体和螺纹设计。带有 PTFE 填料的标准高压针阀可以在 0°F (-17.8°C) 至 450°F (232°C) 和 230°F (110°C) 的温度范围内使用尼龙皮革填料。这些高压针阀在螺纹下方具有可调节填料，以防止介质接触动力螺纹，并避免在驱动过程中引起磨损。
这些阀具有许多特点，可在各种应用中提供可靠且无故障的服务。
Parker Autoclave Needle Valve, High Presssure - VM Series 100,000 PSI
市场：
- 石油和天然气
- 石化
特性/优势：
- 管道尺寸为 1/4“ 至 9/16”。
- 非旋转阀杆可防止阀杆/阀座磨损。
- 上升杆/棒材主体设计。
- 金属对金属阀座可实现气密关闭、更长的阀杆/阀座在磨料流中的使用寿命、更高的重复开/关循环的耐用性和出色的耐腐蚀性。
- 为了可靠的阀杆和阀体密封，阀门配有聚四氟乙烯封装填料。
- 选择了阀杆套筒和填料压盖材料以延长螺纹循环寿命并降低手柄扭矩。
- 可选择V 形或调节阀杆尖端。
- 三种车身模式的选择
应用：
- 高压滑板
- 高压流体处理系统
- 研究系统
Parker Autoclave's 100VM Series needle valves are a non-rotating rising stem design, with working pressures to 100,000 psi (6895 bar) with ?” to 9/16” ” end connections. These valves are available in 316 Stainless Steel and two body patterns.
Parker Autoclave's 100VM Series needle valves are a non-rotating rising stem design, working pressures to 100,000 psi (6895 bar). The tubing sizes range from ?” to 9/16”. Tubing connections utilize the Parker Autoclave cone and thread design. Standard high pressure needle valves with PTFE packing may be operated from 0°F (-17.8°C) to 450°F (232°C) and to 230°F (110°C) with nylon-leather packing. These high pressure needle valves have adjustable packing below the threads to eliminate the media from contacting the power threads, and causing galling during actuation
Along with their many features these valves provide dependable and trouble free service in wide variety of applications.
Markets:
- Oil and Gas
- Petrochemical
Features/Benefits:
- Tubing sizes are 1/4 “ to 9/16”.
- Non-rotating stem prevents stem/seat galling.
- Rising stem/barstock body design.
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- For dependable stem and body sealing , valves are furnished with PTFE encapsulated packing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Choice of three body patterns
Applications:
- High Pressure Skid Panels
- High Pressure Fluid Handling Systems
- Research Systems
Technical Specifications
| Maximum Operating Pressure: |
2068, 2760, 4137, 6895 bar |
| Tube Outside Diameter: |
1/4, 3/8, 9/16, 5/16 , 3/8 inch |
| Connection Type: |
F250C , F375C, F562C , F250C, F375C , F562C, F562C40, F312C150 |
| Bore Diameter: |
0.094, 0.125, 0.094 , 0.109, 0.062, 0.078 inch, 2.39 , 3.18 , 2.77 , 1.57 , 1.98 mm |
Needle Valve, High Presssure - VM Series 100,000 PSI 型号
Part |
Maximum Working Pressure (psi) |
Tube O.D. (mm) |
Stem Type |
Valve Type |
| 100VM4071 |
100,000 |
6.35 mm |
VEE |
2-Way Straight |
| 100VM4072 |
100,000 |
6.35 mm |
VEE |
2-Way Angle |
| 100VM4073 |
100,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
| 100VM4872 |
100,000 |
6.35 mm |
VEE |
2-Way Angle / Replacement Seat |
| 100VM5071 |
100,000 |
7.93 mm |
VEE |
2-Way Straight |
| 100VM5072 |
100,000 |
7.93 mm |
VEE |
2-Way Angle |
| 100VM5073 |
100,000 |
7.93 mm |
VEE |
3-Way / 2 on Pressure |
| 100VM5872 |
100,000 |
7.93 mm |
VEE |
2-Way Angle / Replacement Seat |
| 100VM6071 |
100,000 |
9.53 mm |
VEE |
2-Way Straight |
| 100VM6072 |
100,000 |
9.53 mm |
VEE |
2-Way Angle |
| 100VM6073 |
100,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
| 100VM6872 |
100,000 |
9.53 mm |
VEE |
2-Way Angle / Replacement Seat |
| 30VM4071 |
30,000 |
6.35 mm |
VEE |
2-Way Straight |
| 30VM4072 |
30,000 |
6.35 mm |
VEE |
2-Way Angle |
| 30VM4073 |
30,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
| 30VM4074 |
30,000 |
6.35 mm |
VEE |
3-Way / 1 on Pressure |
| 30VM4075 |
30,000 |
6.35 mm |
VEE |
3-Way / 2-Stem Manifold |
| 30VM4081 |
30,000 |
6.35 mm |
REG |
2-Way Straight |
| 30VM4082 |
30,000 |
6.35 mm |
REG |
2-Way Angle |
| 30VM4083 |
30,000 |
6.35 mm |
REG |
3-Way / 2 on Pressure |
| 30VM4084 |
30,000 |
6.35 mm |
REG |
3-Way / 1 on Pressure |
| 30VM4085 |
30,000 |
6.35 mm |
REG |
3-Way / 2-Stem Manifold |
| 30VM4872 |
30,000 |
6.35 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 30VM4882 |
30,000 |
6.35 mm |
REG |
2-Way Angle / Replaceable Seat |
| 30VM6071 |
30,000 |
9.53 mm |
VEE |
2-Way Straight |
| 30VM6072 |
30,000 |
9.53 mm |
VEE |
2-Way Angle |
| 30VM6073 |
30,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
| 30VM6074 |
30,000 |
9.53 mm |
VEE |
3-Way / 1 on Pressure |
| 30VM6075 |
30,000 |
9.53 mm |
VEE |
3-Way / 2-Stem Manifold |
| 30VM6081 |
30,000 |
9.53 mm |
REG |
2-Way Straight |
| 30VM6082 |
30,000 |
9.53 mm |
REG |
2-Way Angle |
| 30VM6083 |
30,000 |
9.53 mm |
REG |
3-Way / 2 on Pressure |
| 30VM6084 |
30,000 |
9.53 mm |
REG |
3-Way / 1 on Pressure |
| 30VM6085 |
30,000 |
9.53 mm |
REG |
3-Way / 2-Stem Manifold |
| 30VM6872 |
30,000 |
9.53 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 30VM6882 |
30,000 |
9.53 mm |
REG |
2-Way Angle / Replaceable Seat |
| 30VM9071 |
30,000 |
14.29 mm |
VEE |
2-Way Straight |
| 30VM9072 |
30,000 |
14.29 mm |
VEE |
2-Way Angle |
| 30VM9073 |
30,000 |
14.29 mm |
VEE |
3-Way / 2 on Pressure |
| 30VM9074 |
30,000 |
14.29 mm |
VEE |
3-Way / 1 on Pressure |
| 30VM9075 |
30,000 |
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
| 30VM9081 |
30,000 |
14.29 mm |
REG |
2-Way Straight |
| 30VM9082 |
30,000 |
14.29 mm |
REG |
2-Way Angle |
| 30VM9083 |
30,000 |
14.29 mm |
REG |
3-Way / 2 on Pressure |
| 30VM9084 |
30,000 |
14.29 mm |
REG |
3-Way / 1 on Pressure |
| 30VM9085 |
30,000 |
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
| 30VM9872 |
30,000 |
14.29 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 30VM9882 |
30,000 |
14.29 mm |
REG |
2-Way Angle / Replaceable Seat |
| 40VM9071 |
40,000 |
14.29 mm |
VEE |
2-Way Straight |
| 40VM9072 |
40,000 |
14.29 mm |
VEE |
2-Way Angle |
| 40VM9075 |
40,000 |
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
| 40VM9081 |
40,000 |
14.29 mm |
REG |
2-Way Straight |
| 40VM9082 |
40,000 |
14.29 mm |
REG |
2-Way Angle |
| 40VM9085 |
40,000 |
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
| 60VM4071 |
60,000 |
6.35 mm |
VEE |
2-Way Straight |
| 60VM4072 |
60,000 |
6.35 mm |
VEE |
2-Way Angle |
| 60VM4073 |
60,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
| 60VM4074 |
60,000 |
6.35 mm |
VEE |
3-Way / 1 on Pressure |
| 60VM4075 |
60,000 |
6.35 mm |
VEE |
3-Way / 2-Stem Manifold |
| 60VM4081 |
60,000 |
6.35 mm |
REG |
2-Way Straight |
| 60VM4082 |
60,000 |
6.35 mm |
REG |
2-Way Angle |
| 60VM4083 |
60,000 |
6.35 mm |
REG |
3-Way / 2 on Pressure |
| 60VM4084 |
60,000 |
6.35 mm |
REG |
3-Way / 1 on Pressure |
| 60VM4085 |
60,000 |
6.35 mm |
REG |
3-Way / 2-Stem Manifold |
| 60VM4872 |
60,000 |
6.35 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 60VM4882 |
60,000 |
6.35 mm |
REG |
2-Way Angle / Replaceable Seat |
| 60VM6071 |
60,000 |
9.53 mm |
VEE |
2-Way Straight |
| 60VM6072 |
60,000 |
9.53 mm |
VEE |
2-Way Angle |
| 60VM6073 |
60,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
| 60VM6074 |
60,000 |
9.53 mm |
VEE |
3-Way / 1 on Pressure |
| 60VM6075 |
60,000 |
9.53 mm |
VEE |
3-Way / 2-Stem Manifold |
| 60VM6081 |
60,000 |
9.53 mm |
REG |
2-Way Straight |
| 60VM6082 |
60,000 |
9.53 mm |
REG |
2-Way Angle |
| 60VM6083 |
60,000 |
9.53 mm |
REG |
3-Way / 2 on Pressure |
| 60VM6084 |
60,000 |
9.53 mm |
REG |
3-Way / 1 on Pressure |
| 60VM6085 |
60,000 |
9.53 mm |
REG |
3-Way / 2-Stem Manifold |
| 60VM6872 |
60,000 |
9.53 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 60VM6882 |
60,000 |
9.53 mm |
REG |
2-Way Angle / Replaceable Seat |
| 60VM9071 |
60,000 |
14.29 mm |
VEE |
2-Way Straight |
| 60VM9072 |
60,000 |
14.29 mm |
VEE |
2-Way Angle |
| 60VM9073 |
60,000 |
14.29 mm |
VEE |
3-Way / 2 on Pressure |
| 60VM9074 |
60,000 |
14.29 mm |
VEE |
3-Way / 1 on Pressure |
| 60VM9075 |
60,000 |
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
| 60VM9081 |
60,000 |
14.29 mm |
REG |
2-Way Straight |
| 60VM9082 |
60,000 |
14.29 mm |
REG |
2-Way Angle |
| 60VM9083 |
60,000 |
14.29 mm |
REG |
3-Way / 2 on Pressure |
| 60VM9084 |
60,000 |
14.29 mm |
REG |
3-Way / 1 on Pressure |
| 60VM9085 |
60,000 |
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
| 60VM9872 |
60,000 |
14.29 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 60VM9882 |
60,000 |
14.29 mm |
REG |
2-Way Angle / Replaceable Seat |
|
