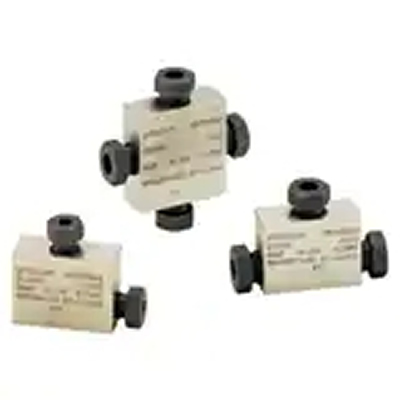

Parker Autoclave's Mini Series cone and thread compression fitting
Parker Fittings接头 Tube Fittings
Cone and Thread Fittings, Mini Series - 15,000 PSI

锥形和螺纹接头，迷你系列 - 15,000 PSI | #MCE2200
派克 Autoclave 的 Mini 系列锥螺纹压缩接头系列设计用于 1/16" 至 1/8" 管道，额定压力为 15,000 psi (1034 bar)。派克 Autoclave 的 Mini 系列采用经过验证的 Speed Bite 连接。这种紧凑的机身设计、单套圈压缩套筒连接可在液体或气体应用中提供快速、简便的组装和可靠的气密性能。Parker Autoclave 的低压接头用作化学/石化、研究和石油和天然气行业的流体处理部件。

Parker Autoclave's Mini Series cone and thread compression fitting line is designed for use with 1/16" to 1/8" tubing and rated to 15,000 psi (1034 bar). Parker Autoclave's Mini Series utilizes the proven Speed Bite connection. This compact body design, single-ferrule compression sleeve connection delivers fast, easy make-up and reliable bubble-tight performance, in liquid or gas service. Parker Autoclave's low pressure fittings are used as fluid handling components for the chemical/petrochemical, research, and oil and gas industries.

市场：
- 化工
- 石化
- 石油和天然气

特点/优点：
- 单套圈压缩套筒
- 快速轻松地组装连接
- 管尺寸为 1/16” 和 1/8"
- 管件由冷加工制成316 不锈钢
- 二硫化钼涂层压盖螺母以防止磨损
- 工作温度范围为 0°F (-17.8°C) 至 650°F (343°C)

应用：
- 紧凑型系统
- 流体处理系统
- 滑板制造商
- 测试面板

Markets:
- Chemical
- Petro-Chemical
- Oil and Gas

Features/Benefits:
- Single-ferrule compression sleeve
- Fast easy make-up of connection
- Tubing sizes are 1/16”,and 1/8"
- Fittings manufactured from cold worked 316 stainless steel
- Molybdenum disulfide-coated gland nuts to prevent galling
- Operating temperatures from 0°F (-17.8°C ) to 650°F (343°C)

Applications:
- Compact Systems
- Fluid handling Systems
- Skid Panel Fabricators
- Testing Panels

Technical Specifications

Cone and Thread Fittings, Mini Series - 15,000 PSI 型号
