Parker 针阀 Parker Needle Valves

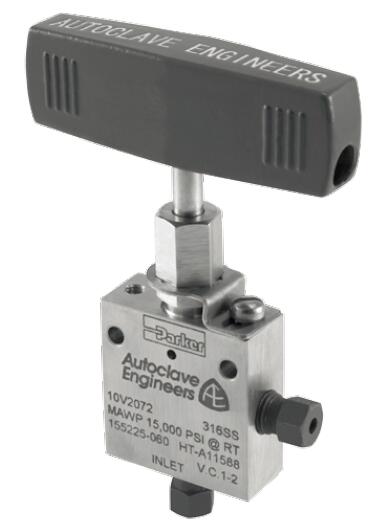

Needle Valves, 10V Series - 15,000 PSI

10V 系列针阀 - 15,000 PSI | #10V2071

Parker Autoclave 10V 系列针阀采用非旋转上升杆设计，工作压力高达 15,000 psi (1034 bar)。这些阀门采用 316 不锈钢材质，并采用经过验证的 Speed Bite 单套圈连接。派克 Autoclave 的 10V 系列针阀采用非旋转升降杆设计，工作压力高达 15,000 psi (1034 bar)。管道尺寸范围从 1/8"" 到 1/2""。管道连接采用 Parker Autoclave Engineers Speed Bite 单套圈设计。工作温度范围为 0°F 至 650°F（-17.8°C 至 343°C）。316 不锈钢结构，可提供其他选项。除了它们的许多功能外，这些阀门还可以在各种应用中提供可靠且无故障的服务。

Needle Valves, 10V Series - 15,000 PSI

市场：
- 石油和天然气
- 石化
- 化工
- 电源

特性/优点：
- 10V 系列阀门设计为 1/4” 至 1/2” 管尺寸提供直列管连接。
- 管道尺寸从 1/8” 到 1/2”。
- 上升杆/棒材主体设计。
- 非旋转阀杆可防止阀杆/阀座磨损。
- 金属对金属阀座可实现气密关闭、更长的阀杆/阀座在磨料流中的使用寿命、更高的重复开/关循环的耐用性和出色的耐腐蚀性。
- PTFE 封装填料提供可靠的阀杆和阀体密封。
- 选择了阀杆套筒和填料压盖材料以延长螺纹循环寿命并降低手柄扭矩。
- 可选择V 形或调节阀杆尖端。
- 有五种体型可供选择。

应用：
- 测试面板
- 中压滑板
- 化学品注入
- 中压流体处理系统
- 研究系统

Parker Autoclave's 10 V Series needle valves are a non-rotating rising stem design, with working pressures to 15,000 psi (1034 bar). These valves are available in 316 Stainless Steel and utilize the proven Speed Bite single ferrule connection.

Parker Autoclave's 10V Series needle valves are a non-rotating rising stem design, working pressures to 15,000 psi (1034 bar). Tubing sizes range from 1/8"" to 1/2"". Tubing connections utilizes Parker Autoclave Engineers Speed Bite single ferrule design. Operating temperatures from 0°F to 650°F (-17.8°C to 343°C). 316 stainless steel construction, other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.

Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Power


Features/Benefits:
- 10V Series valve design provides in-line tube connections for 1/4” to 1/2” tube sizes.
- Tubing sizes from 1/8” to 1/2”.
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling.
- Metal-to-metal seating achieves bubble-tight shutoff, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Available in five body patterns.


Applications:
- Test Panels
- Medium Pressure Skid Panels
- Chemical Injection
- Medium Pressure Fluid Handling Systems
- Research Systems

Technical Specifications

Needle Valves, 10V Series - 15,000 PSI 型号
