Parker Autoclave's MVE/MV Mini Needle Valves 微型针阀，MVE/MV 系列 - `15,000 PSI | #MV1001

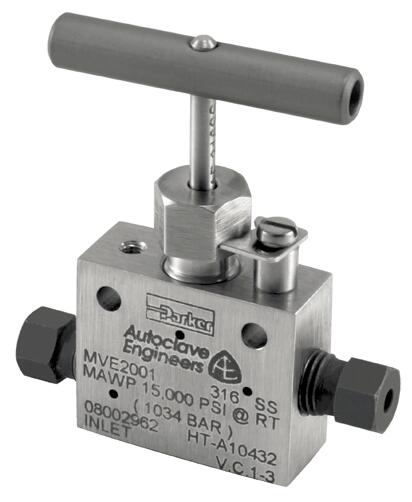

Parker Autoclave's MVE/MV Mini Needle Valves
Parker 针阀 Parker Needle Valves
Mini Needle Valves, MVE/MV Series - 15,000 PSI

专为 15,000 PSI 设计的微型针阀. Parker Autoclave 的 MVE/MV 迷你针阀系列针阀设计紧凑，工作压力高达 15,000 psi (1034 bar)。管道尺寸范围从 1/16"" 到 1/8""。管道连接采用 Parker Autoclave Engineers Speed Bite 单套圈设计。工作温度为 0°F 至 450°F（-17.8°C 至 232°C）。316 不锈钢结构，可提供其他选项。除了它们的许多功能外，这些阀门还可以在各种应用中提供可靠且无故障的服务。

Mini Needle Valves, MVE/MV Series - 15,000 PSI

市场：
- 石油和天然气
- 石化
- 化工
- 动力

特性/优势：
- 管道尺寸从 1/16” 到 1/8”。
- 紧凑的棒料机身设计。
- 金属对金属阀座可实现气密关闭、更长的阀杆/阀座在磨料流中的使用寿命、更高的重复开/关循环的耐用性和出色的耐腐蚀性。
- 螺纹下方的可调填料提供可靠的密封。
- 可选择V 形或调节阀杆尖端。
- 有五种体型可供选择。

应用：
- 测试面板
- 中压滑板
- 中压流体处理系统
- 研究系统

Parker Autoclave's MVE/MV Mini Needle Valves are designed for laboratory applications and built for safe reliable operation up to 15,000 psi (1,034 bar). Parker Autoclave's MVE/MV Mini Needle Valve Series needle valves are compact design with working pressures to 15,000 psi (1034 bar). Tubing sizes range from 1/16"" to 1/8"". Tubing connections utilizes Parker Autoclave Engineers Speed Bite single ferrule design. Operating temperatures are from 0°F to 450°F (-17.8°C to 232°C). 316 stainless steel construction, other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.

Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Power


Features/Benefits:
- Tubing sizes from 1/16” to 1/8”.
- Compact barstock body design.
- Metal-to-metal seating achieves bubble-tight shutoff, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- Adjustable packing below threads provides dependable sealing.
- Choice of Vee or Regulating stem tips.
- Available in five body patterns.


Applications:
- Test Panels
- Medium Pressure Skid Panels
- Medium Pressure Fluid Handling Systems
- Research Systems

Technical Specifications

Mini Needle Valves, MVE/MV Series - 15,000 PSI 型号
