Parker Autoclave's P Series needle valves
针阀、管阀 P 系列 - 15,000 PSI | #15P4071
Parker 针阀
Parker Needle Valves
Needle Valve, Pipe Valve P Series - 15,000 PSI
派克 Autoclave 的 P 系列针阀为石油和天然气加工行业的小口径仪表应用提供了多种管道阀。它们的额定压力为 15,000 psi (1034 bar)，管道尺寸从 1/4" 到 1" 不等。派克 Autoclave 的 P 系列管针阀旨在为气体和液体服务提供易于使用的商业连接。这些阀门由完整的配件、管道和附件??系列补充。P 系列阀门设计为 1/4” 至 1” 管道尺寸提供直列管道连接。这些管阀可在高达 15,000 psi (1034 bar) 的压力下工作。工作温度范围为 -423°F 至 400°F（-252°C 至 204°C），标配 316 不锈钢机身。
Needle Valve, Pipe Valve P Series - 15,000 PSI
市场：
- 化工
- 石化
- 研究
- 一般工业
- 结构
特点/优点：
- P 系列阀门设计提供适用于 1/4” 至 1” 管道尺寸的直列管道连接。1/8 连接偏移。
- 上升的把立/杆身设计。
- 非旋转阀杆可防止阀杆/阀座磨损（1/8" NPT 旋转阀杆设计）。
- 金属对金属阀座实现气密关闭，在磨料流中更长的阀杆/阀座寿命，在重复使用时具有更高的耐用性/关闭循环和出色的耐腐蚀性。
- PTFE 封装填料提供可靠的阀杆和阀体密封。
- 阀杆套筒和填料压盖材料已被选择以延长螺纹循环寿命并减少手柄扭矩。
- 选择 V?? 型或调节阀杆尖端。
- 工作温度范围从 -423°F (-252°C) 到 400°F (204°C)。
应用：
- 喷水系统
- 中压流体处理系统
- 喷水
- 研究试验系统
Parker Autoclave's P Series needle valves offer a diverse line of pipe valves for small bore instrumentation applications in the oil and gas processing industry. These are rated to 15,000 psi (1034 bar) with sizes ranging from 1/4" to 1" pipe.
Parker Autoclave's P Series pipe needle valves are designed to provide a commercial easy to use connection for gas and liquid service. These valves are complemented by a complete line of fittings, tubing and accessories. P Series valve design provides in-line pipe connections for 1/4” to 1” pipe sizes. These pipe valves work in pressures up to 15,000 psi (1034 bar). Operating temperatures can go from -423F to 400°F (-252°C to 204°C) with 316 stainless steel body as standard.
Markets:
- Chemical
- Petrochemical
- Research
- General Industry
- Construction
Features/Benefits:
- P Series valve design provides in-line pipe connections for 1/4” to 1” pipe sizes. 1/8 connections offset.
- Rising stem/bar stock body design.
- Non-rotating stem prevents stem/seat galling (1/8" NPT rotating stem design).
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Operating temperature range from -423°F (-252°C) to 400°F (204°C).
Applications:
- Water Jet Systems
- Medium Pressure Fluid Handling Systems
- Water Blasting
- Research Pilot Systems
Technical Specifications
| Maximum Operating Pressure: |
1034, 690 bar |
| Pipe Outside Diameter: |
1/8, 1/4, 3/8, 1/2, 3/4, 1 inch |
| Connection Type: |
Pipe |
| Bore Diameter: |
0.078, 0.203, 0.219, 0.312, 0.438, 0.562 inch |
Needle Valve, Pipe Valve P Series - 15,000 PSI 型号
| Part |
Maximum Working Pressure (psi) |
Pipe O.D. (mm) |
Stem Type |
Valve Type |
Bore Size (mm) |

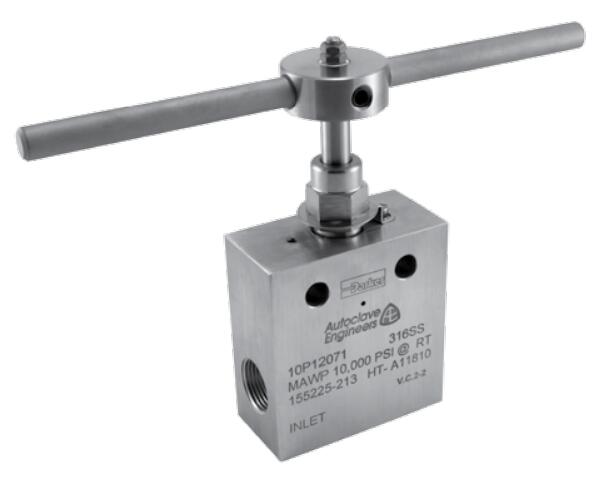

| 10P12071 |
10,000 |
19.05 mm |
2-Way Straight |
VEE |
11.13 mm |
| 10P12072 |
10,000 |
19.05 mm |
2-Way Angle |
VEE |
11.13 mm |
| 10P12073 |
10,000 |
19.05 mm |
3-Way / 2 on Pressure |
VEE |
11.13 mm |
| 10P12074 |
10,000 |
19.05 mm |
3-Way / 1 on Pressure |
VEE |
11.13 mm |
| 10P12075 |
10,000 |
19.05 mm |
3-Way/2-Stem Manifold |
VEE |
11.13 mm |
| 10P12081 |
10,000 |
19.05 mm |
2-Way Straight |
REG |
11.13 mm |
| 10P12082 |
10,000 |
19.05 mm |
2-Way Angle |
REG |
11.13 mm |
| 10P12083 |
10,000 |
19.05 mm |
3-Way / 2 on Pressure |
REG |
11.13 mm |
| 10P12084 |
10,000 |
19.05 mm |
3-Way / 1 on Pressure |
REG |
11.13 mm |
| 10P12085 |
10,000 |
19.05 mm |
3-Way/2-Stem Manifold |
REG |
11.13 mm |
| 10P16071 |
10,000 |
25.4 mm |
2-Way Straight |
VEE |
14.27 mm |
| 10P16072 |
10,000 |
25.4 mm |
2-Way Angle |
VEE |
14.27 mm |
| 10P16073 |
10,000 |
25.4 mm |
3-Way / 2 on Pressure |
VEE |
14.27 mm |
| 10P16074 |
10,000 |
25.4 mm |
3-Way / 1 on Pressure |
VEE |
14.27 mm |
| 10P16075 |
10,000 |
25.4 mm |
3-Way/2-Stem Manifold |
VEE |
14.27 mm |
| 10P16081 |
10,000 |
25.4 mm |
2-Way Straight |
REG |
14.27 mm |
| 10P16082 |
10,000 |
25.4 mm |
2-Way Angle |
REG |
14.27 mm |
| 10P16083 |
10,000 |
25.4 mm |
3-Way / 2 on Pressure |
REG |
14.27 mm |
| 10P16084 |
10,000 |
25.4 mm |
3-Way / 1 on Pressure |
REG |
14.27 mm |
| 10P16085 |
10,000 |
25.4 mm |
3-Way/2-Stem Manifold |
REG |
14.27 mm |
| 15P2001 |
15,000 |
3.18 mm |
2-Way Straight |
VEE |
1.98 mm |
| 15P2002 |
15,000 |
3.18 mm |
2-Way Angle |
VEE |
1.98 mm |
| 15P2011 |
15,000 |
3.18 mm |
2-Way Straight |
REG |
1.98 mm |
| 15P2012 |
15,000 |
3.18 mm |
2-Way Angle |
REG |
1.98 mm |
| 15P4071 |
15,000 |
6.35 mm |
2-Way Straight |
VEE |
5.16 mm |
| 15P4072 |
15,000 |
6.35 mm |
2-Way Angle |
VEE |
5.16 mm |
| 15P4073 |
15,000 |
6.35 mm |
3-Way / 2 on Pressure |
VEE |
5.16 mm |
| 15P4074 |
15,000 |
6.35 mm |
3-Way / 1 on Pressure |
VEE |
5.16 mm |
| 15P4075 |
15,000 |
6.35 mm |
3-Way/2-Stem Manifold |
VEE |
5.16 mm |
| 15P4081 |
15,000 |
6.35 mm |
2-Way Straight |
REG |
5.16 mm |
| 15P4082 |
15,000 |
6.35 mm |
2-Way Angle |
REG |
5.16 mm |
| 15P4083 |
15,000 |
6.35 mm |
3-Way / 2 on Pressure |
REG |
5.16 mm |
| 15P4084 |
15,000 |
6.35 mm |
3-Way / 1 on Pressure |
REG |
5.16 mm |
| 15P4085 |
15,000 |
6.35 mm |
3-Way/2-Stem Manifold |
REG |
5.16 mm |
| 15P6071 |
15,000 |
9.53 mm |
2-Way Straight |
VEE |
5.56 mm |
| 15P6072 |
15,000 |
9.53 mm |
2-Way Angle |
VEE |
5.56 mm |
| 15P6073 |
15,000 |
6.35 mm |
3-Way / 2 on Pressure |
VEE |
5.56 mm |
| 15P6074 |
15,000 |
9.53 mm |
3-Way / 1 on Pressure |
VEE |
5.56 mm |
| 15P6075 |
15,000 |
6.35 mm |
3-Way/2-Stem Manifold |
VEE |
5.56 mm |
| 15P6081 |
15,000 |
9.53 mm |
2-Way Straight |
REG |
5.56 mm |
| 15P6082 |
15,000 |
9.53 mm |
2-Way Angle |
REG |
5.56 mm |
| 15P6083 |
15,000 |
6.35 mm |
3-Way / 2 on Pressure |
REG |
5.56 mm |
| 15P6084 |
15,000 |
9.53 mm |
3-Way / 1 on Pressure |
REG |
5.56 mm |
| 15P6085 |
15,000 |
6.35 mm |
3-Way/2-Stem Manifold |
REG |
5.56 mm |
| 15P8071 |
15,000 |
12.70 mm |
2-Way Straight |
VEE |
7.92 mm |
| 15P8072 |
15,000 |
12.70 mm |
2-Way Angle |
VEE |
7.92 mm |
| 15P8073 |
15,000 |
12.70 mm |
3-Way / 2 on Pressure |
VEE |
7.92 mm |
| 15P8074 |
15,000 |
12.70 mm |
3-Way / 1 on Pressure |
VEE |
7.92 mm |
| 15P8075 |
15,000 |
12.70 mm |
3-Way/2-Stem Manifold |
VEE |
7.92 mm |
| 15P8081 |
15,000 |
12.70 mm |
2-Way Straight |
REG |
7.92 mm |
| 15P8082 |
15,000 |
12.70 mm |
2-Way Angle |
REG |
7.92 mm |
| 15P8083 |
15,000 |
12.70 mm |
3-Way / 2 on Pressure |
REG |
7.92 mm |
| 15P8084 |
15,000 |
12.70 mm |
3-Way / 1 on Pressure |
REG |
7.92 mm |
| 15P8085 |
15,000 |
12.70 mm |
3-Way/2-Stem Manifold |
REG |
7.92 mm |
|
