Parker 派克P 系列中压管件，15,000 PSI - | #15MAP4P4 P 系列中压管件，专为高达 15,000 PSI 的液体和气体应用而设计

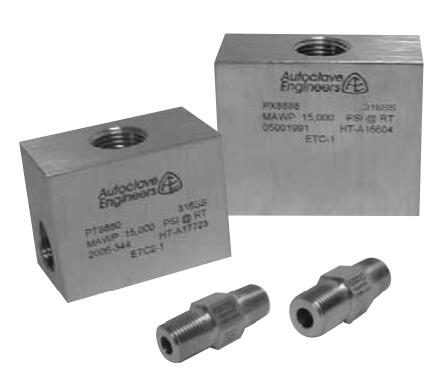

Parker Autoclave's P Series medium pressure pipe fittings
Parker Fittings接头 - Pipe Fittings
Pipe Fitting, 15,000 PSI - P Series

Parker Autoclave Engineers P 系列管件专为液体和气体应用而设计。这些高质量管件的范围从 1/4" 到 1" NPT 到 15,000 psi，温度范围为 400°F (204°C)
对于 NPT（管道）连接，螺纹必须使用高质量的 PTFE 胶带和/或粘贴产品。有关如何使用螺纹密封剂，请参阅螺纹密封剂制造商的说明。密封性能可能因许多因素而异，例如压力、温度、介质、螺纹质量、螺纹材料、正确的螺纹接合和螺纹密封剂的正确使用。客户应限制 NPT 接头的组装和拆卸次数，因为组装过程中的螺纹变形会随着时间的推移导致密封质量下降。仅使用 PTFE 胶带时，请考虑使用螺纹润滑以防止配合零件磨损。

Parker Autoclave's P Series medium pressure pipe fittings Pipe Fitting, 15,000 PSI - P Series

Parker Autoclave's P Series medium pressure pipe fittings, are designed for liquid and gas applications. These high quality pipe fittings are available from 1/4" to 1" NPT to 15,000 PSI and temperatures to 400°F (204°C) .Parker Autoclave Engineers P Series, Pipe Fittings are designed for liquid and gas applications. These high quality pipe fittings are available from 1/4" to 1" NPT to 15,000 psi and temperatures to 400°F (204°C) For the NPT (Pipe) Connections, the threads must be sealed using a high quality PTFE tape and/or paste product. Refer to thread sealant manufacturer's instructions on how to apply thread sealant. Sealing performance may vary based on many factors such as pressure, temperature, media, thread quality, thread material, proper thread engagement and proper use of thread sealant.

Customer should limit the number of times an NPT fitting is assembled and disassembled because thread deformation during assembly will result in deteriorating seal quality over time. When using only PTFE tape, consider using thread lubrication to prevent galling of mating parts.

市场：
- 石油和天然气
- 化工
- 石化

特点：
- 可用尺寸为 1/4"、3/8"、1/2"、3/4" 和 1"
- 由冷加工 316 不锈钢制成的接头和管道。
- 工作温度从 0°F (-17.8°C) 到 400°F (204°C)。

应用：
- 化学注入撬
- 井口控制面板
- 测试面板

Markets:
- Oil and Gas
- Chemical
- Petrochemical

Features:
- Available sizes are 1/4", 3/8", 1/2", 3/4" and 1"
- Fittings and tubing manufactured from cold worked 316 stainless steel.
- Operating Temperatures from 0°F (-17.8°C) to 400°F (204°C).

Applications:
- Chemical Injection Skids
- Wellhead Control Panels
- Testing Panels

Technical Specifications

Pipe Fitting, 15,000 PSI - P Series 型号
