Parker Autoclave's QS Series are a single ferrule style compression sleeve
Parker Autoclave QS系列 15,000 PSI单卡套接头 Parker Fittings接头 - Tube Fittings
Compression Fitting, 15,000 PSI - QS Series

派克Parker AutoclaveQS系列是单卡套接头设计。这些独特的接头能够在各种应用中以15,000 psi（1034 bar）的压力运行，管径范围为1/4“至1”。派克Parker AutoclaveQS系列使用单卡套接头连接。与传统的锥形和螺纹安装相比，这种单套压缩套筒连接方式可以快速，轻松地进行装配，并减少至少50％的安装时间。派克高压灭菌器的QS配件的额定值高达15,000 PSI（1034 BAR）。这些管件具有更大孔口的改进的压缩连接，具有出色的流动能力。使用独特的二硫化钼涂层螺母，安装人员将享受到降低的化妆扭矩。

Parker Autoclave's QS Series are a single ferrule style compression sleeve

Compression Fitting, 15,000 PSI - QS Series

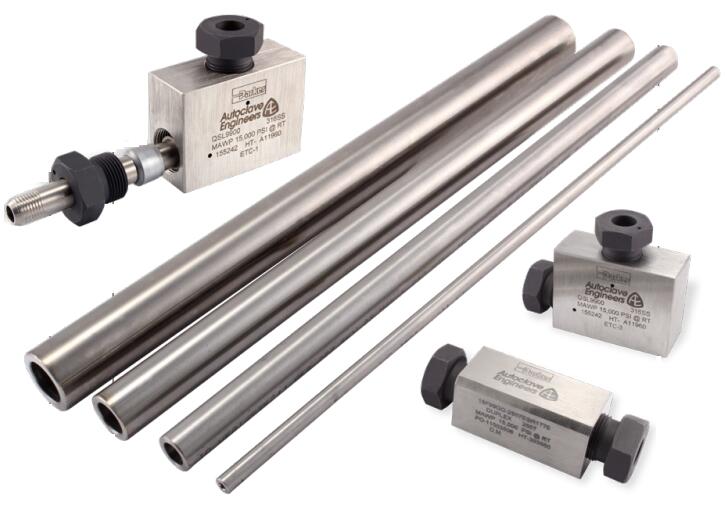

Parker Autoclave's QS Series are a single ferrule style compression sleeve design. These unique fittings are capable of operating in various applications to 15,000 psi (1034 bar) and range in size from 1/4" to 1" tube size. Parker Autoclave's QS Series uses a compressor sleeve connection. This single-ferrule compression sleeve connection delivers fast, easy make-up and reduces installation times by at least 50%, as compared to traditional coned and thread installation. Parker Autoclave's QS fittings are rated up to 15,000 PSI (1034 BAR). These tube fittings feature improved compression connections with larger orifices for excellent flow capabilities. Installers will enjoy the reduced make-up torque with the unique, molybdenum disulfide coated nuts.

市场：
- 石油和天然气
- 石化
- 研究

功能/优点：
- 单插芯压缩套。
- 快速简便的连接构成
- 连接泄油孔，用于安全和检漏
- 管道尺寸为1/4“，3/8”，9/16“，3/4”和1“
- 接头是由冷加工316不锈钢制成的
- 二硫化钼涂层的压盖螺母以防止磨损
- 工作温度低于0°F（-17.8°C）至650°F（343°C）

应用：
- 化学注入面板
- 海底井口控制
- 氮气井管道
- FRAC系统

Markets:
- Oil and Gas
- Petrochemical
- Research


Features/Benefits:
- Single-ferrule compression sleeve.
- Fast easy make-up of connection
- Connection weep holes for safety and leak detection
- Tubing sizes are 1/4", 3/8", 9/16", 3/4", and 1"
- Fittings manufactured from cold worked 316 stainless steel
- Molybdenum disulfide-coated gland nuts to prevent galling
- Operating temperatures from 0°F (-17.8°C ) to 650°F (343°C)

Applications:
- Chemical Injection Panels
- Subsea Wellhead Control
- Nitrogen Well Pipeline
- FRAC systems

Technical Specifications

Compression Fitting, 15,000 PSI - QS Series 型号
